Installation Procedure

Install the battery.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the battery retainer and bolt.
Tighten

Tighten the battery retainer bolt to 17 N.m (13 lb ft).

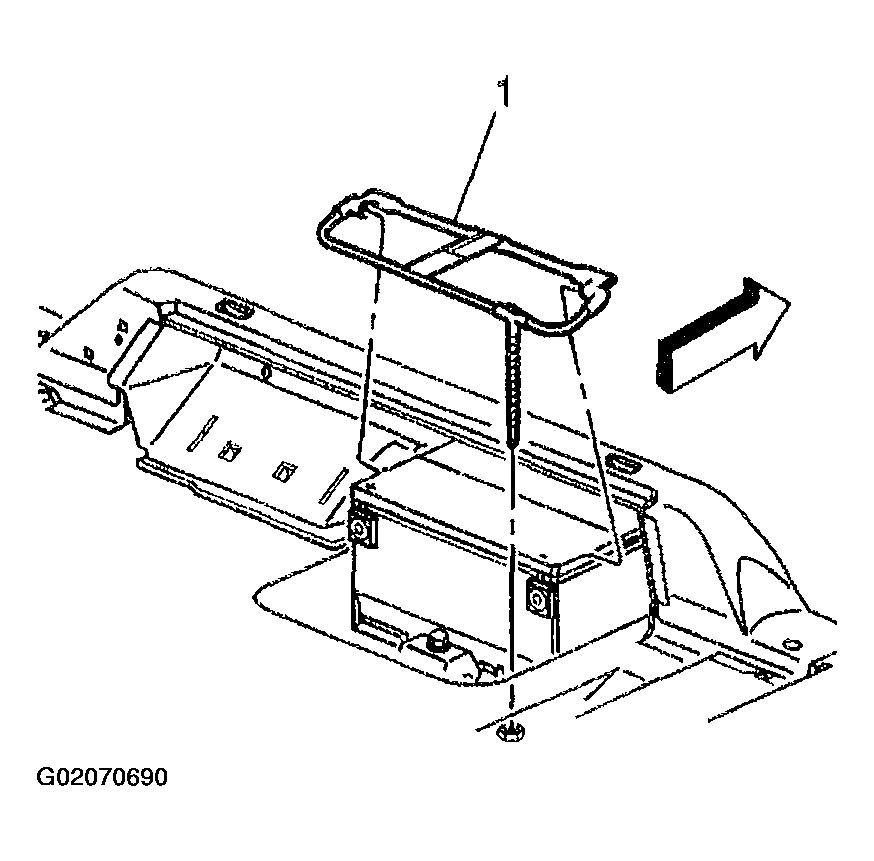

Fig 1: Installing Battery, Battery Retainer & Bolt
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Ensure the vent tube (1) is properly routed through the floor pan grommet.
Install the battery vent tube (1) to the battery.

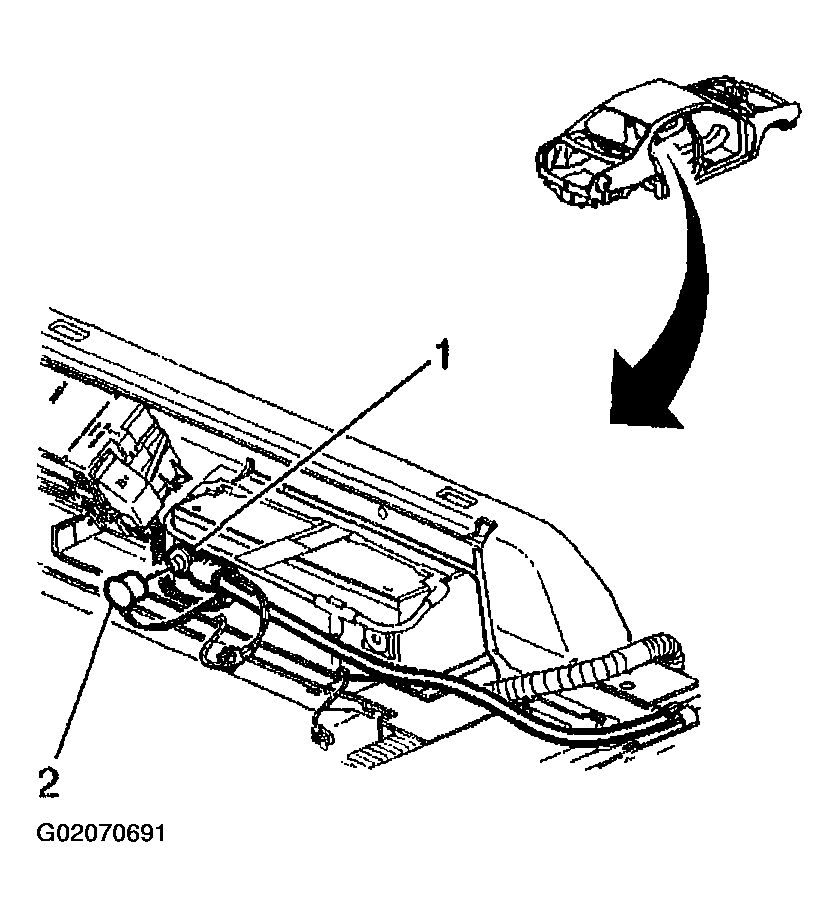

Fig 2: Installing Battery Vent Tube To Battery
Courtesy of GENERAL MOTORS CORP.
Connect the battery positive cable (1) to the battery.
Tighten

Tighten the battery cable bolt to 17 N.m (13 lb ft).

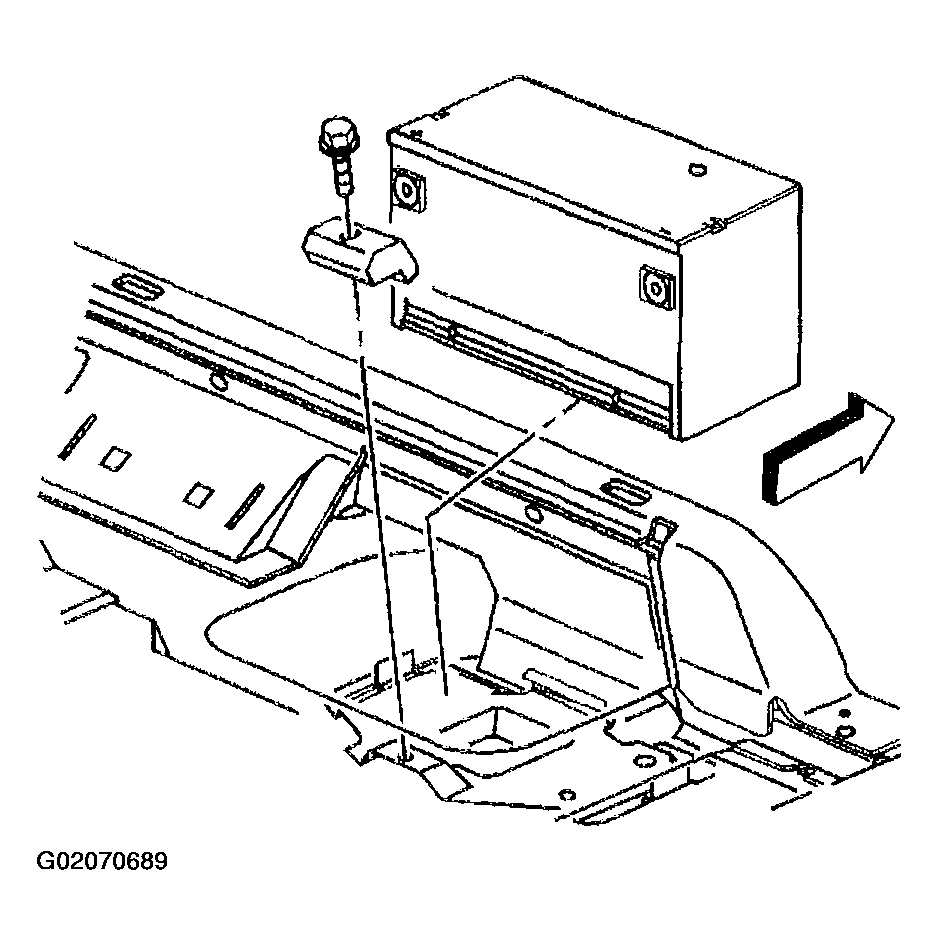

Fig 3: Connecting Battery Positive Cable To Battery
Courtesy of GENERAL MOTORS CORP.
Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
