Right Cylinder Head Camshaft Cover Face Thread Repair Specifications

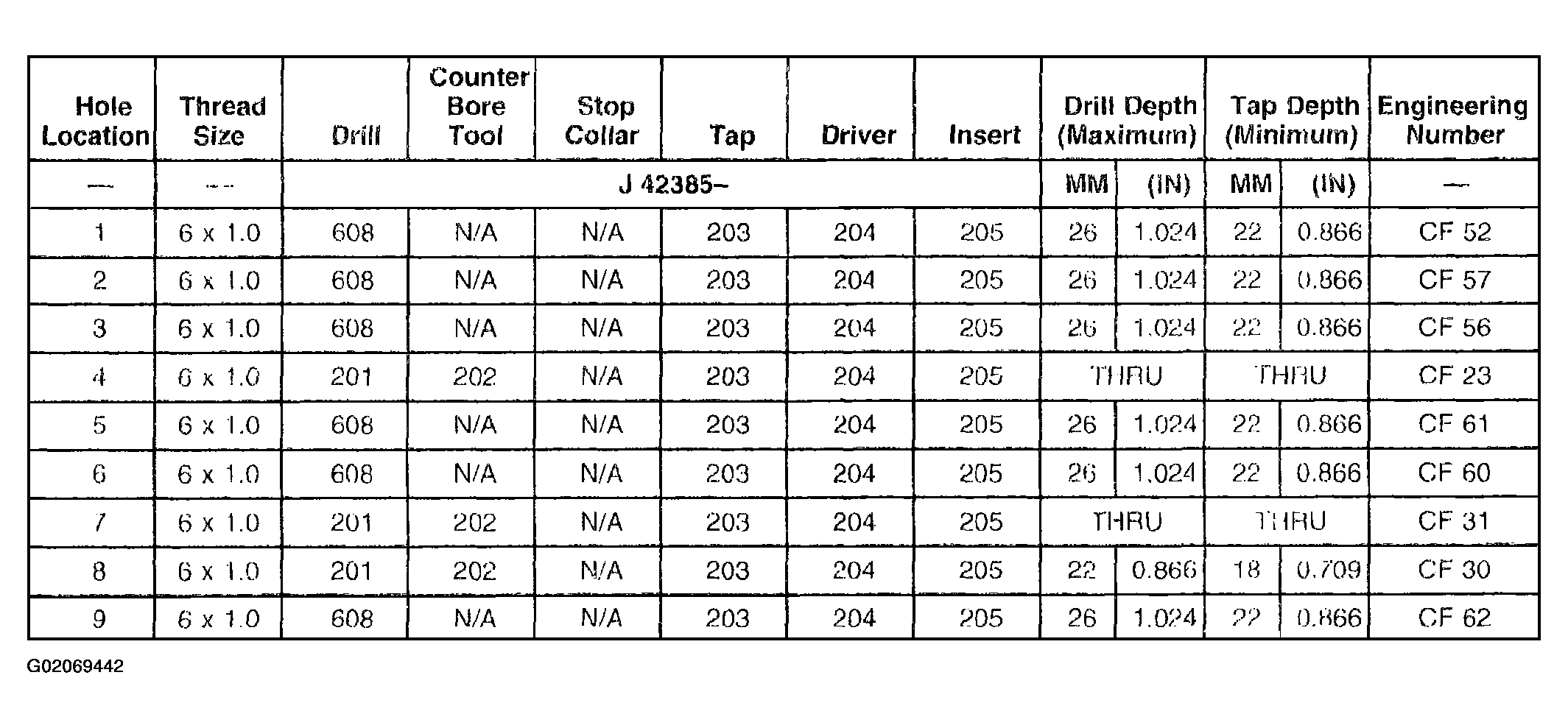

Fig 1: Right Cylinder Head Camshaft Cover Face Thread Repair Specifications (1 Of 2)
G02069442Courtesy of GENERAL MOTORS CORP.

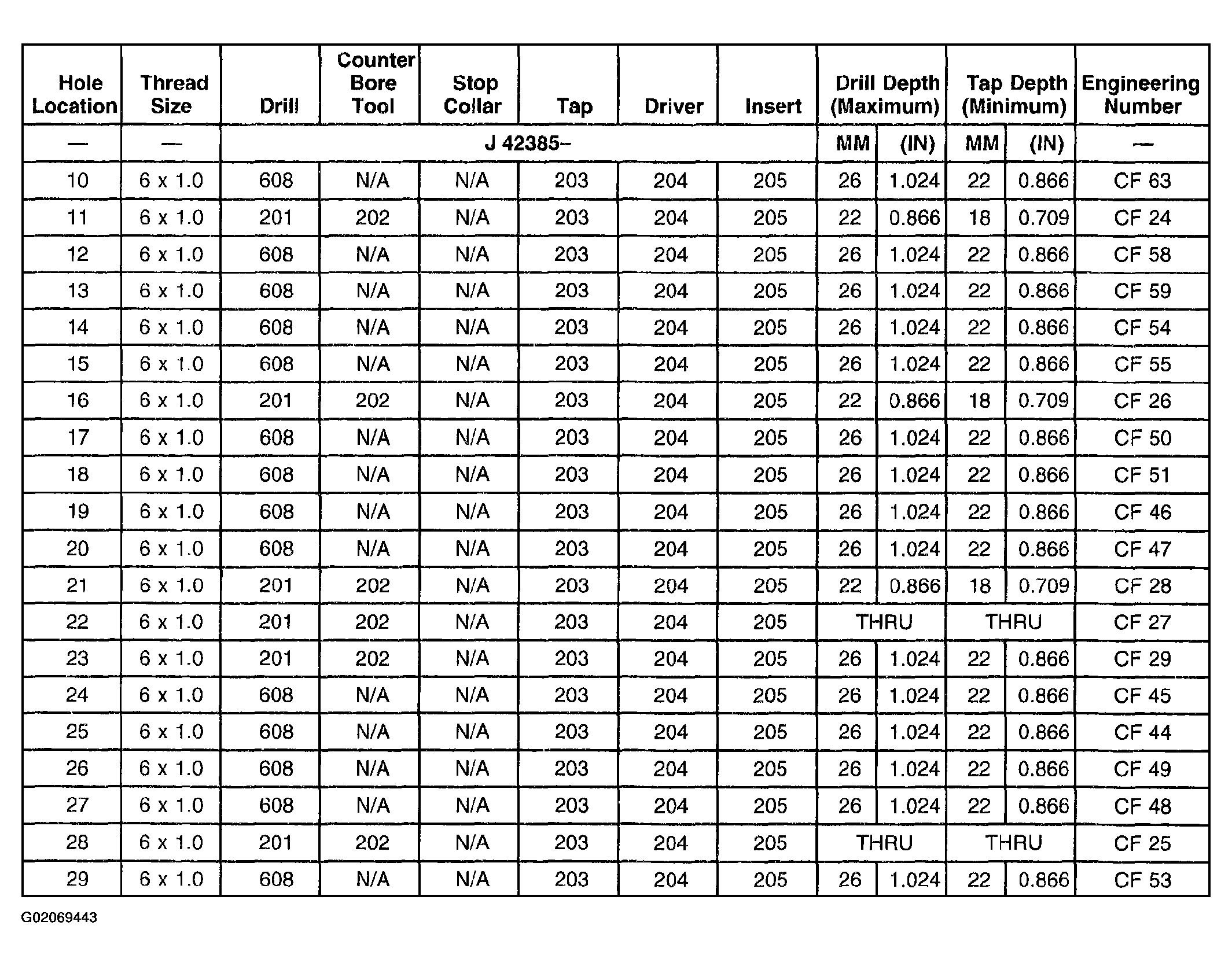

Fig 2: Right Cylinder Head Camshaft Cover Face Thread Repair Specifications (2 Of 2)
G02069443Courtesy of GENERAL MOTORS CORP.
