Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right front fascia extension (2) in order to access the washer solvent container level sensor. Refer to FASCIA EXTENSION REPLACEMENT - FRONT
    Fig 1: Removing Right Front Fascia Extension
    G02100912Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector from the washer solvent level sensor.
  3. Using a flat-bladed tool, gently pry upward on the lower edge of the level sensor between the sensor and grommet.
  4. Remove the washer solvent level sensor from the washer solvent container.
  5. Remove the grommet and discard.

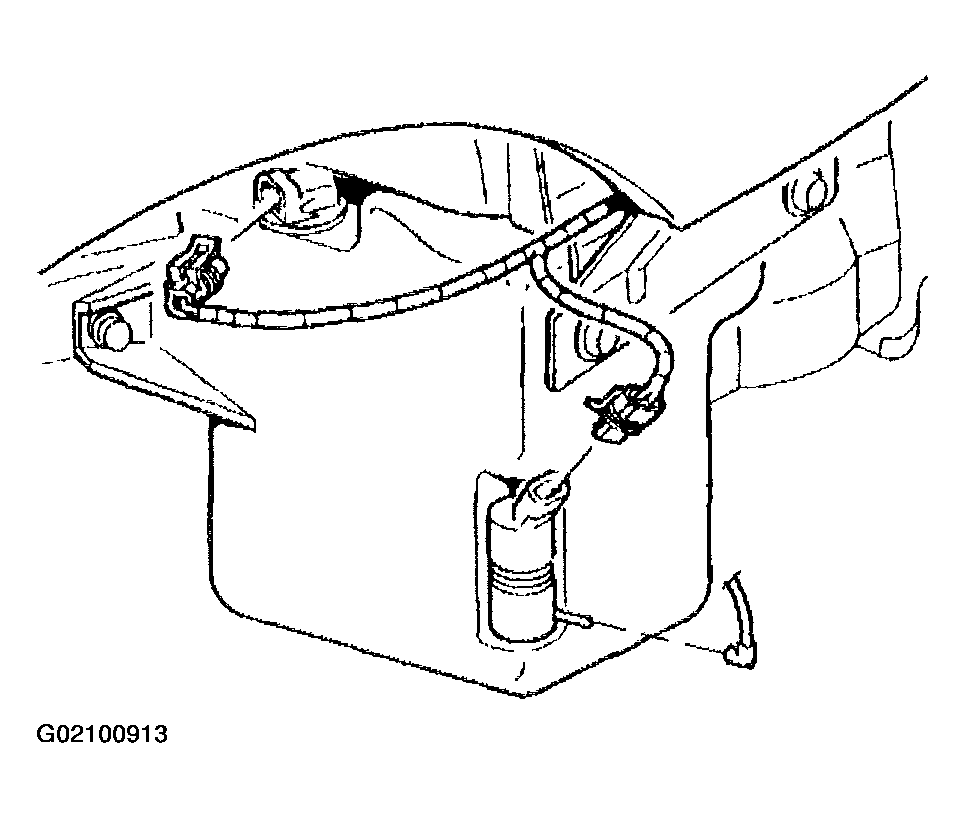

    Fig 2: Removing Washer Solvent Level Sensor From Washer Solvent Container
    G02100913Courtesy of GENERAL MOTORS CORP.
