Dash Integration Module (DIM) C2

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

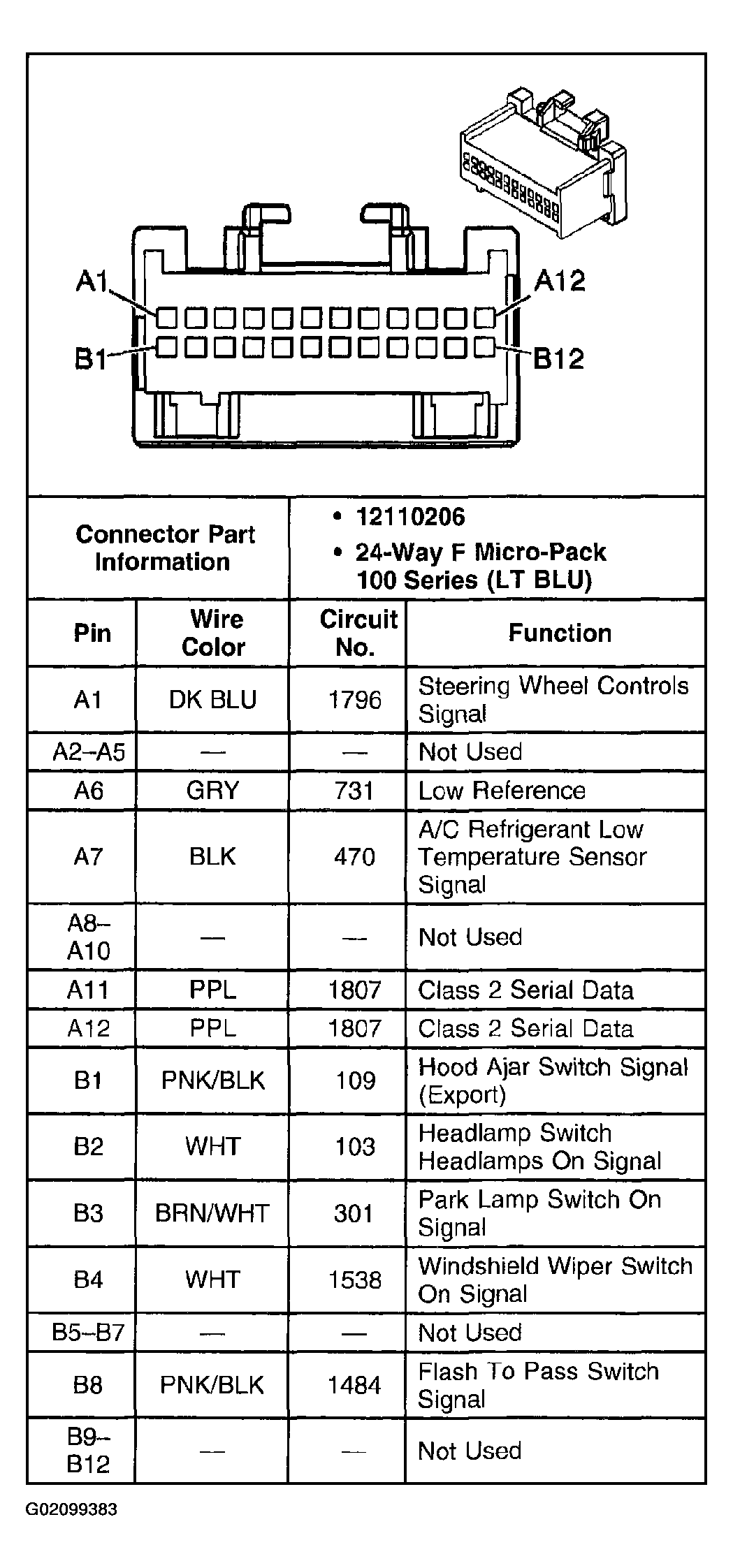

Fig 1: Identifying Dash Integration Module C2 Connector Terminal
G02099383Courtesy of GENERAL MOTORS CORP.
