Instrument Panel Integration Module (IPM) C1

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

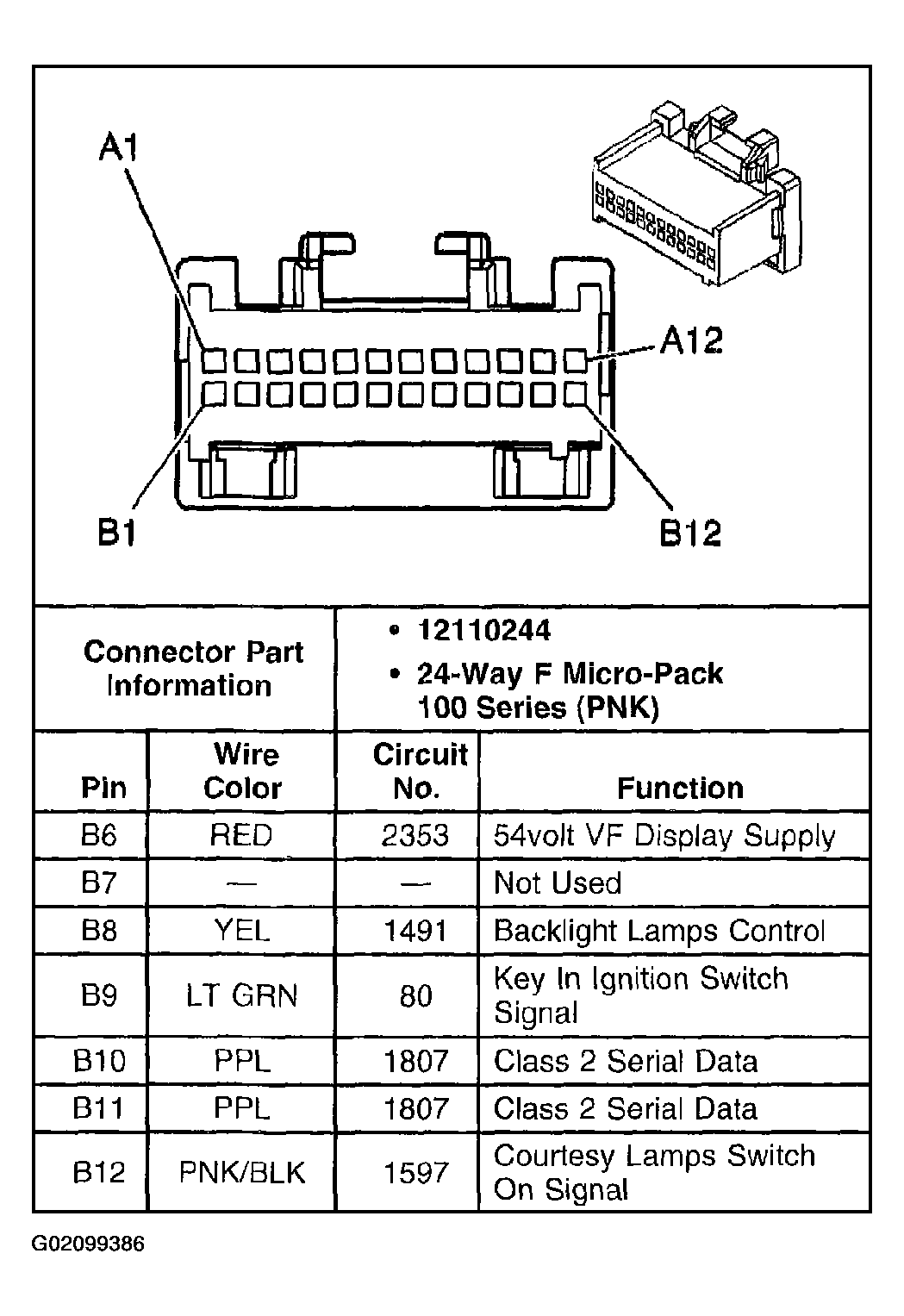

Fig 1: Identifying Instrument Panel Integration Module C1 Connector Terminal (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

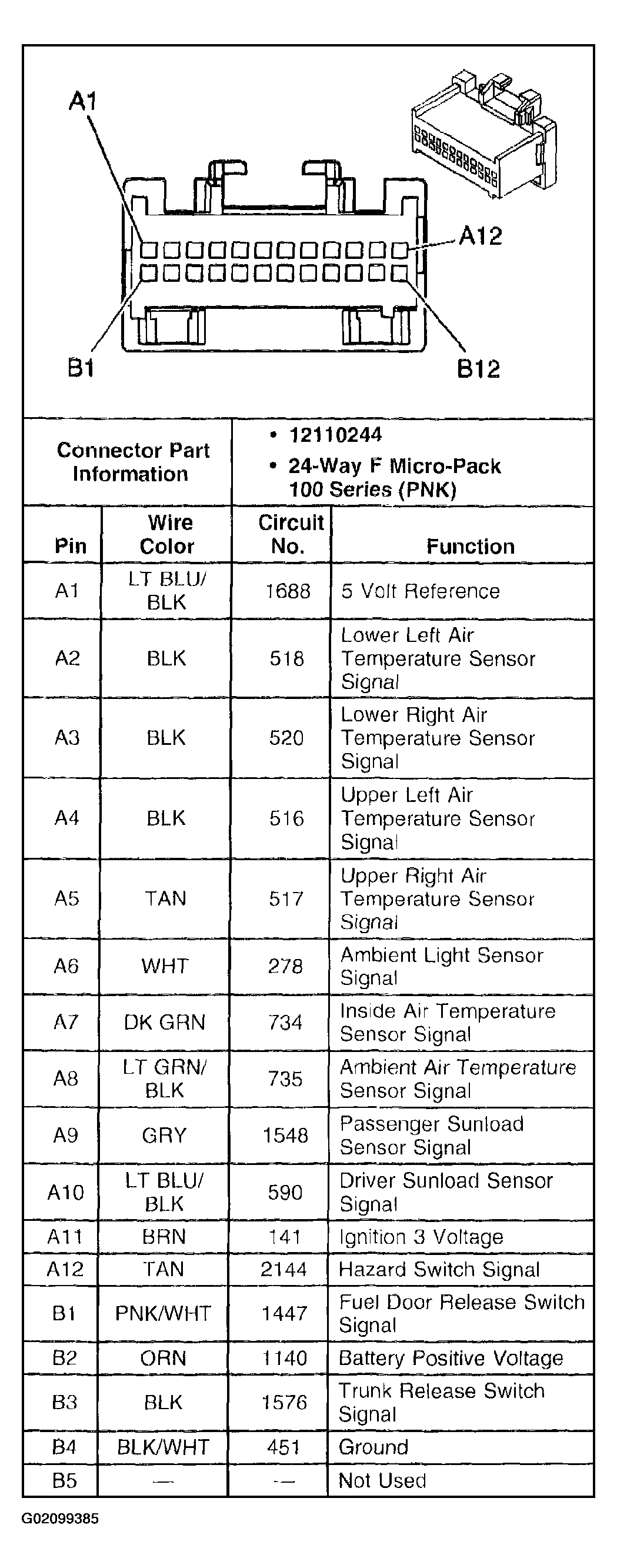

Fig 2: Identifying Instrument Panel Integration Module C1 Connector Terminal (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
