Rear Integration Module (RIM) C1

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

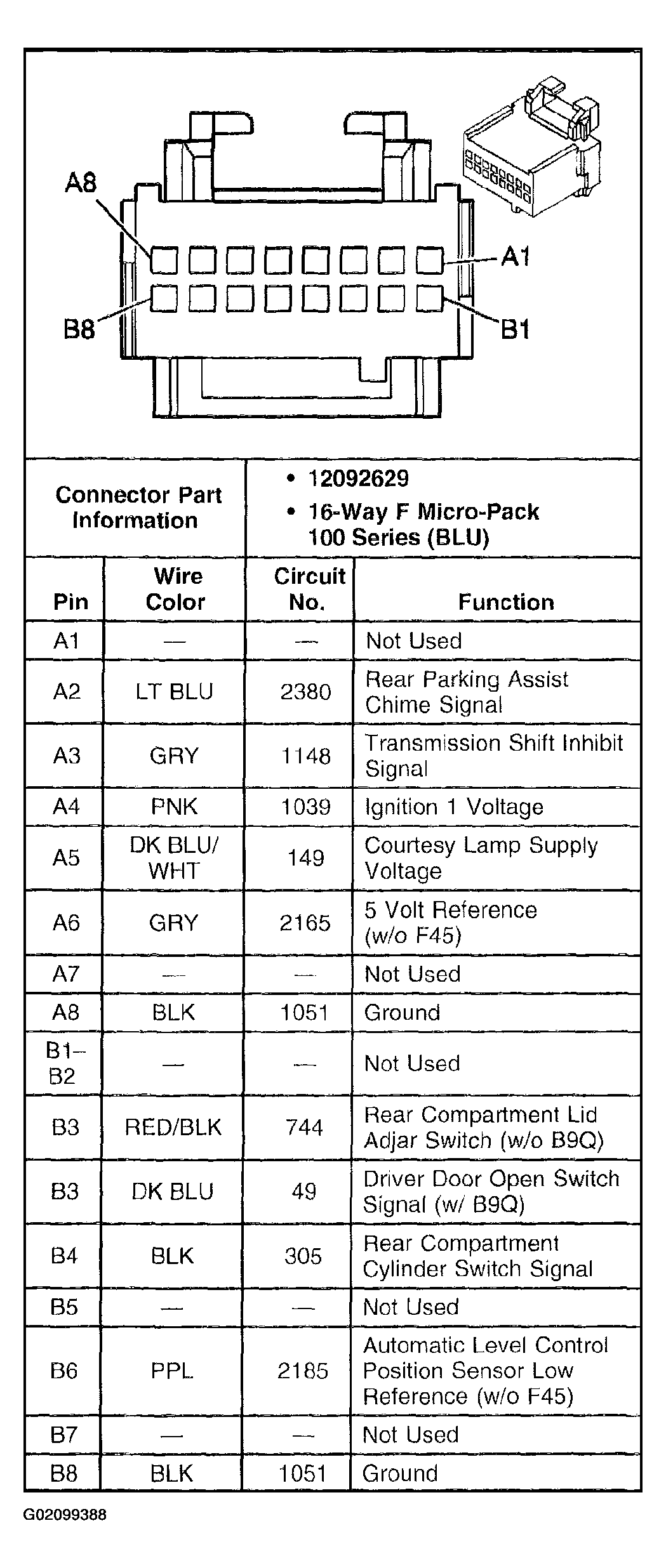

Fig 1: Identifying Rear Integration Module C1 Connector Terminal
G02099388Courtesy of GENERAL MOTORS CORP.
