Lighting Systems Component Views

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

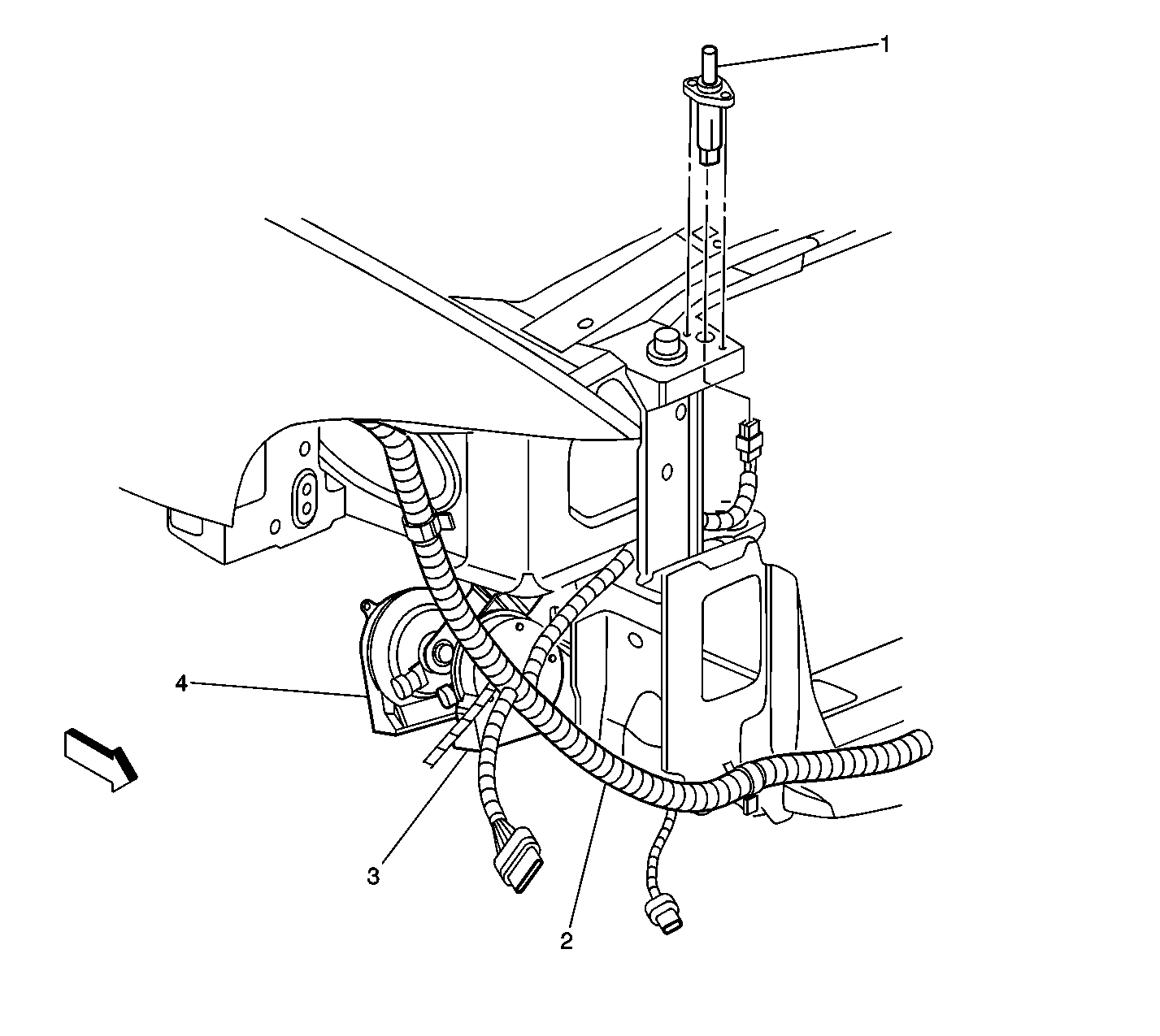

Fig 1: RH Front Corner of Vehicle Component View
GM154362Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Hood Ajar Switch (Export)
2 S114
3 Horn - Note
4 Horn - Note
Fig 2: Passenger Compartment, Below the Center of the I/P Component View
GM154434Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Auxiliary Power Outlet
2 C304
3 C312
4 Blower Motor Resistor Assembly - Auxiliary
5 Cigar Lighter
6 Ashtray Lamp

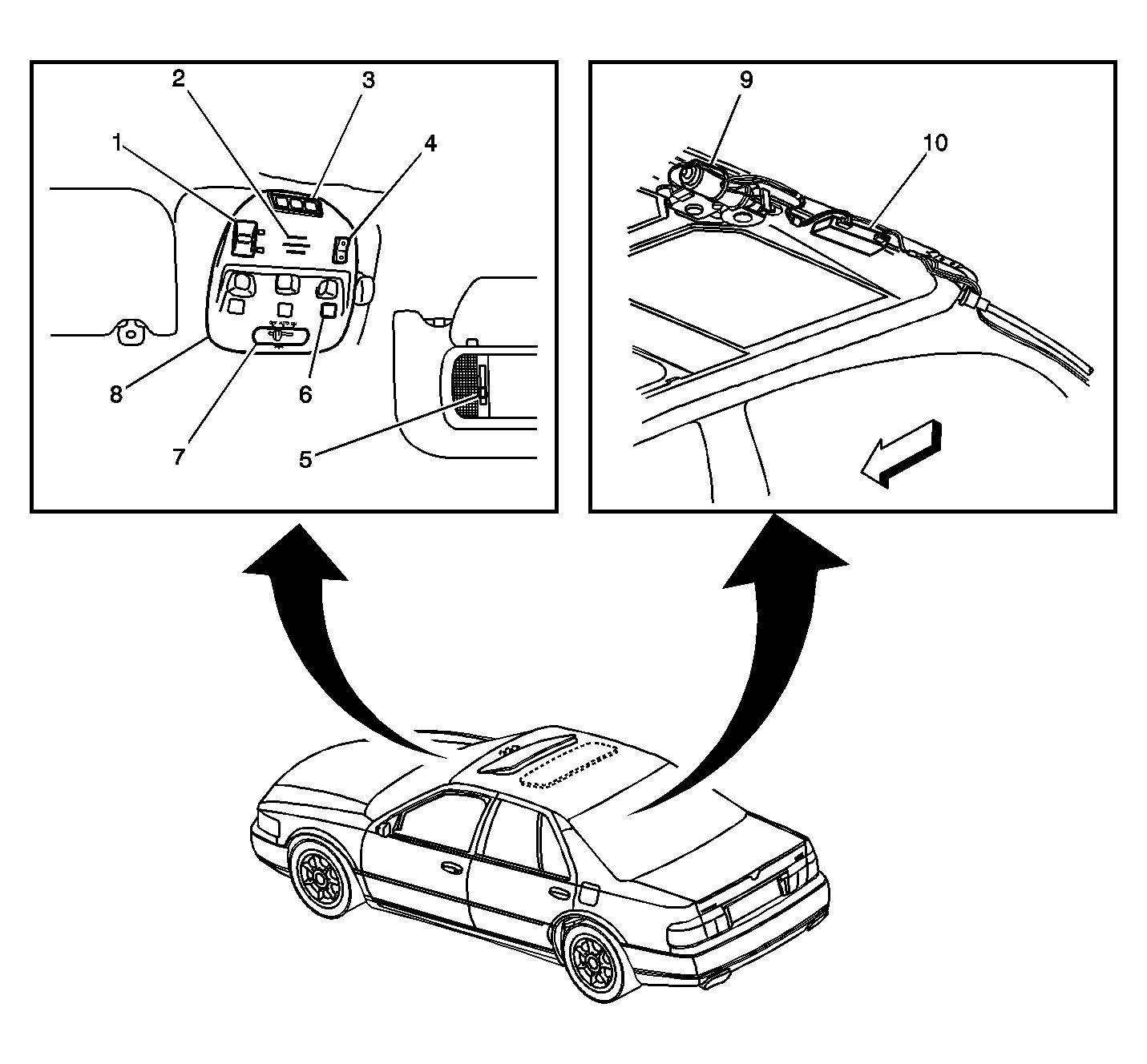

Fig 3: Roof Sub-System Component View
GM784831Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sunroof Open/Close Switch
2 Noise Cancellation Microphone
3 Garage Door Opener
4 Sunroof Vent Switch
5 Vanity Mirror Lamp - Right (Left Similar)
6 Reading Lamp Switch
7 Courtesy Lamps Switch
8 Overhead Console
9 Sunroof Motor Assembly
10 Sunroof Module

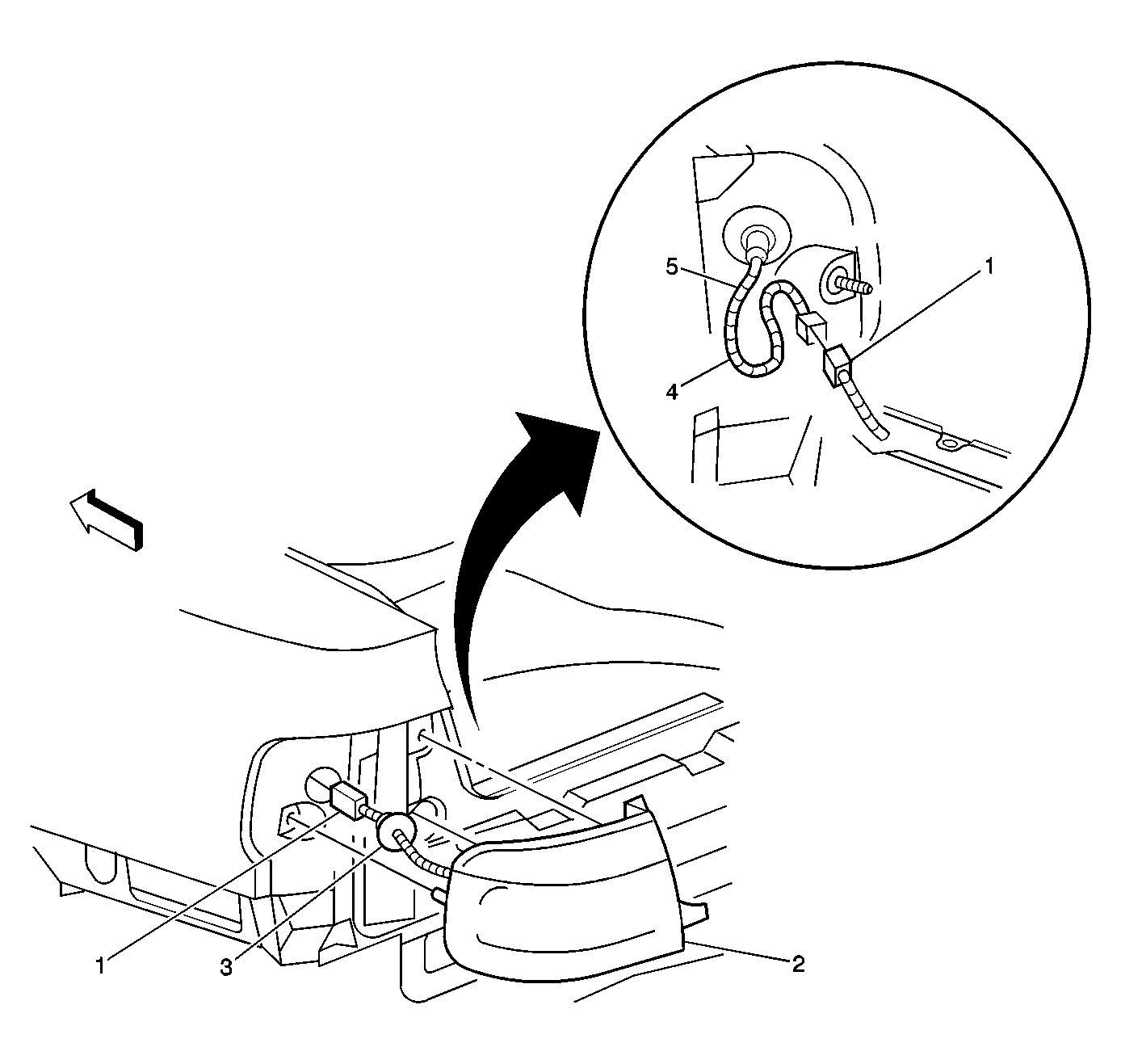

Fig 4: Rear Compartment, Left Rear Corner Component View
GM154465Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C400 (C403 Right Similar)
2 Tail Lamp - Left (Right Similar)
3 P402 (P403 Similar)
4 S402 (S403 Right Similar)
5 S412 (S409 Right Similar)

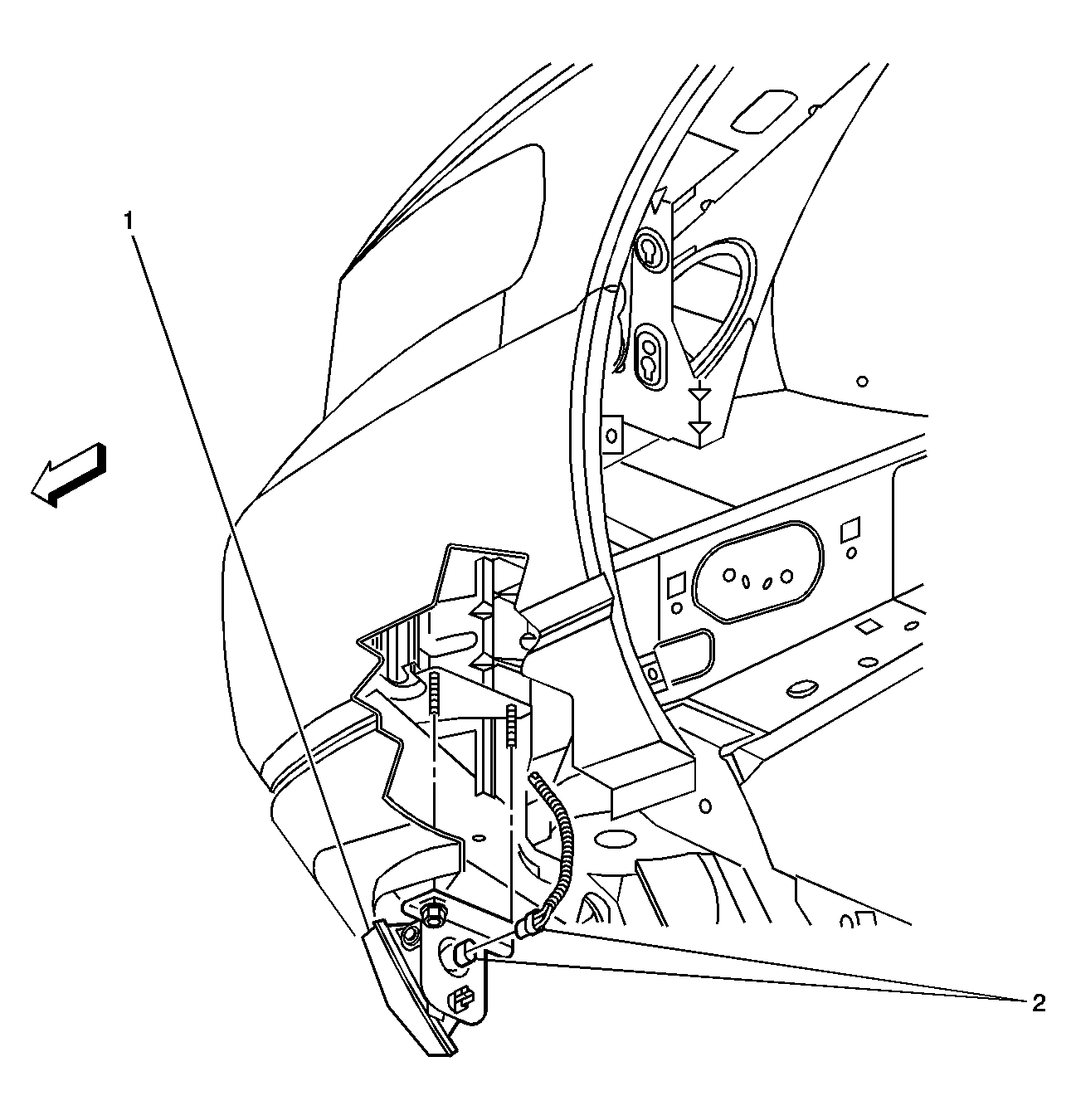

Fig 5: LH Front Corner of Vehicle Component View
GM747995Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fog Lamp - LF (RF Similar)
2 Fog Lamp - LF Connector (RF Similar)

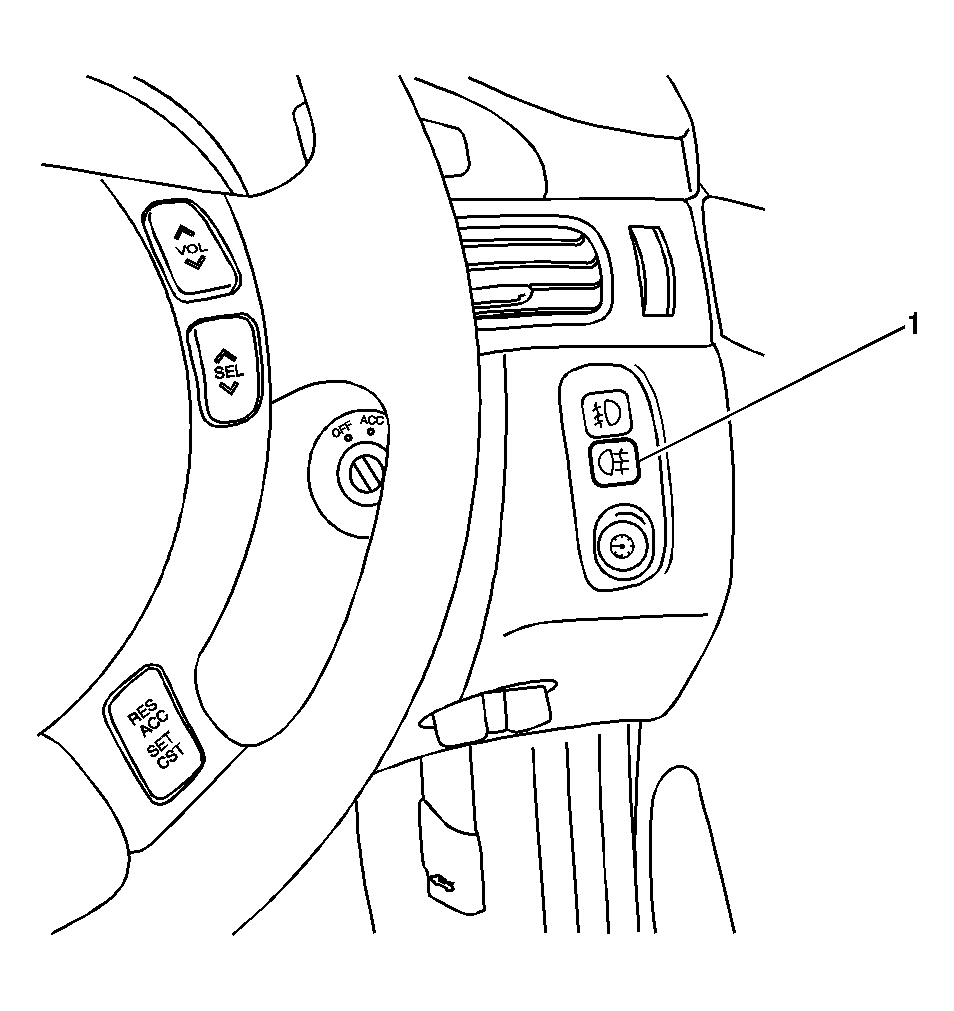

Fig 6: Passenger Compartment, Right Side of the Instrument Panel Component View
GM798119Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Dimmer/Fog Lamp Switch (RH Drive)
Fig 7: Passenger Compartment, Center of the Instrument Panel Component View
GM524953Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ambient Light Sensor
2 Speaker - Center Midrange
3 Hazard Switch
4 Instrument Panel Integration Module (IPM)
5 Radio (w/o UY4)
6 Driver Information Center (DIC) - Right

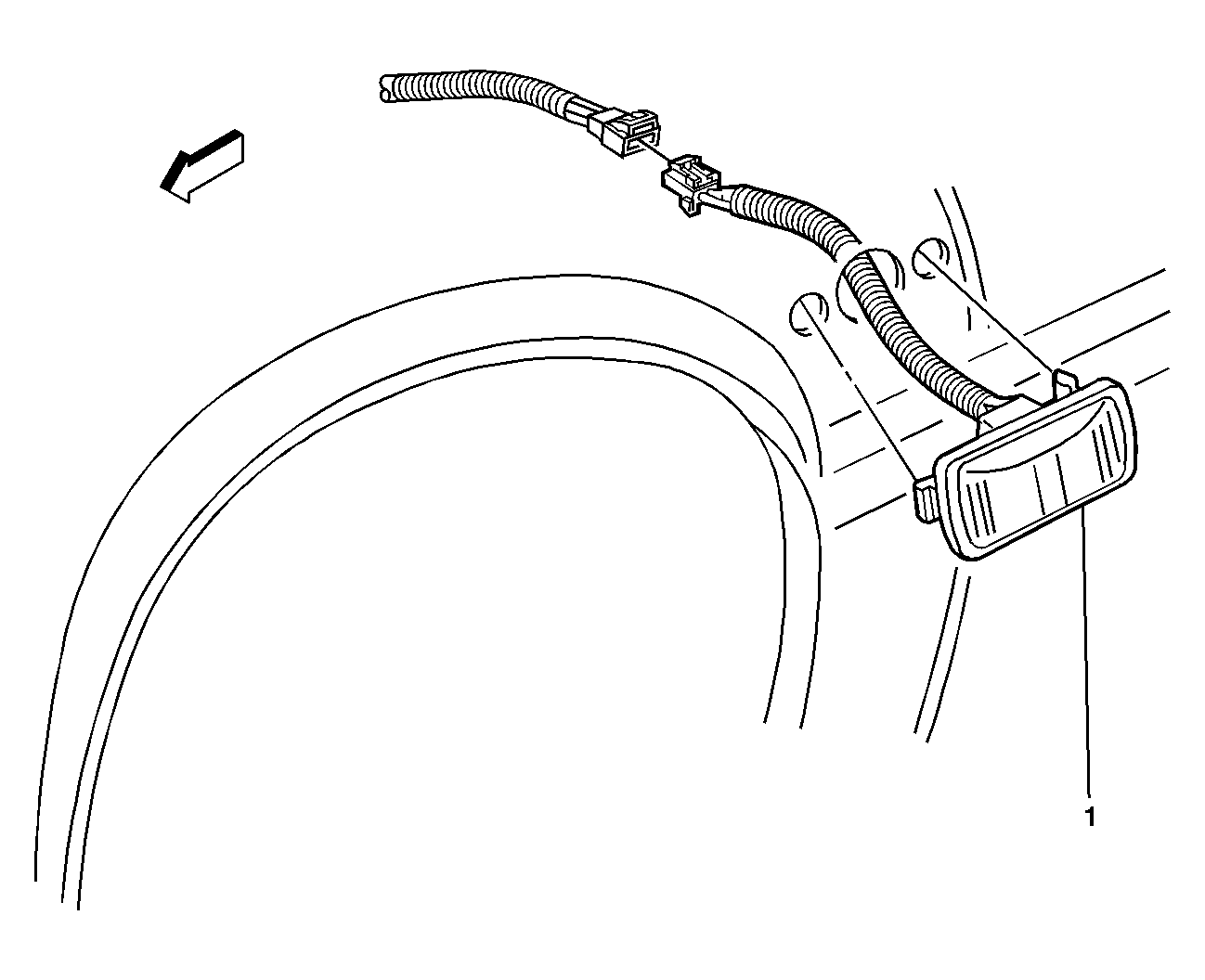

Fig 8: Left Front Corner, Behind the Wheelbase Component View
GM748071Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park/Turn Signal Lamp - LF (RF Similar)

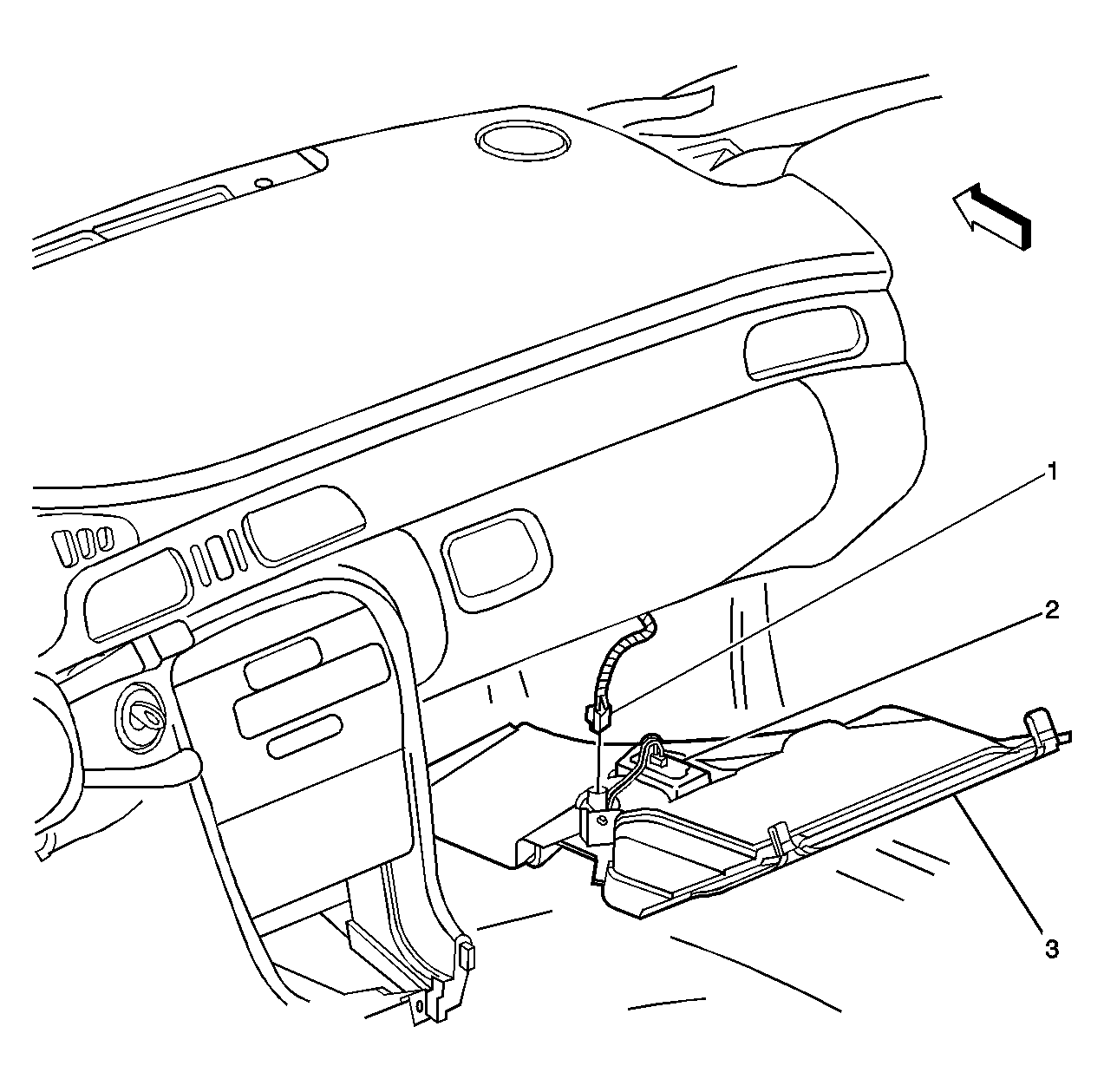

Fig 9: Passenger Compartment, Right Side Under the Instrument Panel Component View
GM748045Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Footwell Courtesy Lamp - Right Connector (Left Similar)
2 Footwell Courtesy Lamp - Right (Left Similar)
3 IP Closeout Insulator Panel

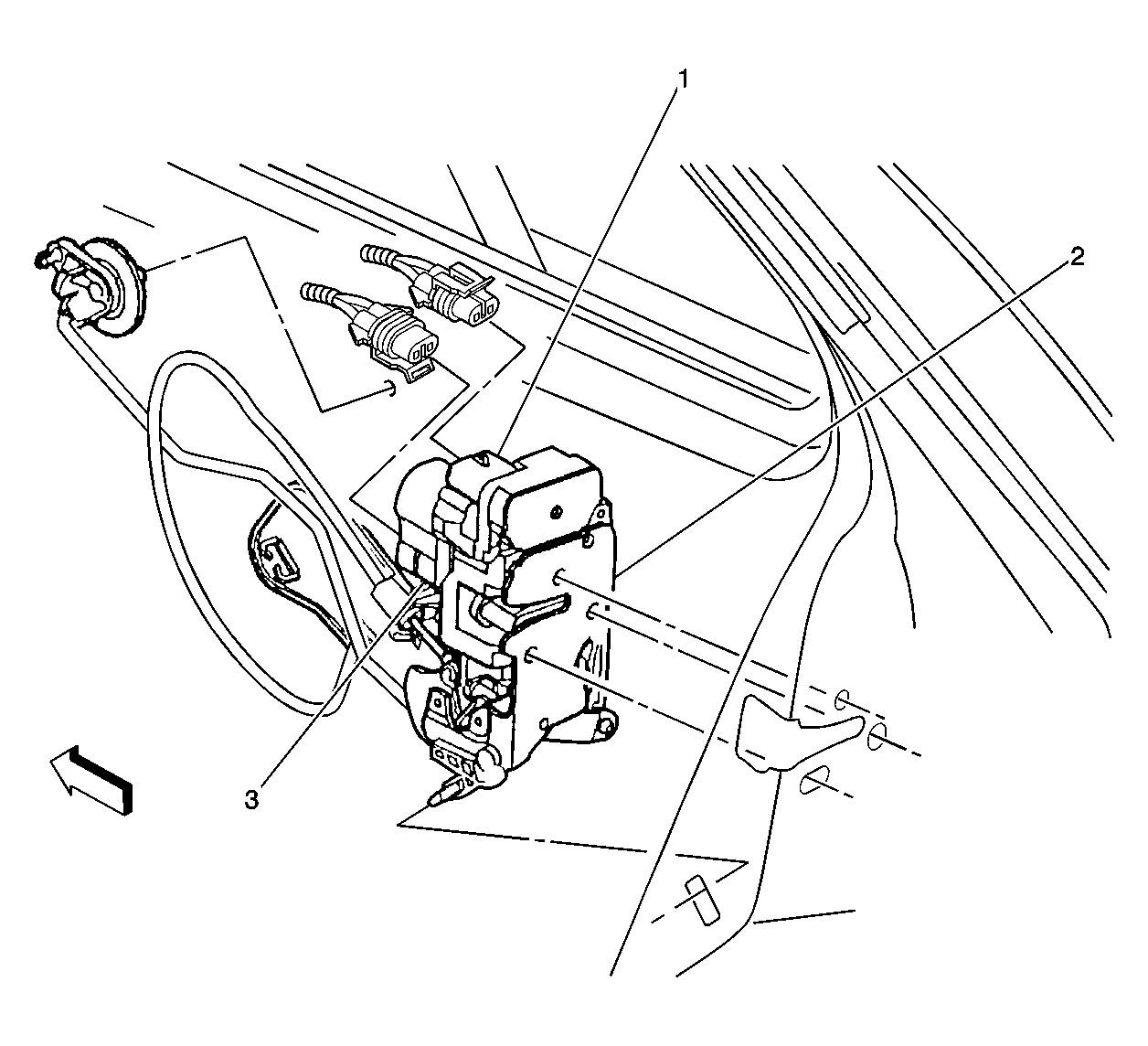

Fig 10: Doors, Door Jamb Component View
GM154458Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 RH Rear Door Lock Actuator (Rest Similar)
2 Door Latch Assembly
3 RH Rear Door Jamb Switch
Fig 11: Rear Compartment Component View
GM154461Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C403
2 SP401, G401
3 P400
4 Rear Compartment Lamp
5 Remote Control Door Lock Receiver (RCDLR)

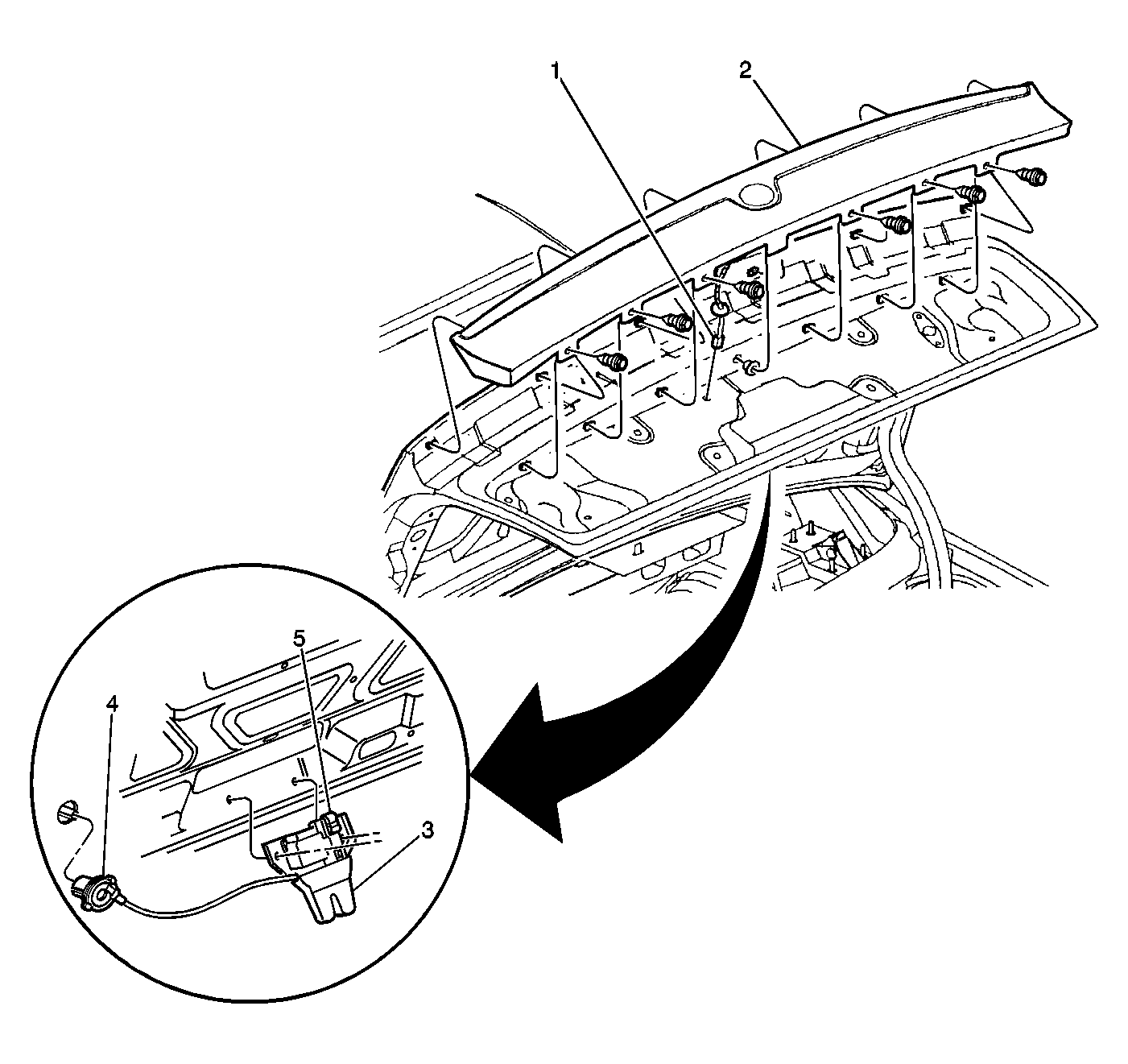

Fig 12: Rear Compartment, Rear Compartment Lid Component View
GM154463Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C421
2 Center High Mounted Stop Lamp (CHMSL)
3 Rear Compartment Latch
4 Rear Compartment Key Cylinder Release w/ Disarm Switch
5 Rear Compartment Lid Pulldown Motor

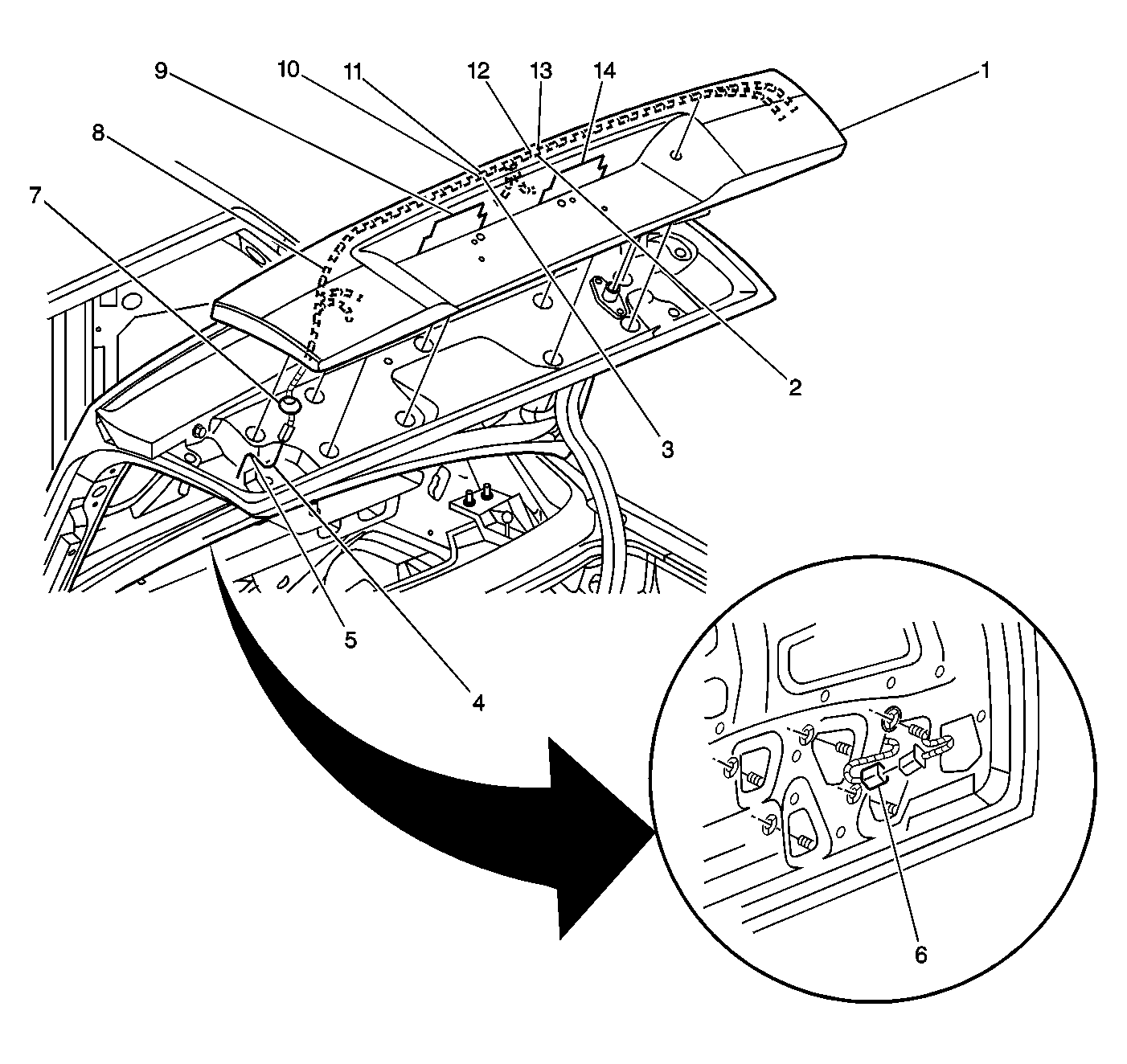

Fig 13: Rear Compartment, Rear Compartment Lid Component View
GM154464Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Tail Lamp Assembly
2 Tail Lamp Resistor - Right
3 Tail Lamp Resistor - Left
4 S410
5 S420
6 C402
7 P404
8 S413
9 License Lamp
10 S407
11 S406
12 S405
13 S404
14 License Lamp
