Heated Seat Module Connector End View - Driver C2

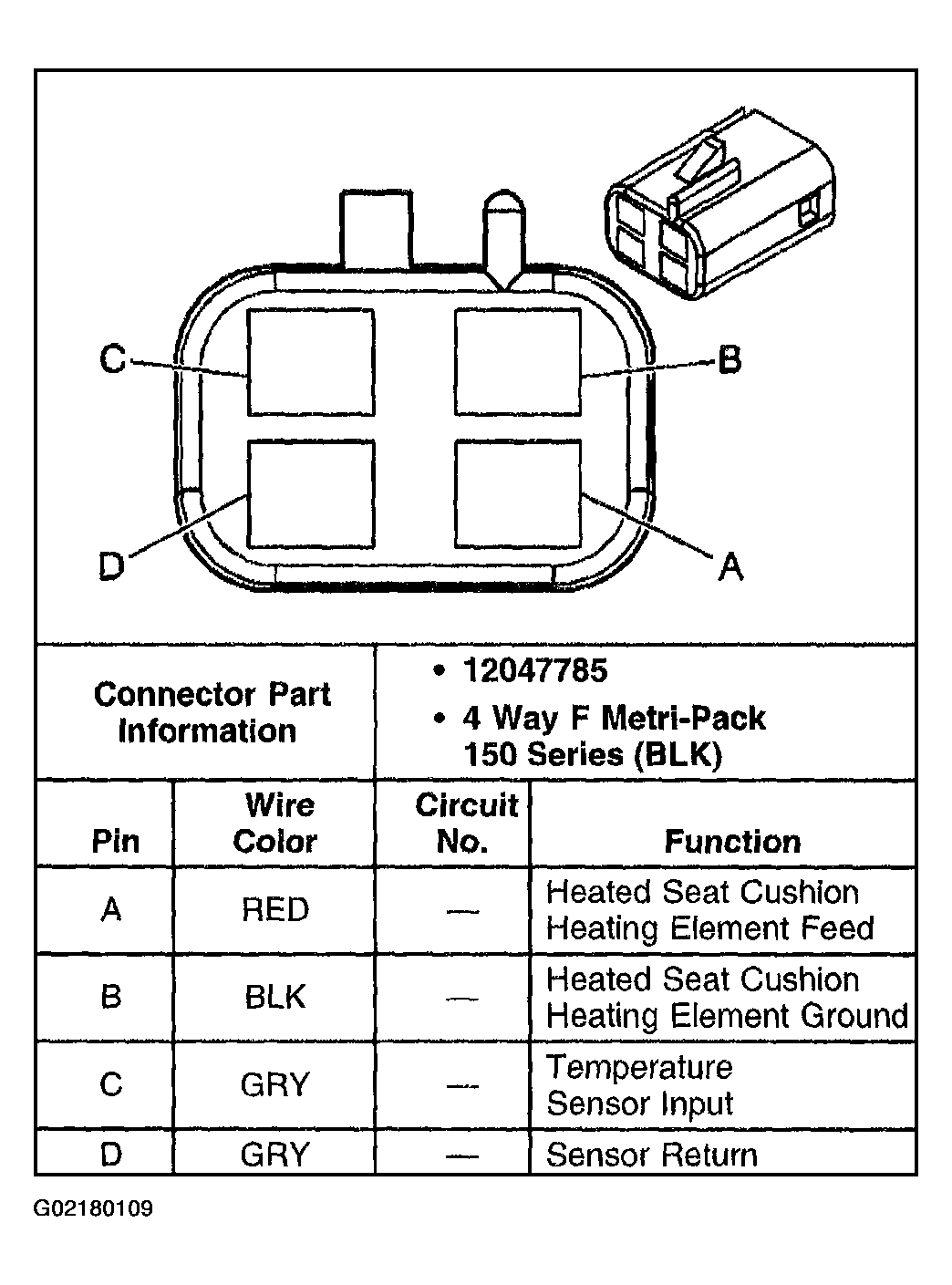

Fig 1: Heated Seat Module - Driver C2

G02180109

Courtesy of GENERAL MOTORS CORP.
