Lateral Accelerometer Sensor Connector End View

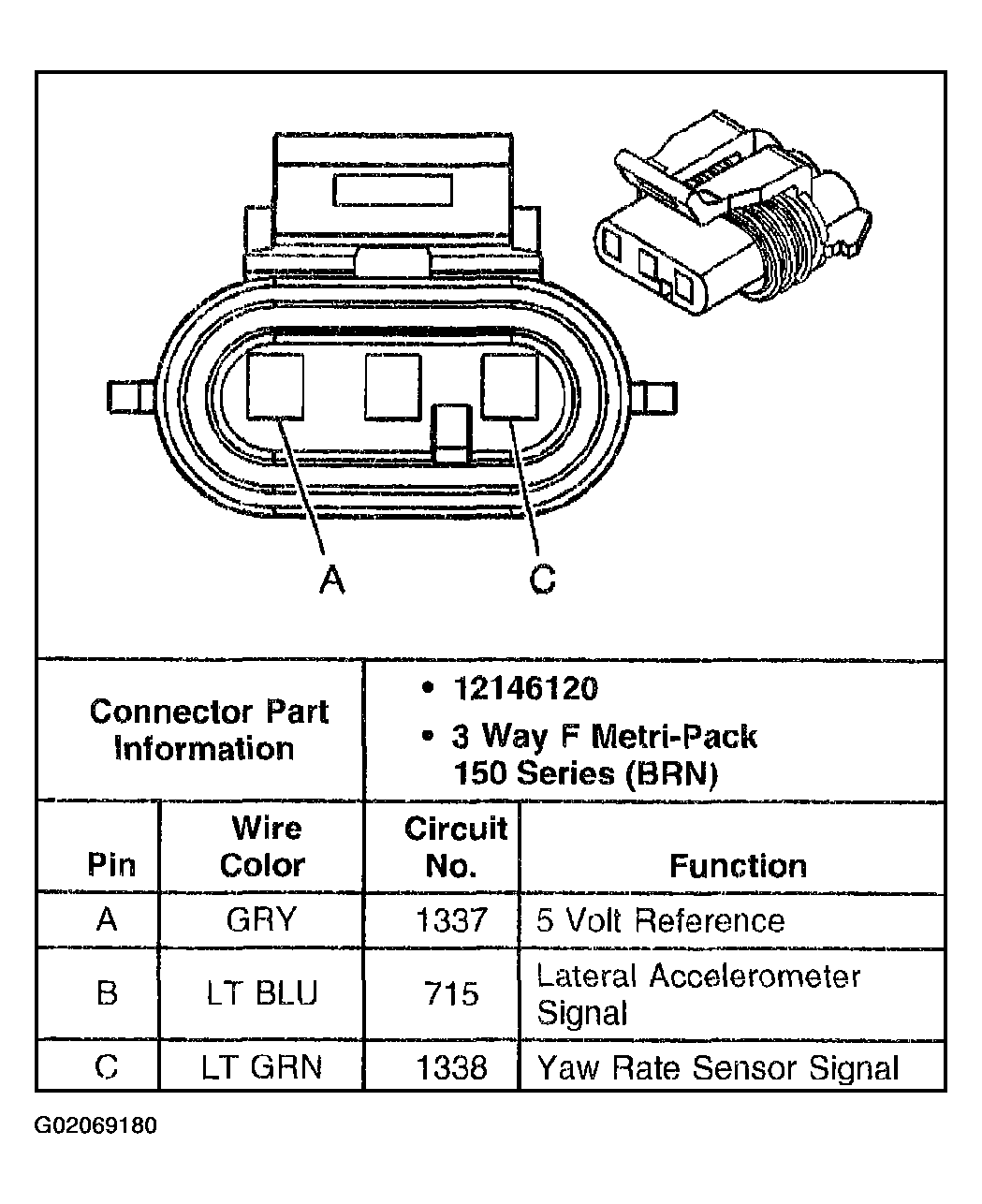

Fig 1: Lateral Accelerometer Sensor
G02069180Courtesy of GENERAL MOTORS CORP.
