Sunload Sensor Connector End View - Left

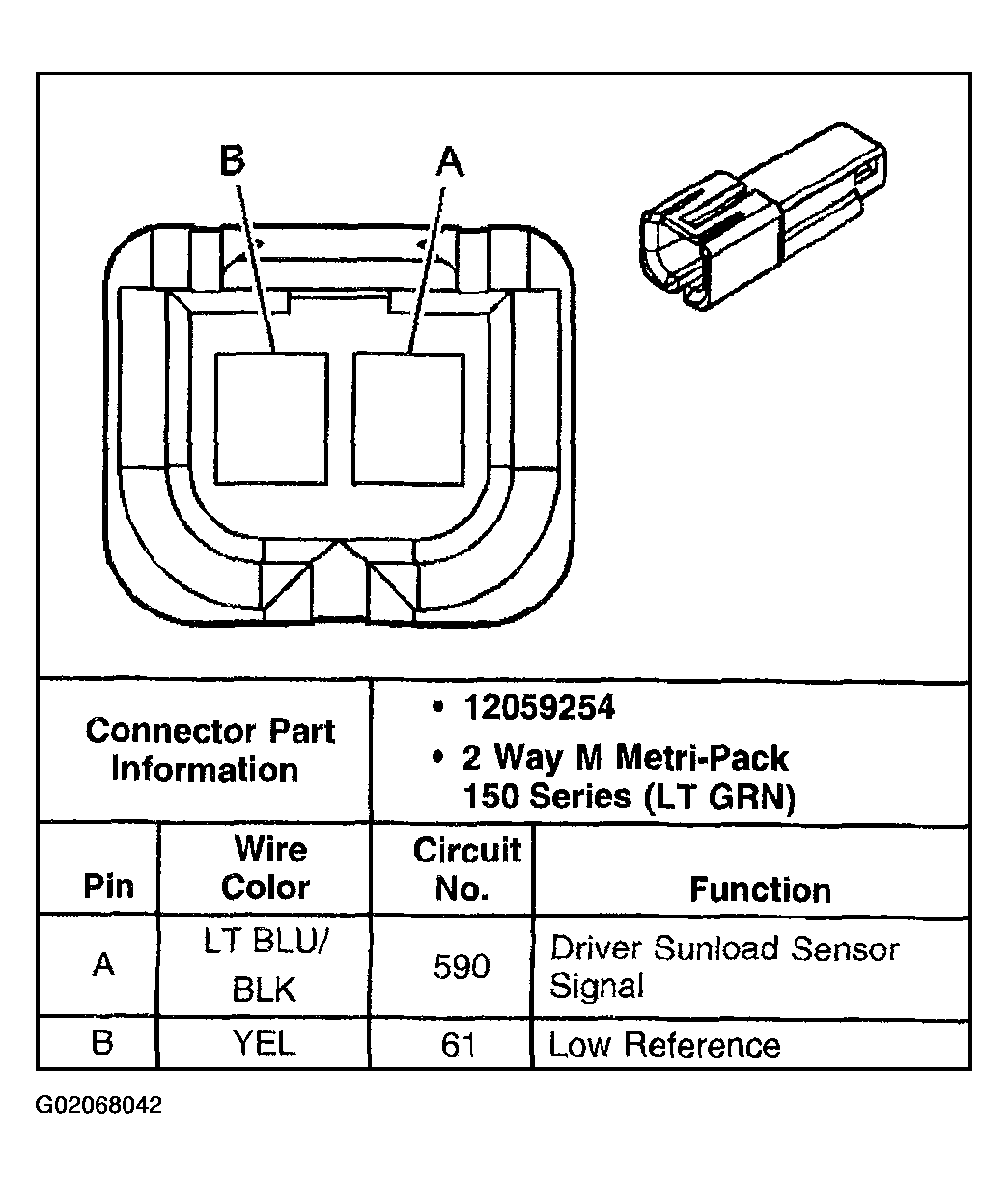

Fig 1: Sunload Sensor - Left
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
