Steering Wheel Position Sensor
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Steering Wheel Position Sensor

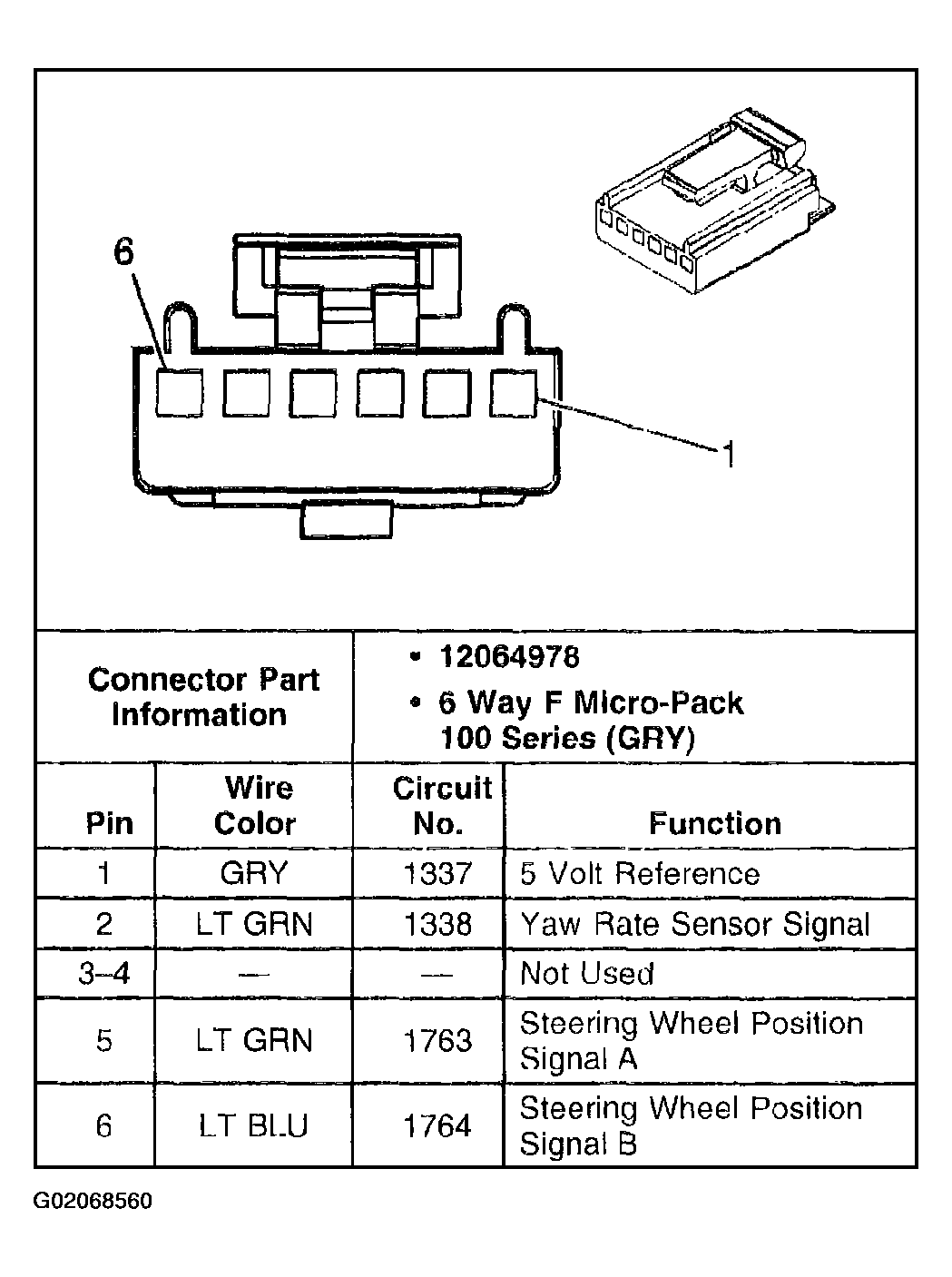

Fig 1: Steering Wheel Position Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
