Component Location

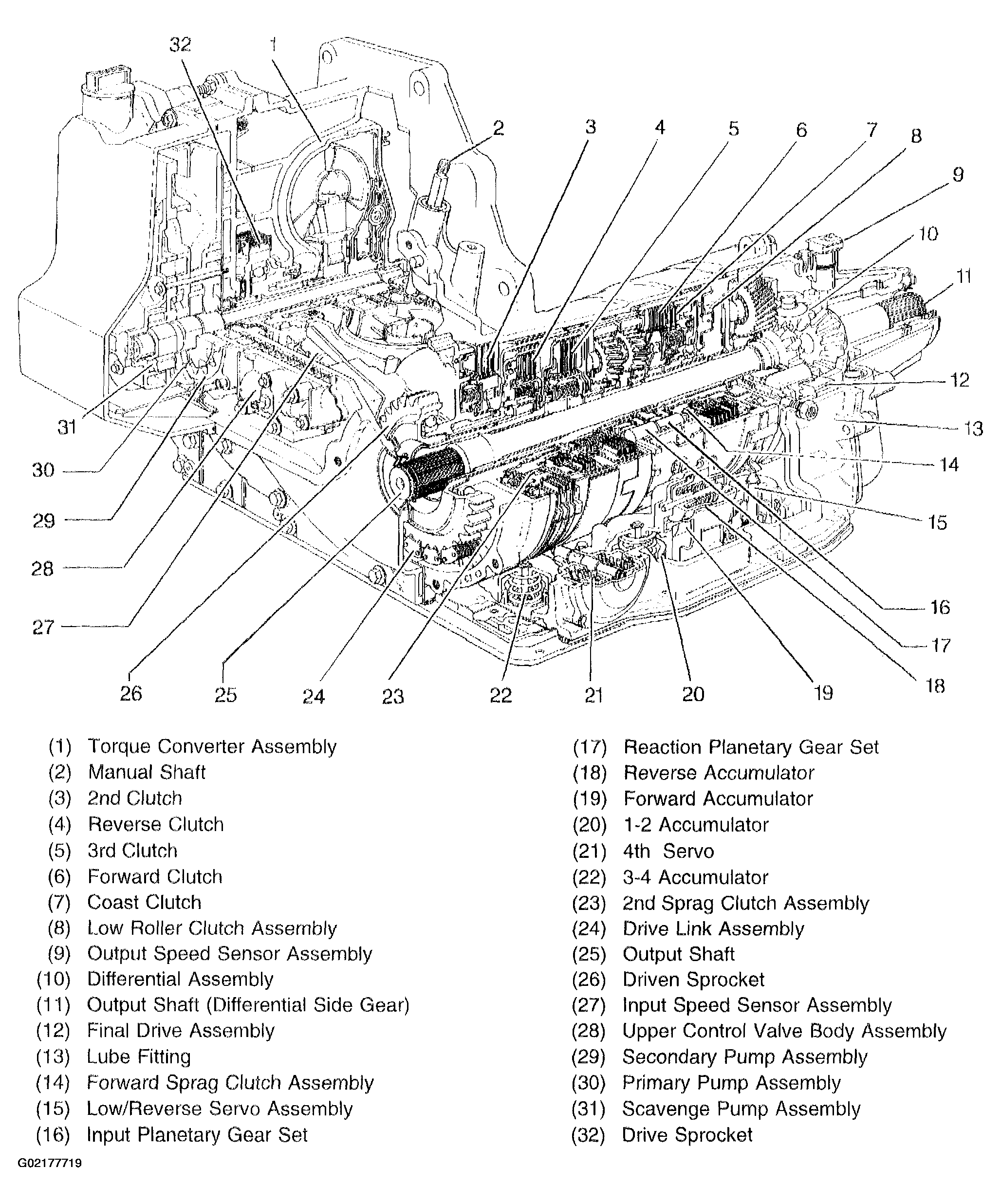

Fig 1: Transaxle Major Components Locations
G02177719Courtesy of GENERAL MOTORS CORP.

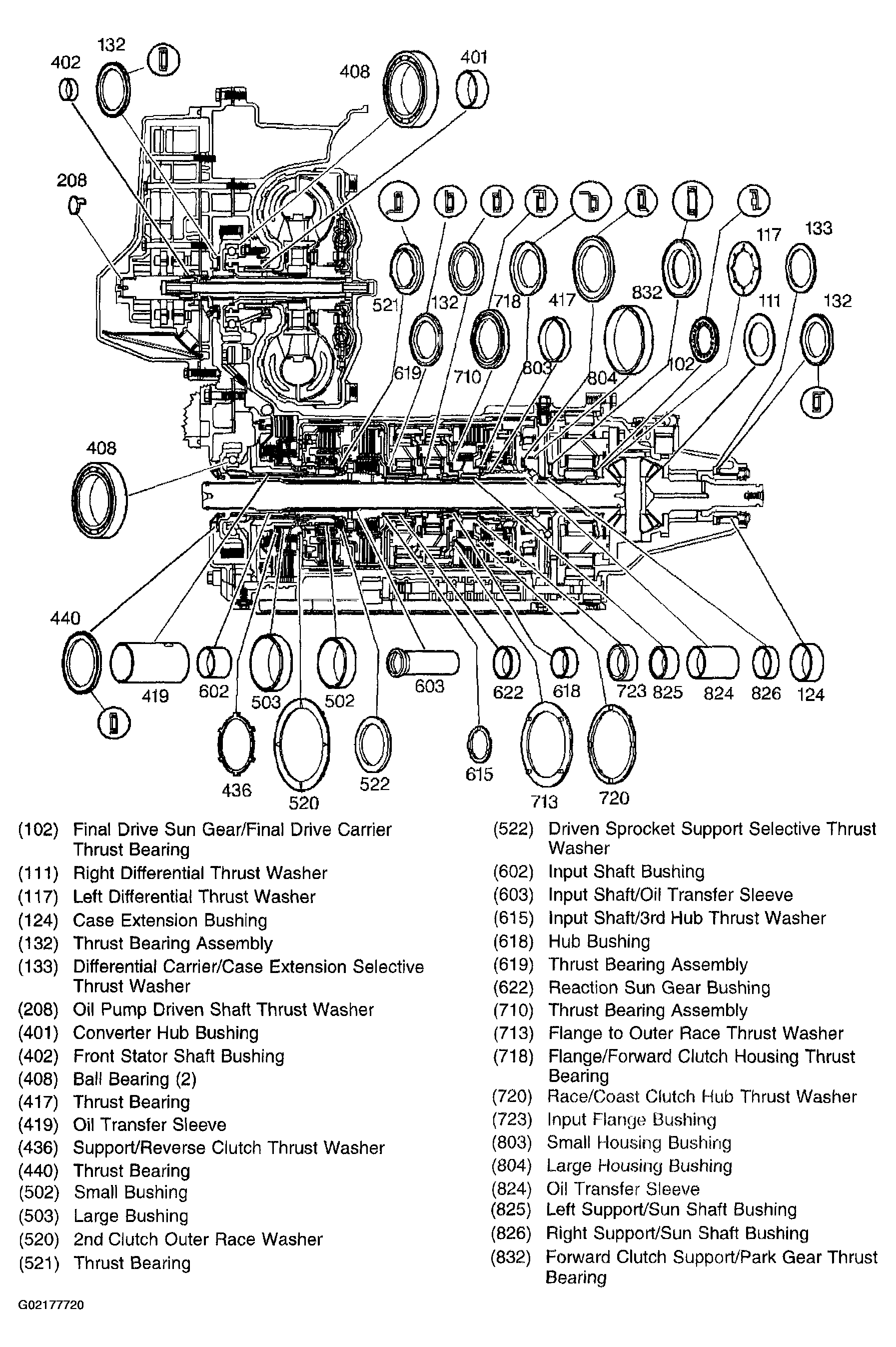

Fig 2: Bushings, Bearings & Washers Locations
G02177720Courtesy of GENERAL MOTORS CORP.

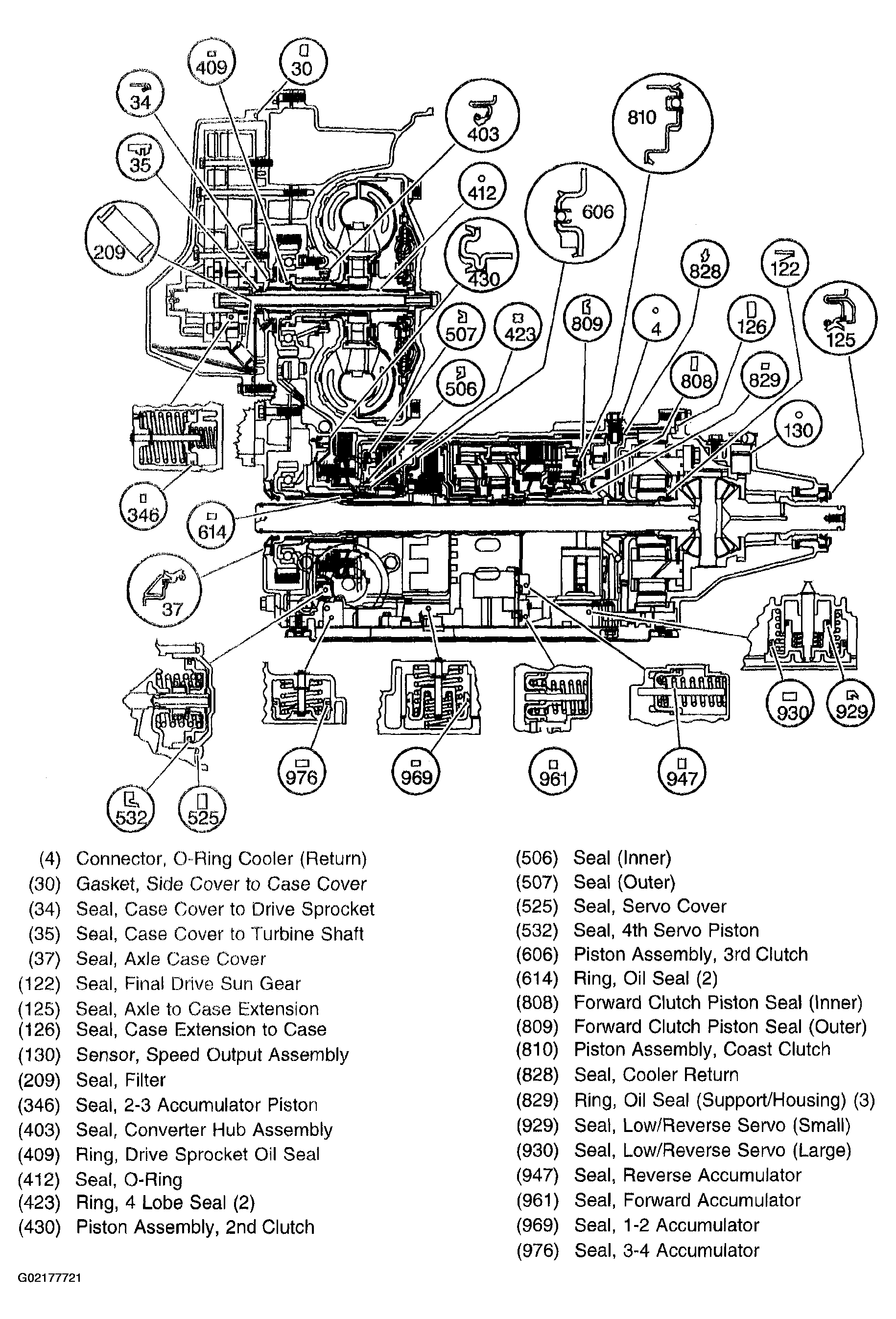

Fig 3: Seal Locations
G02177721Courtesy of GENERAL MOTORS CORP.
