Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle - 4T80-E
>>
Component Locator
>>
Disassembled Views
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Disassembled Views

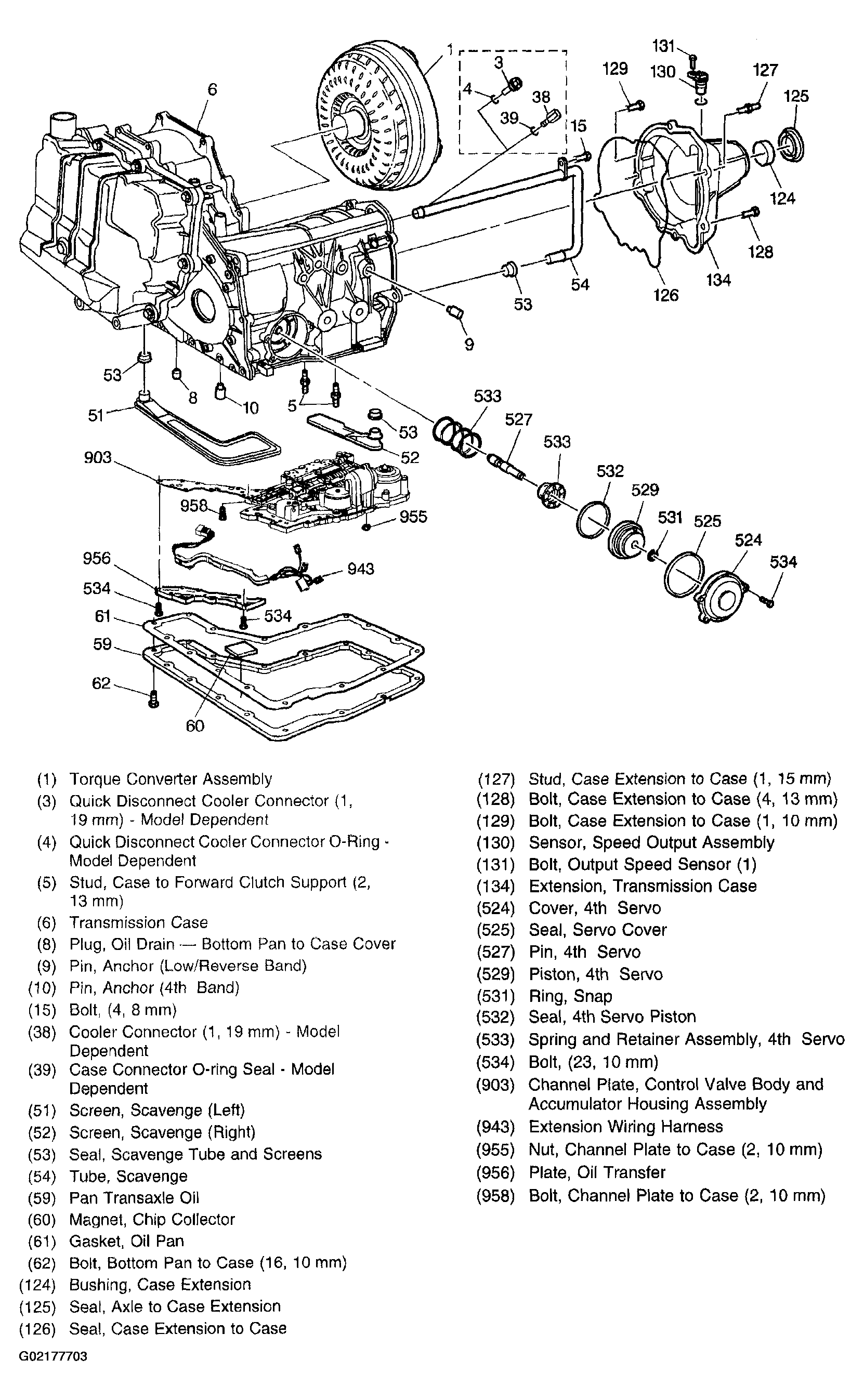

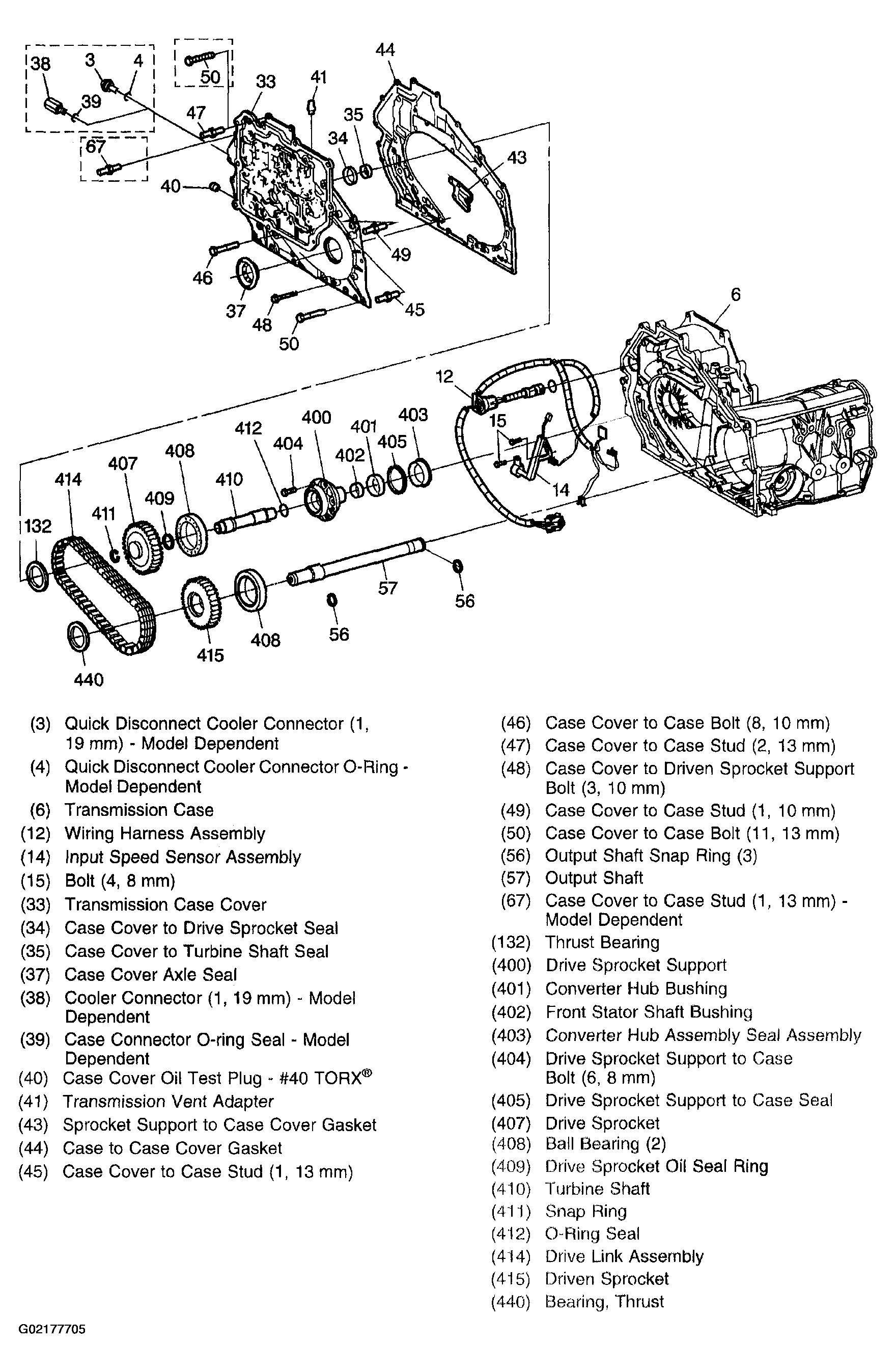

Fig 1: Case & Associated Parts Disassembled View (1 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Case & Associated Parts Disassembled View (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Case & Associated Parts Disassembled View (3 Of 3)
Courtesy of GENERAL MOTORS CORP.

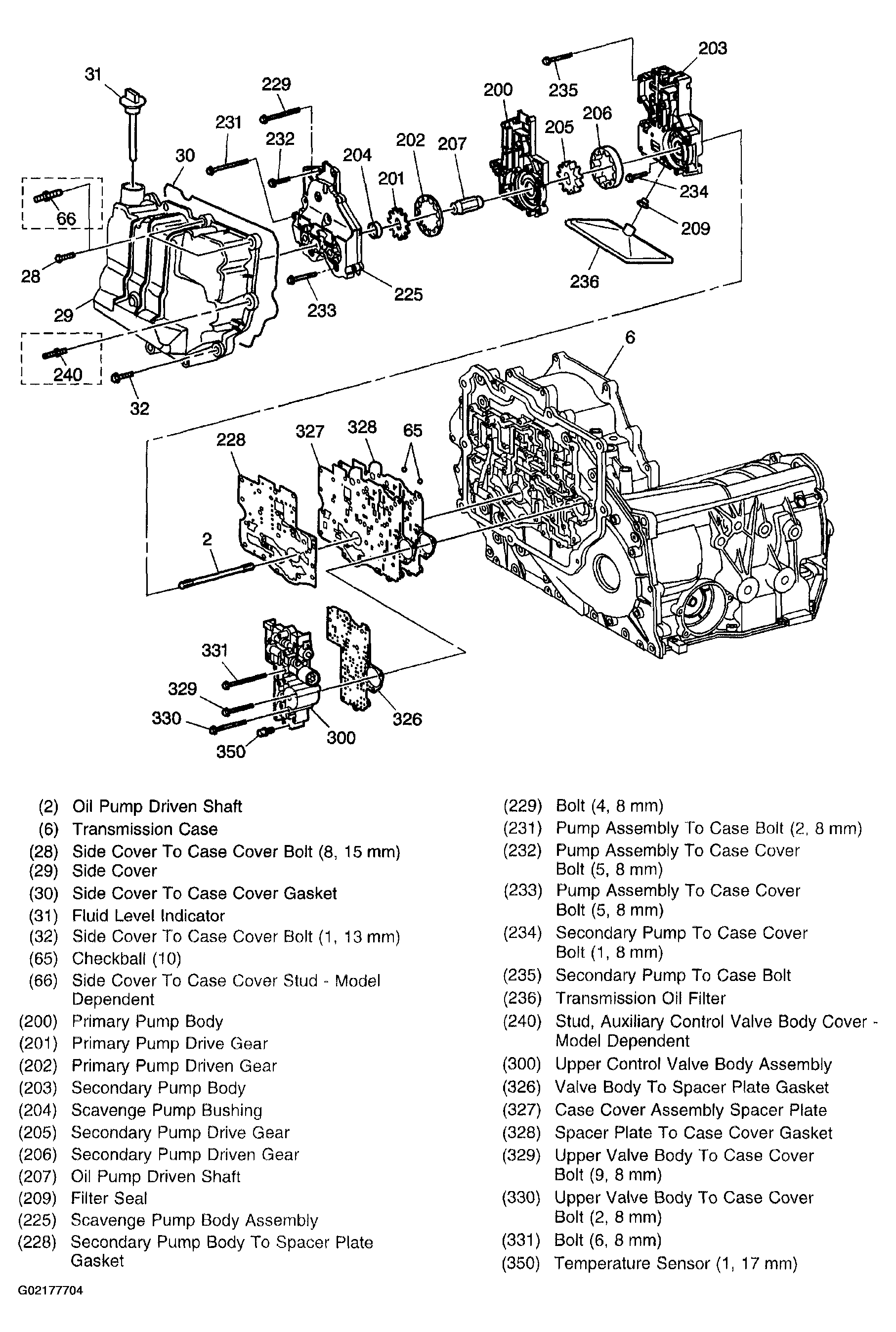

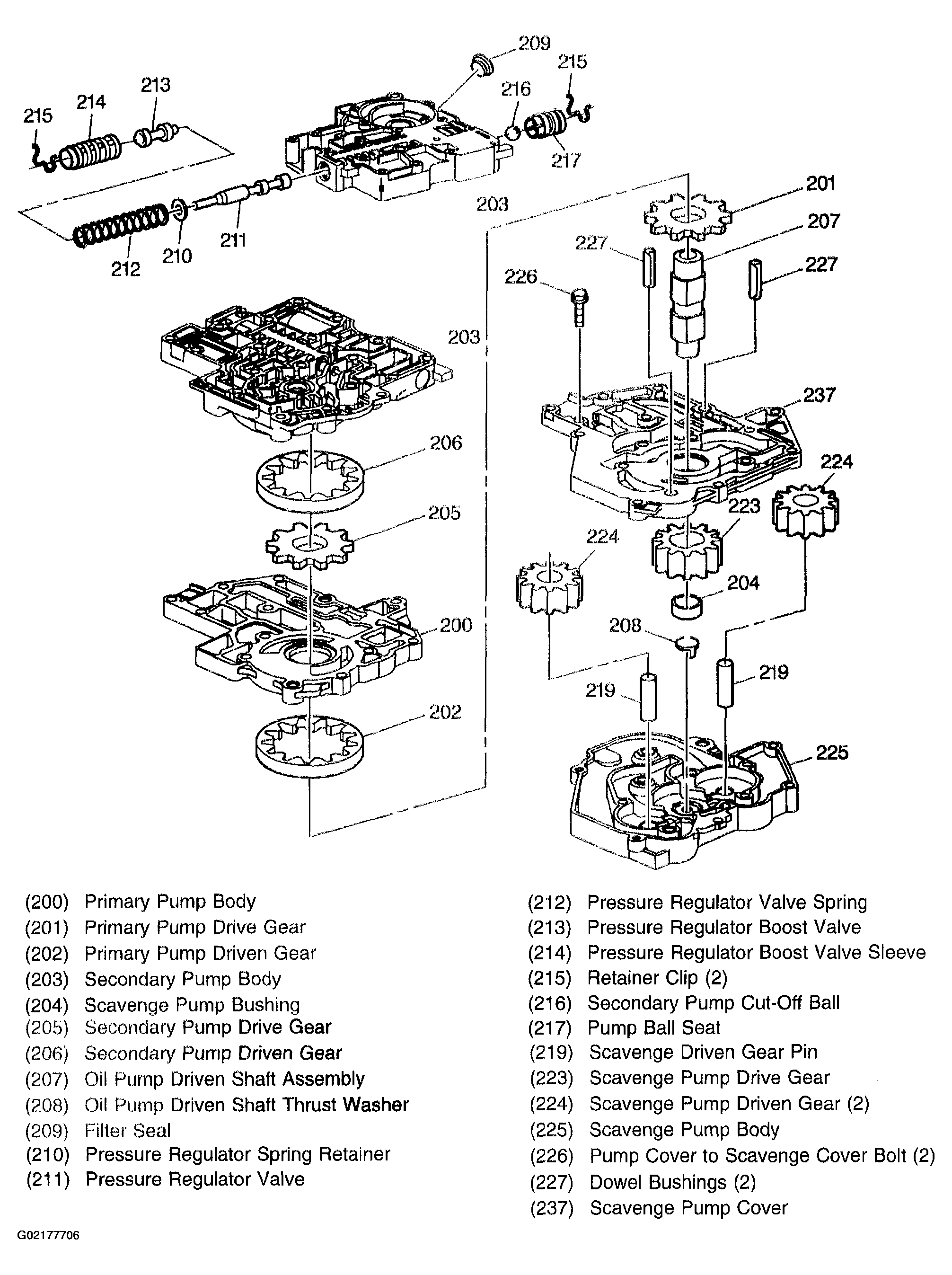

Fig 4: Scavenge, Primary & Secondary Fluid Pump Assemblies Disassembled View
Courtesy of GENERAL MOTORS CORP.

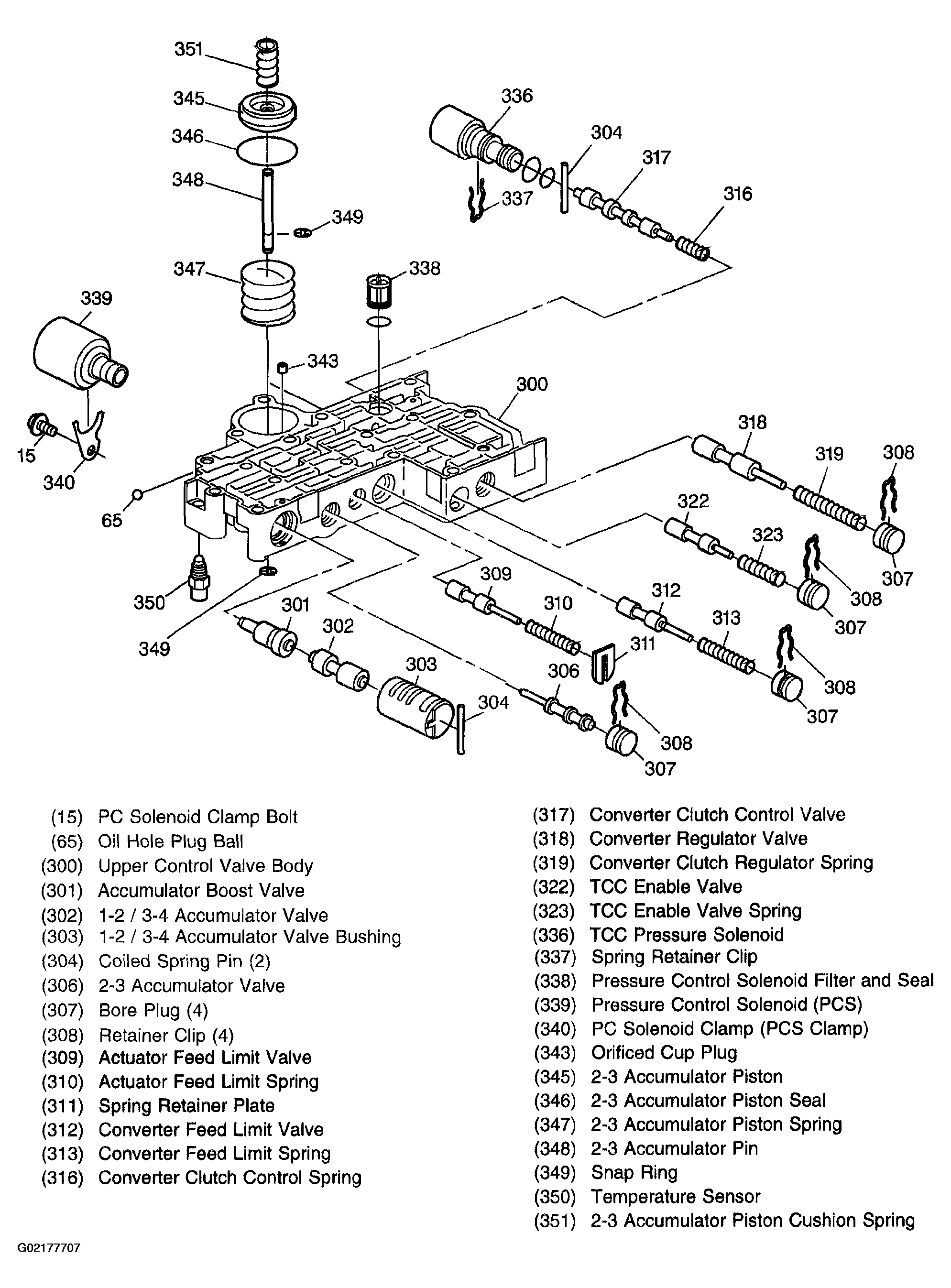

Fig 5: Upper Control Valve Body Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.

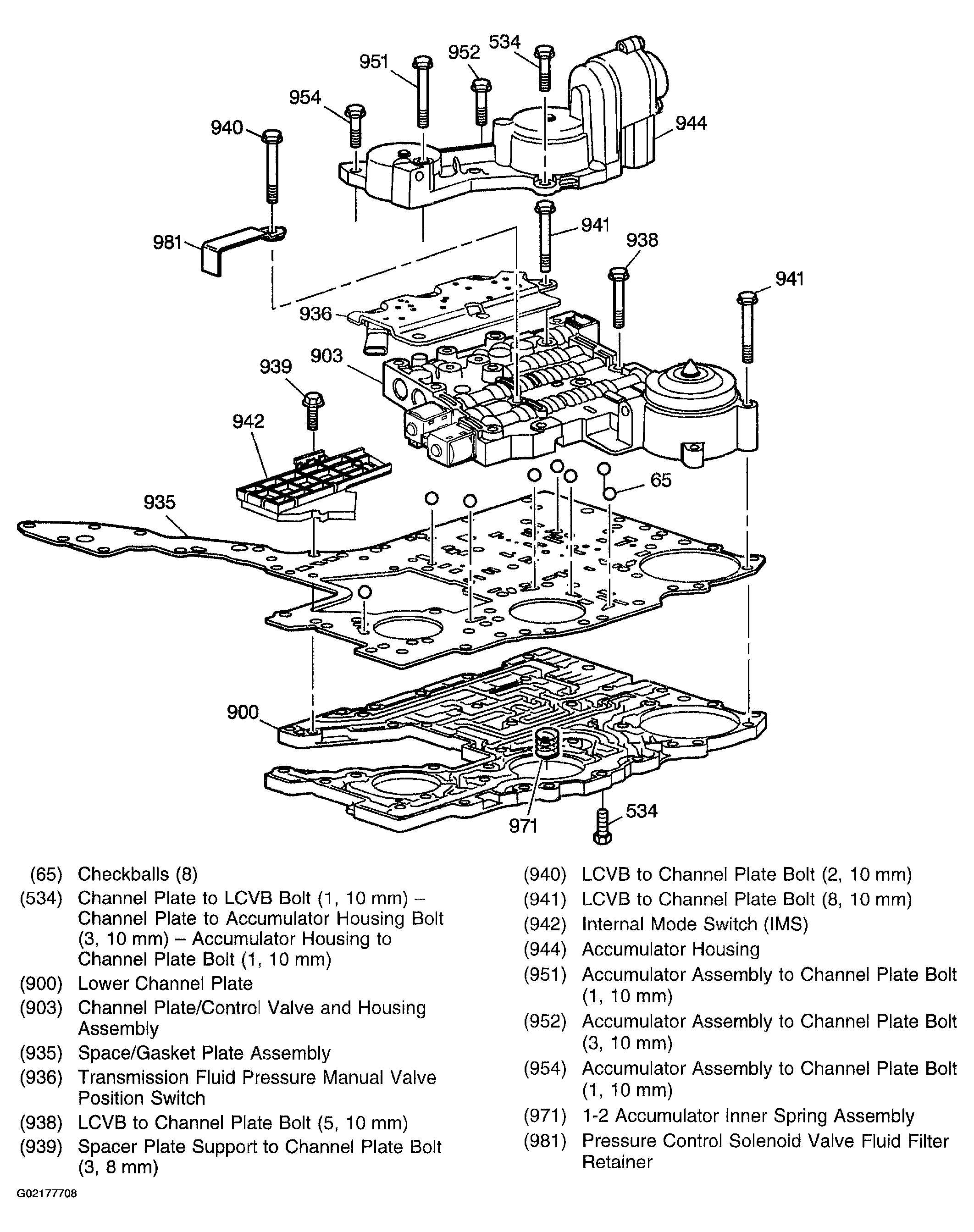

Fig 6: Lower Channel Plate, Control Valve Body & Accumulator Housing Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.

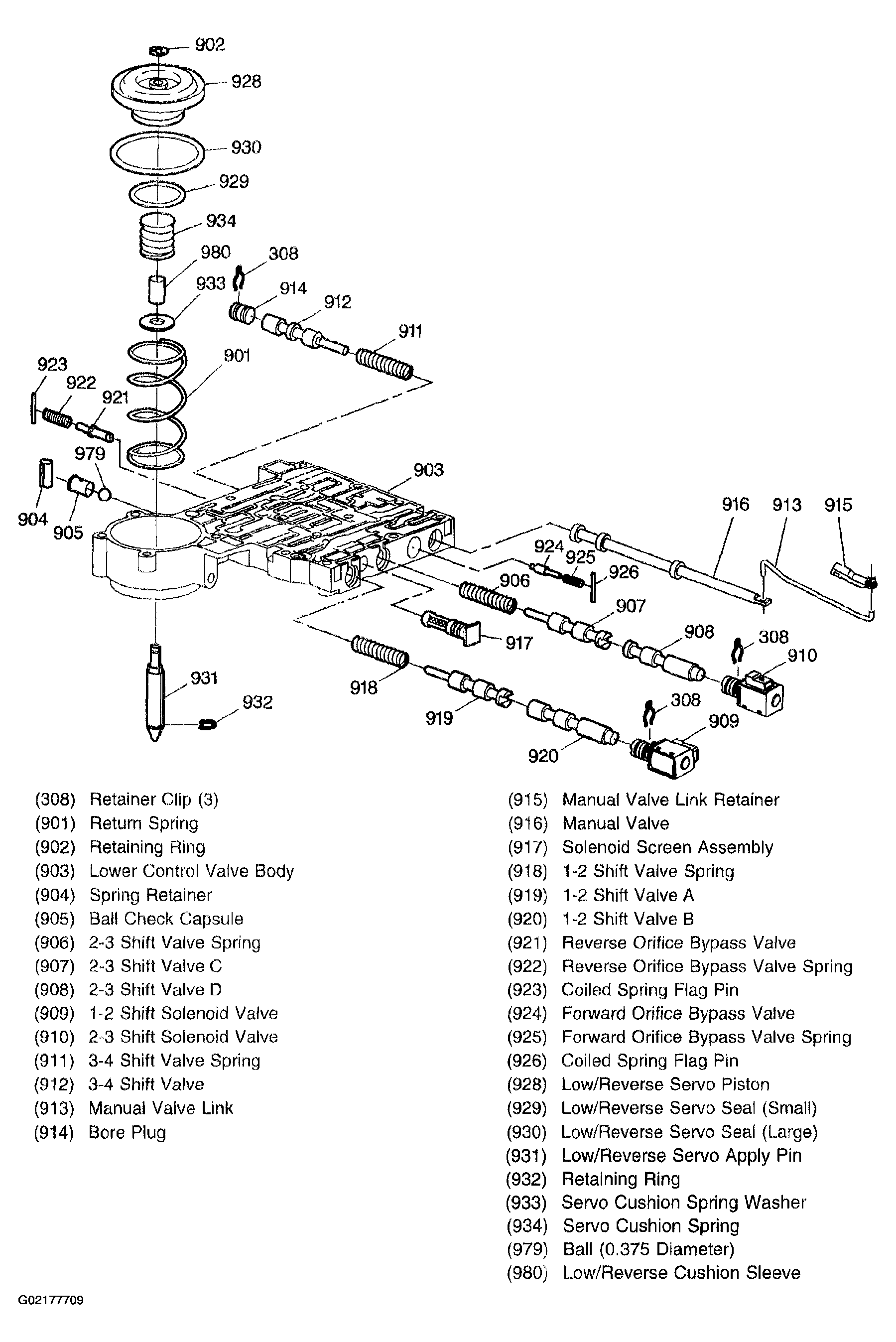

Fig 7: Lower Control Valve Body Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.

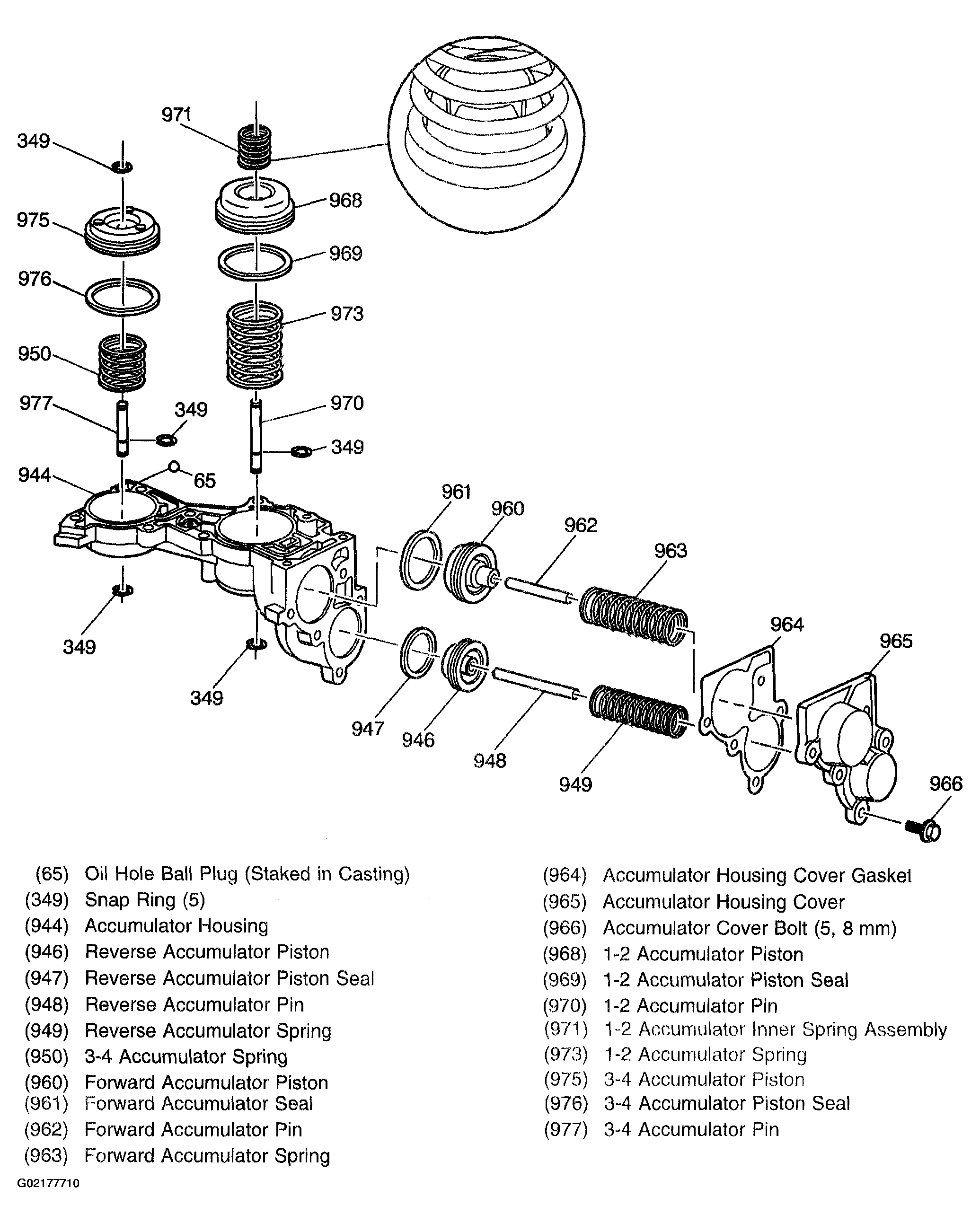

Fig 8: Accumulator Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.

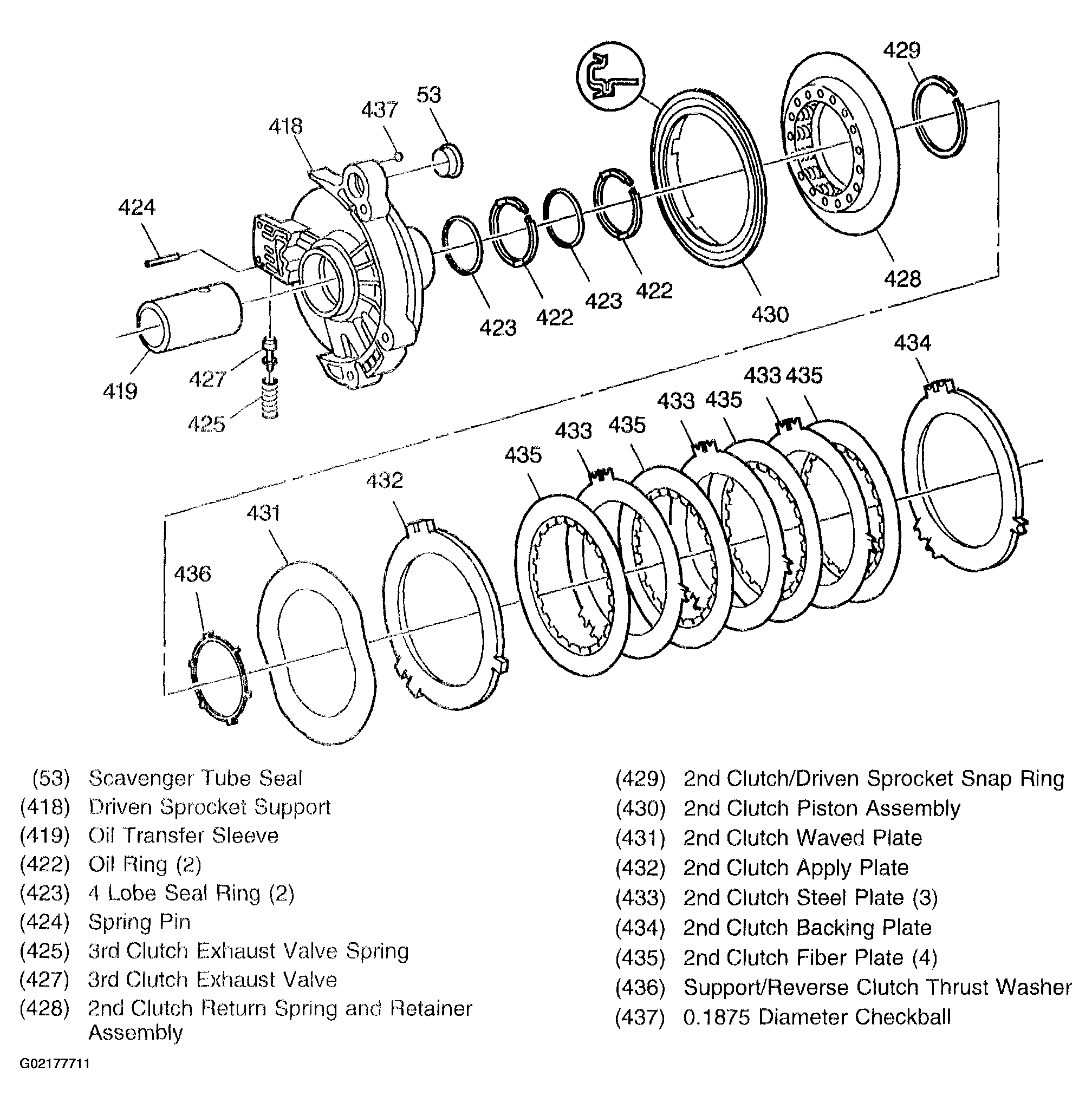

Fig 9: Driven Sprocket Support & 2nd Clutch Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.

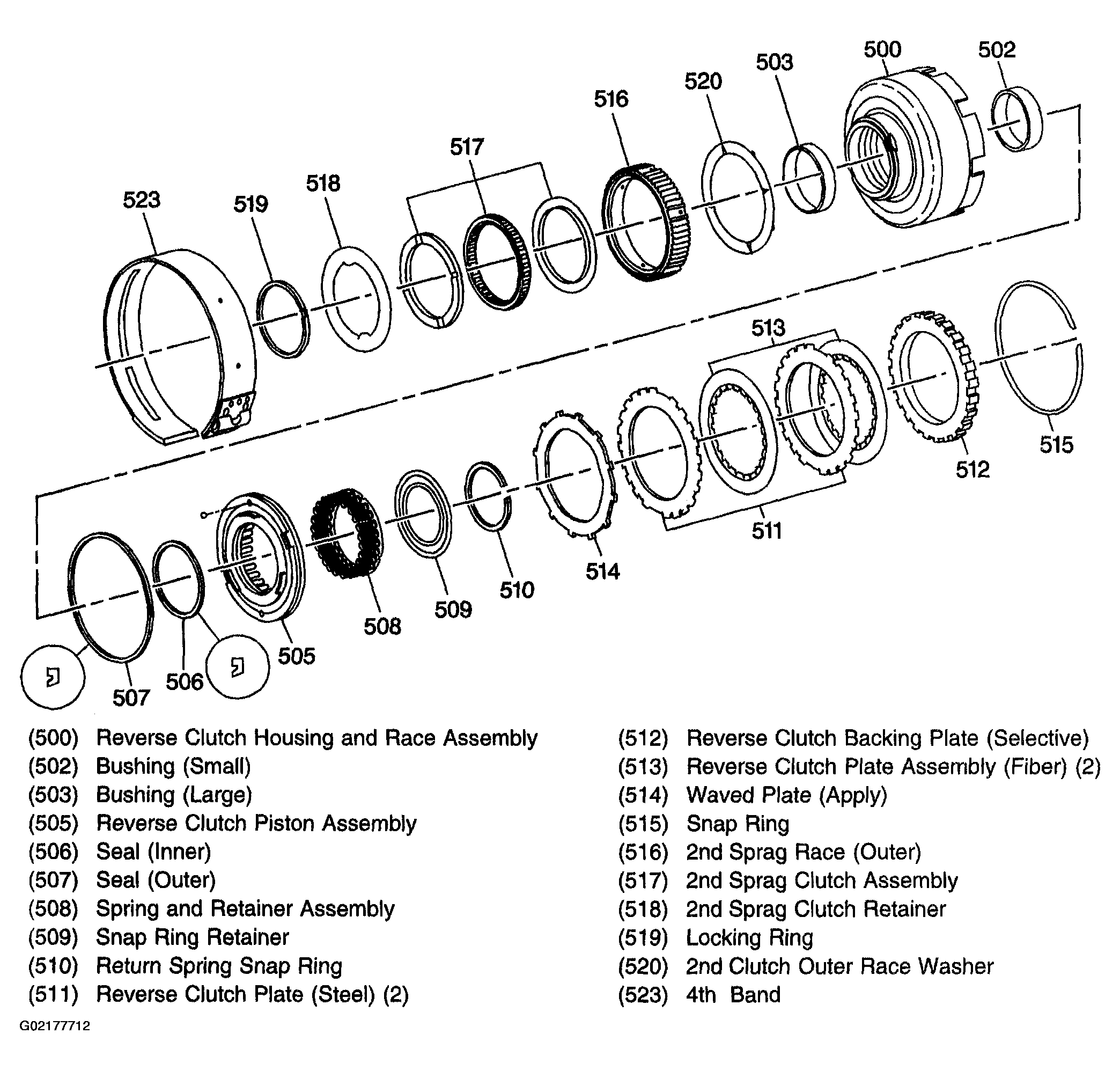

Fig 10: Reverse Clutch & 2nd Sprag Clutch Assemblies Disassembled View
Courtesy of GENERAL MOTORS CORP.

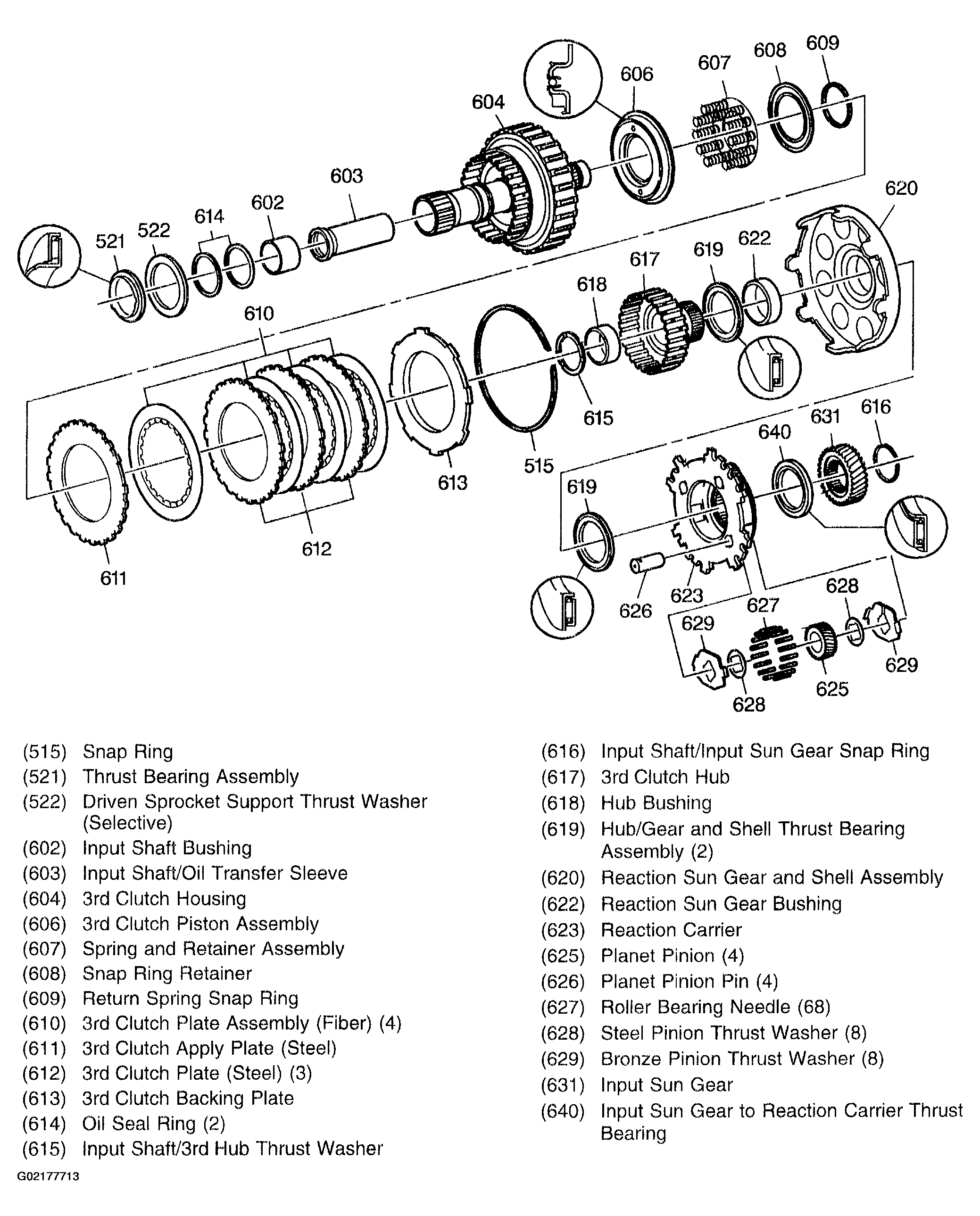

Fig 11: 3rd Clutch & Reaction Carrier Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.

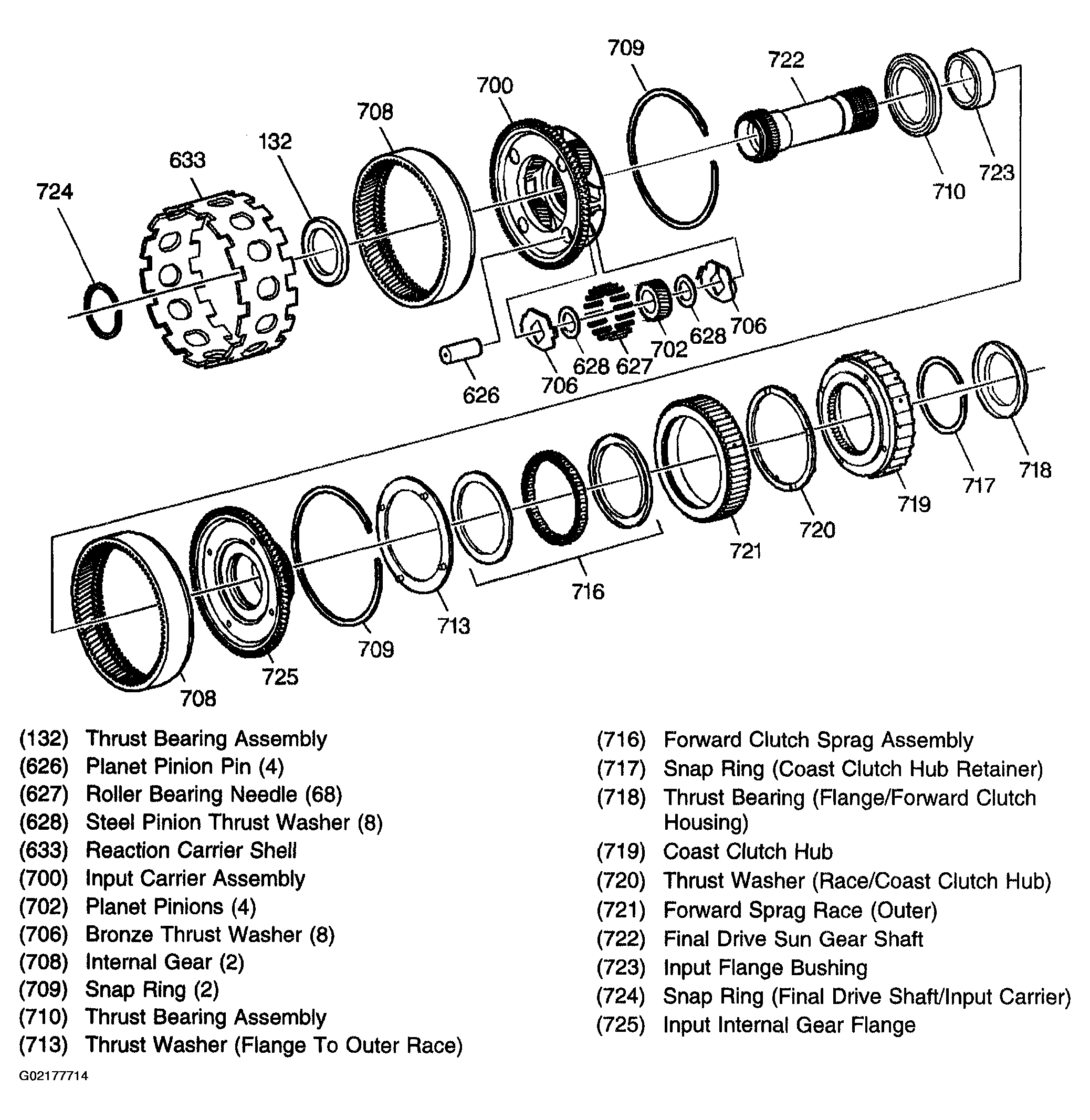

Fig 12: Input Carrier & Forward Sprag Clutch Assemblies Disassembled View
Courtesy of GENERAL MOTORS CORP.

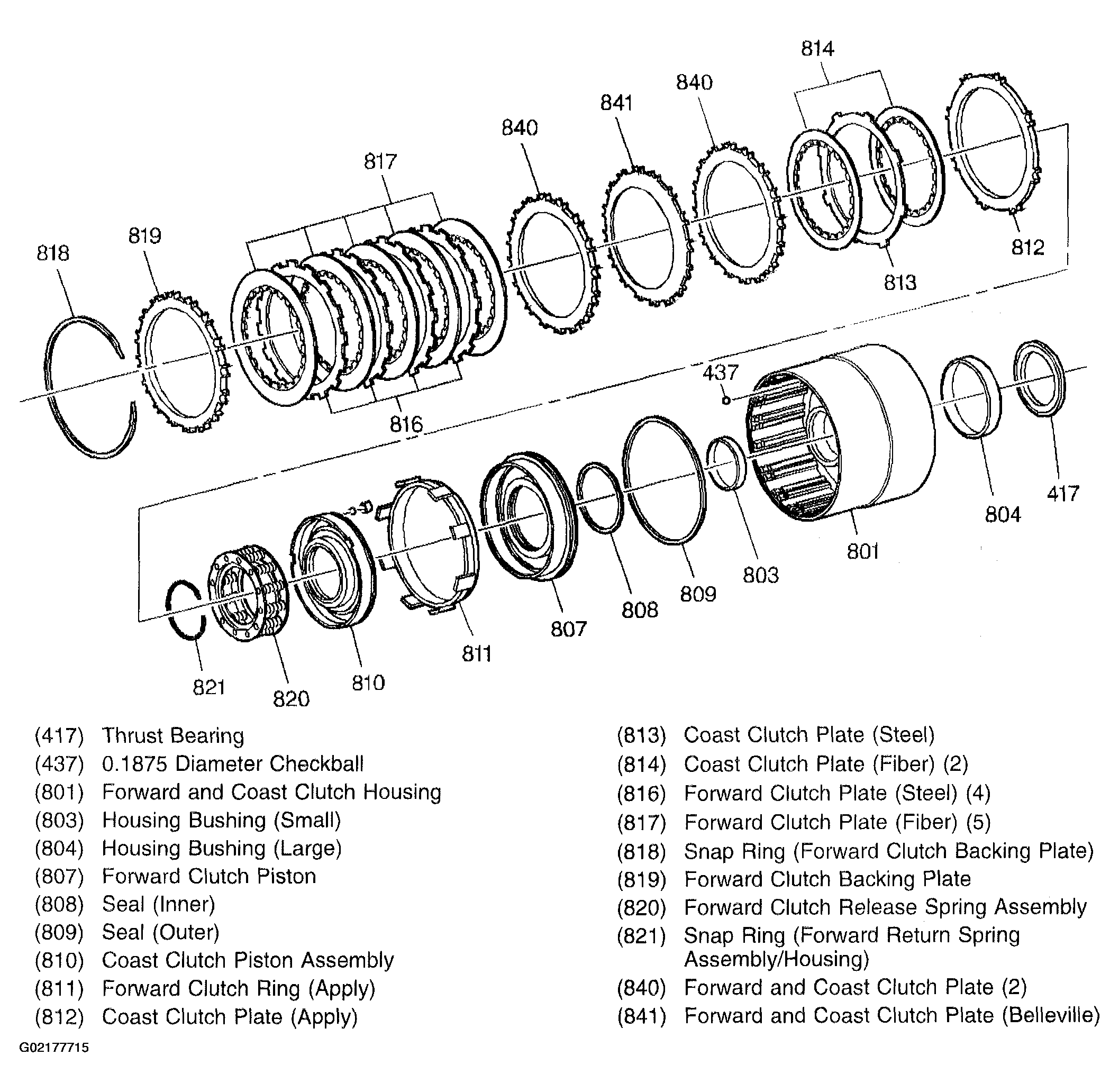

Fig 13: Forward Clutch Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.

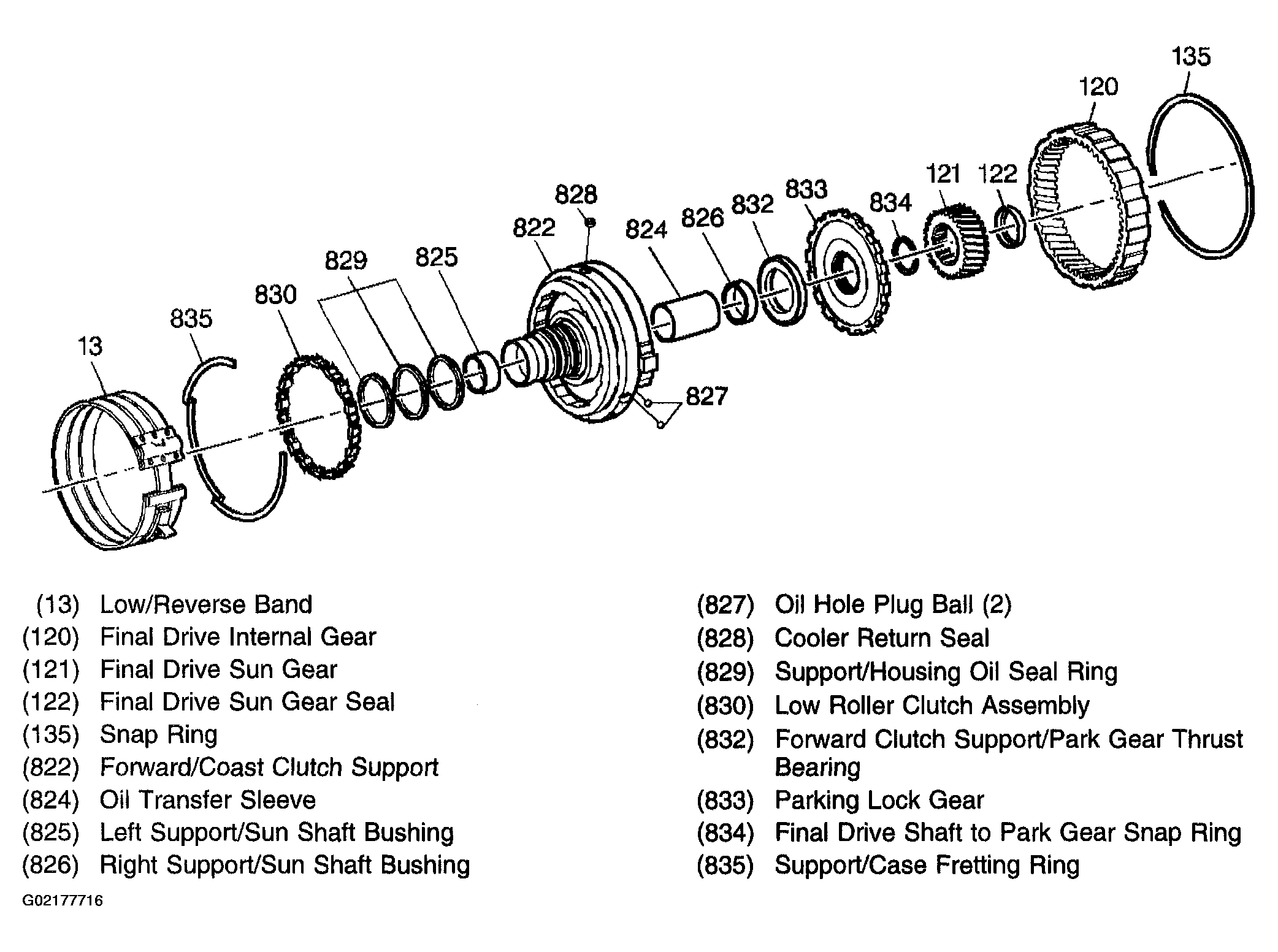

Fig 14: Forward Clutch Support Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.

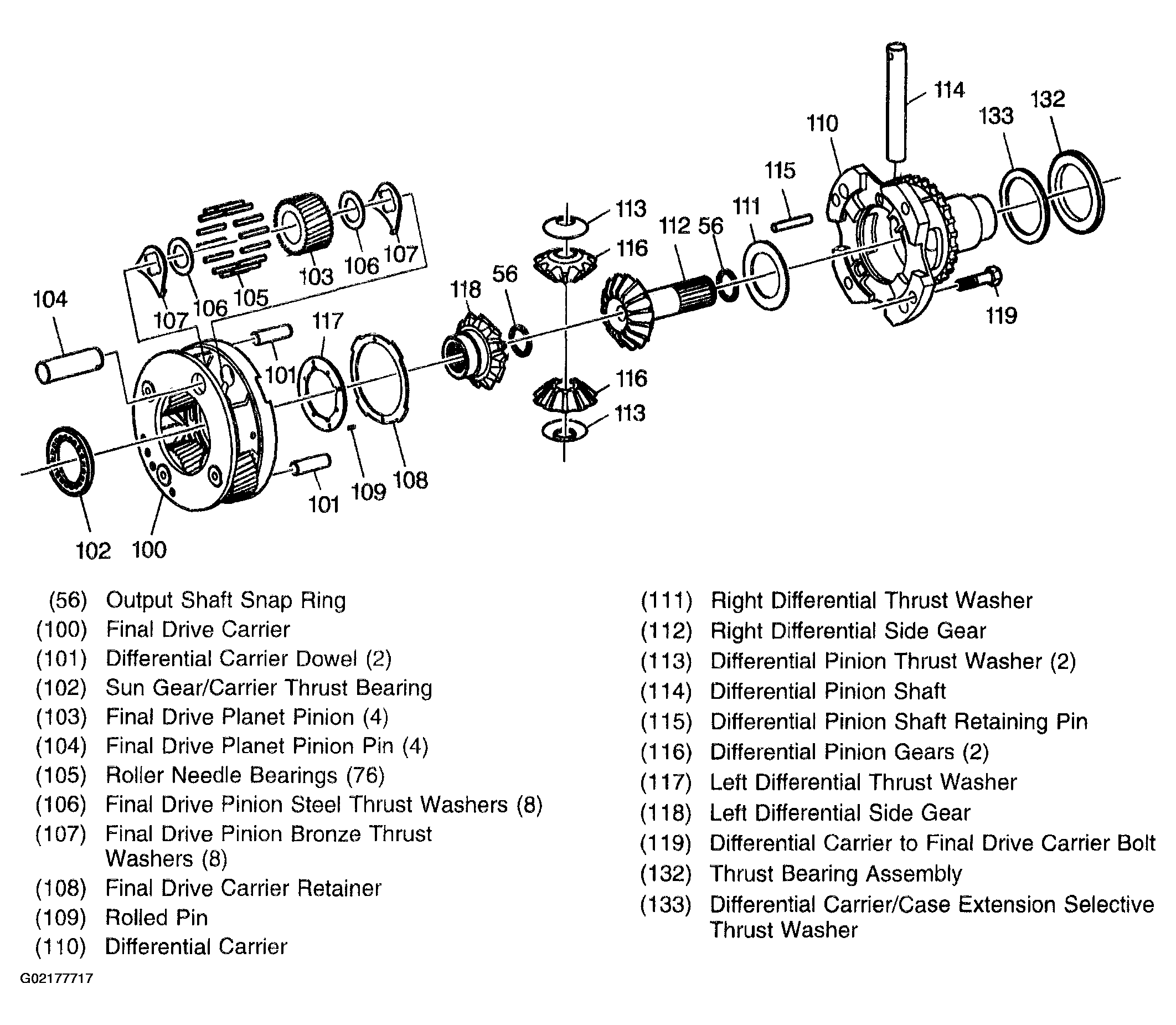

Fig 15: Final Drive Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.

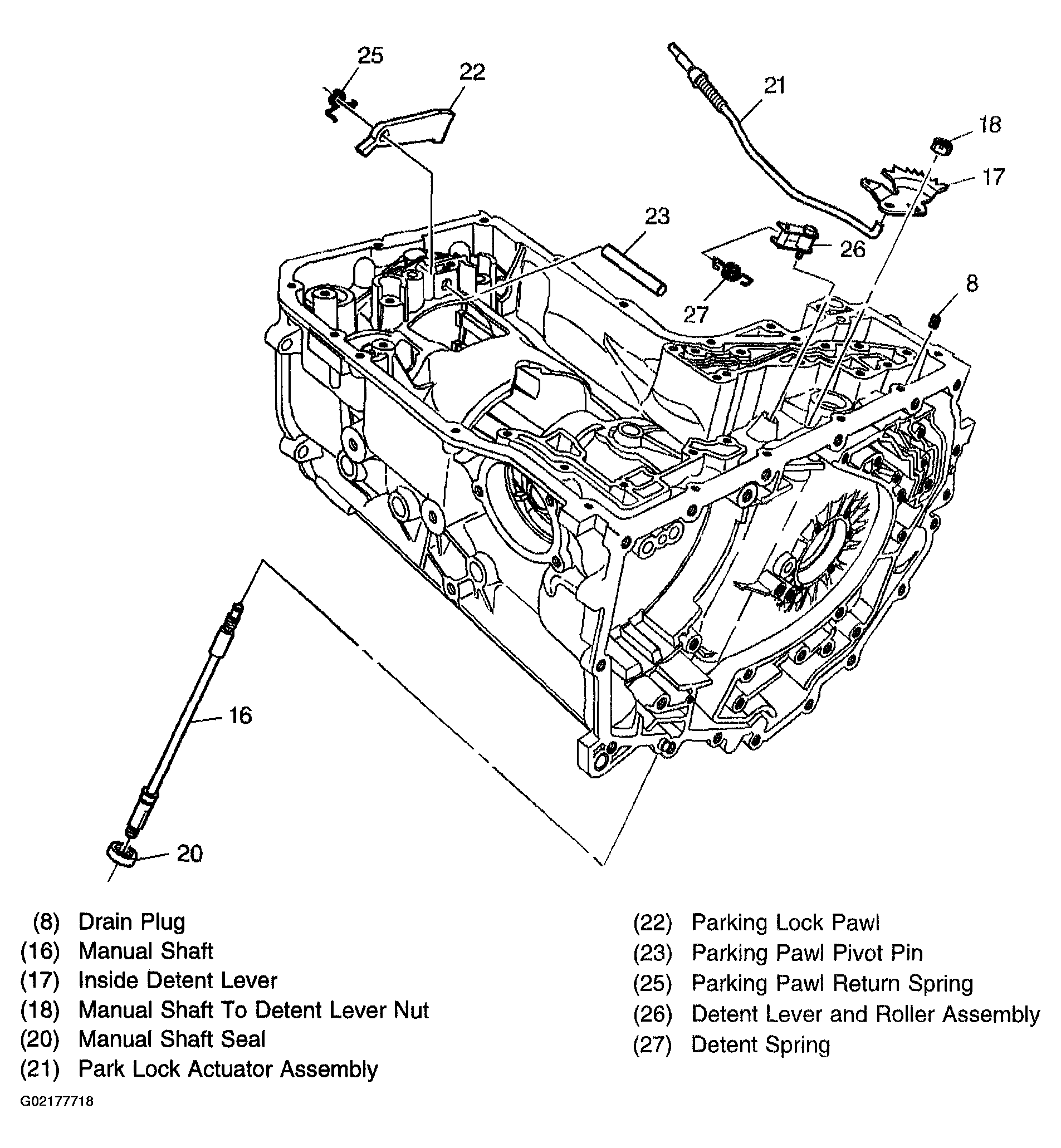

Fig 16: Parking Pawl, Actuator Assembly & Manual Shaft Disassembled View
Courtesy of GENERAL MOTORS CORP.
