Installation Procedure

Spread the console side panels apart and install the shifter assembly.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the shifter fasteners.
Tighten

Tighten the shifter fasteners to 9 N.m (79 lb in).

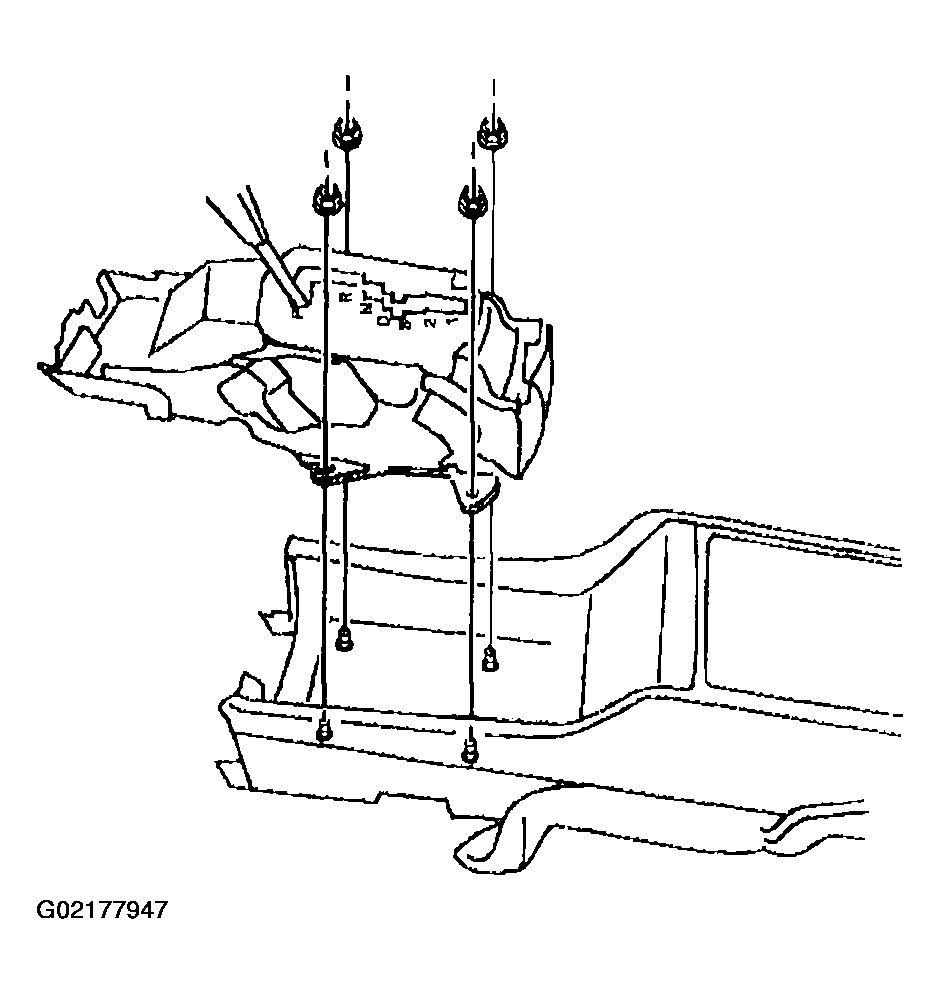

Fig 1: Installing Shifter Assembly & Fasteners
Courtesy of GENERAL MOTORS CORP.
Insert the park lock cable into the park lock cam on the shifter.
Slide the park lock cable into the shifter and assure that the cable locking tab is fully engaged.
Connect the automatic transmission shift lock actuator wire harness connector.

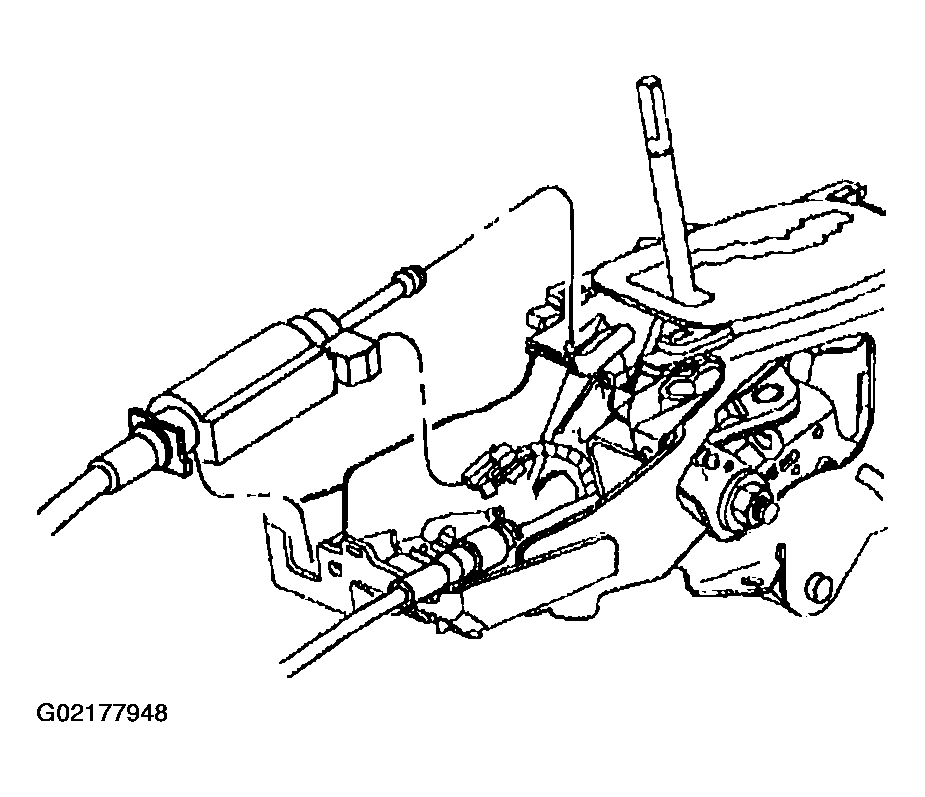

Fig 2: Installing Park Lock Cable To Park Lock Cam On Shifter
Courtesy of GENERAL MOTORS CORP.
Snap the shift cable terminal onto the shifter pin.

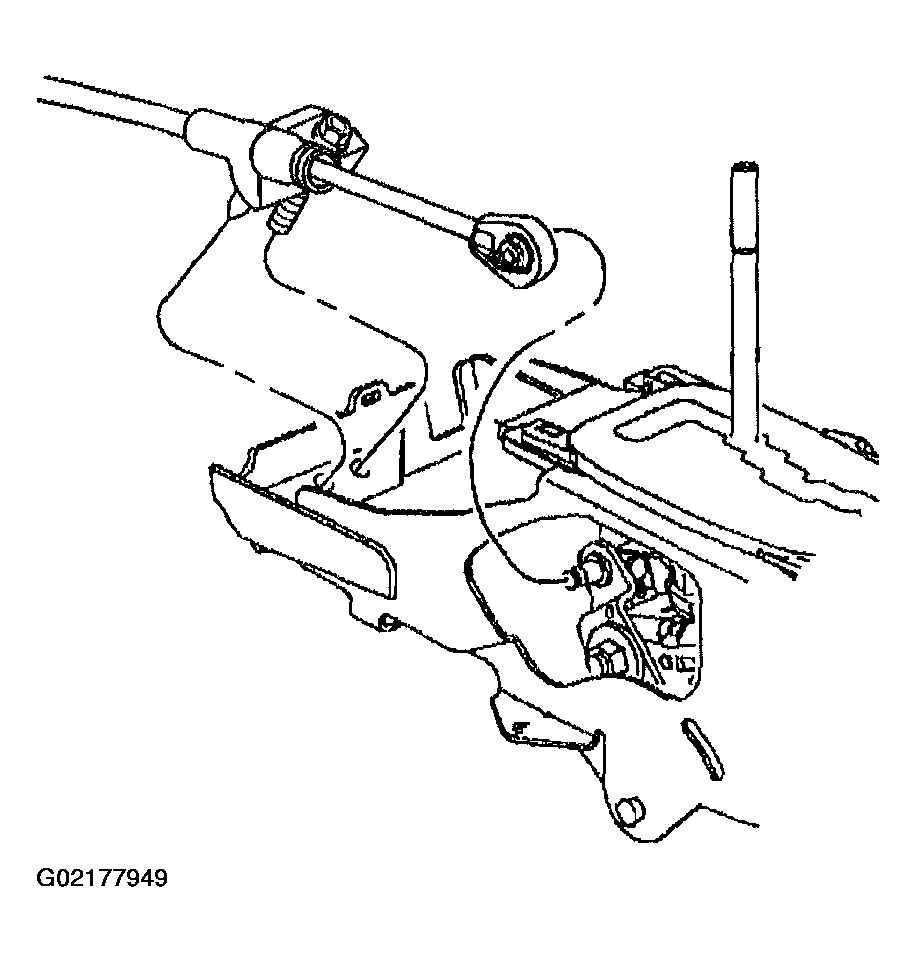

Fig 3: Installing Shift Cable Terminal Onto Shifter Pin
Courtesy of GENERAL MOTORS CORP.
Fasten the shift cable to the shifter.
Tighten

Tighten the shift cable bolt to 25 N.m (18 lb ft).
Adjust the shift cable as follows.
1. 8.1. Place the shifter into the N (neutral) position.
2. 8.2. Loosen the shifter adjuster nut.
3. 8.3. Tighten the adjuster nut.
Tighten

Tighten the adjuster nut to 25 N.m (18 lb ft).
Install the console trim plate. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE in Instrument Panel, Gages and Console.
