Removal Procedure

Remove the console trim plate. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE in Instrument Panel, Gages, and Console.
Unsnap the shift cable terminal from the shifter pin.
Remove the shift cable bolt and cable from the shifter.

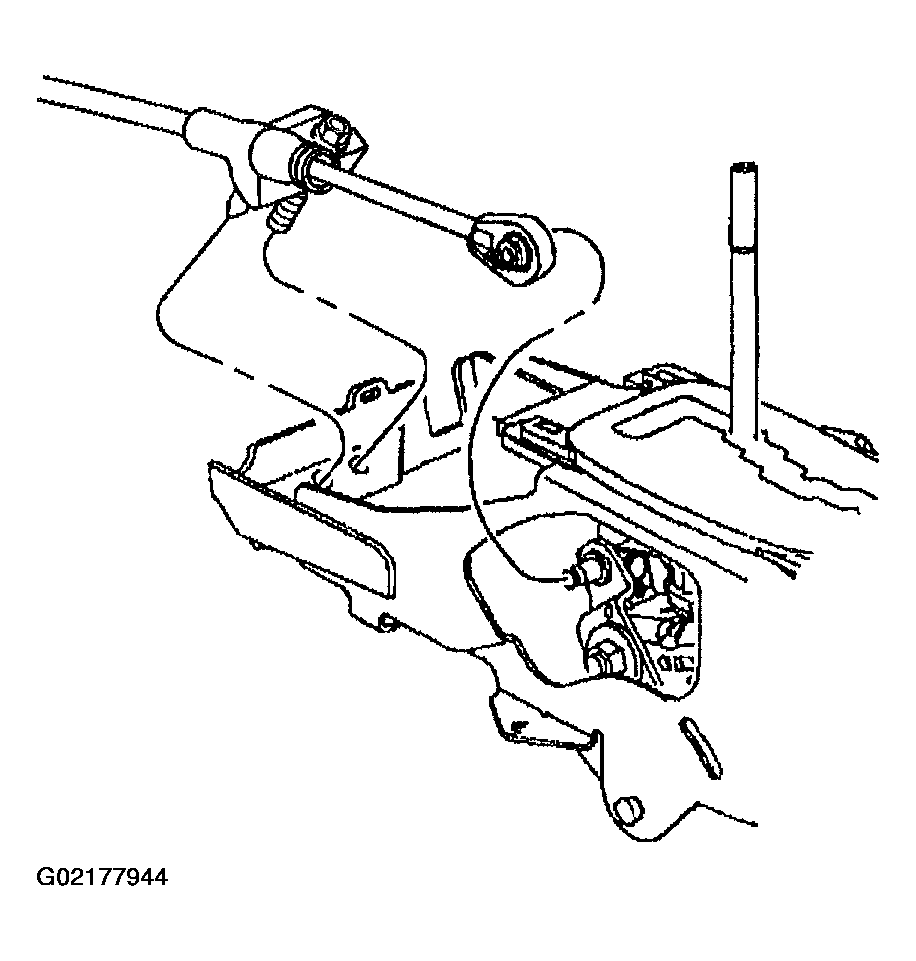

Fig 1: Removing Shift Cable Terminal From Shifter Pin
Courtesy of GENERAL MOTORS CORP.
Disconnect the automatic transmission shift lock actuator wire harness connector, from the automatic transmission shift lock actuator solenoid.
Disengage the locking tab on the park lock cable and lift the cable out of the slot in the shifter.
Unhook the park lock cable from the park lock cam on the shifter.

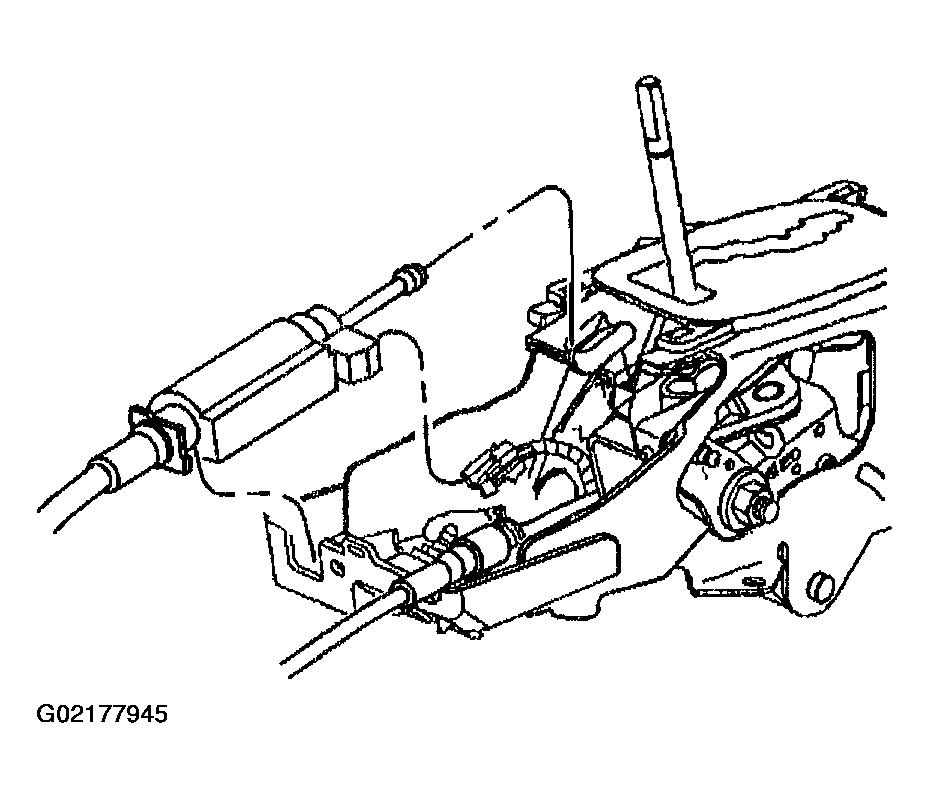

Fig 2: Removing Park Lock Cable From Park Lock Cam On Shifter
Courtesy of GENERAL MOTORS CORP.
Remove the shifter fasteners.
Spread the console side panels apart and remove the shifter assembly.

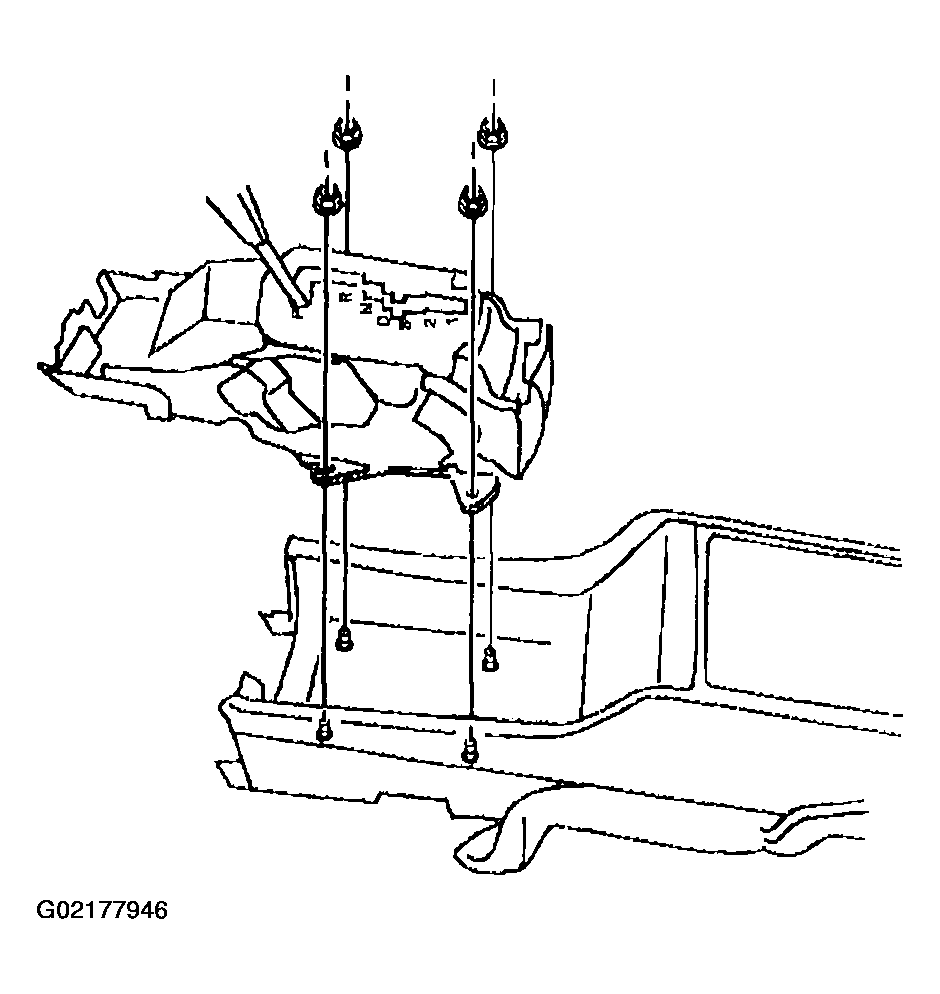

Fig 3: Removing Shifter Assembly & Fasteners
Courtesy of GENERAL MOTORS CORP.
