Line Pressure

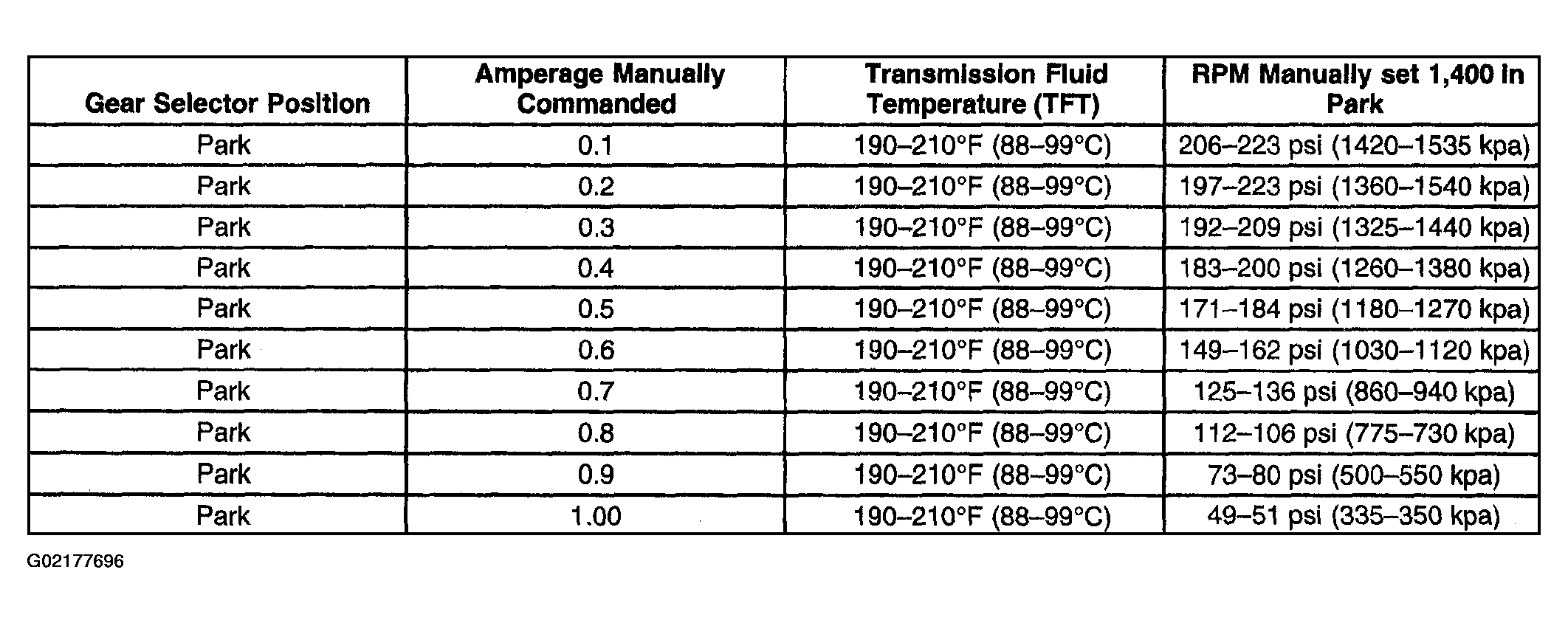

Fig 1: Line Pressure Specifications
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
