Automatic Transaxle - 4T80-E
>>
Specifications
>>
Range Reference
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Range Reference

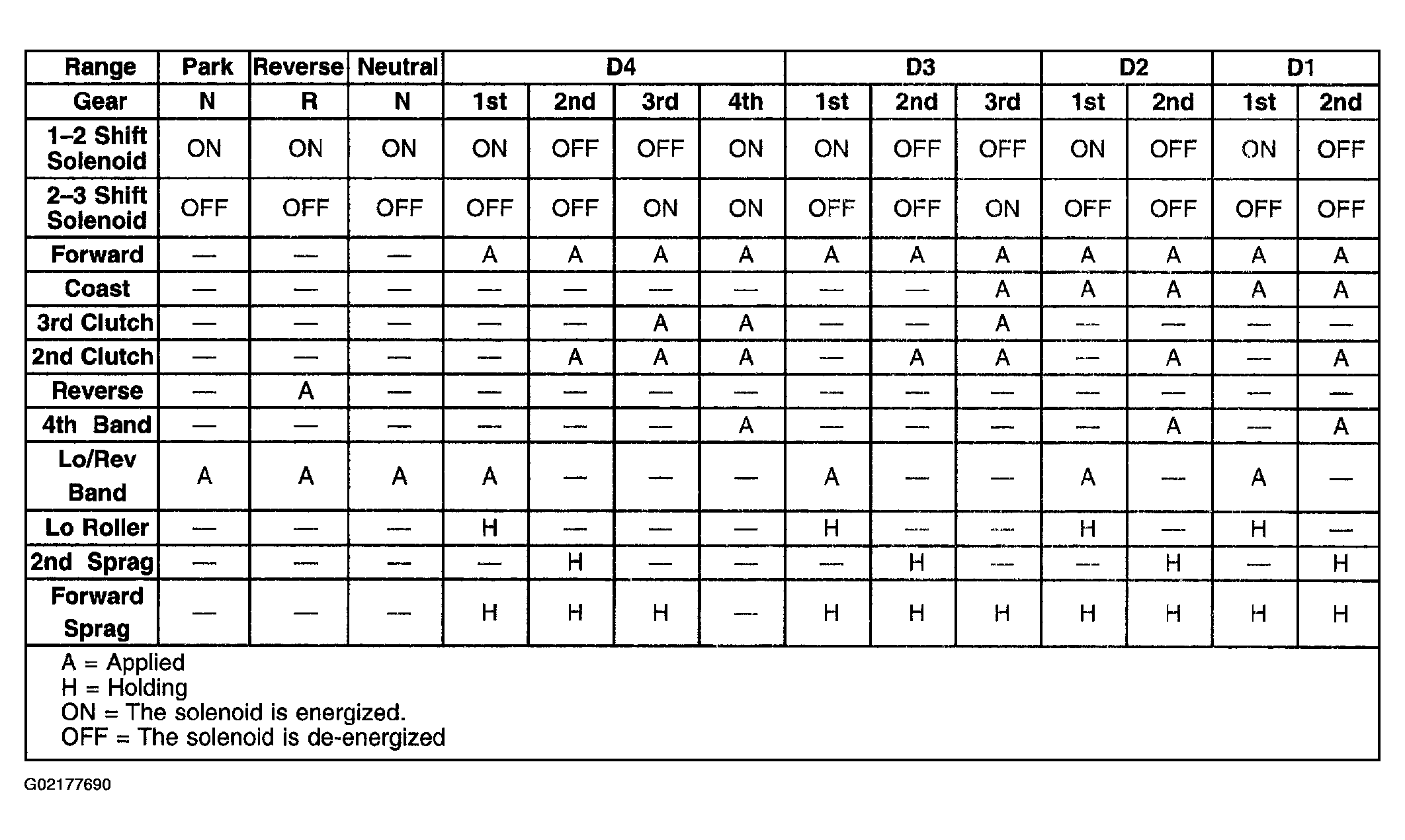

Fig 1: Range Reference Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
