Transmission Internal Mode Switch Logic

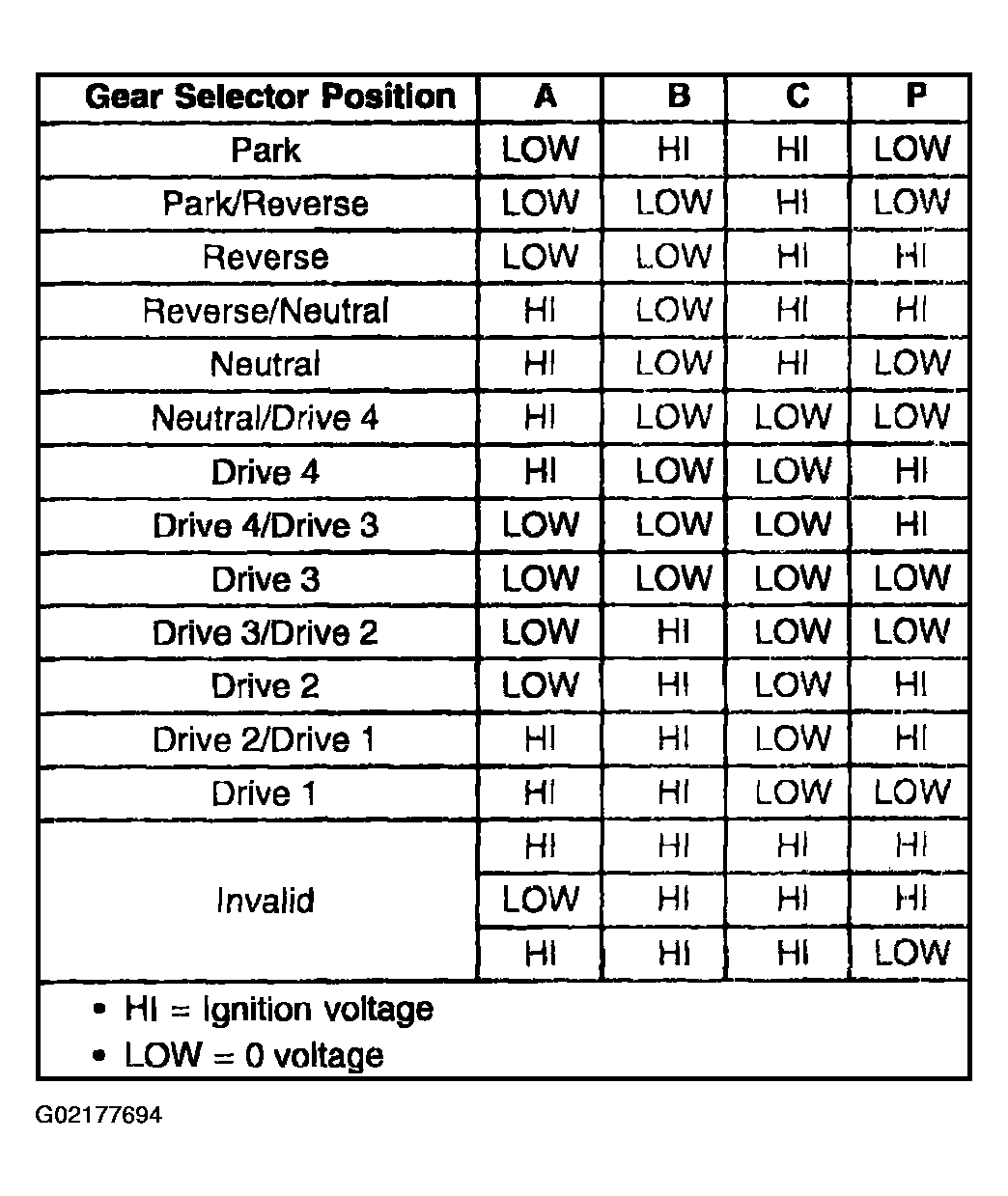

Fig 1: Transmission Internal Mode Switch Logic Specifications
G02177694Courtesy of GENERAL MOTORS CORP.
