Removal Procedure

  1. Remove the cruise control cable. Refer to CRUISE CONTROL CABLE REPLACEMENT   .

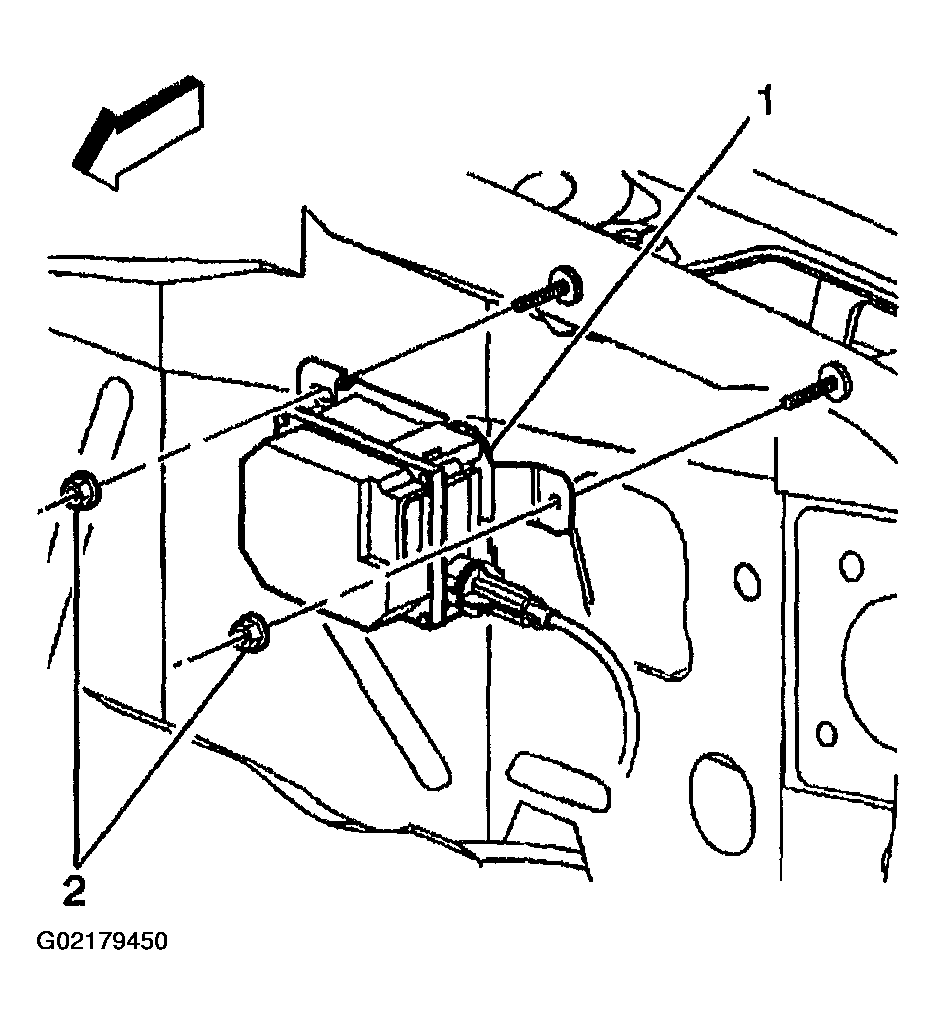

  2. Remove the electrical connector from the cruise control module assembly (1).
  3. Remove the fasteners (2) from the mounting studs.
  4. Remove the cruise control module assembly (1) from the vehicle.
    Fig 1: Removing Cruise Control Module Assembly
    G02179450Courtesy of GENERAL MOTORS CORP.

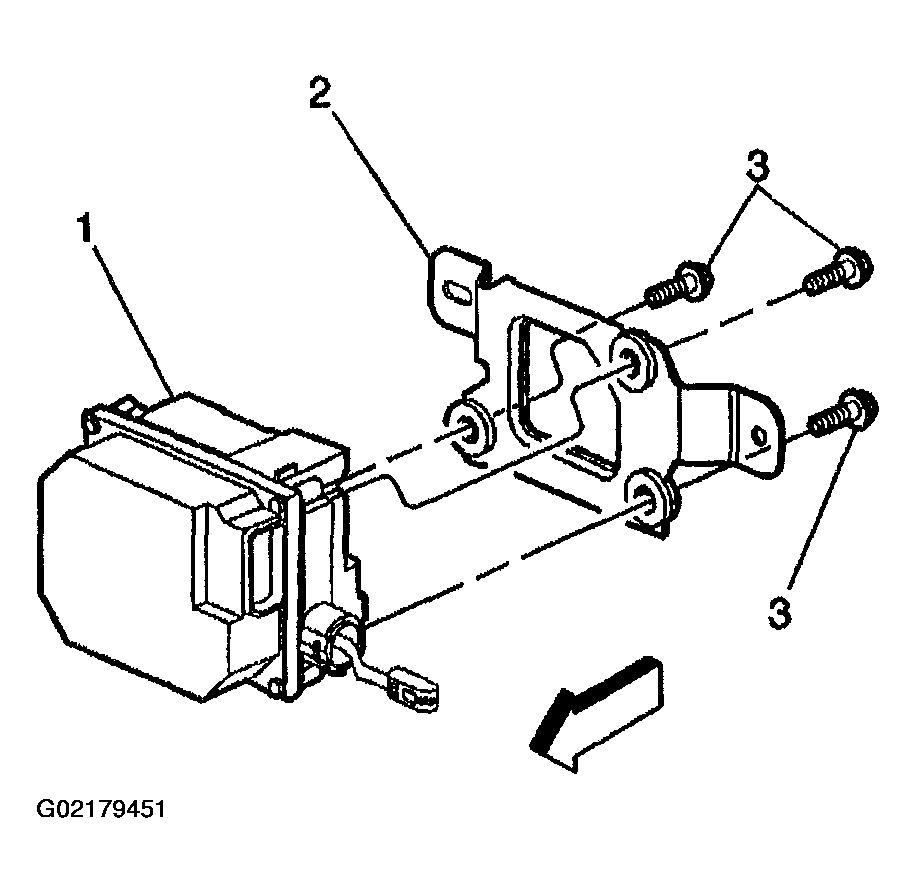

  5. Remove the fasteners (3) that retain the cruise control module bracket (2) to the cruise control module.
  6. Remove the cruise control module bracket (2) from the cruise control module (1).
    Fig 2: Removing Cruise Control Module Bracket & Fasteners
    G02179451Courtesy of GENERAL MOTORS CORP.
