Removal Procedure

  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR   or TRIM PANEL REPLACEMENT - SIDE REAR DOOR   .
  2. Remove the inside door handle. Refer to DOOR HANDLE REPLACEMENT - FRONT INSIDE   or DOOR HANDLE REPLACEMENT - REAR INSIDE   .
  3. Remove the two screws from the switch.

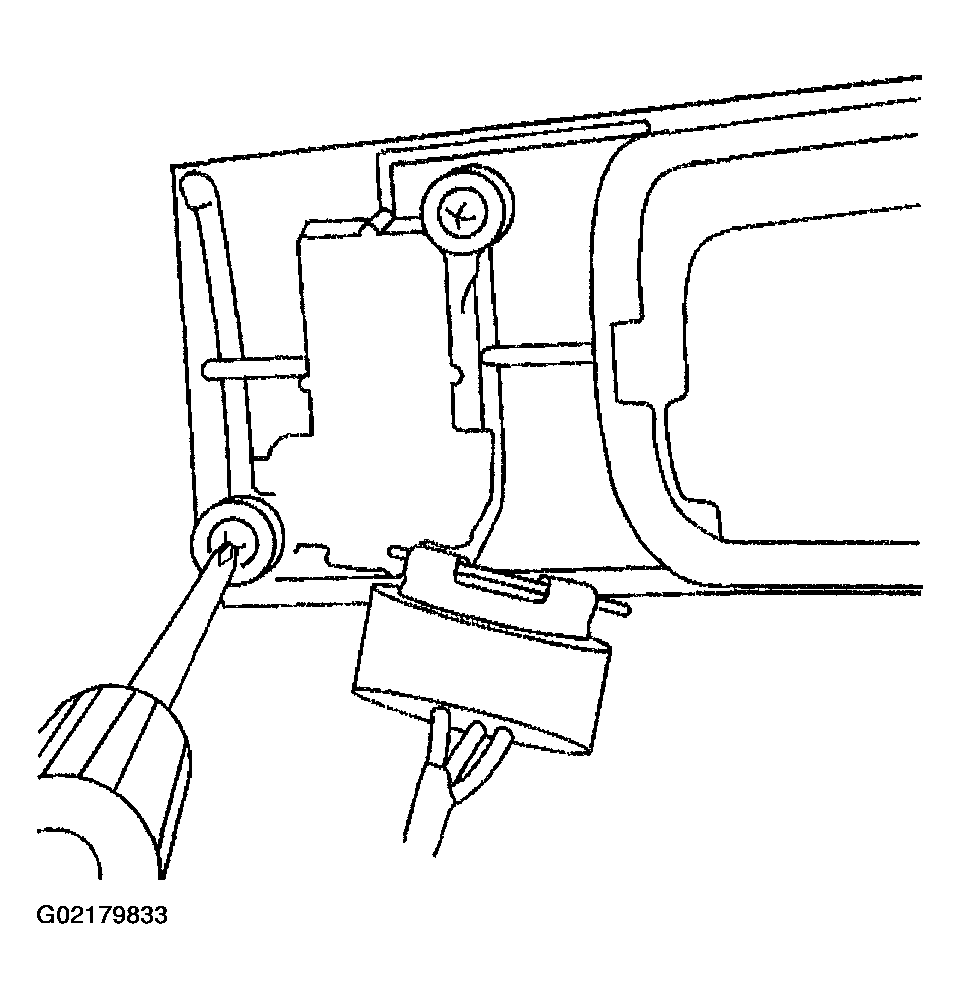

    Fig 1: Removing Screws & Door Lock Switch
    G02179833Courtesy of GENERAL MOTORS CORP.
  4. Remove the door lock switch from the inside of the door panel.
