Electronic Brake Control Module (EBCM)

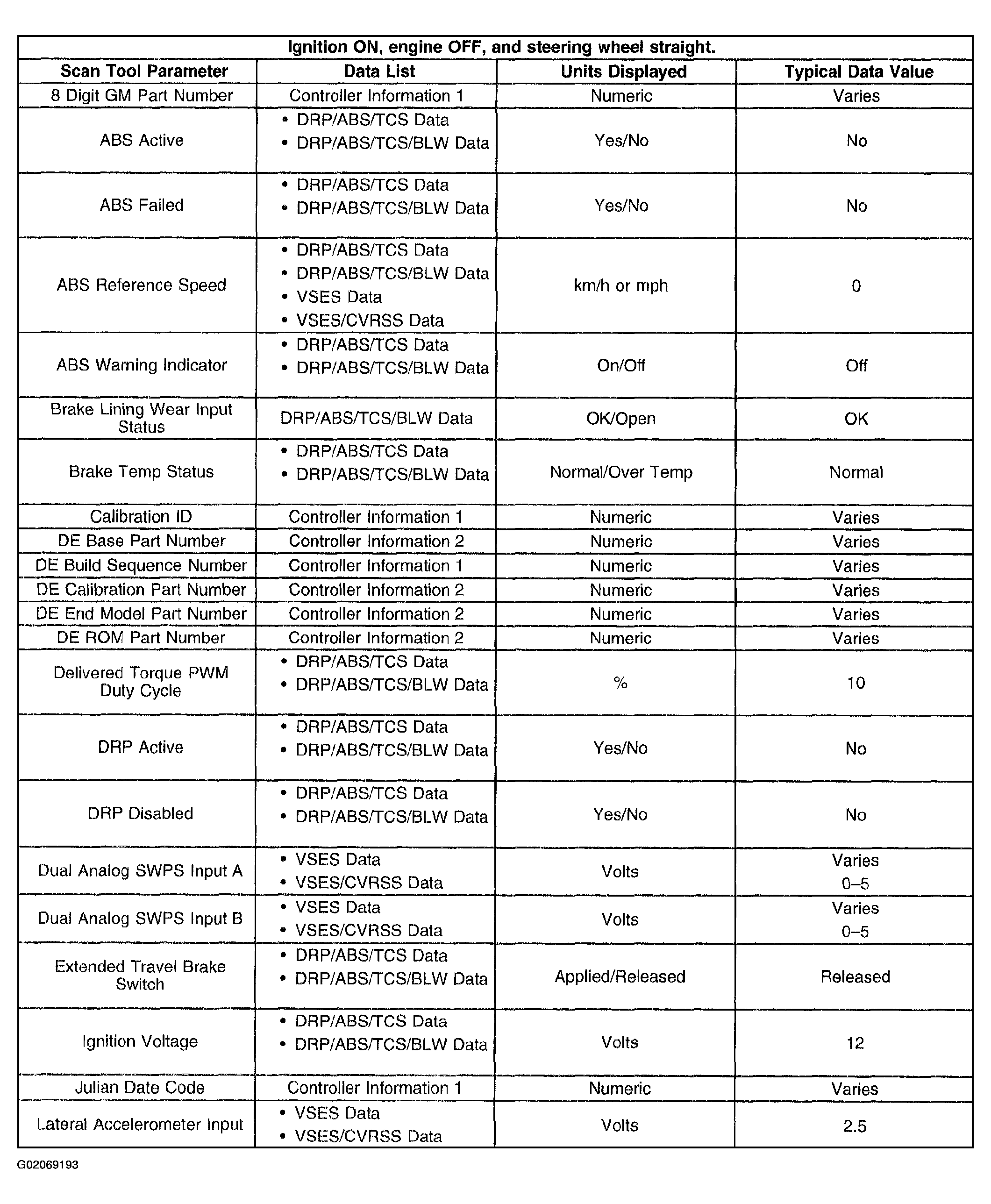

Fig 1: Scan Tool Data List - Electronic Brake Control Module (EBCM) (1 Of 3)
G02069193Courtesy of GENERAL MOTORS CORP.

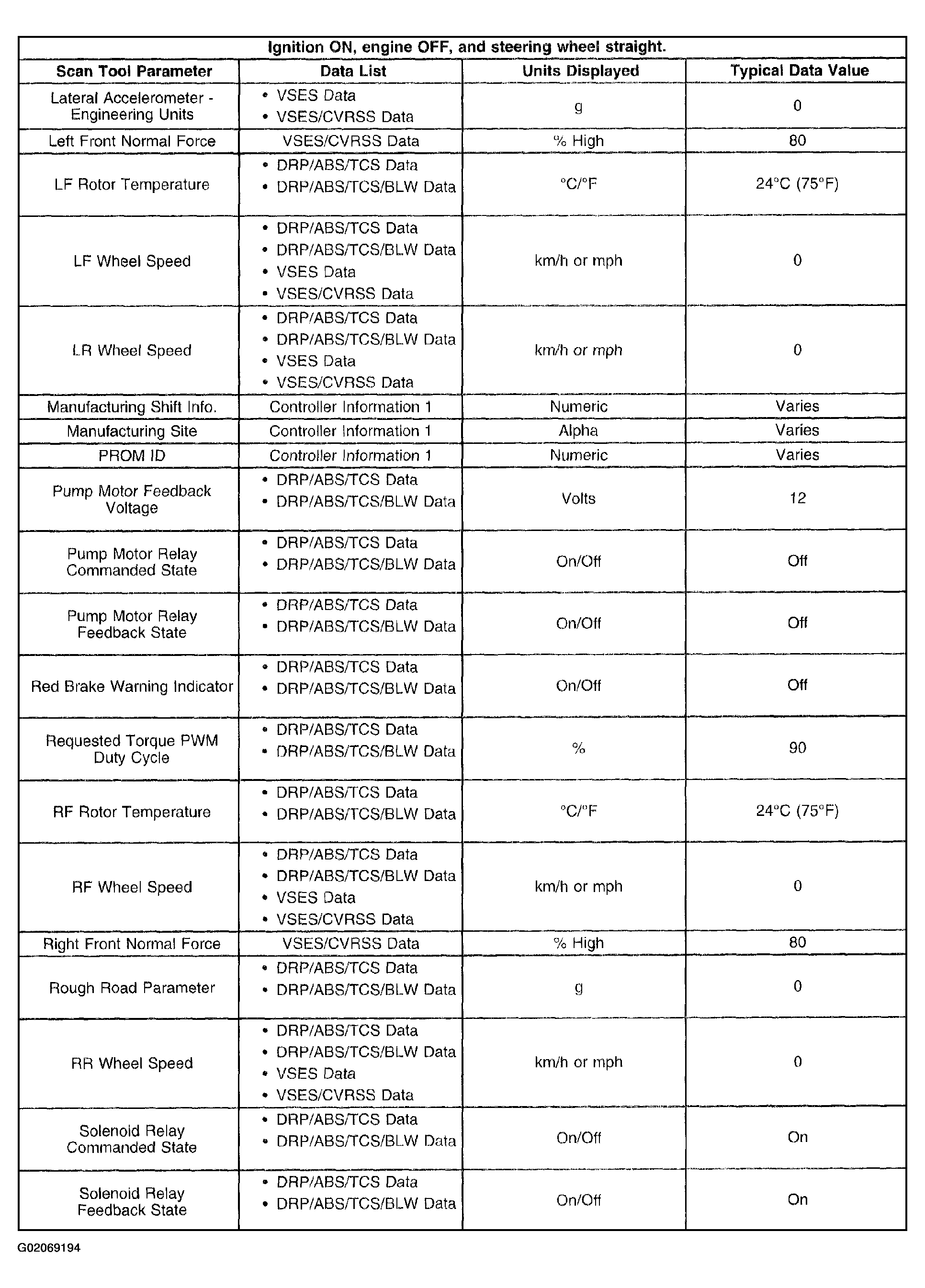

Fig 2: Scan Tool Data List - Electronic Brake Control Module (EBCM) (2 Of 3)
G02069194Courtesy of GENERAL MOTORS CORP.

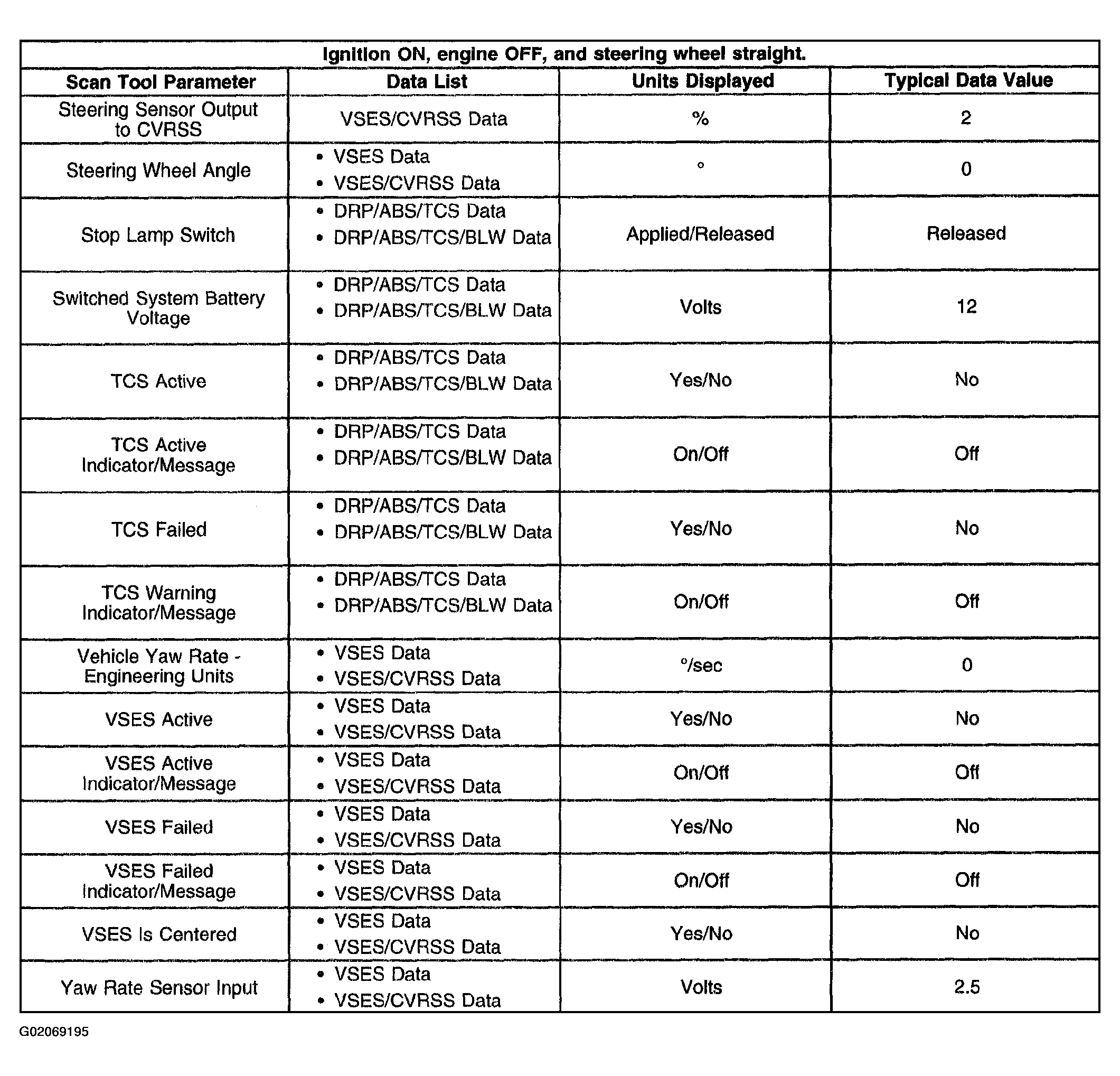

Fig 3: Scan Tool Data List - Electronic Brake Control Module (EBCM) (3 Of 3)
G02069195Courtesy of GENERAL MOTORS CORP.
