Installation Procedure
NOTE:
Refer to FASTENER NOTICE
in Cautions and Notices.

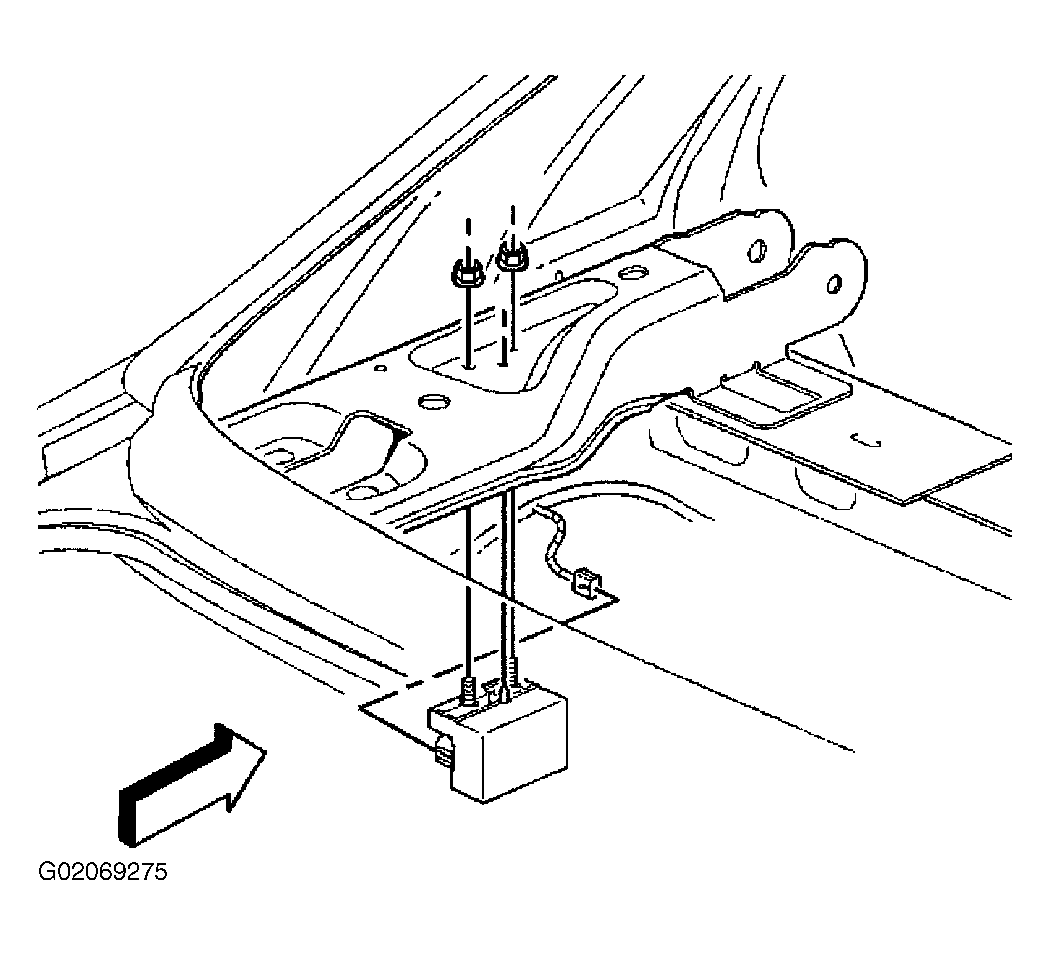

- Install the yaw rate sensor onto the mounting studs.
Tighten
Tighten the 2 yaw rate sensor nuts to 6 N.m (53 lb in).
- Install the rear trim panel shelf. Refer to INTERIOR TRIM in Interior Trim.
- Install the yaw rate sensor electrical connector.
- Install the rear compartment trim. Refer to BODY REAR END in Body Rear End.
- Perform the ABS Diagnostic System Check. Refer to DIAGNOSTIC SYSTEM CHECK - ABS .
