Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. If the antenna cable is to being replaced, install the antenna cable clips (3) from the antenna cable removed from the vehicle.
  2. Install the antenna cable to the roof beams with the clips (3).

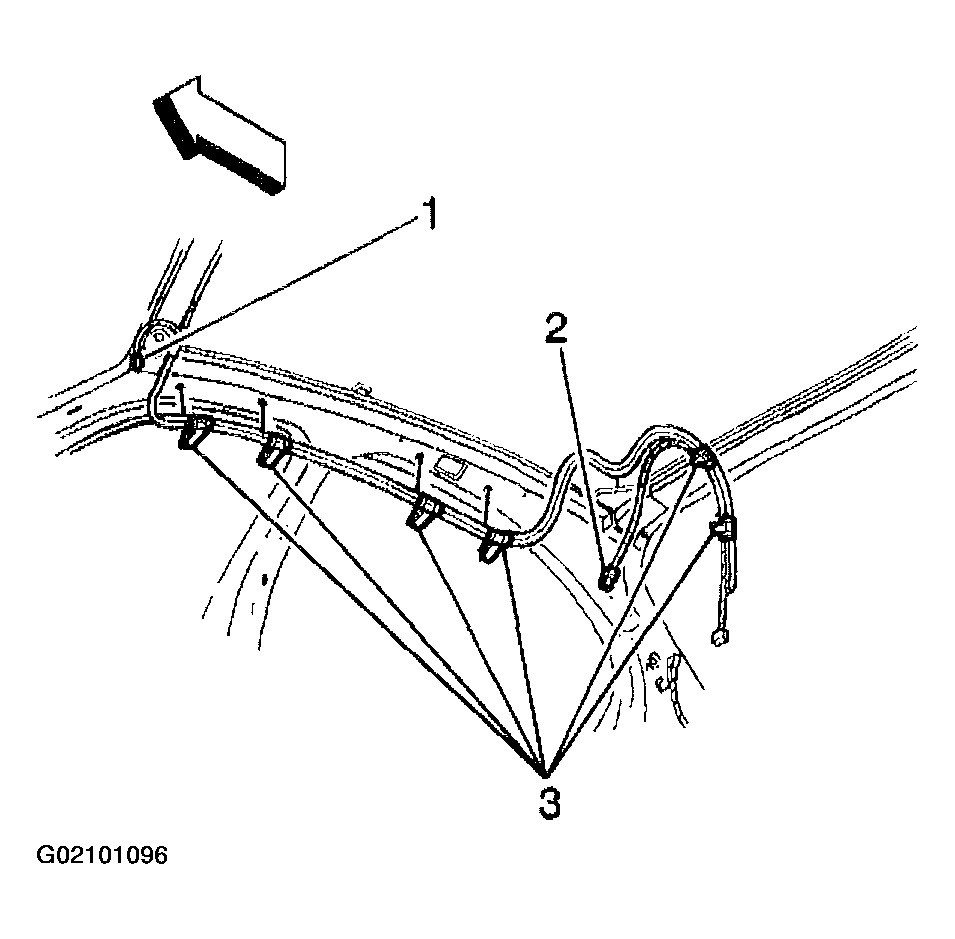

    Fig 1: Installing Antenna Cable Clips
    G02101096Courtesy of GENERAL MOTORS CORP.
  3. Connect the radio antenna connection (1) at the front of the vehicle.

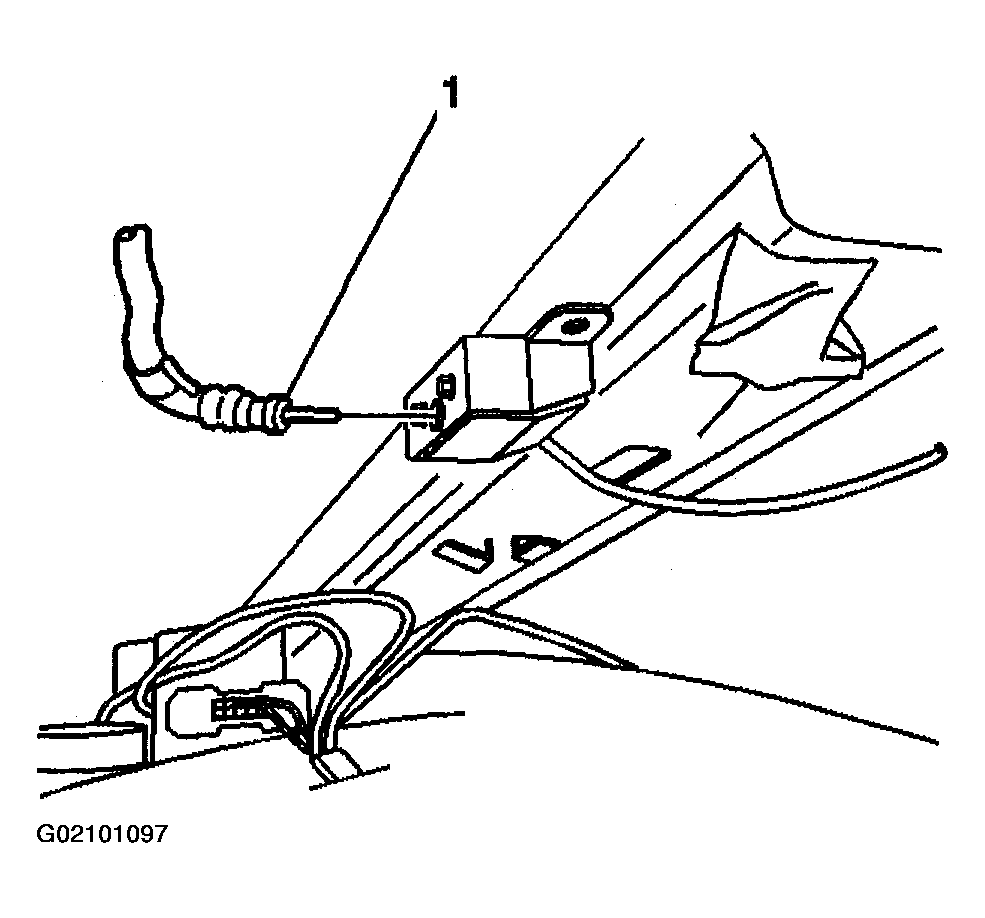

    Fig 2: Connecting Radio Antenna Connection
    G02101097Courtesy of GENERAL MOTORS CORP.
  4. Connect the antenna cable (3) to the antenna module (1) at the rear of the vehicle.
  5. Install the headliner. Refer to HEADLINER REPLACEMENT (W/CF5) or HEADLINER REPLACEMENT (W/O CF5)
  6. Install the sail panel. Refer to SAIL PANEL REPLACEMENT
  7. Install the windshield garnish molding. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR

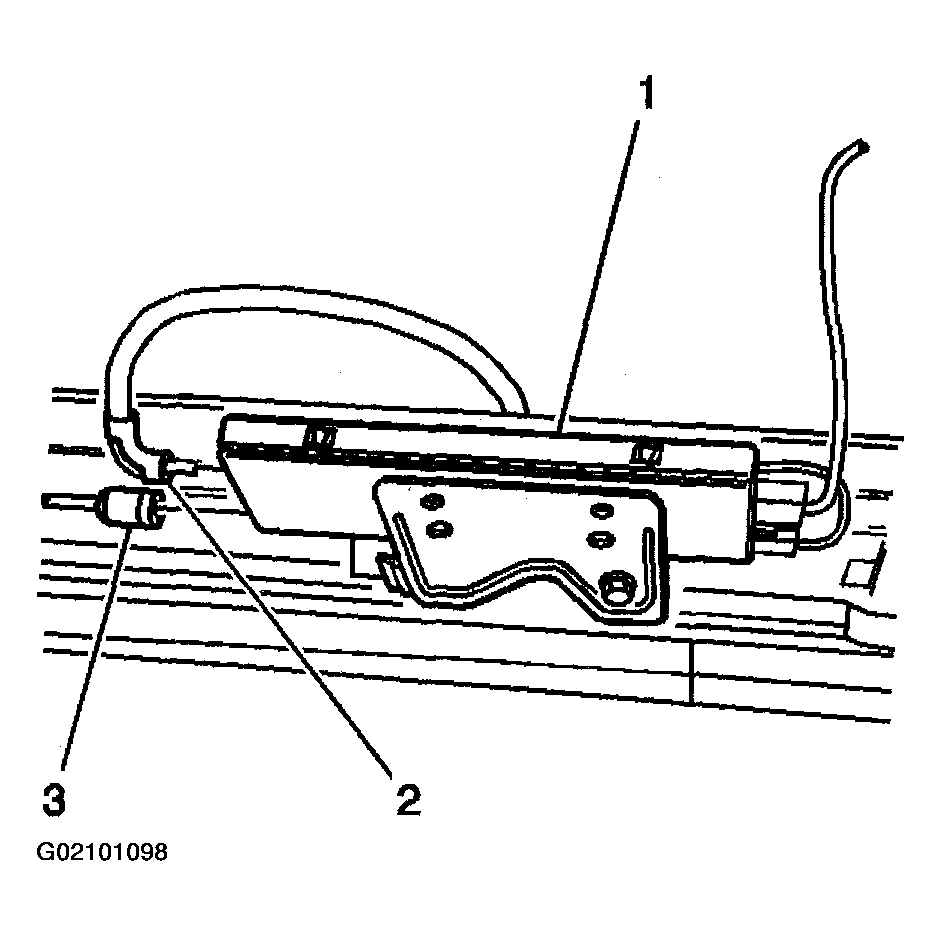

    Fig 3: Connecting Antenna Cable To Antenna Module
    G02101098Courtesy of GENERAL MOTORS CORP.
