Reverse Lockout Solenoid

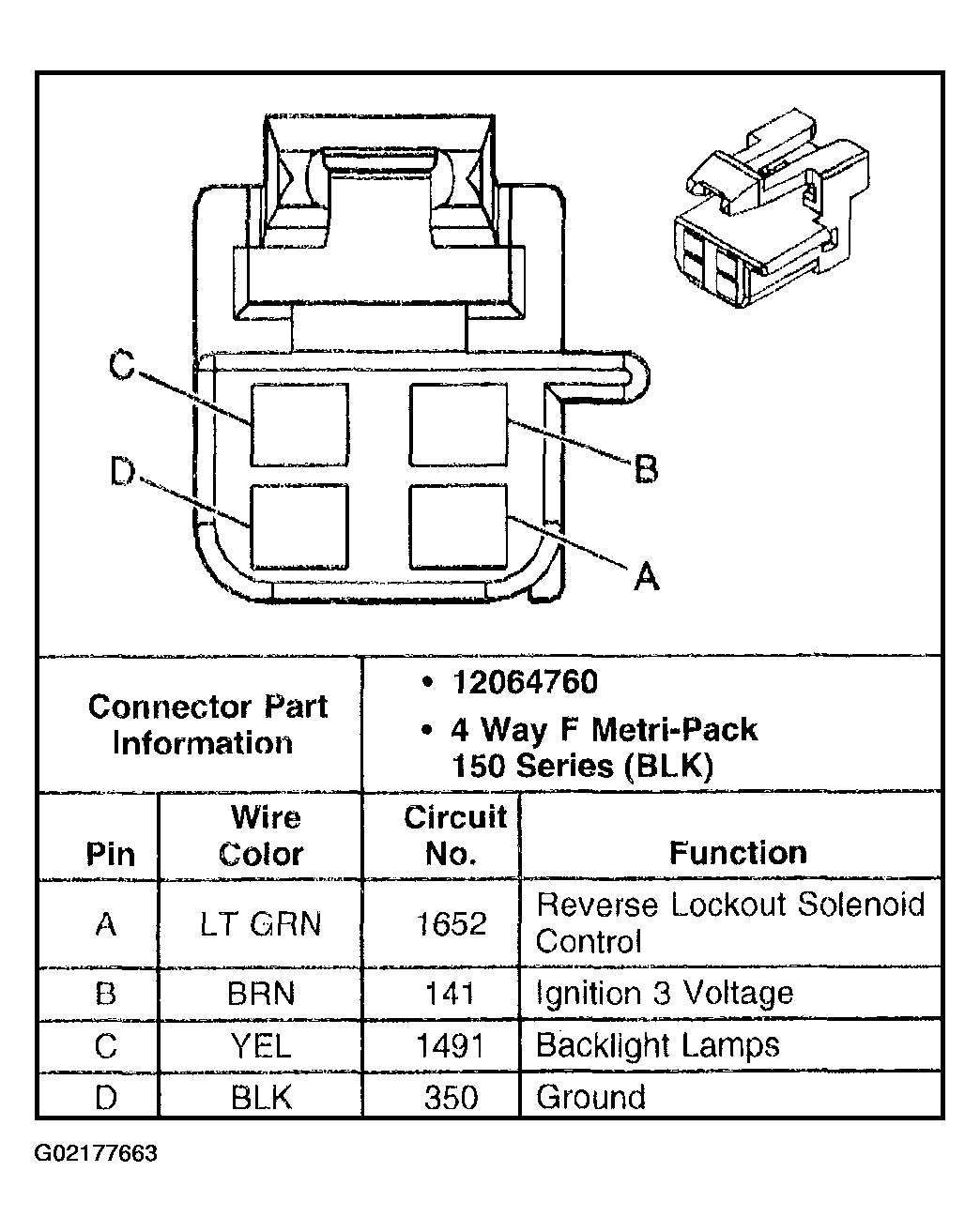

Fig 1: Reverse Lockout Solenoid Connector End View
Courtesy of GENERAL MOTORS CORP.
