Reverse Lockout System Inoperative

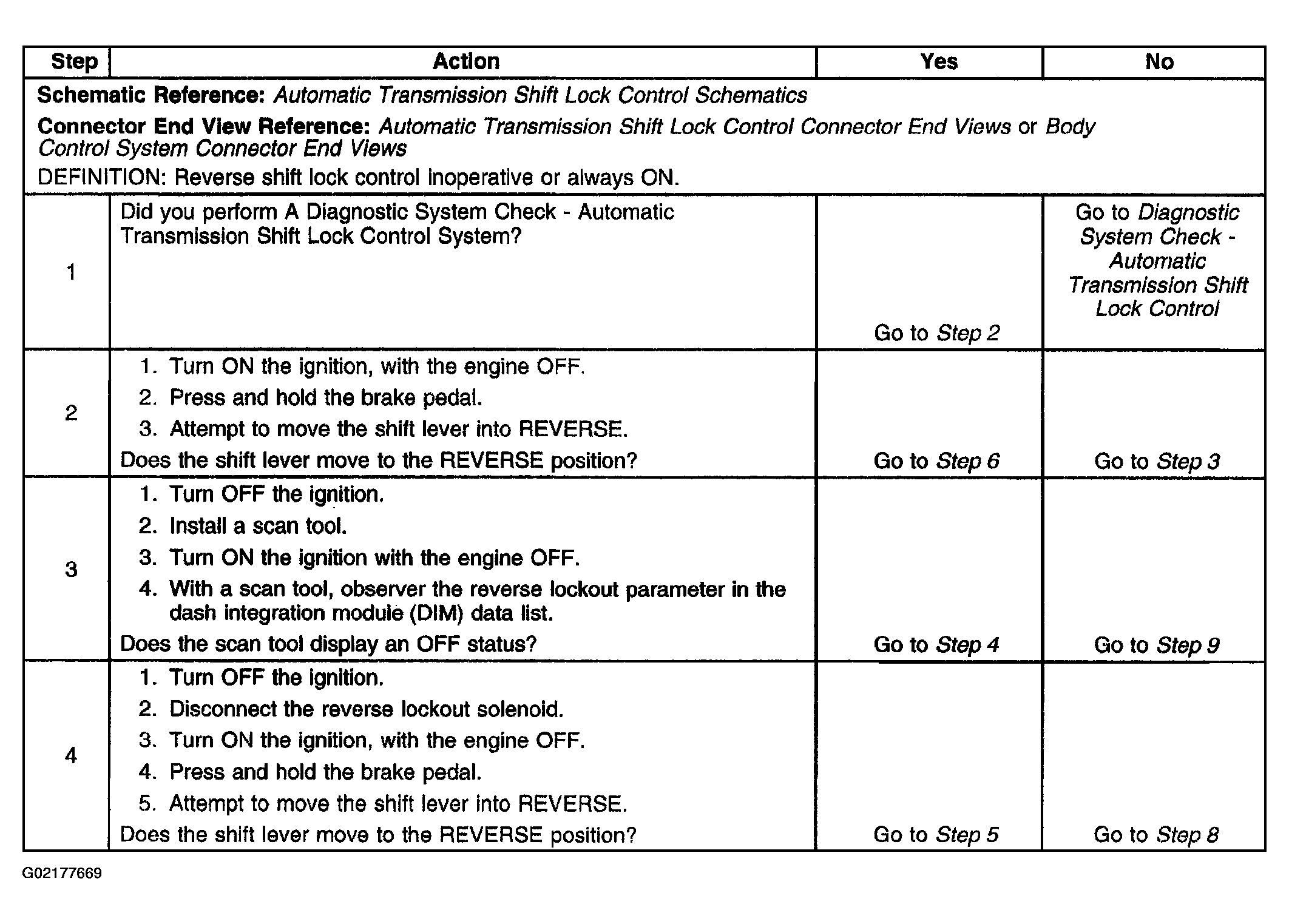

Fig 1: Reverse Lockout System Inoperative (Steps 1 - 4)
G02177669Courtesy of GENERAL MOTORS CORP.

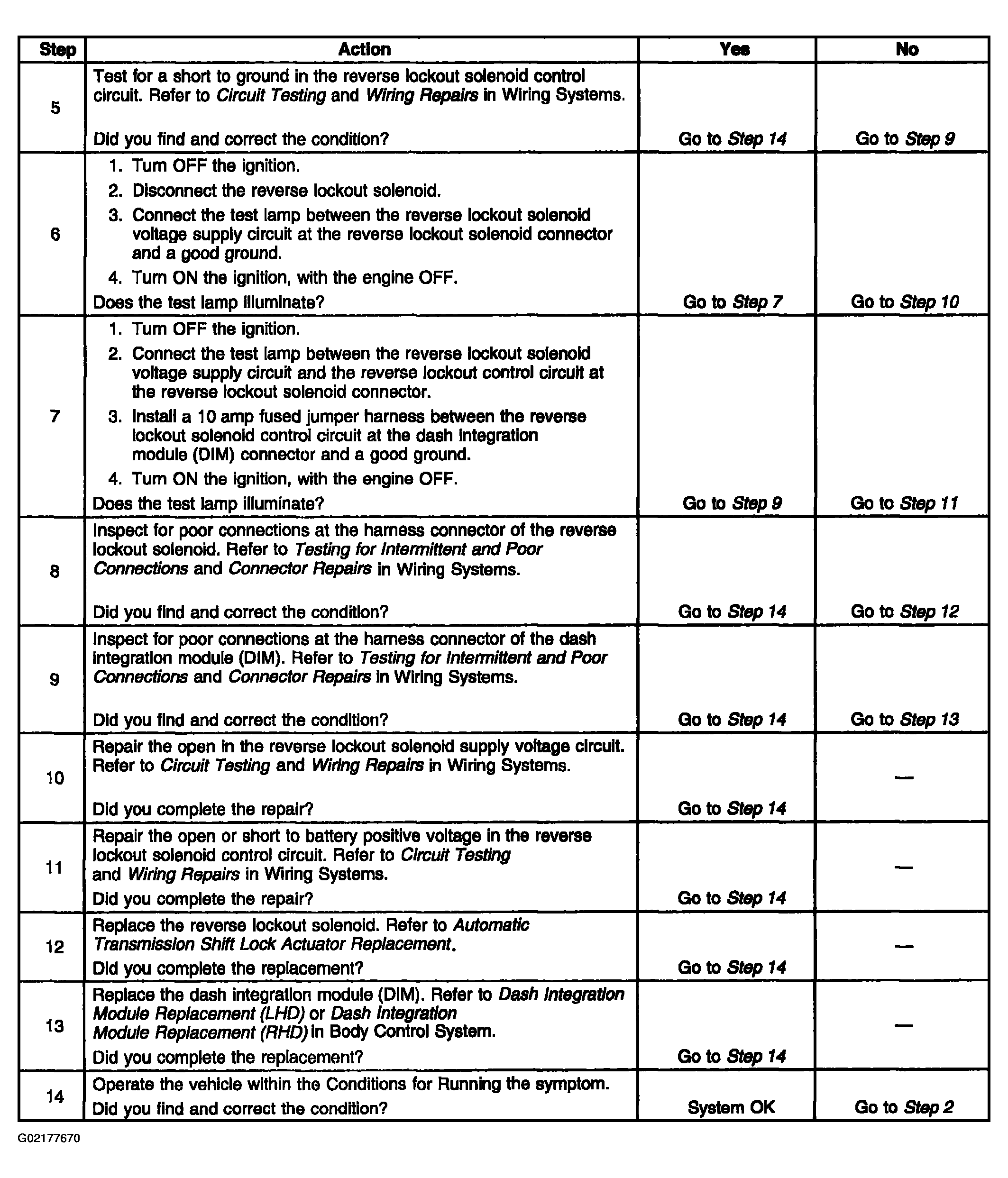

Fig 2: Reverse Lockout System Inoperative (Steps 5 - 14)
G02177670Courtesy of GENERAL MOTORS CORP.
