Crankshaft Position Sensor: Locations

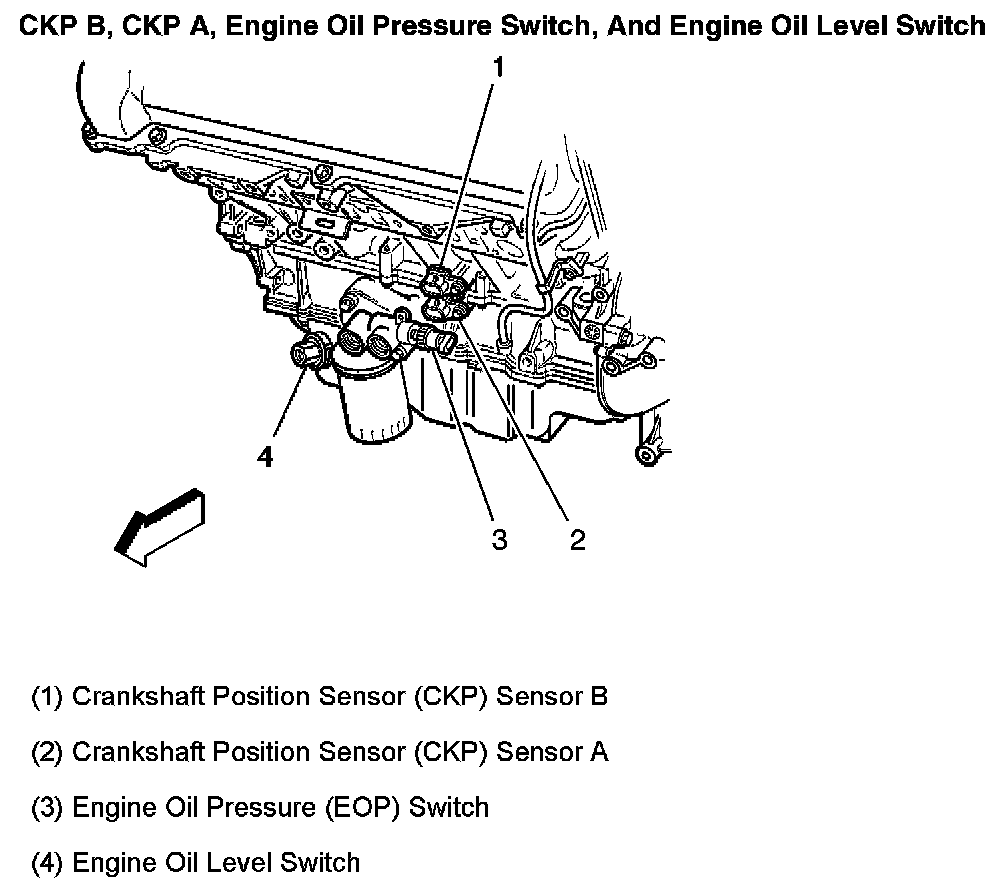

CKP B, CKP A, Engine Oil Pressure Switch, And Engine Oil Level Switch:

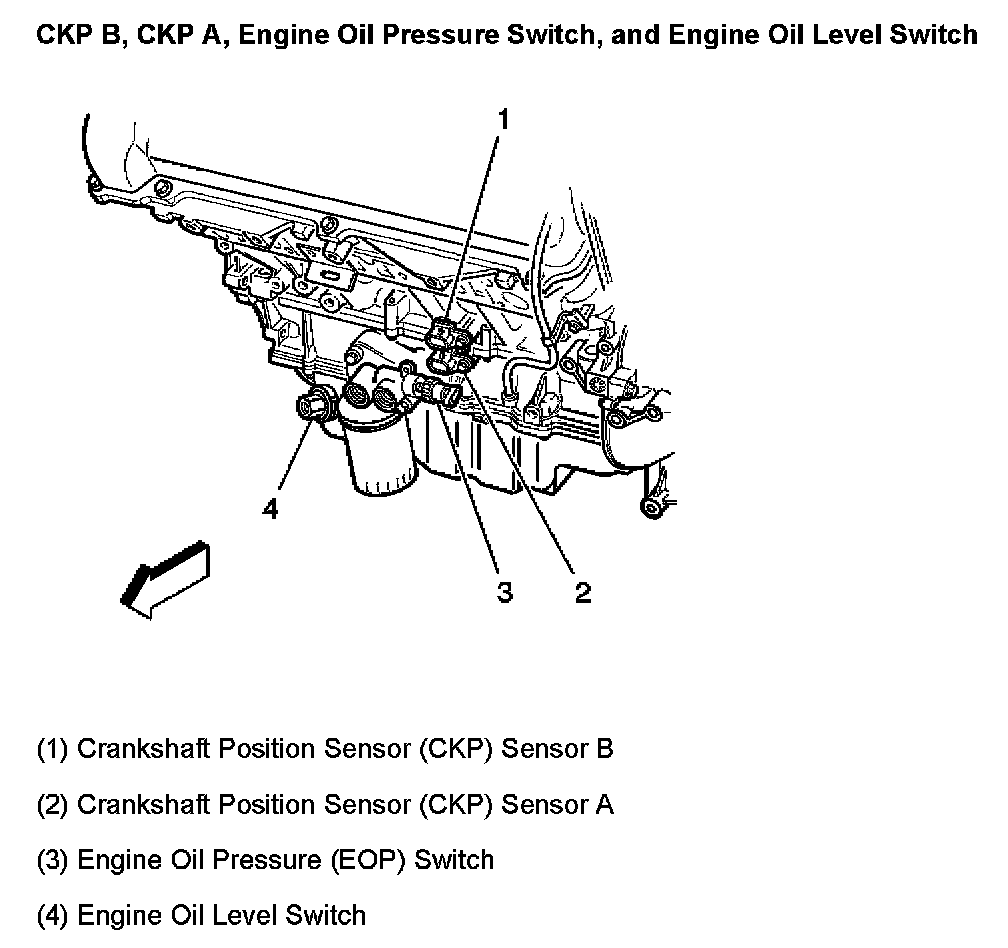

CKP B, CKP A, Engine Oil Pressure Switch, And Engine Oil Level Switch:
