Ignition Relay: Locations

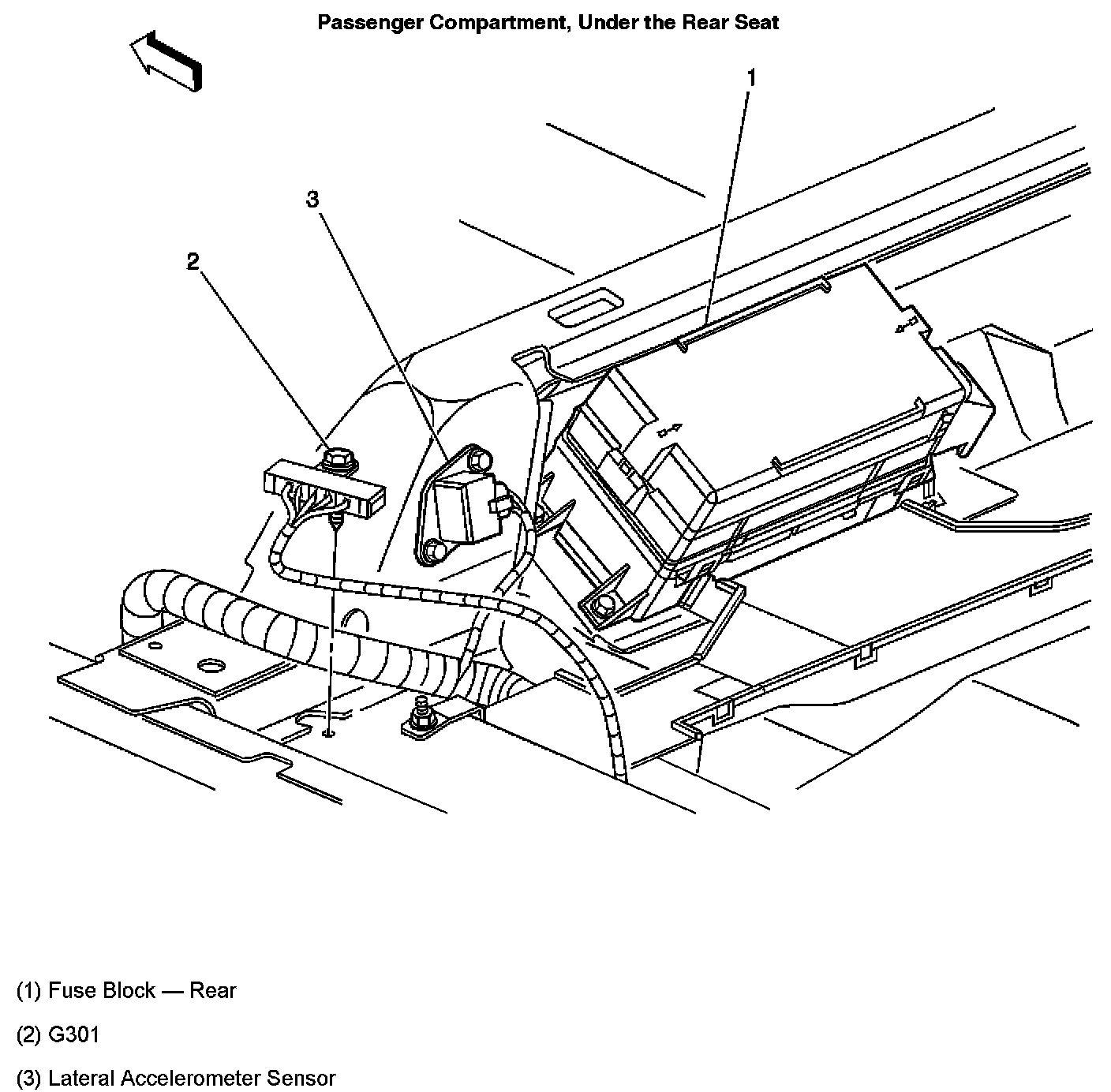

Passenger Compartment, Under The Rear Seat:

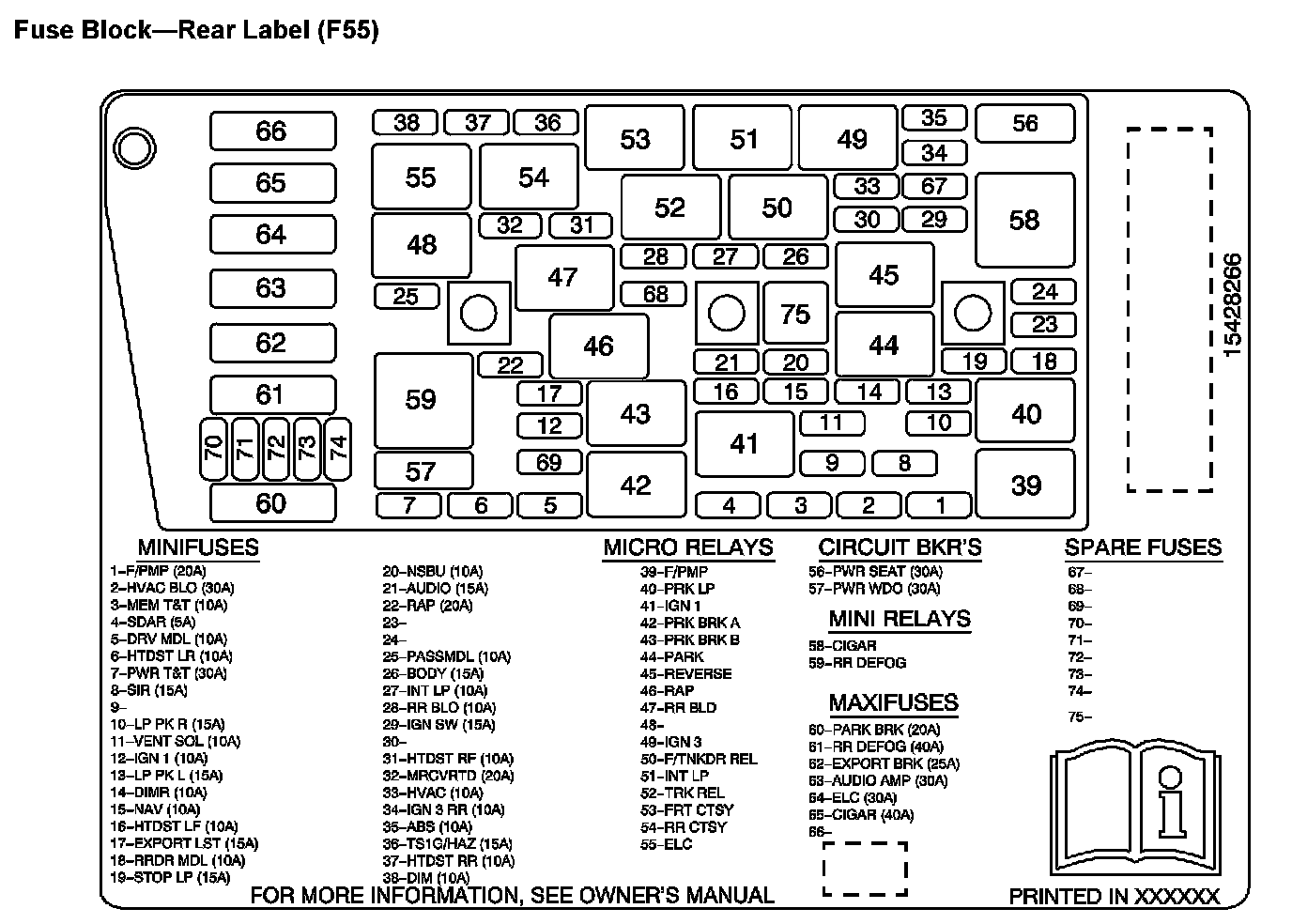

Location View:

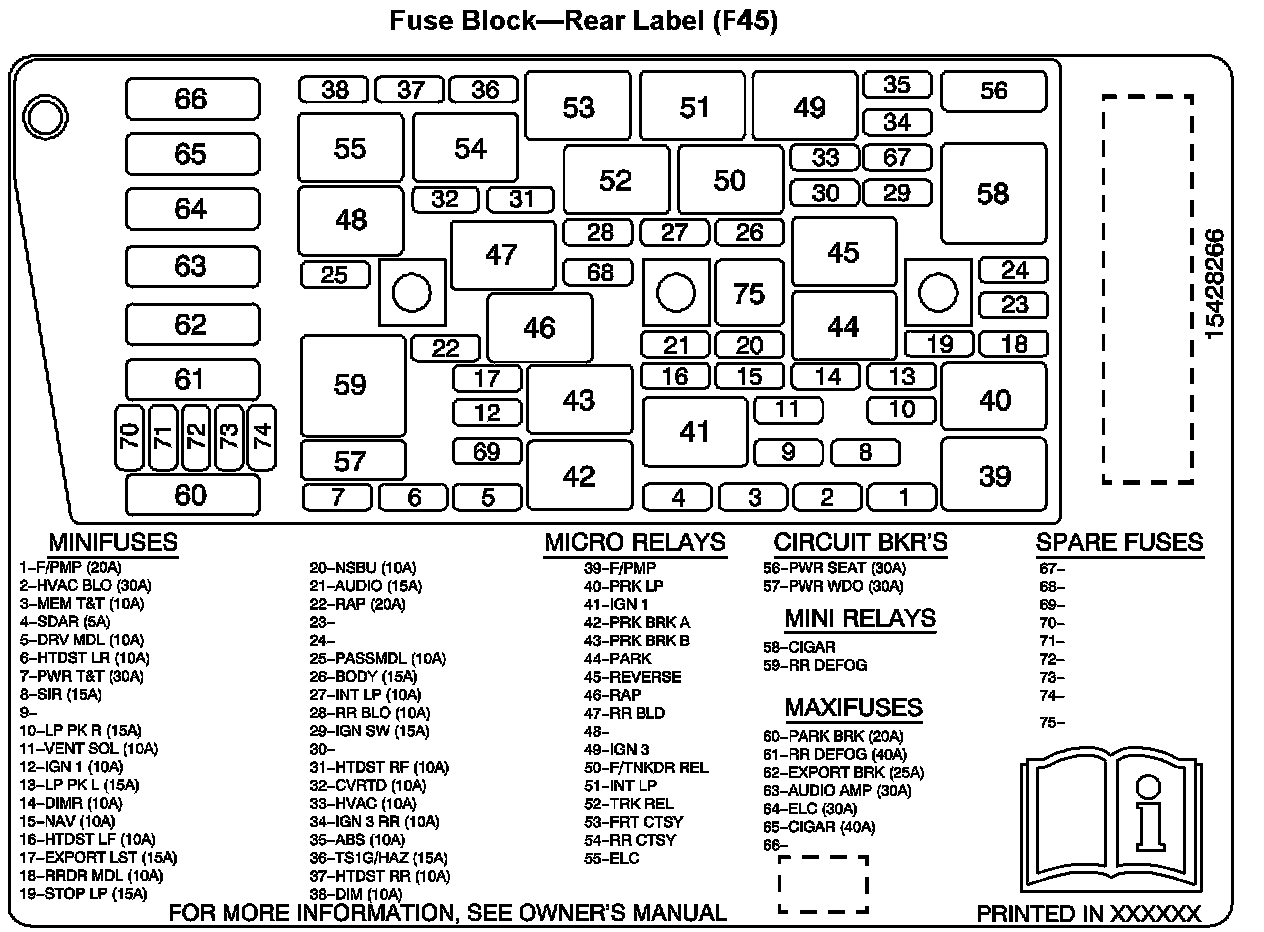

Location View:

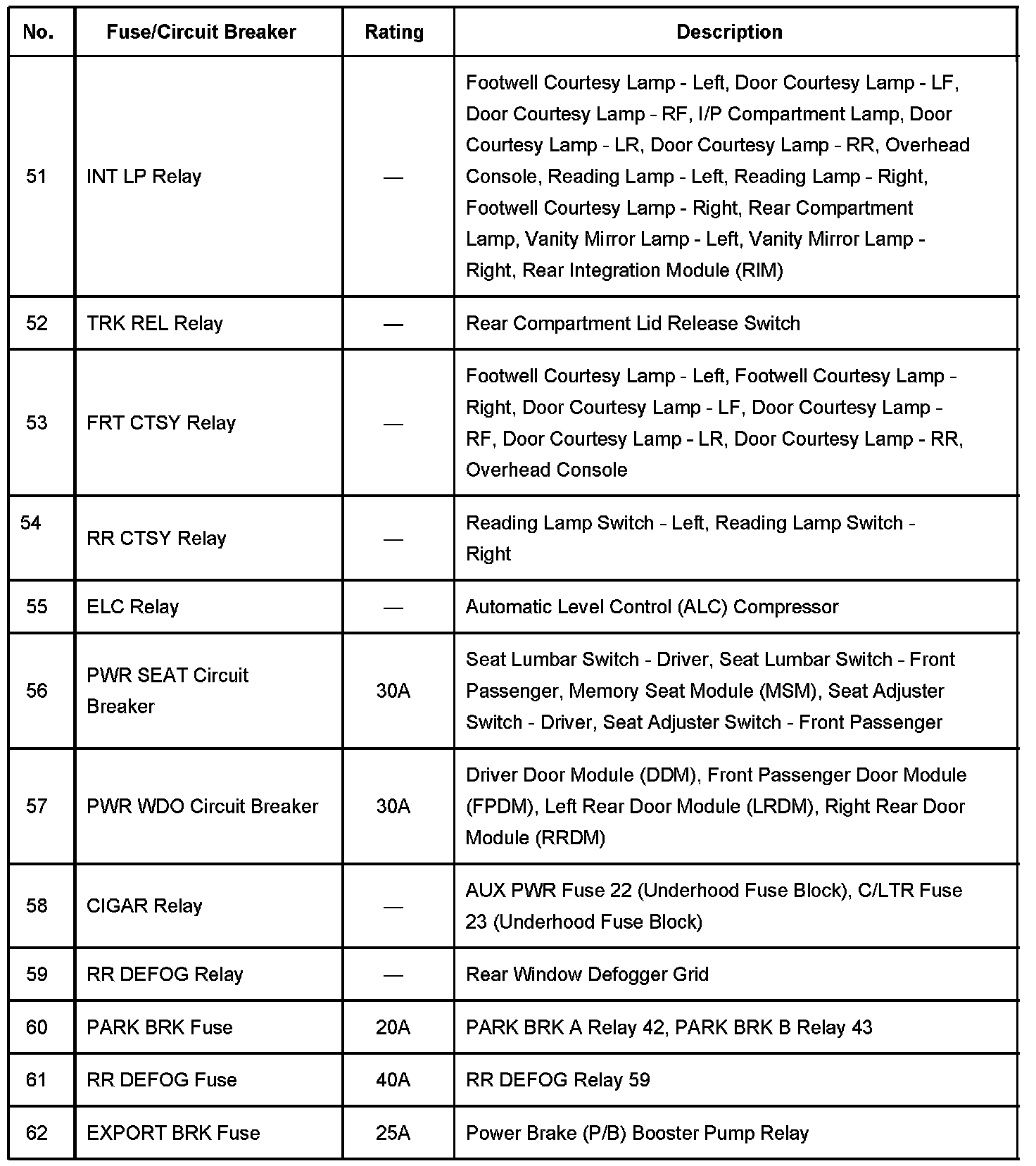

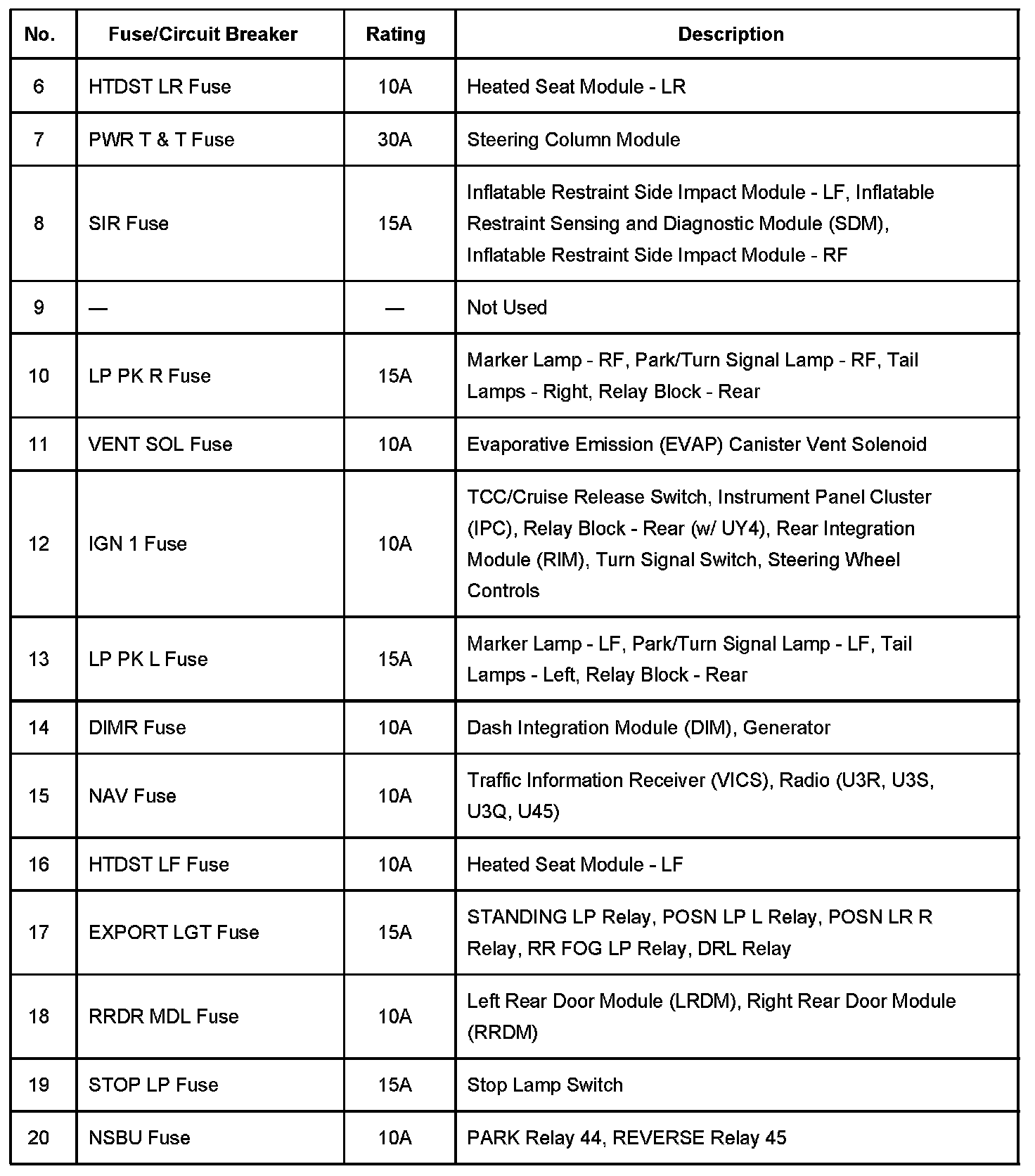

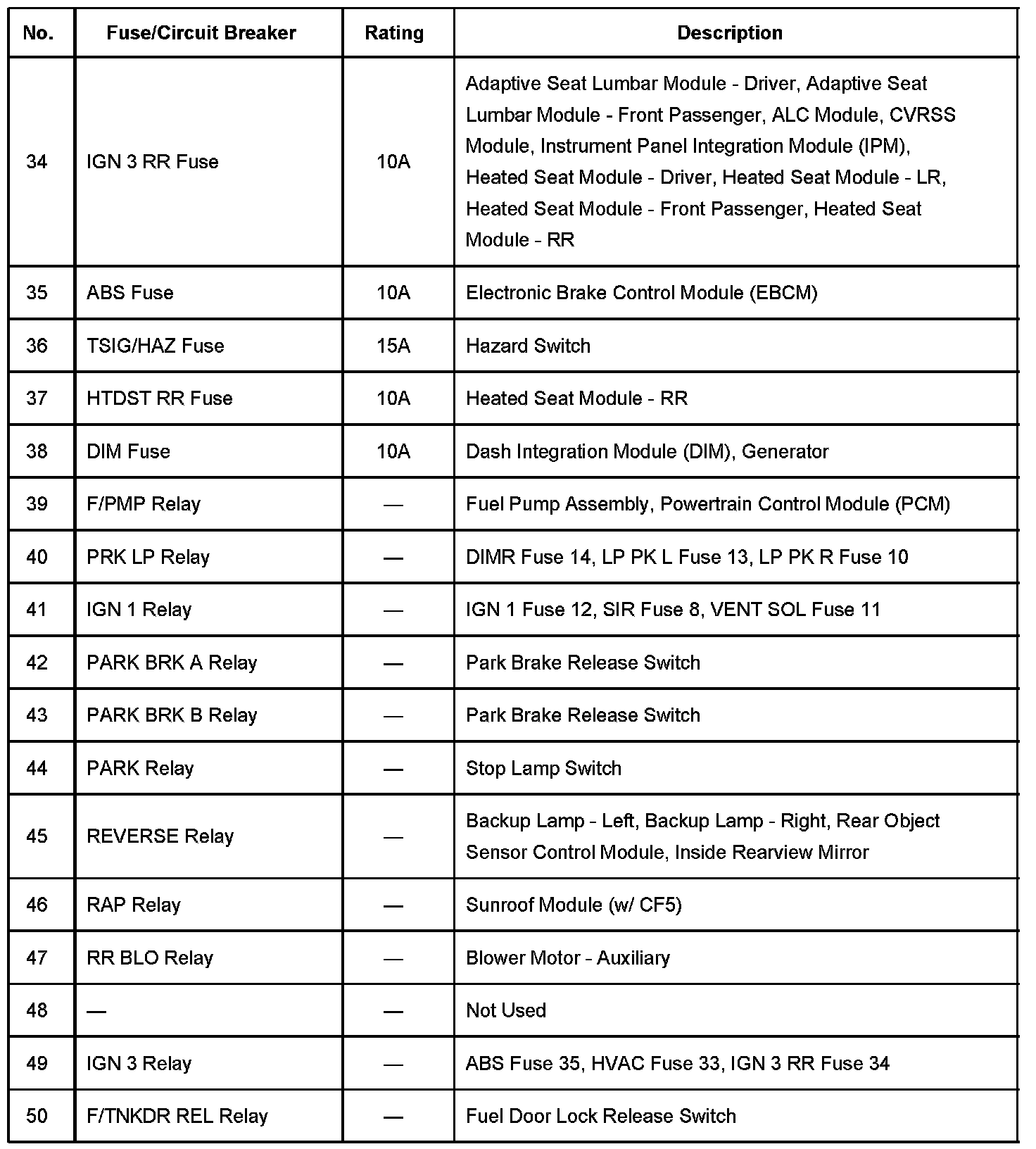

Application Table Part 1:

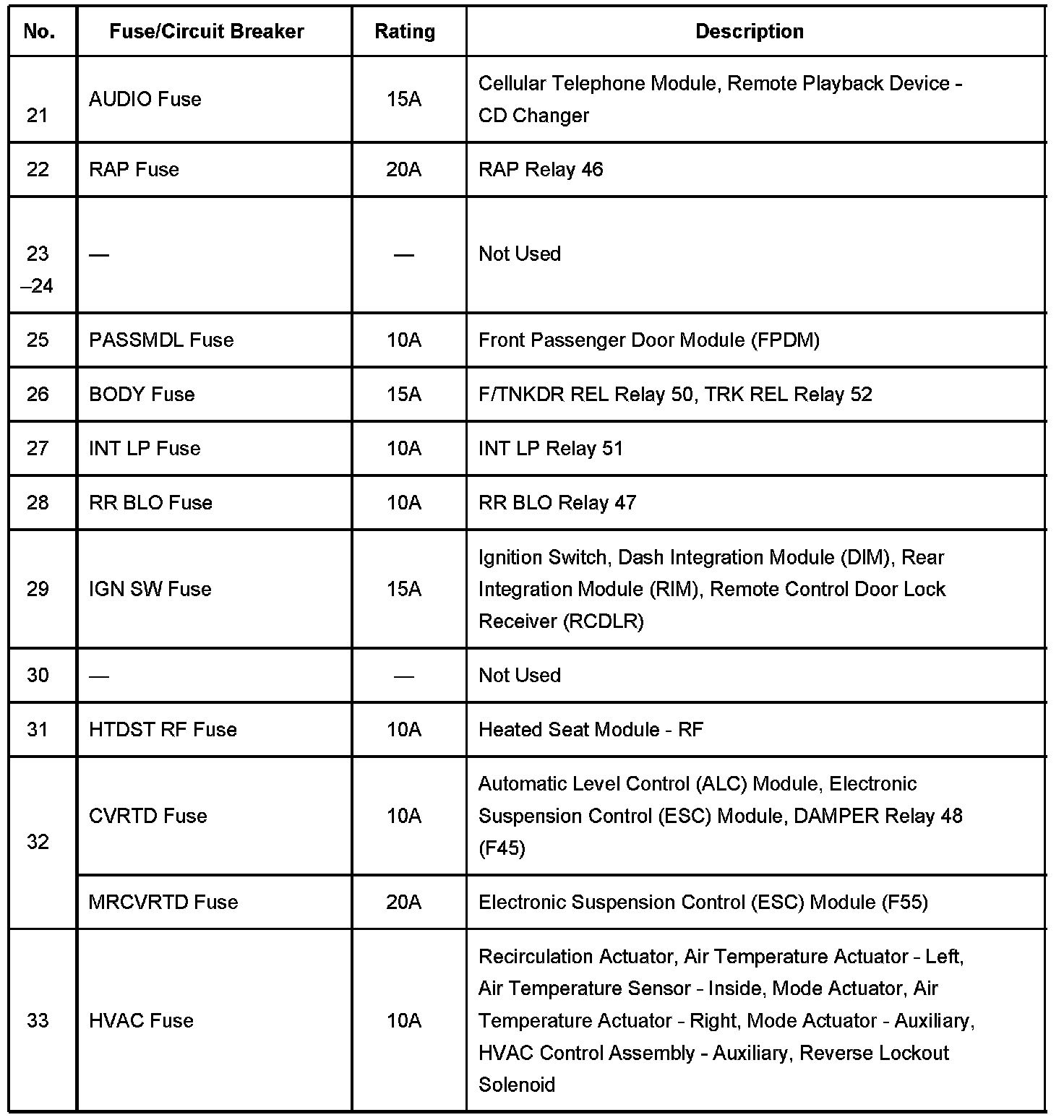

Application Table Part 2:




Application Table Part 3:




Application Table Part 4:




Application Table Part 5:




Application Table Part 6:

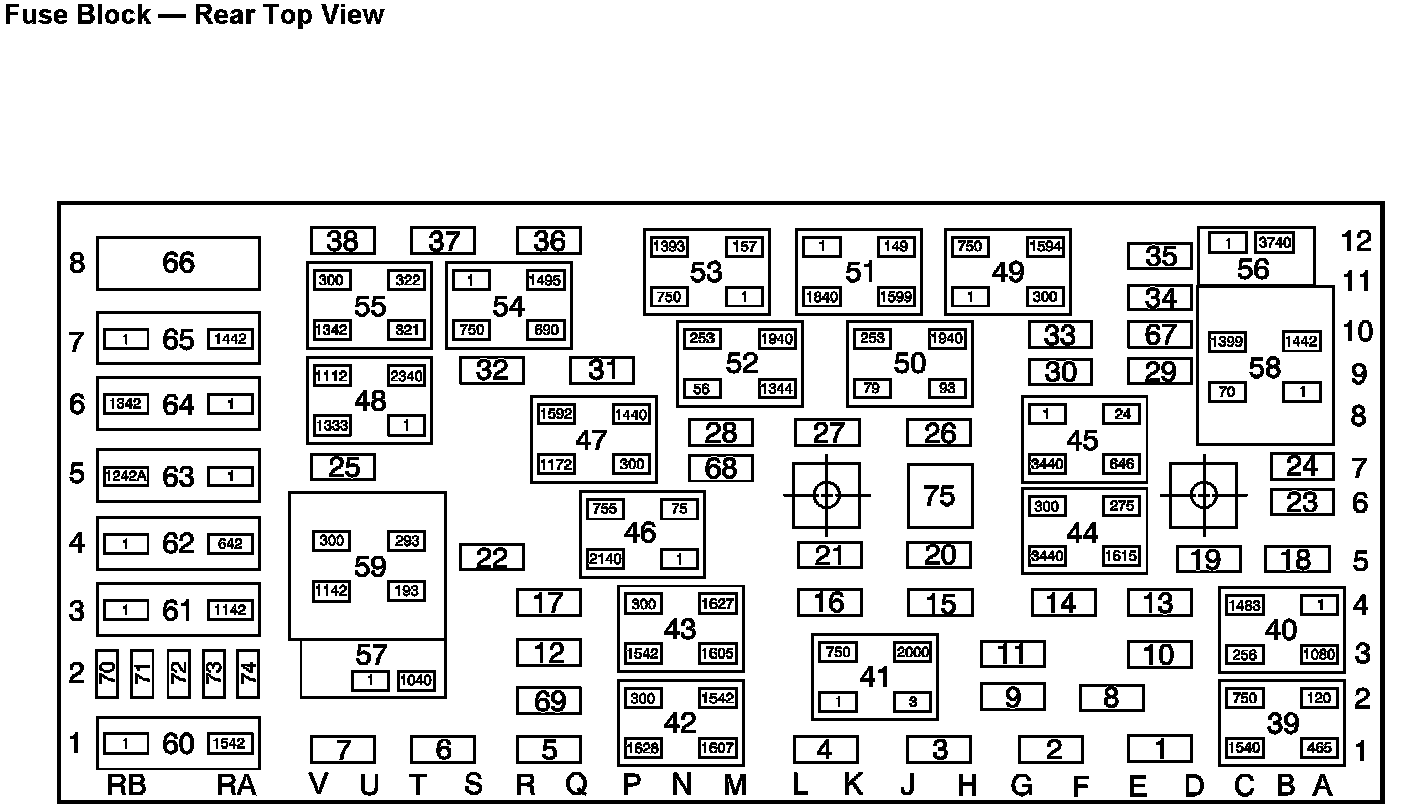

Location View:

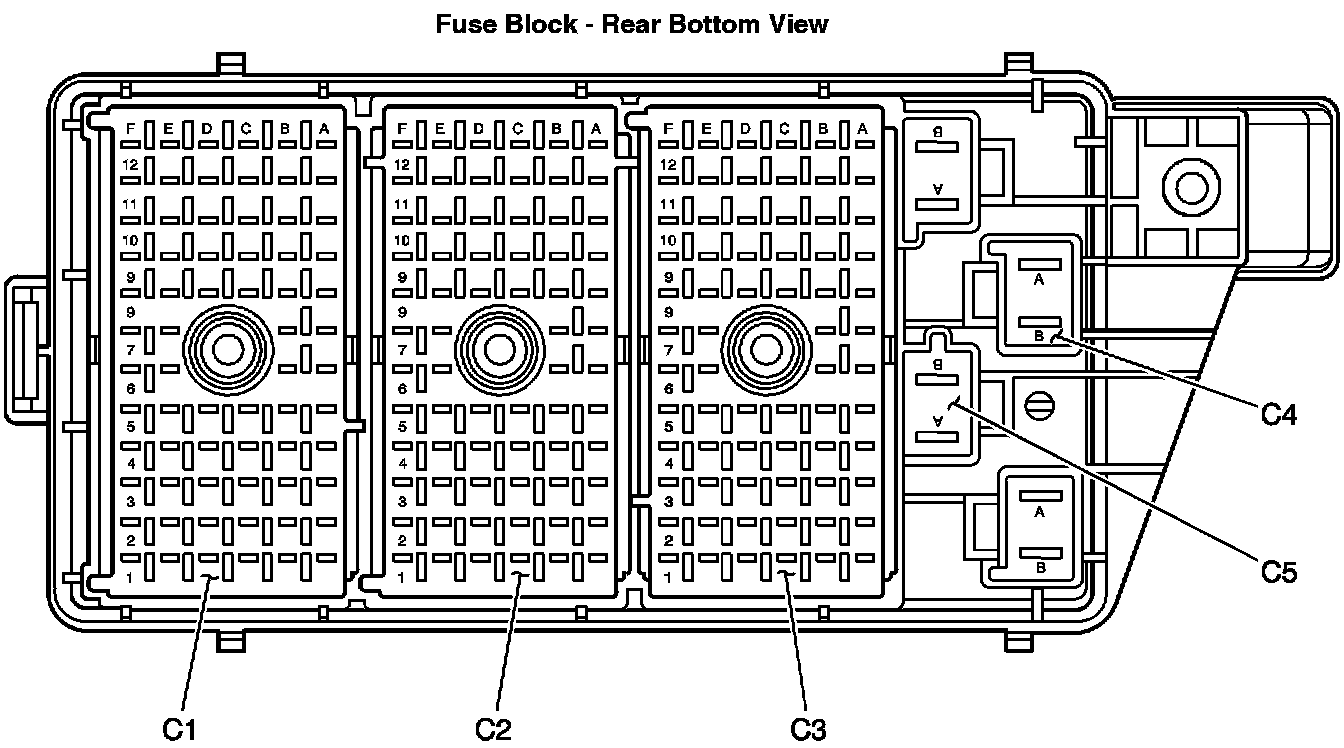

Location View:
