Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

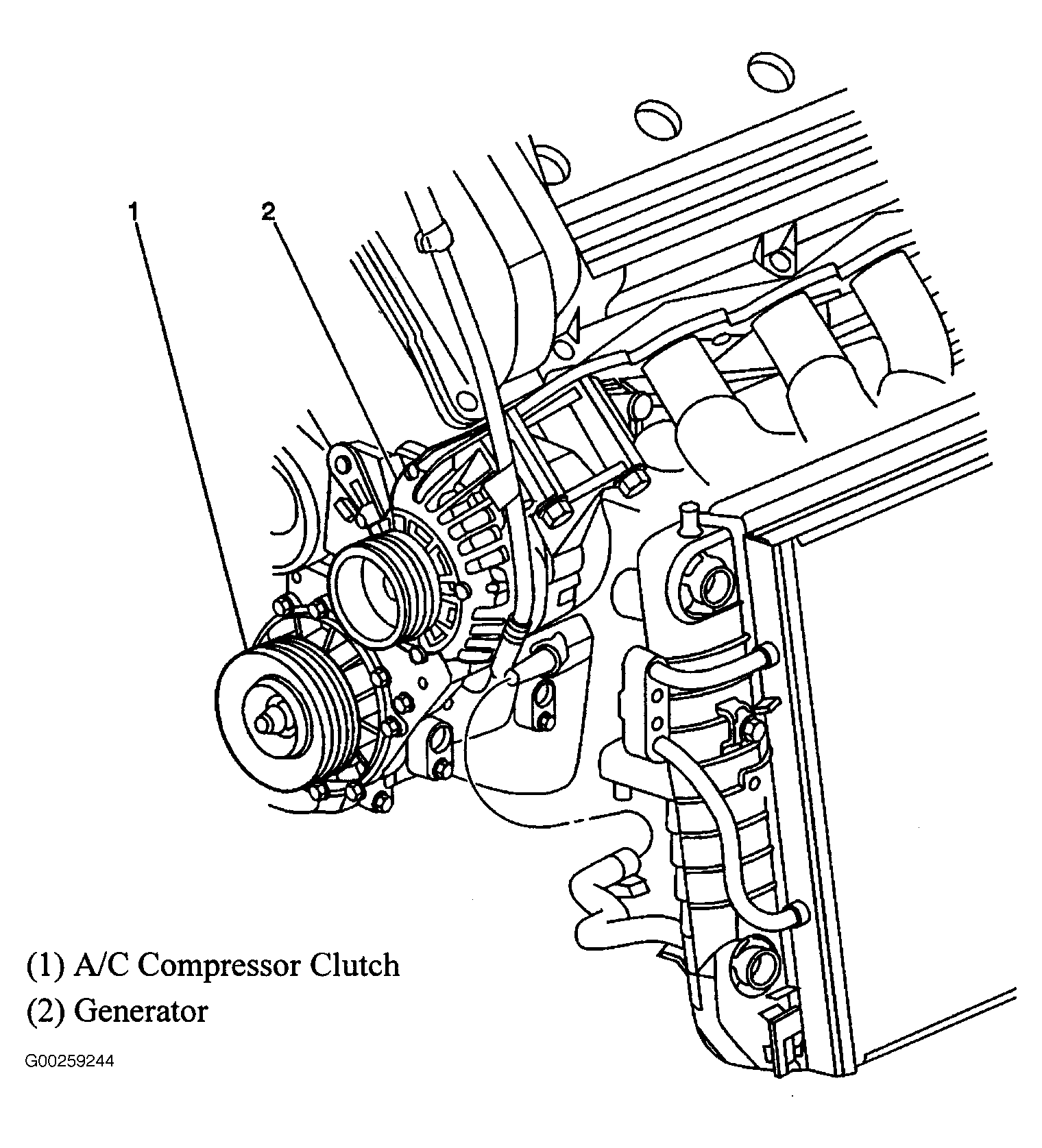

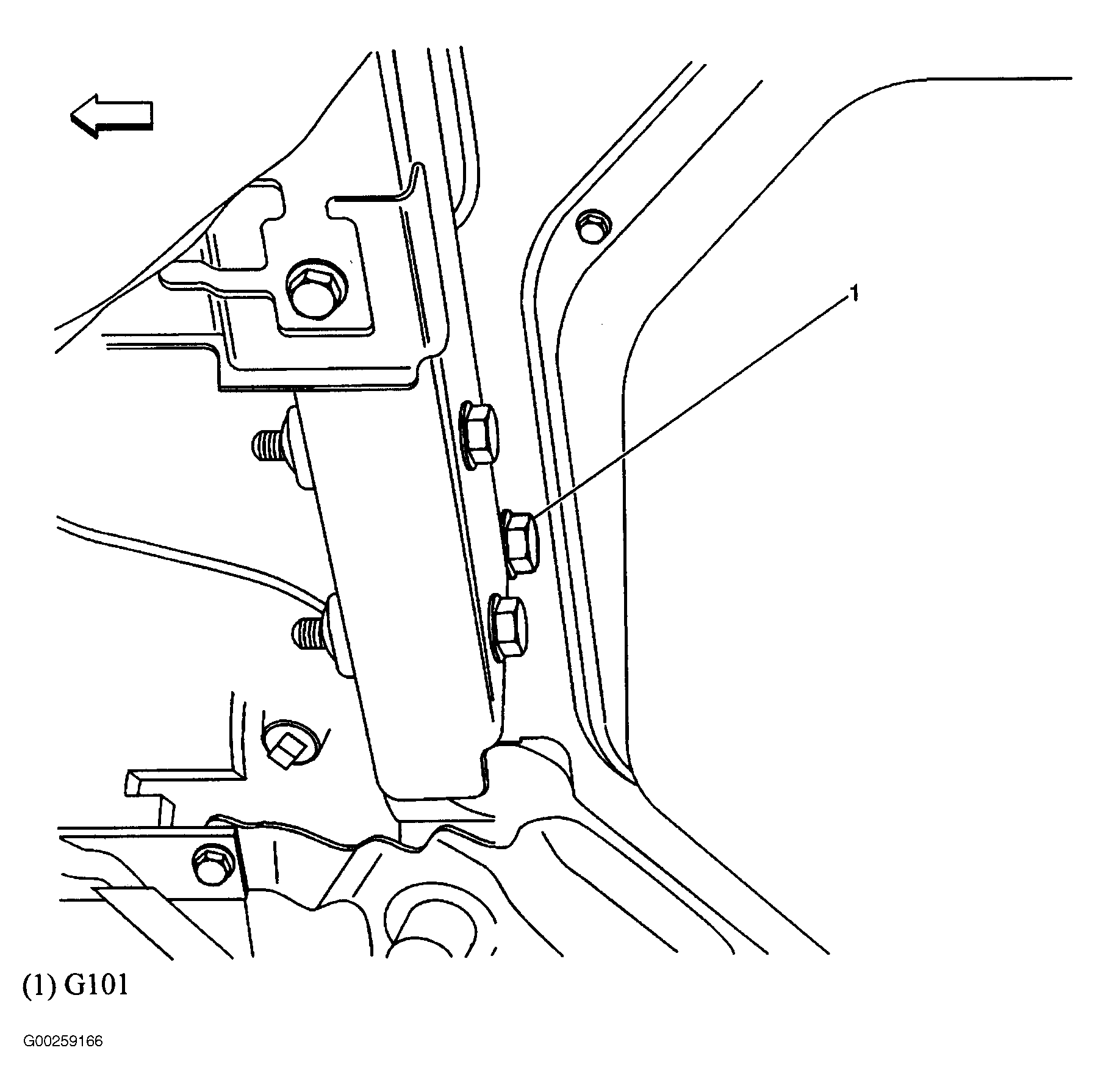

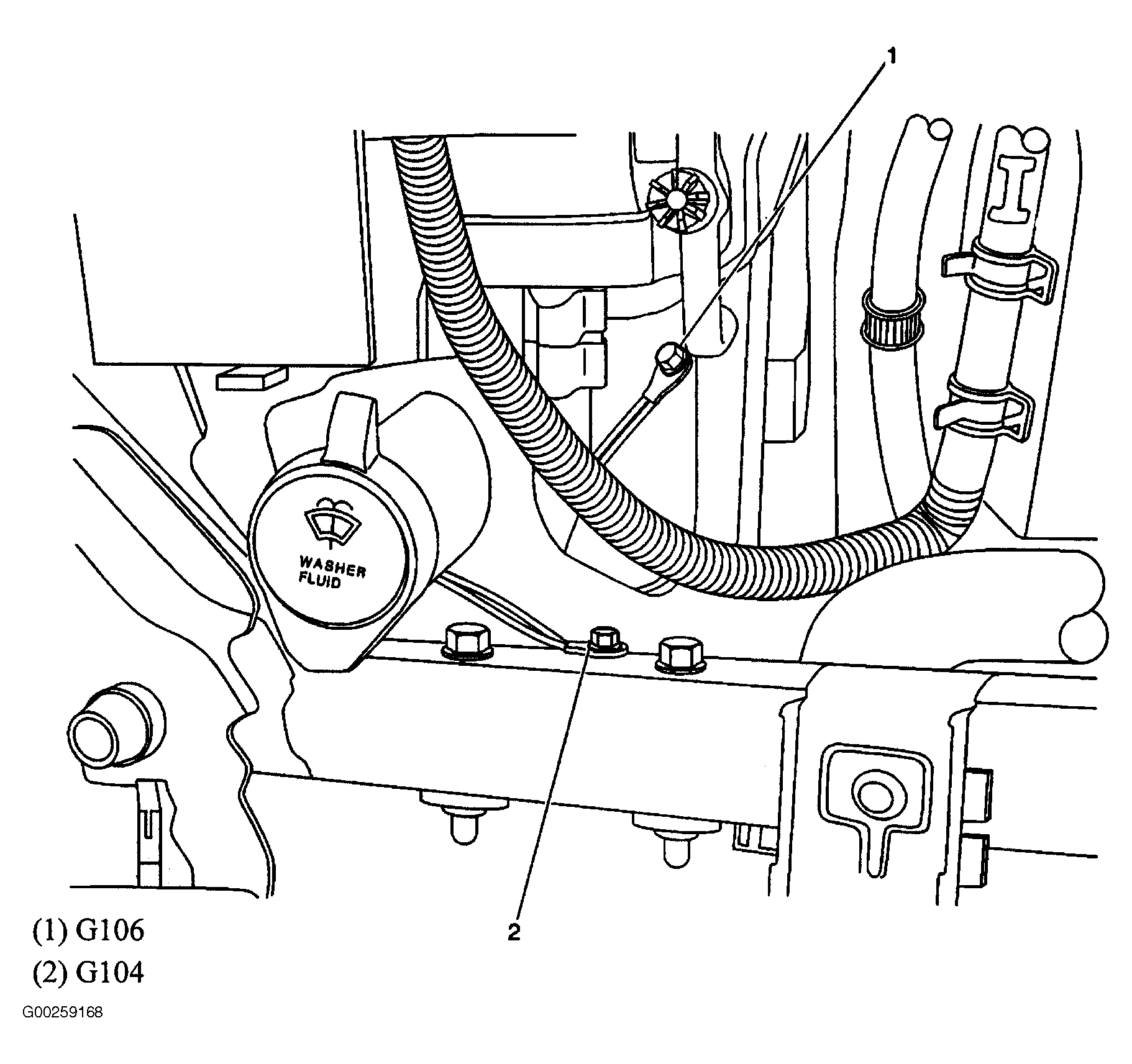

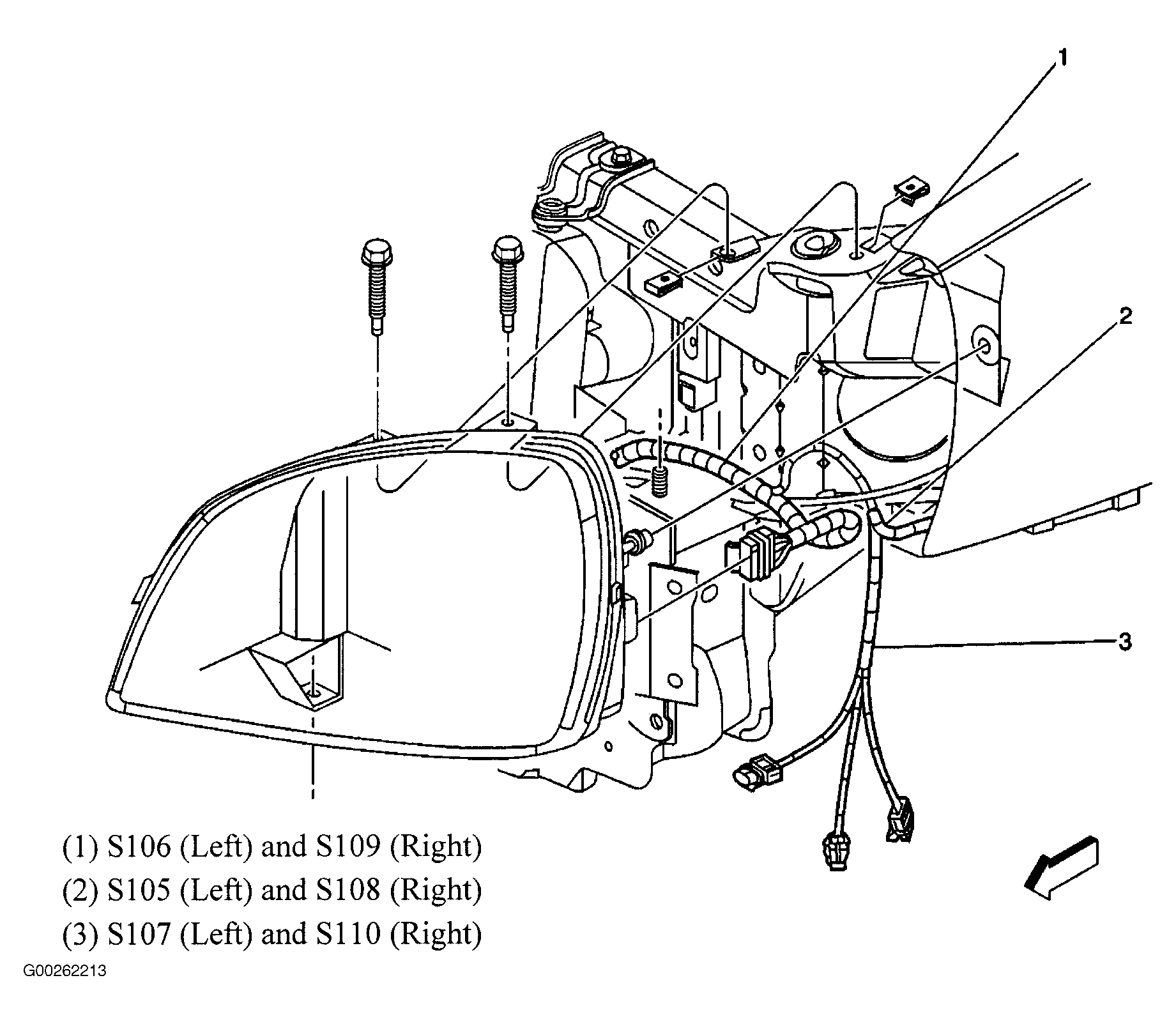

Fig 1: Left Front Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

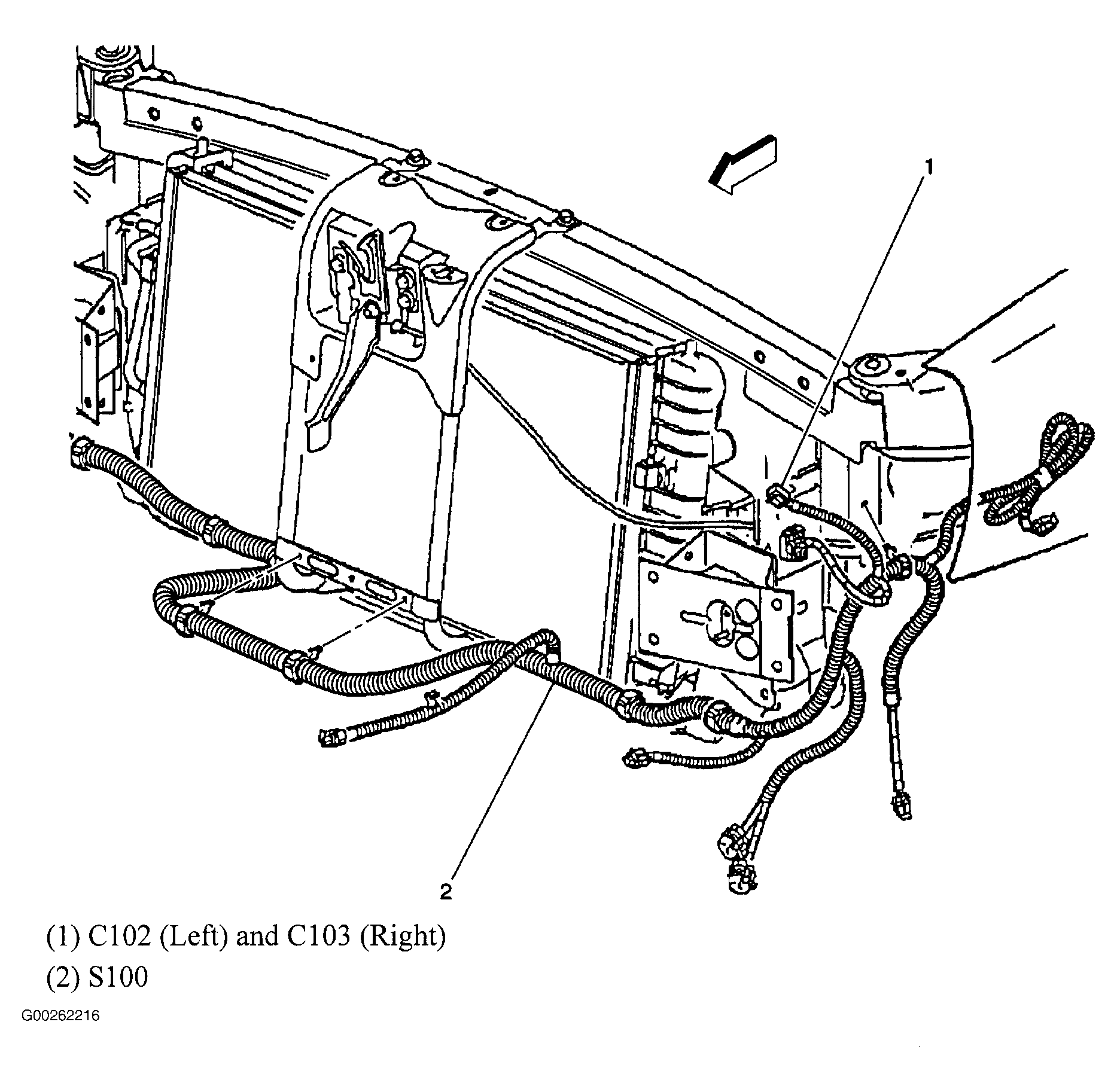

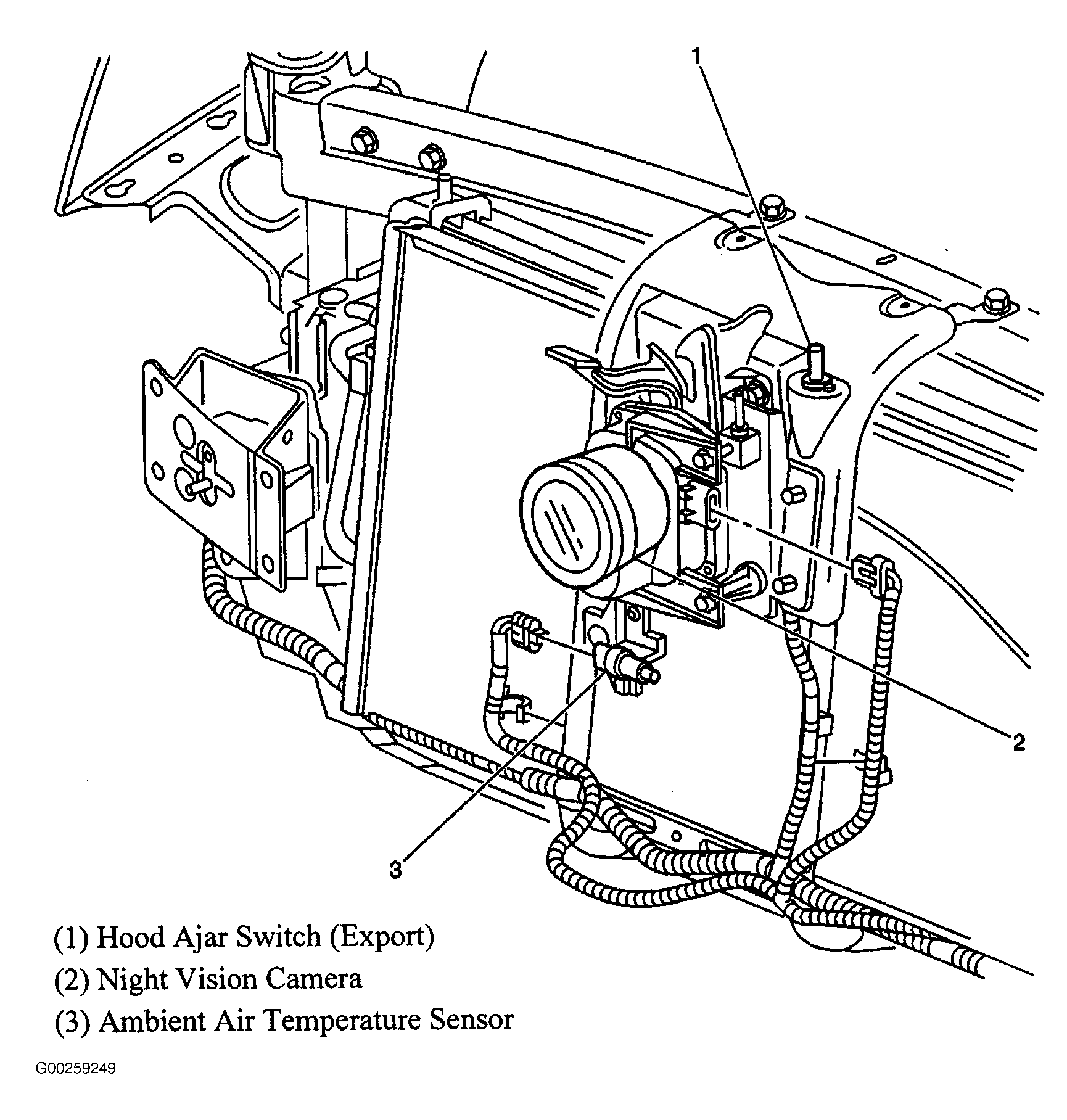

Fig 2: Left Side Of Radiator Support
Courtesy of GENERAL MOTORS CORP.

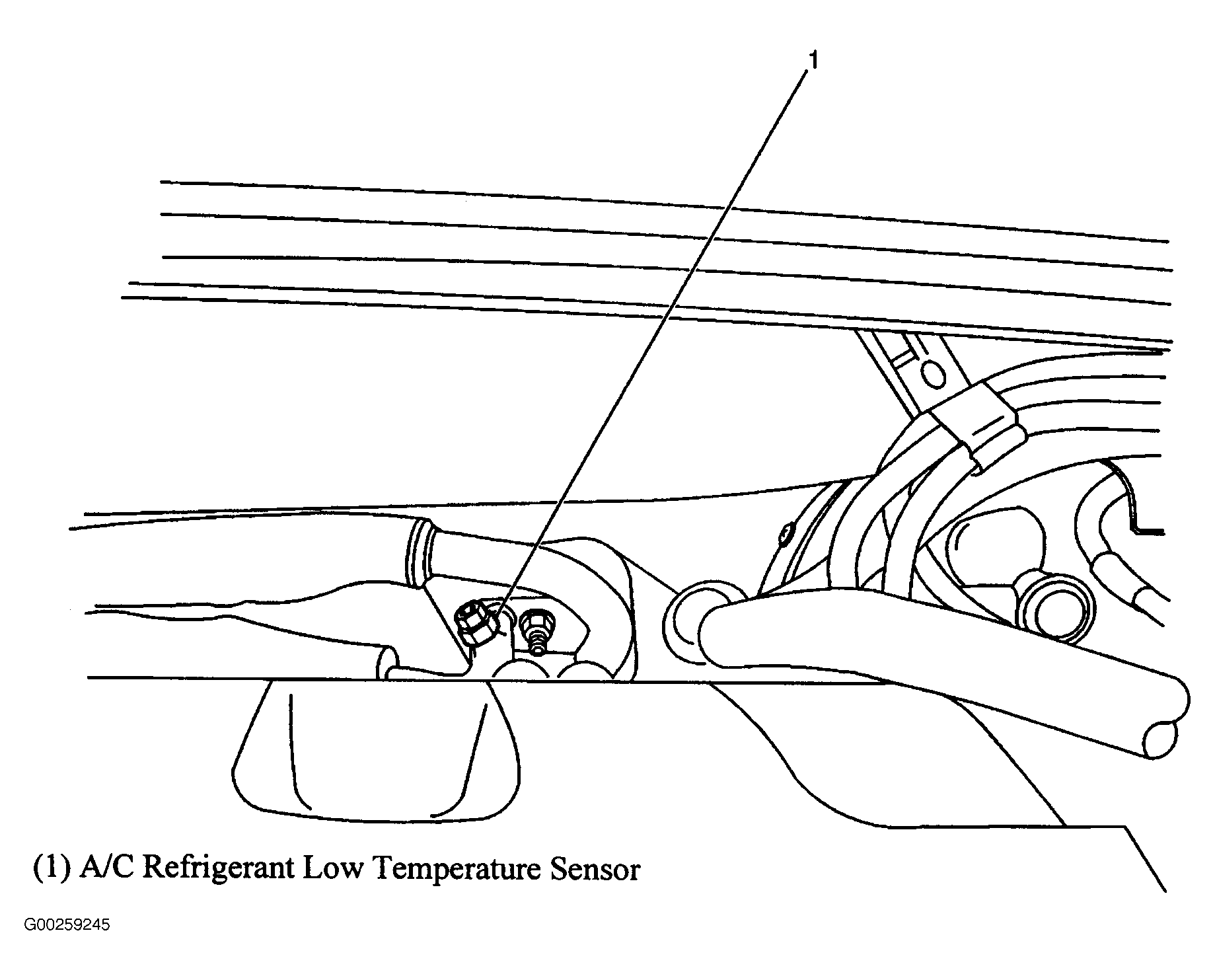

Fig 3: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 4: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

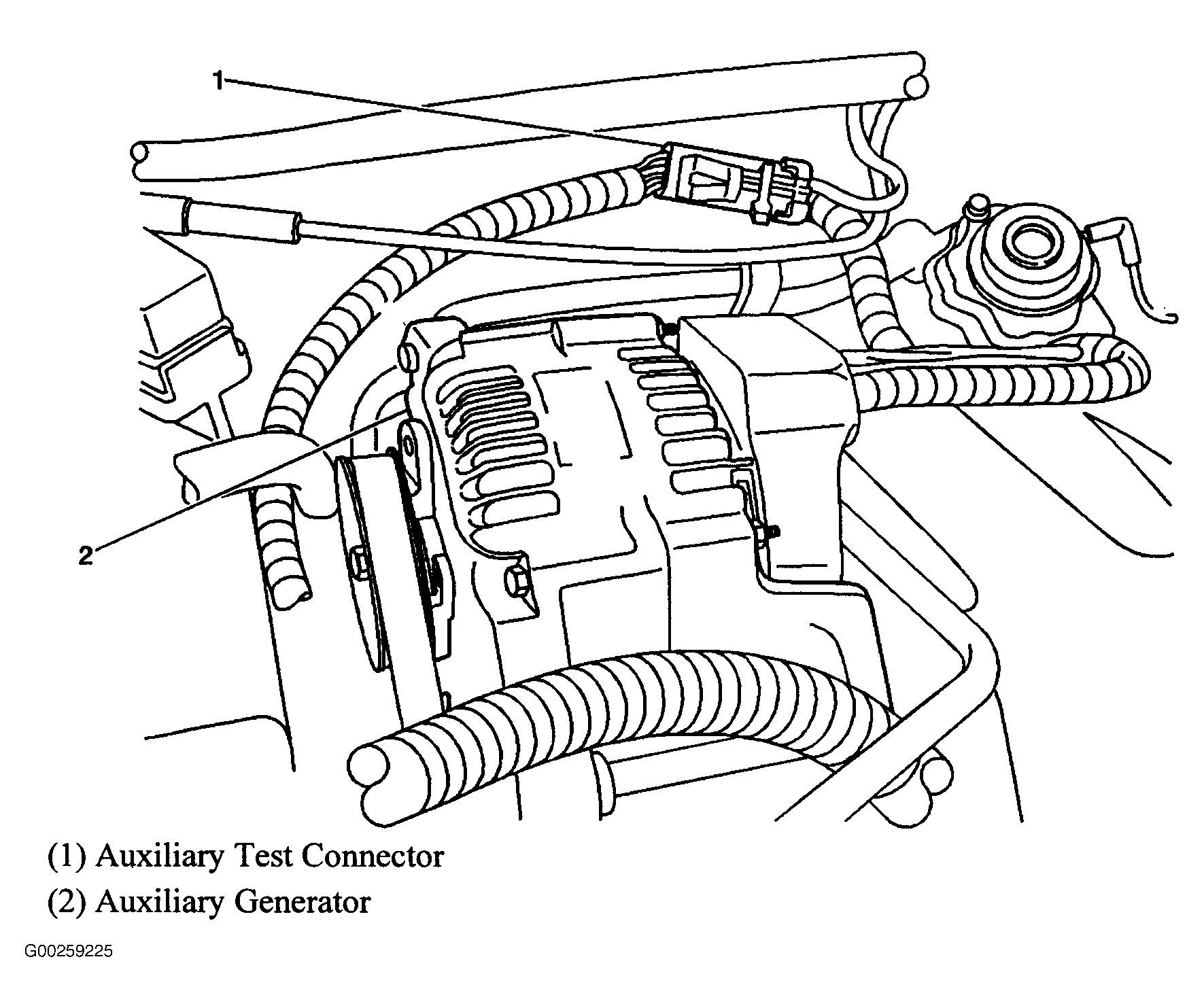

Fig 5: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

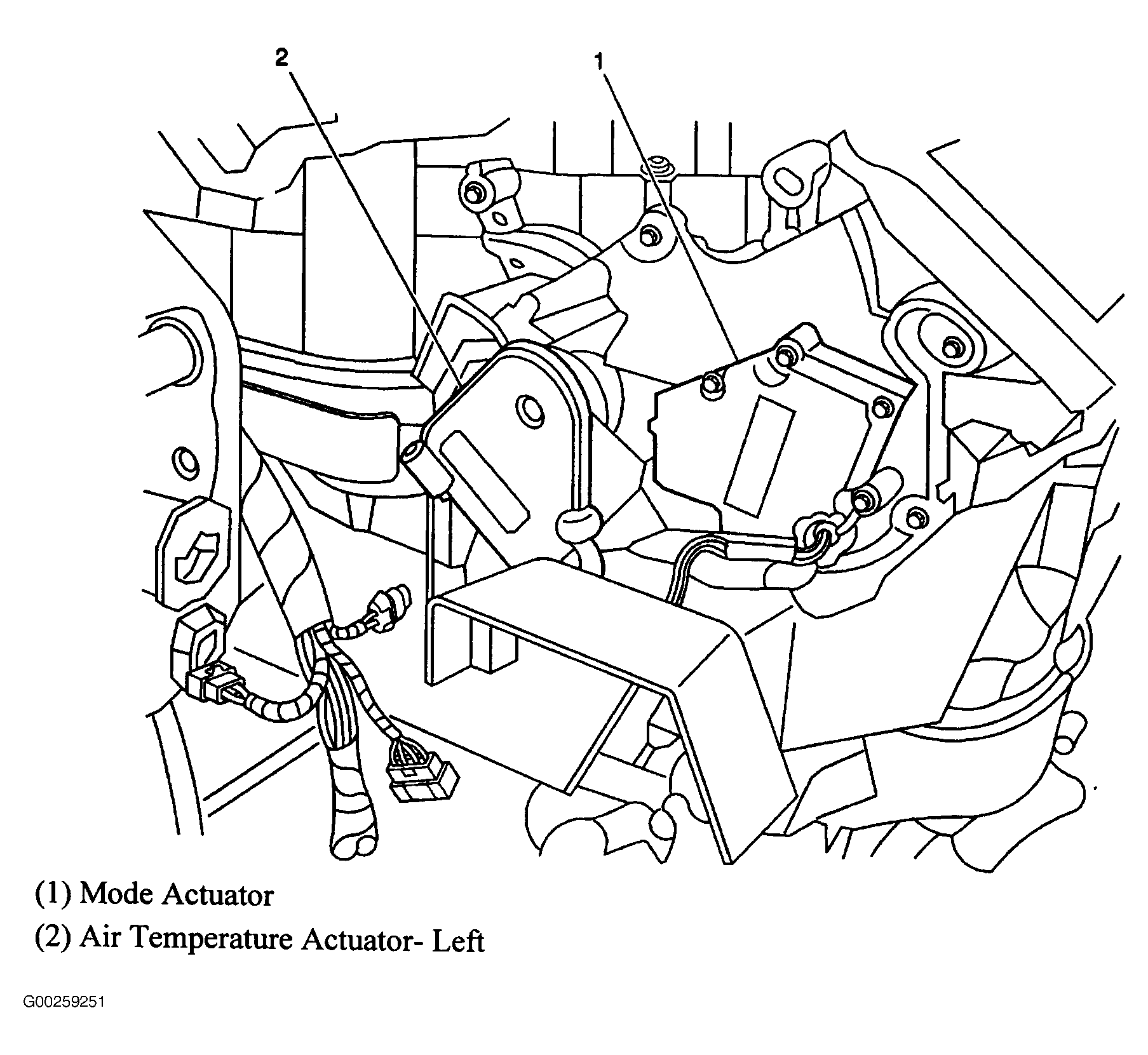

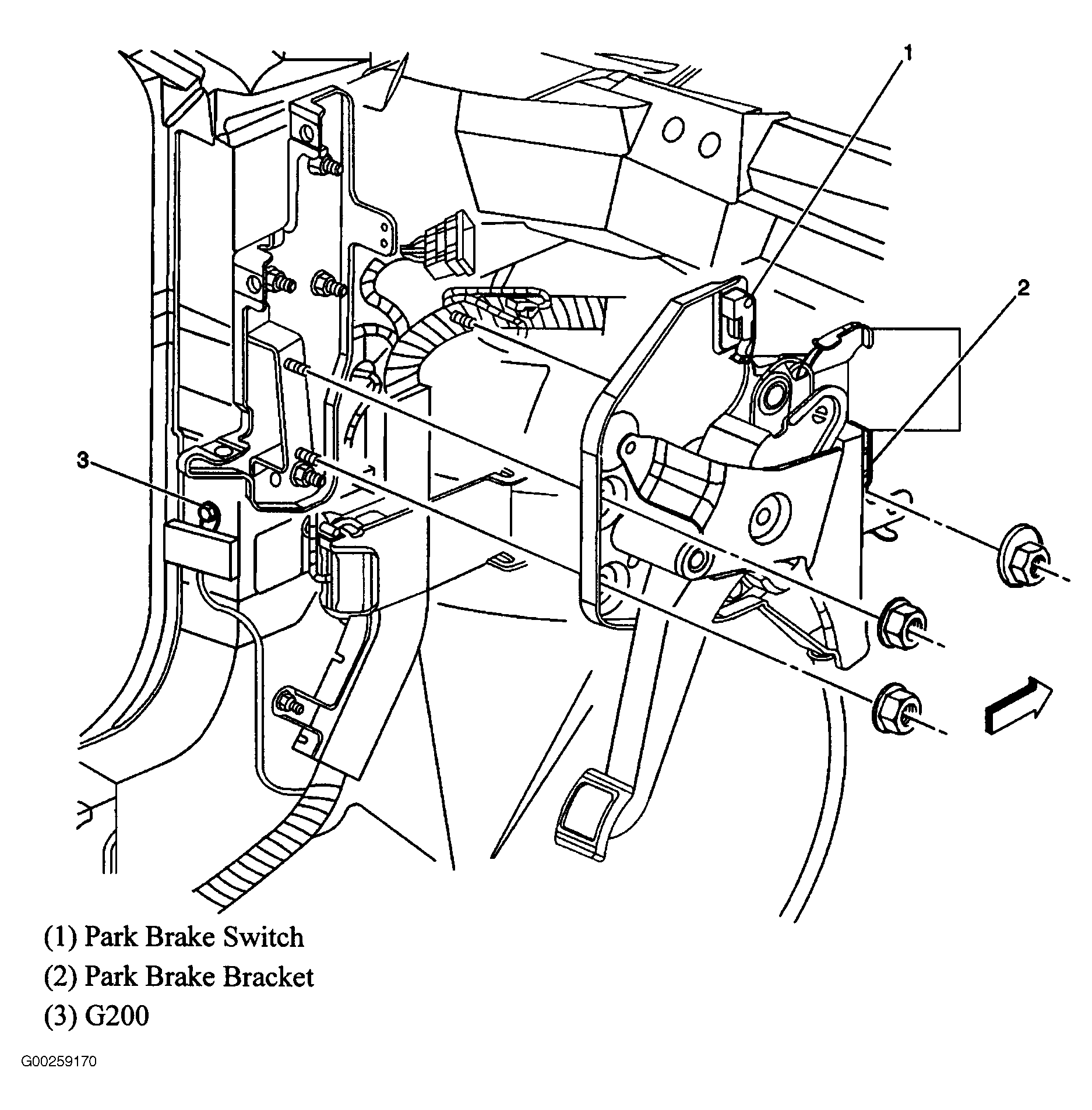

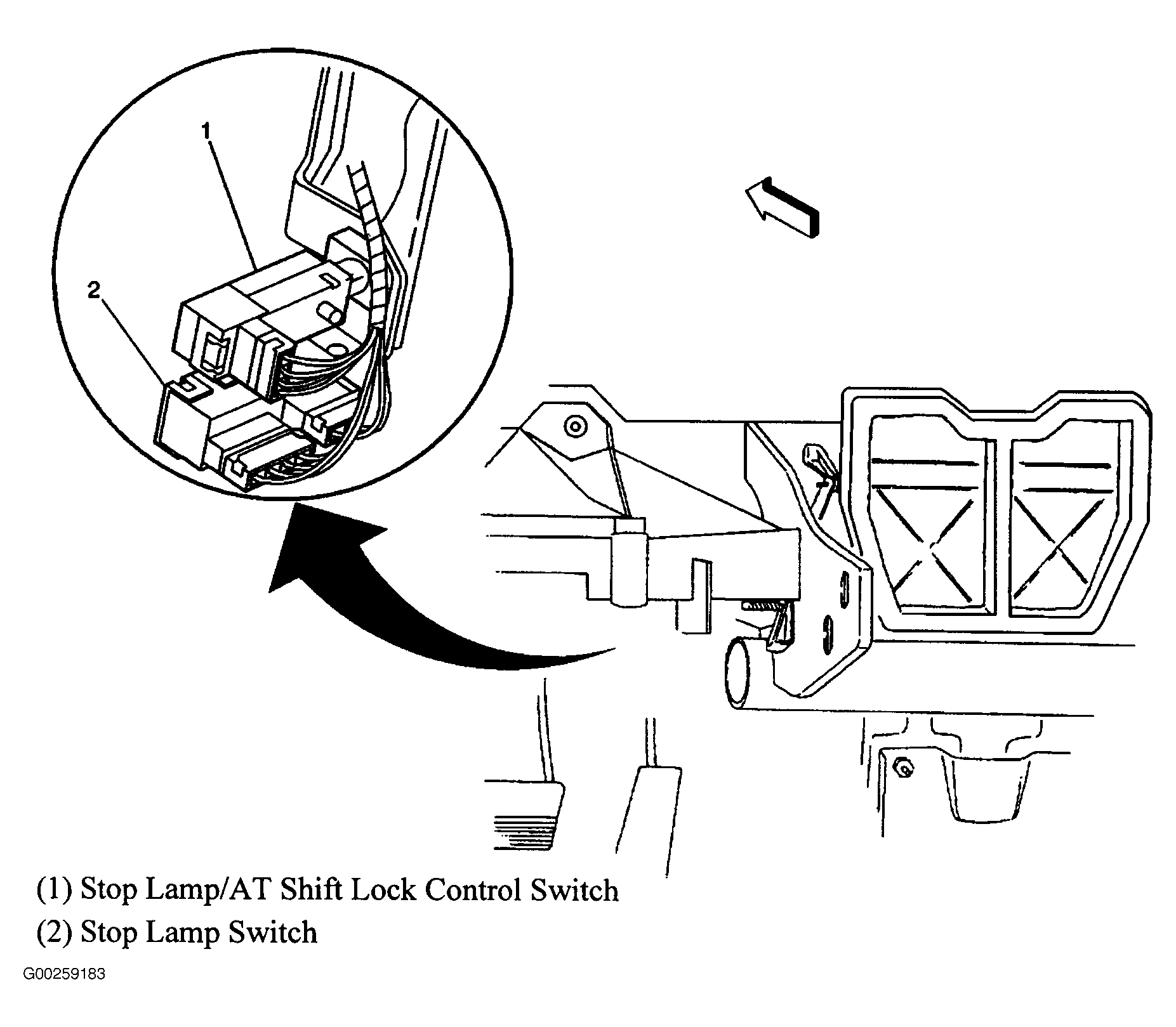

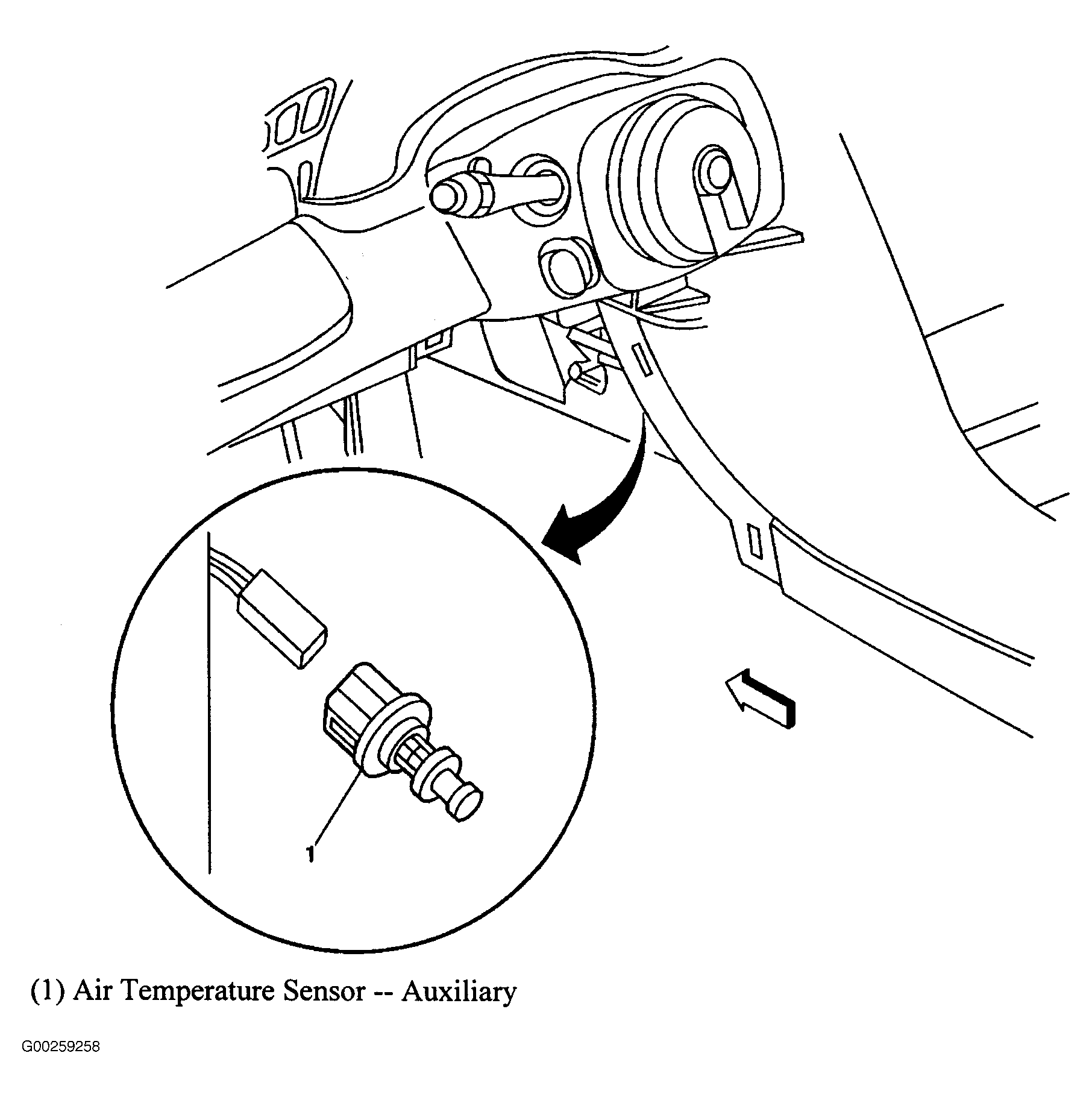

Fig 6: Below Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

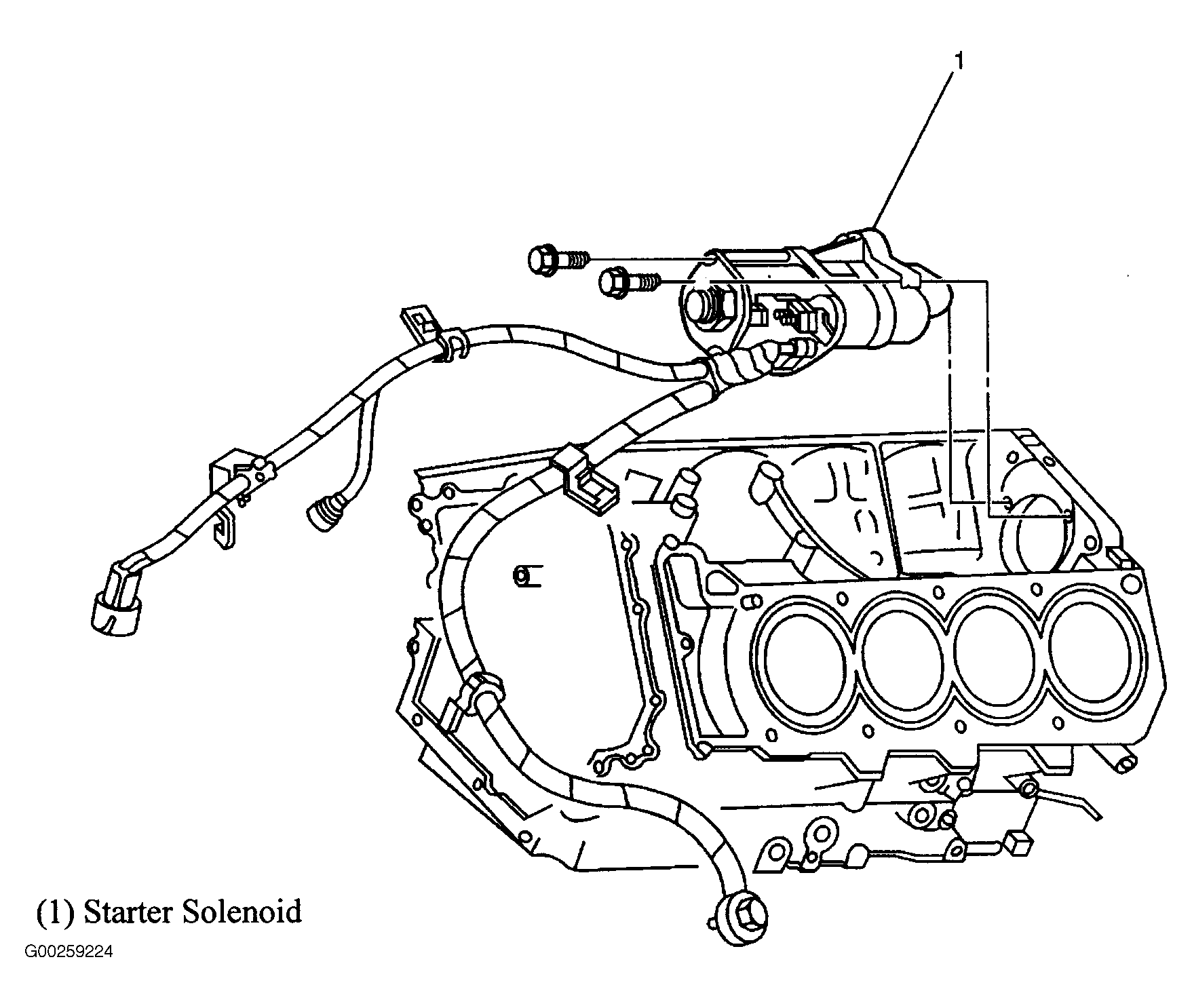

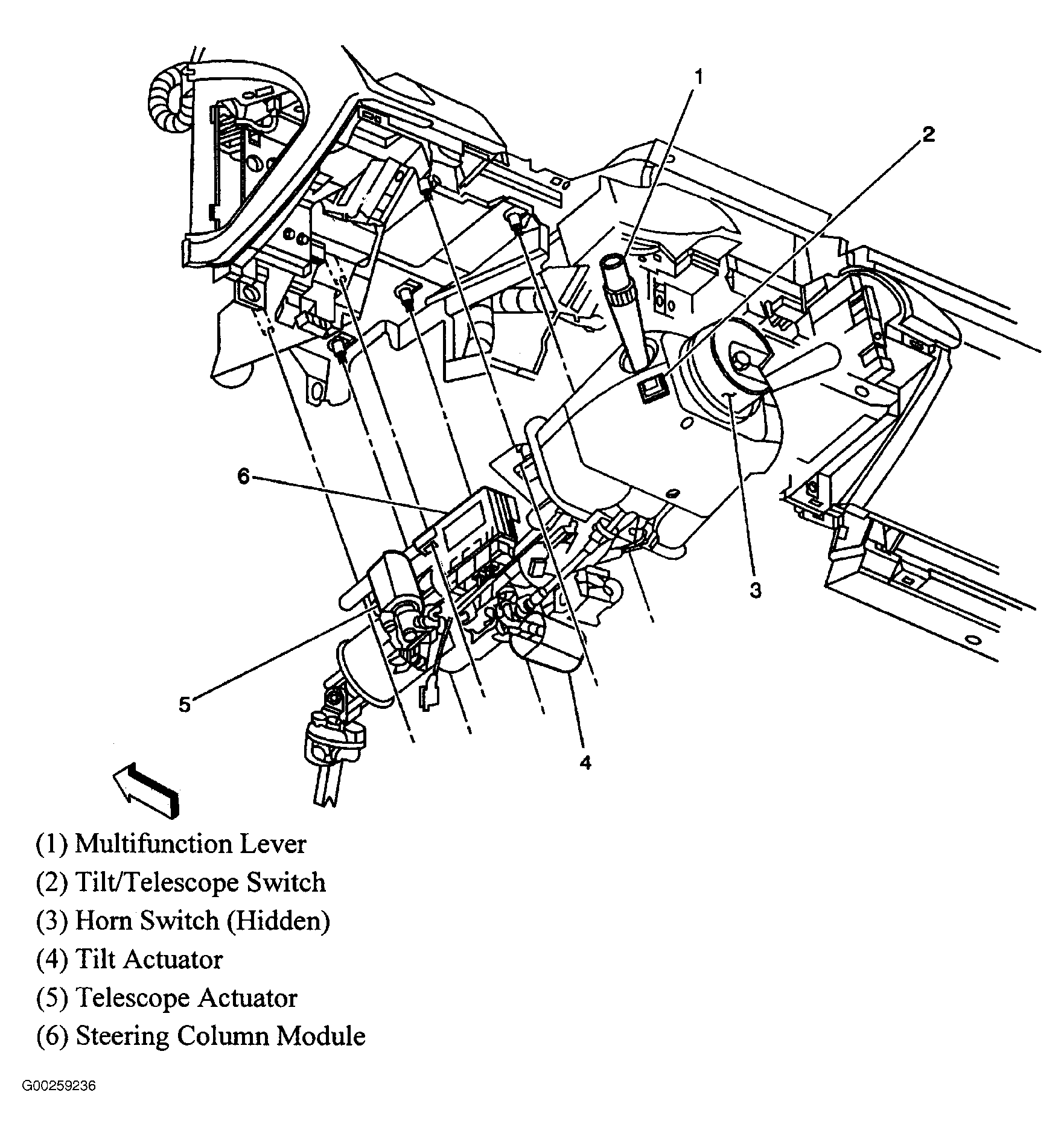

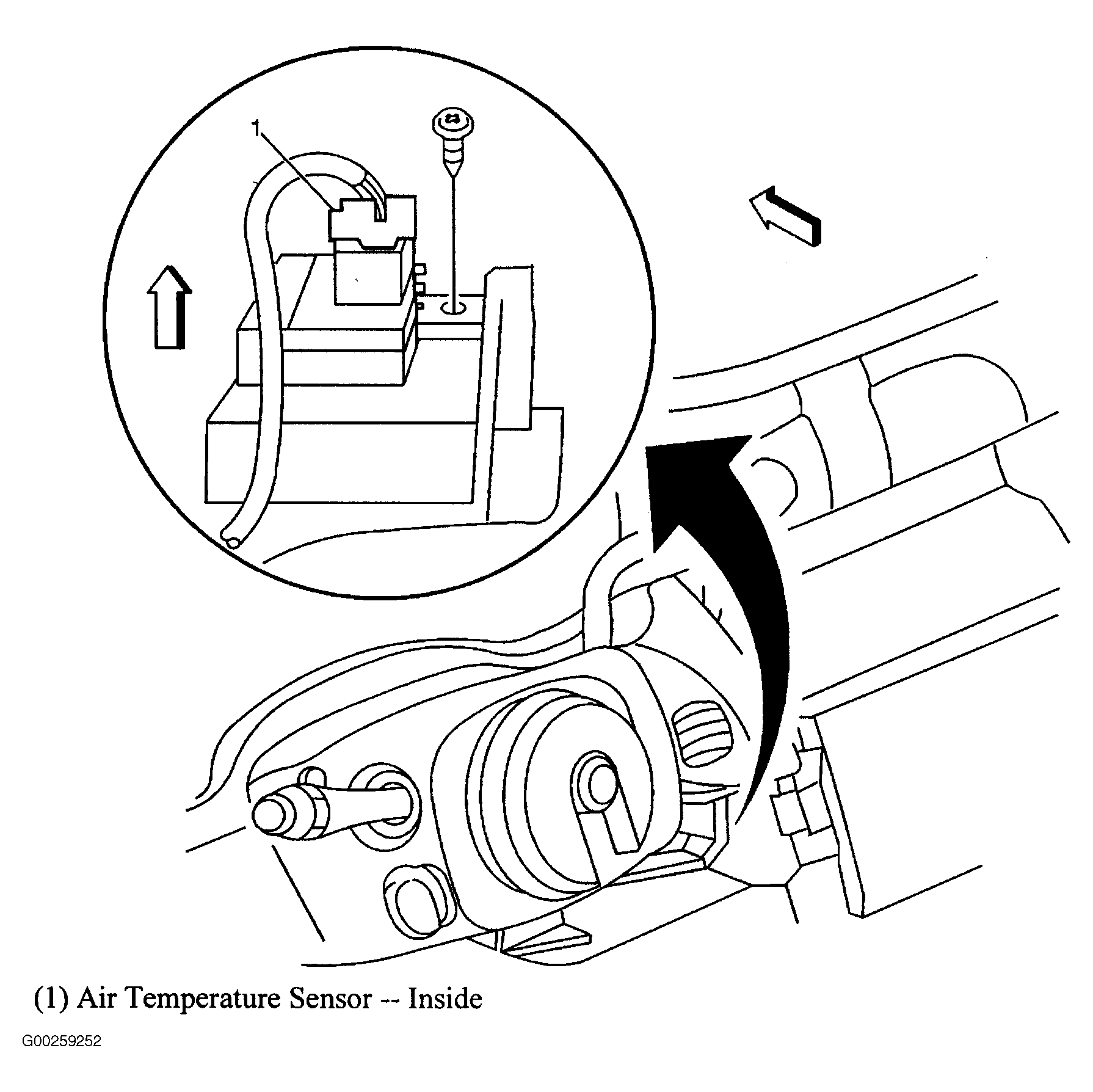

Fig 7: Top Of Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 8: Behind Right Front Kick Panel
Courtesy of GENERAL MOTORS CORP.

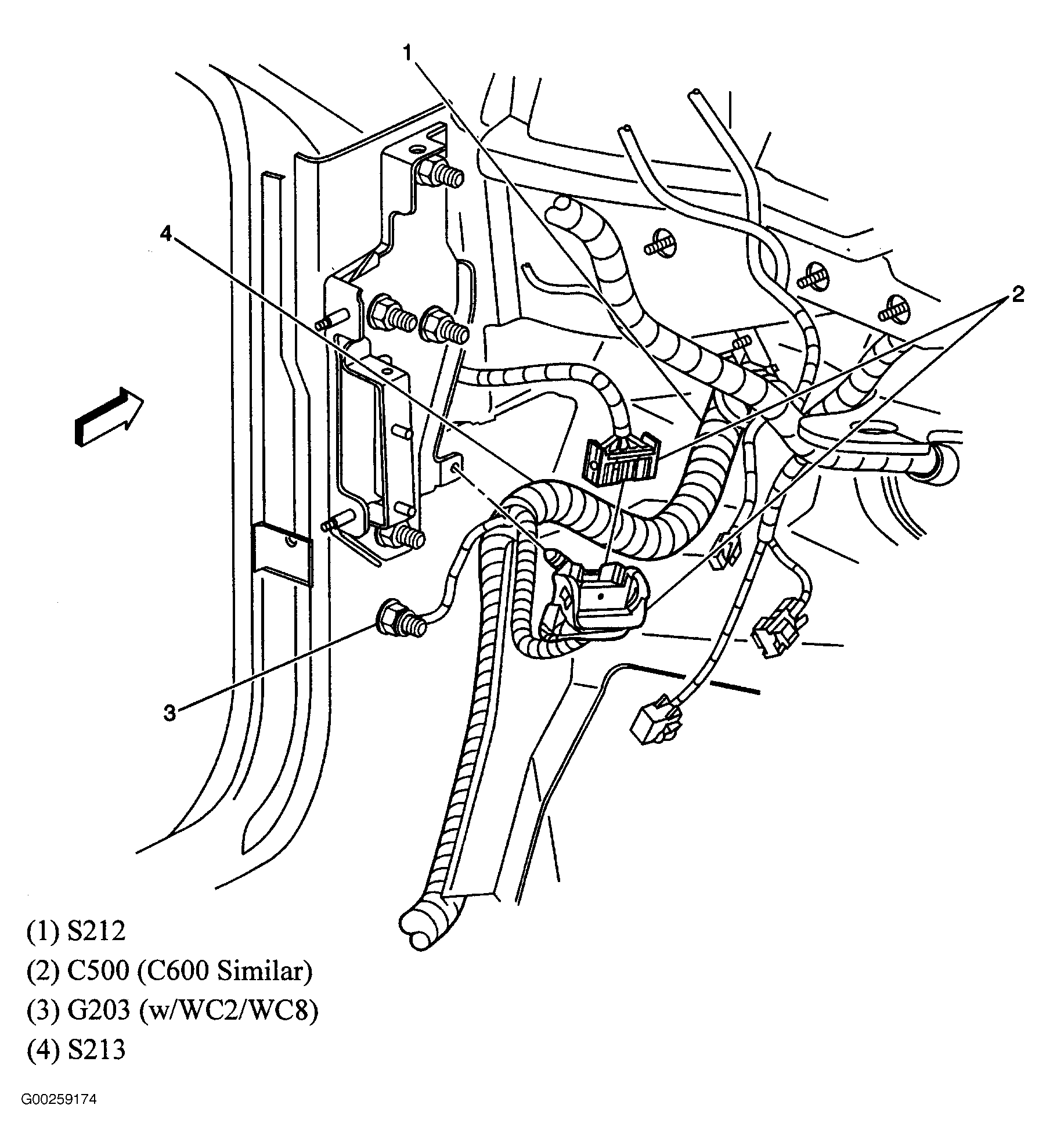

Fig 9: Behind Left Front Kick Panel
Courtesy of GENERAL MOTORS CORP.

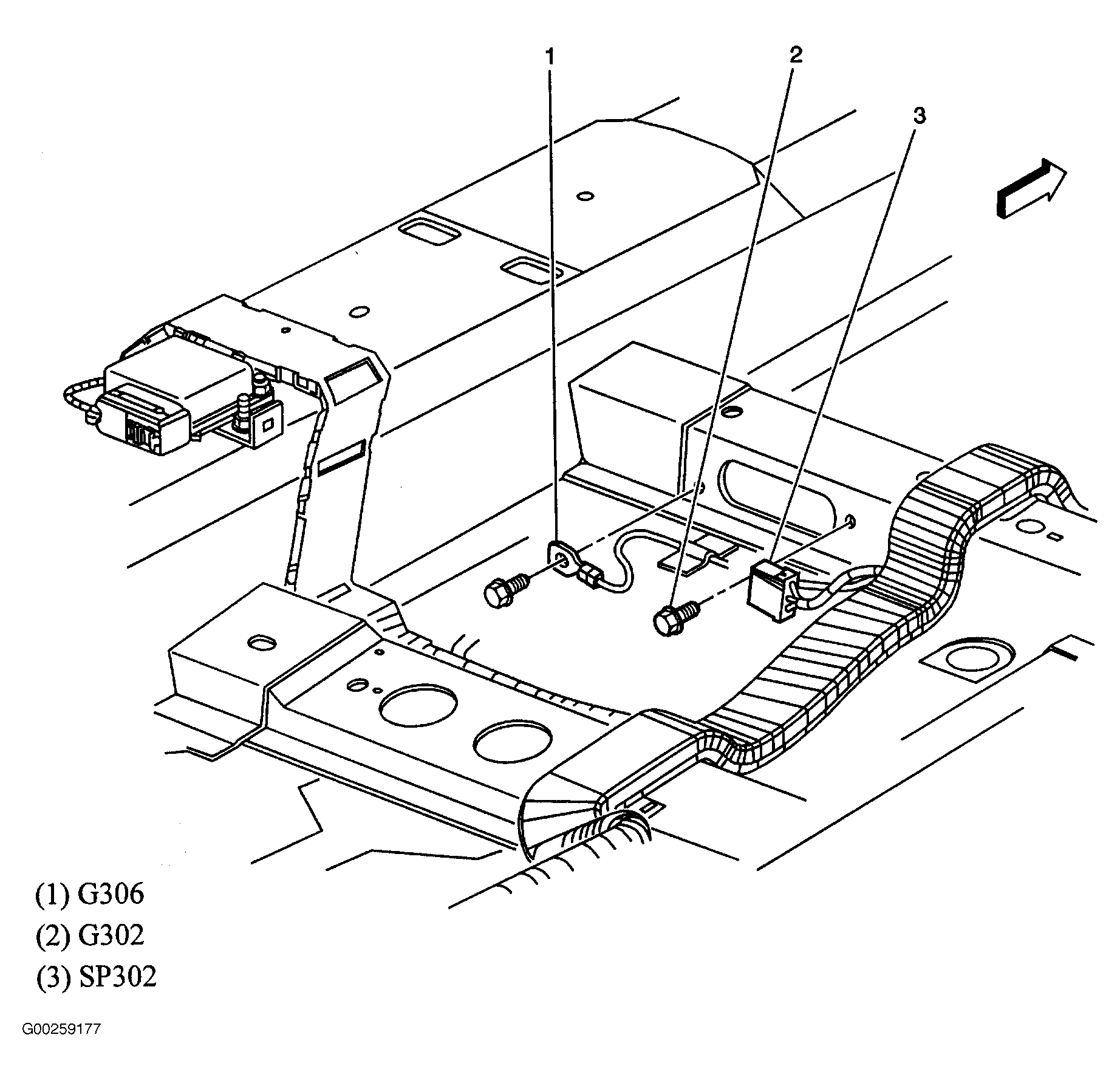

Fig 10: Under Right Front Seat
Courtesy of GENERAL MOTORS CORP.
Fig 11: Under Right Side Of Rear Seat
Courtesy of GENERAL MOTORS CORP.

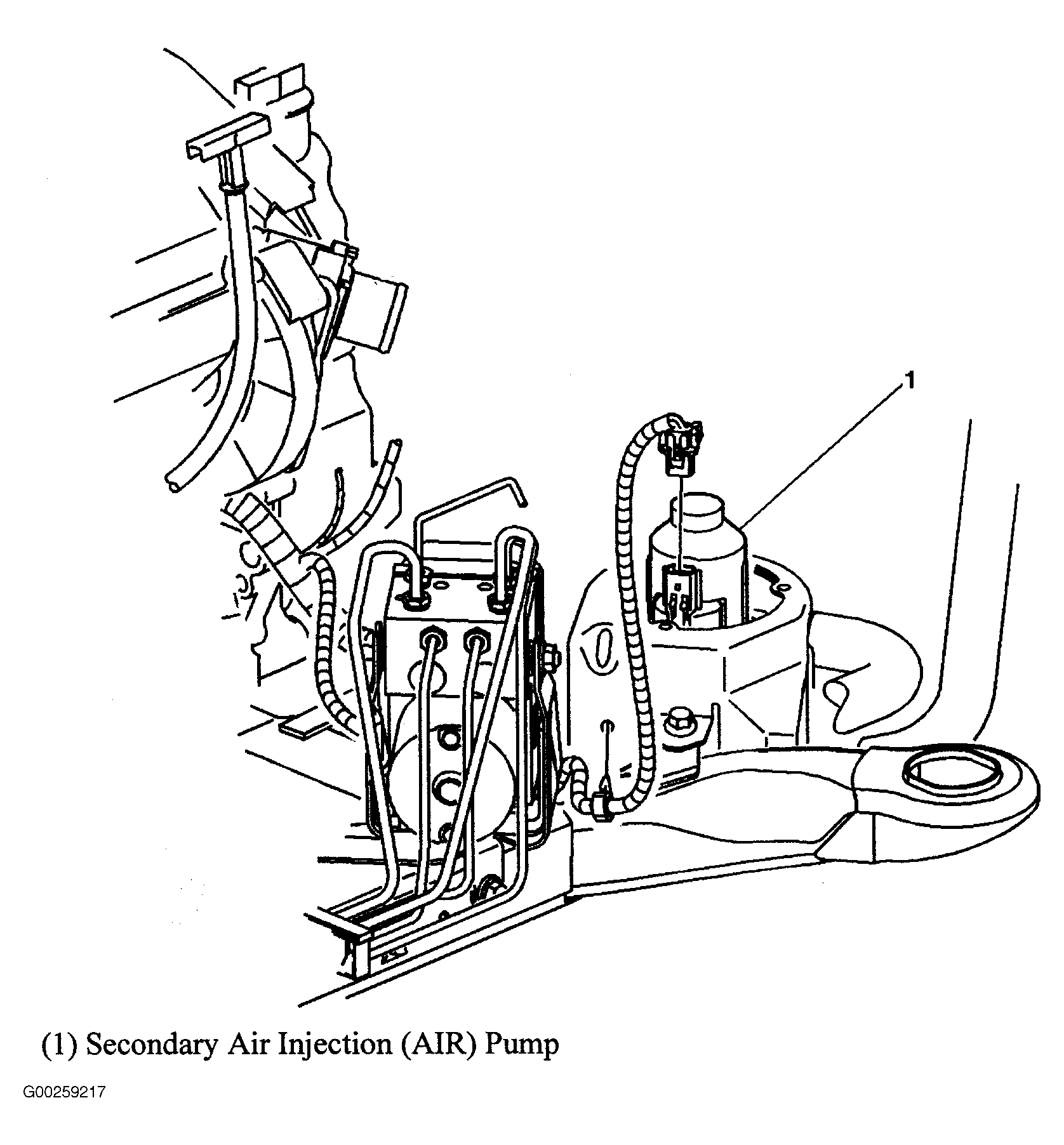

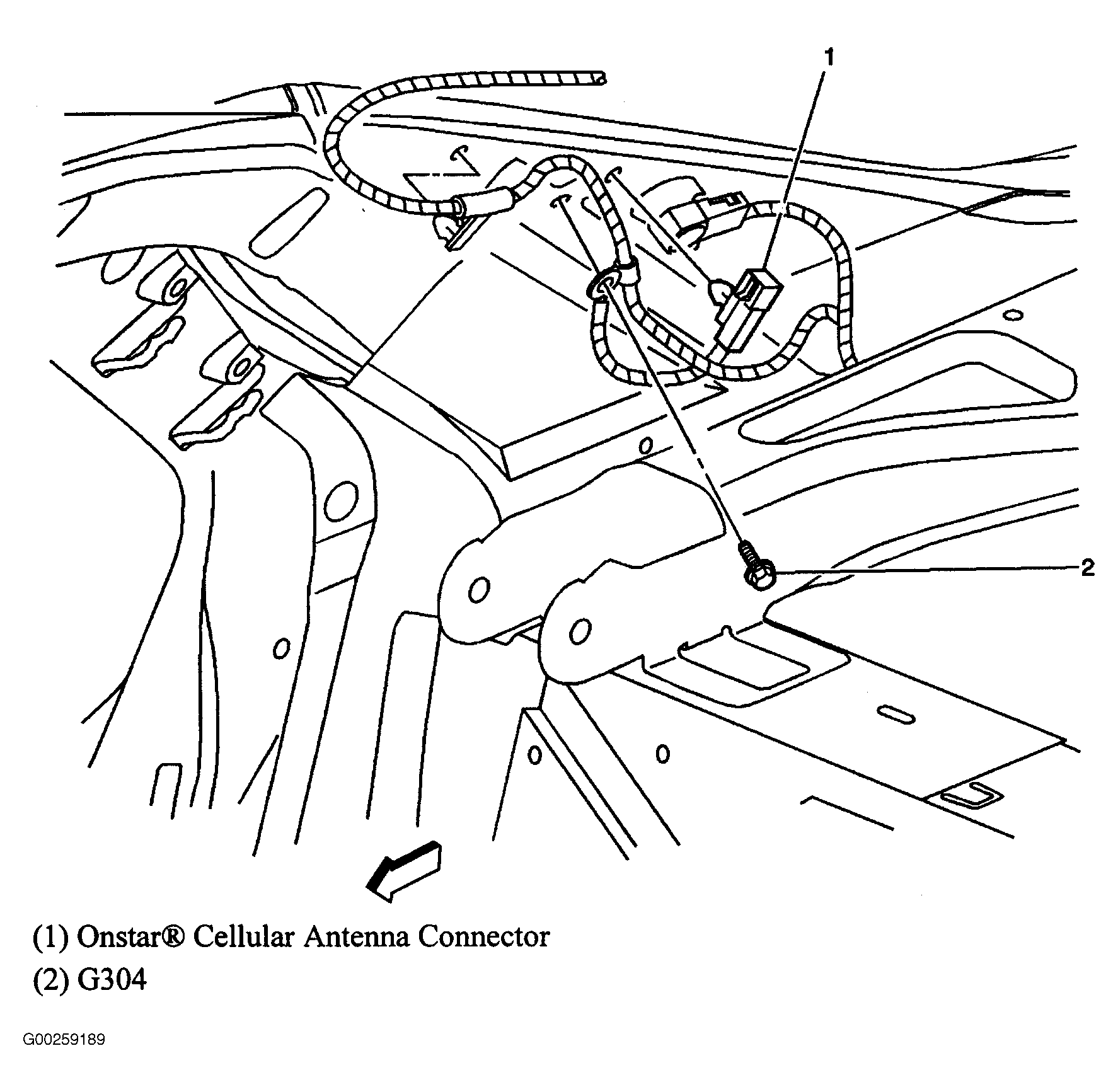

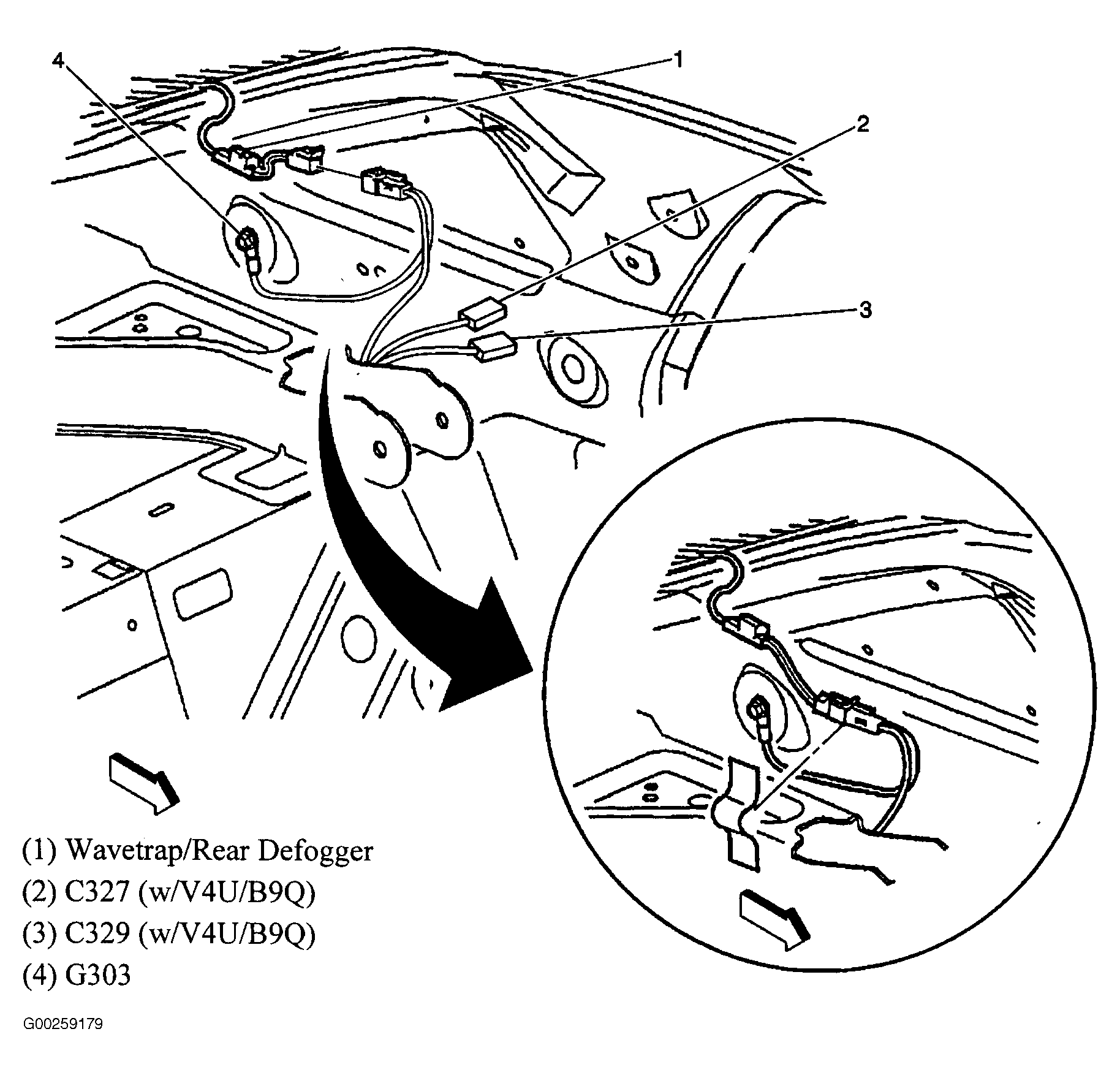

Fig 12: Above Left Side Of Rear Shelf
Courtesy of GENERAL MOTORS CORP.

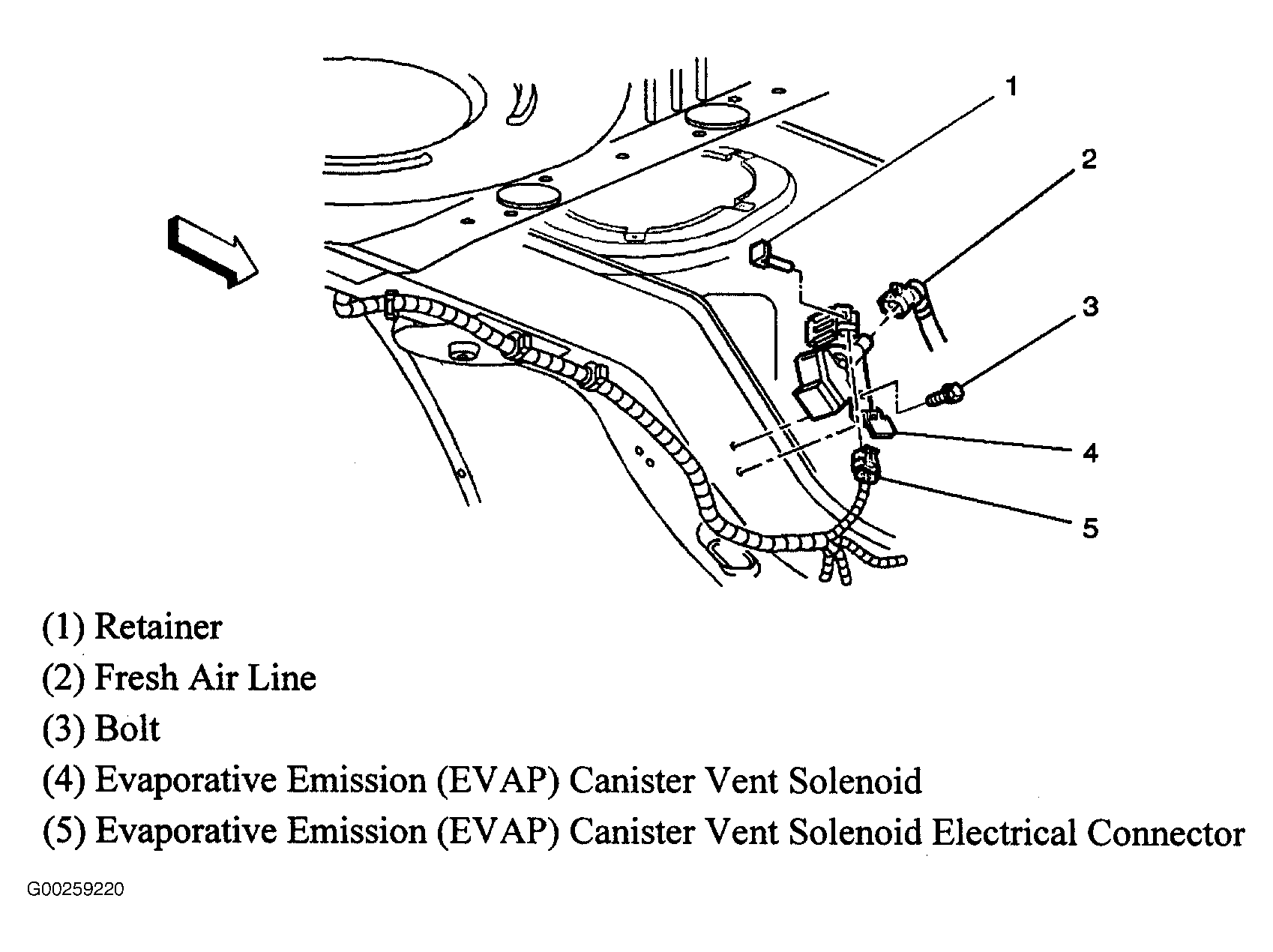

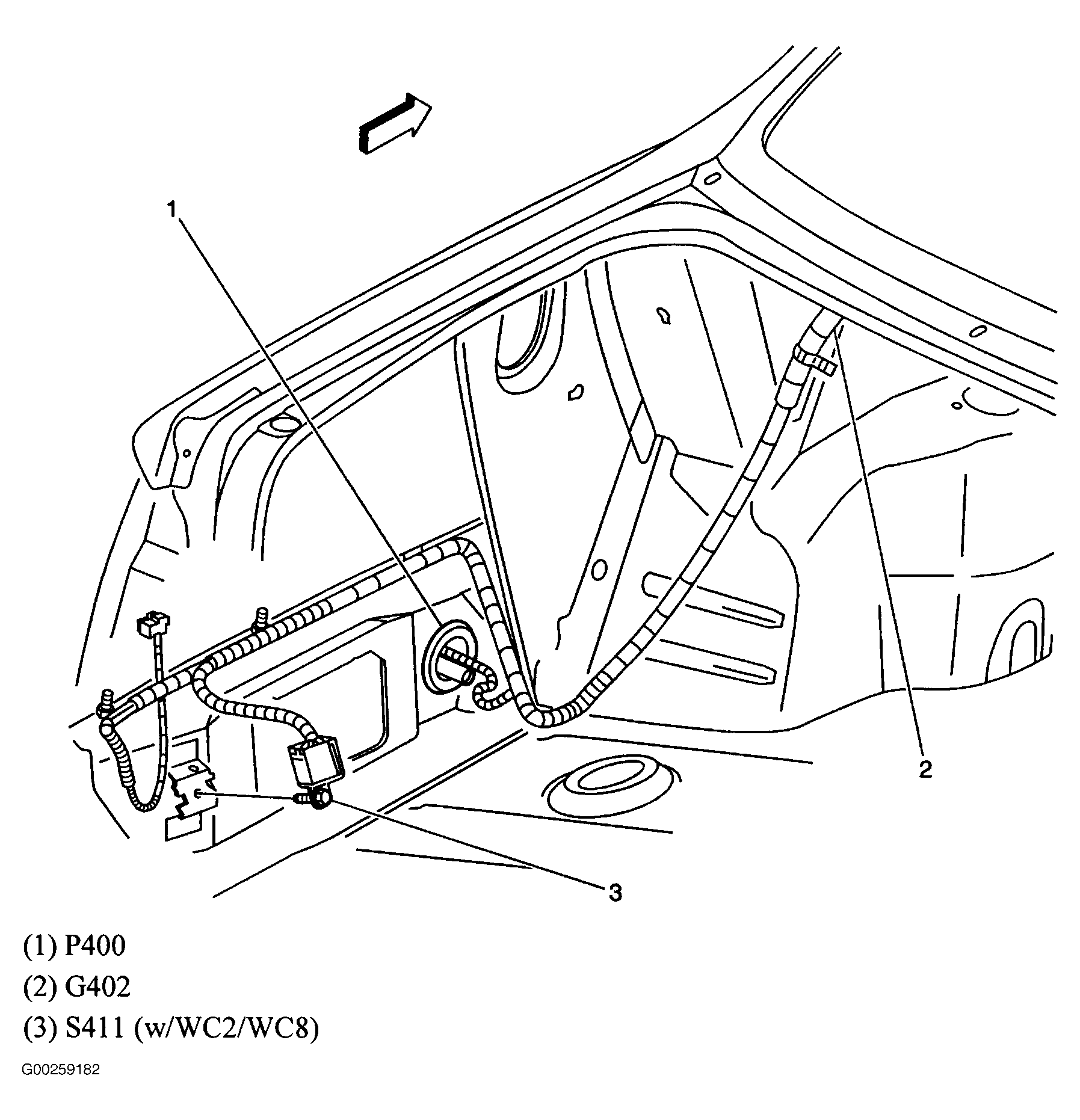

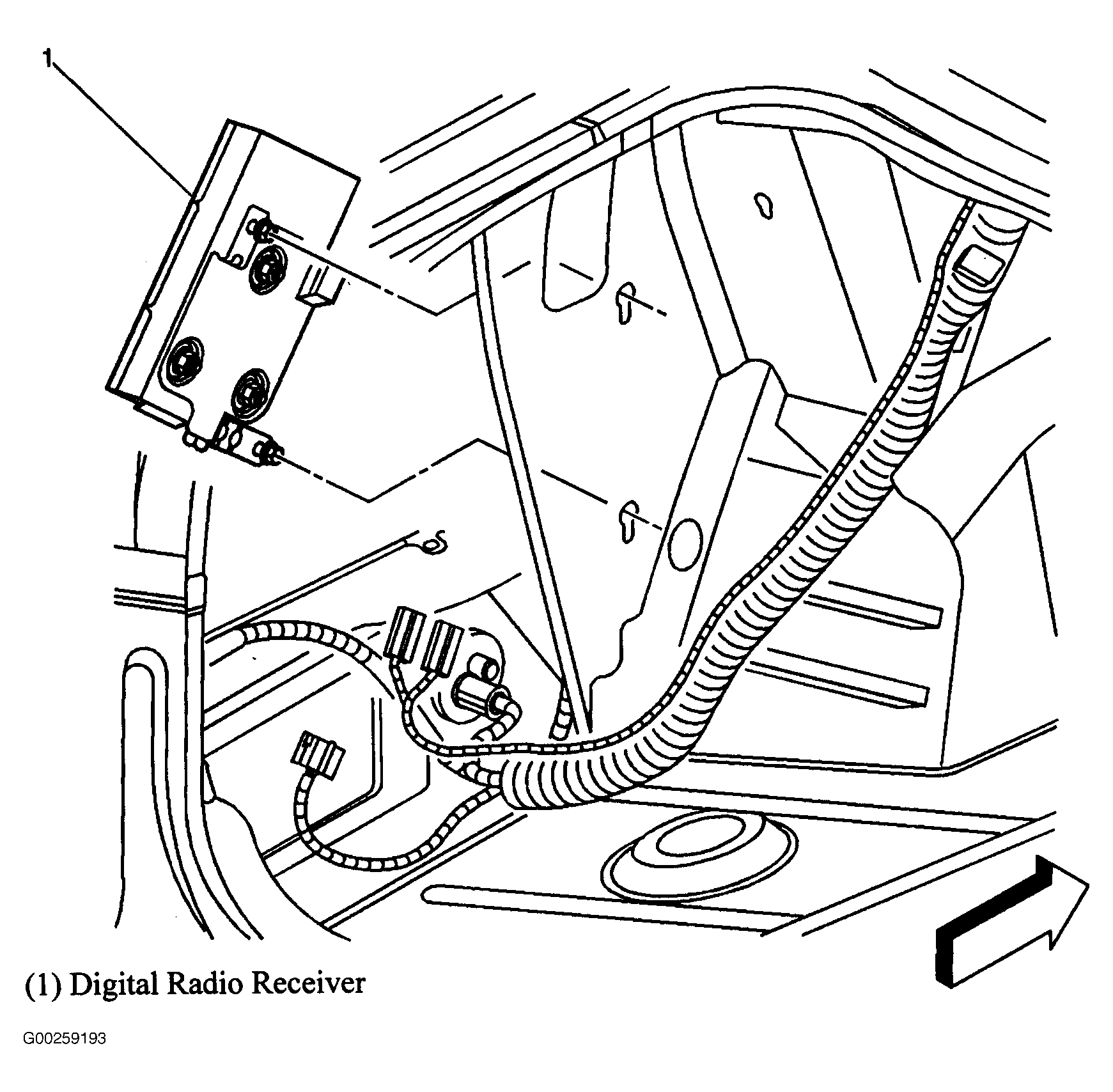

Fig 13: Left Side Of Rear Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 14: Below Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

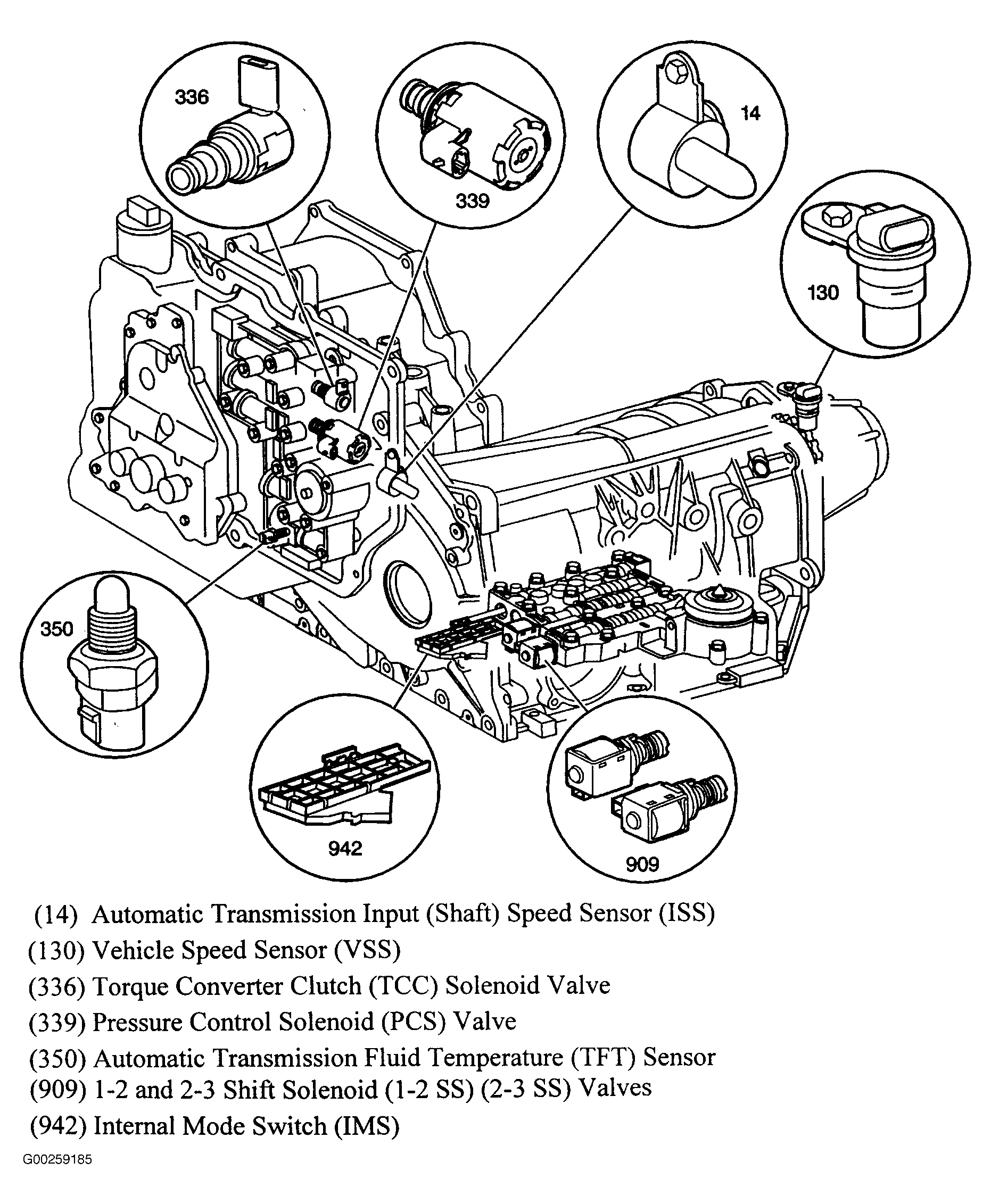

Fig 15: Automatic Transmission Overview
Courtesy of GENERAL MOTORS CORP.

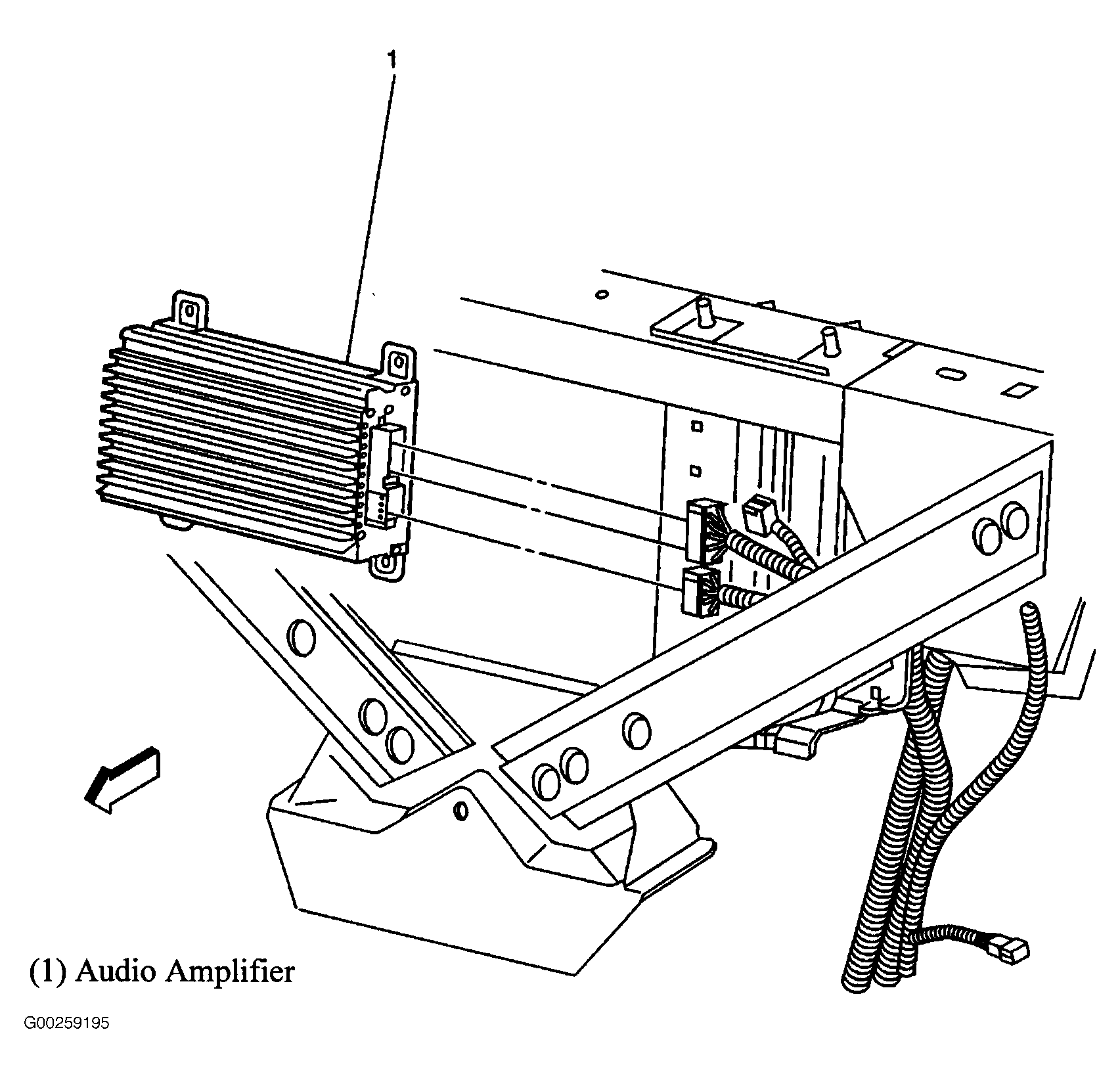

Fig 16: Under Rear Compartment Shelf
Courtesy of GENERAL MOTORS CORP.

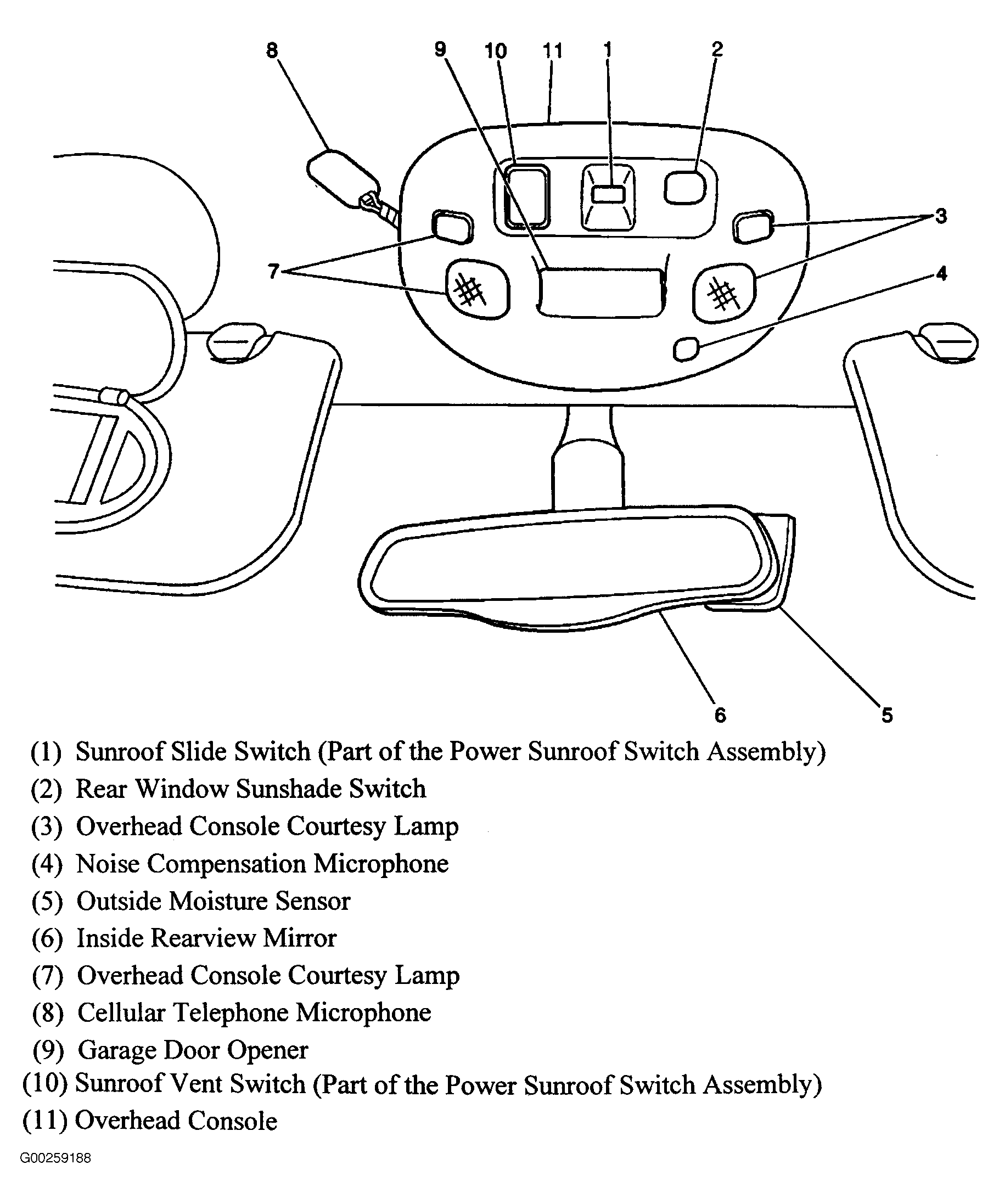

Fig 17: Center Front Headliner
Courtesy of GENERAL MOTORS CORP.

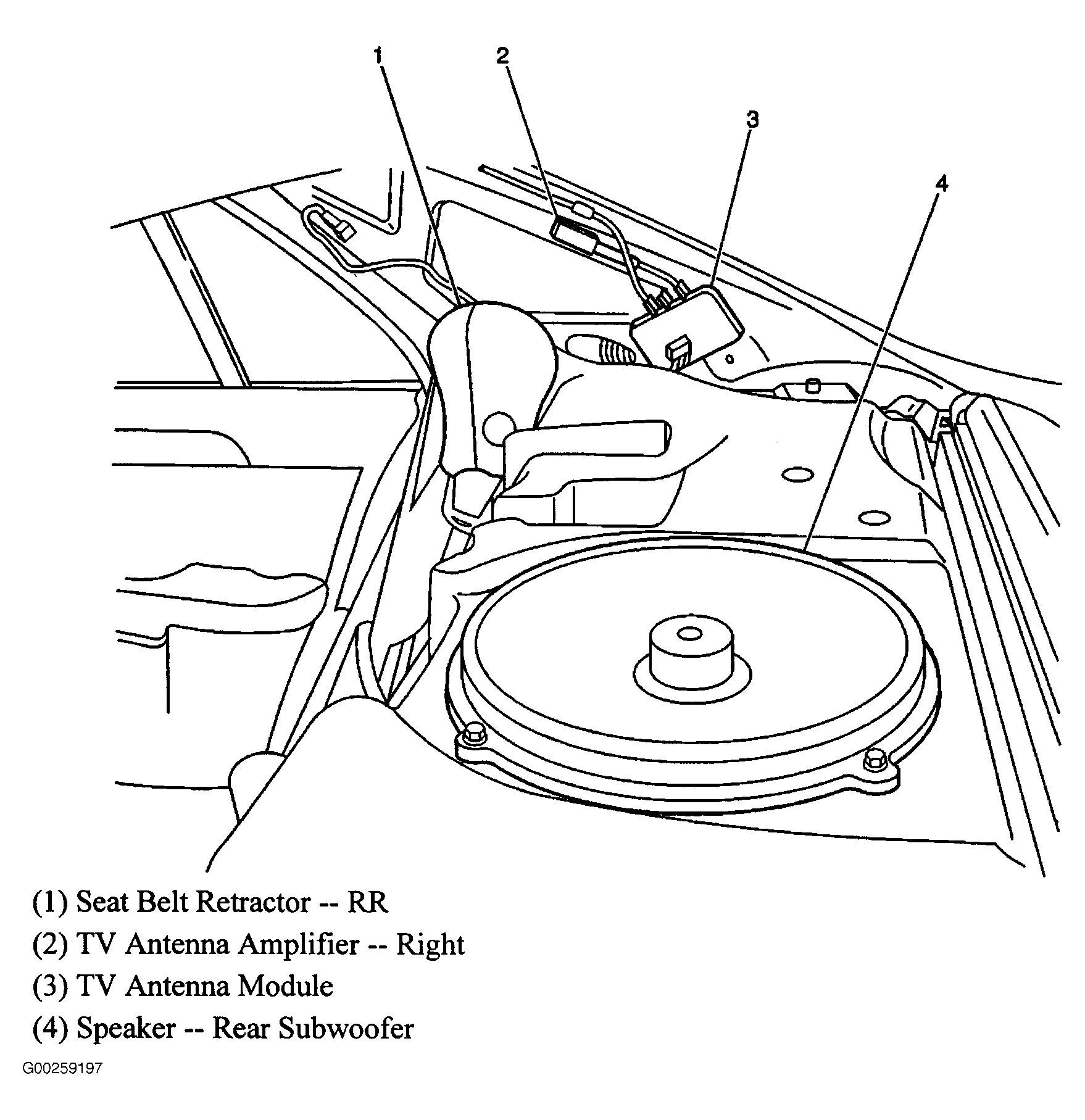

Fig 18: Above Right Side Of Rear Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 19: Front Of Rear Compartment, Under Shelf
Courtesy of GENERAL MOTORS CORP.

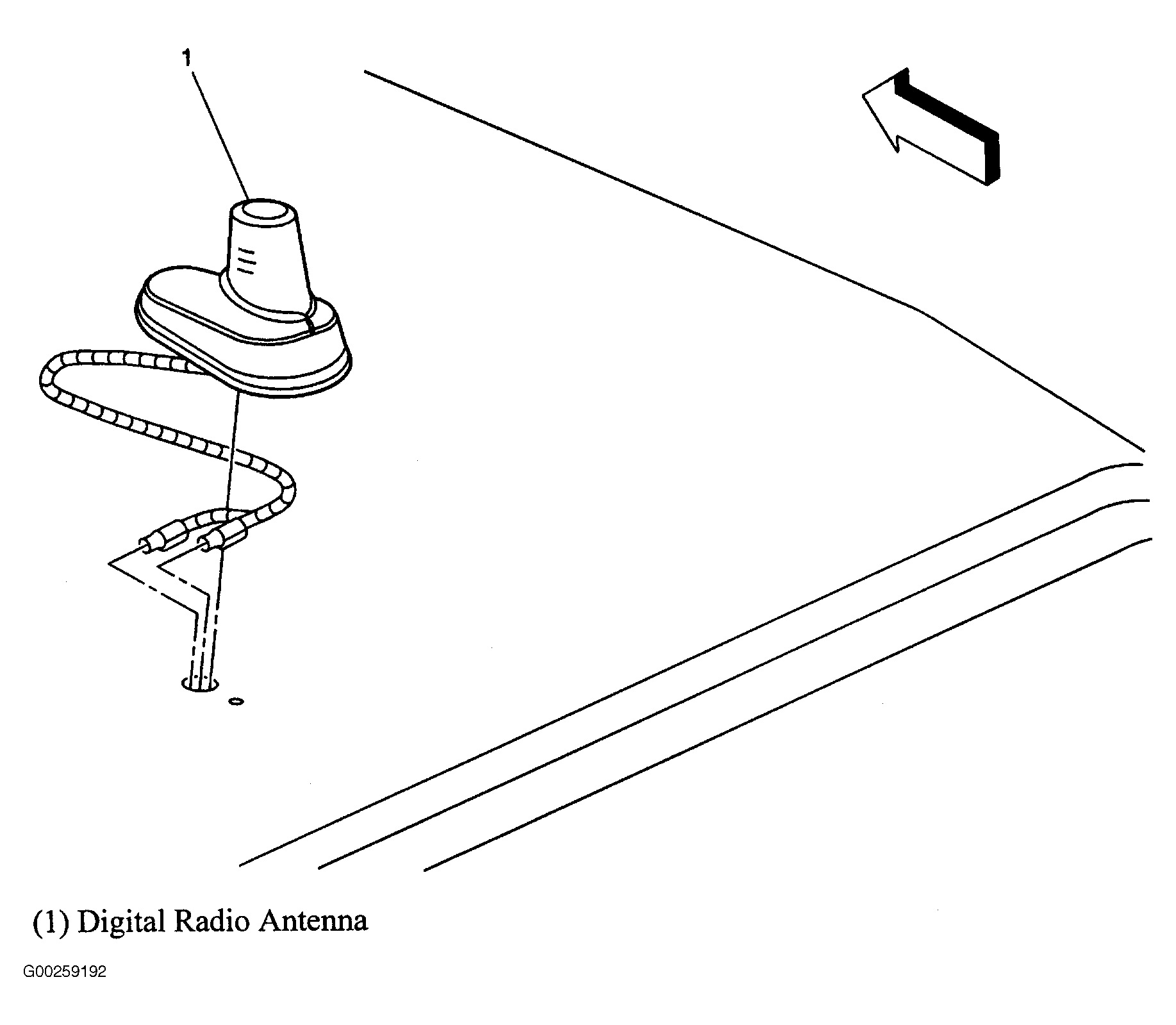

Fig 20: Rear Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 21: Left Side Of Rear Compartment
Courtesy of GENERAL MOTORS CORP.

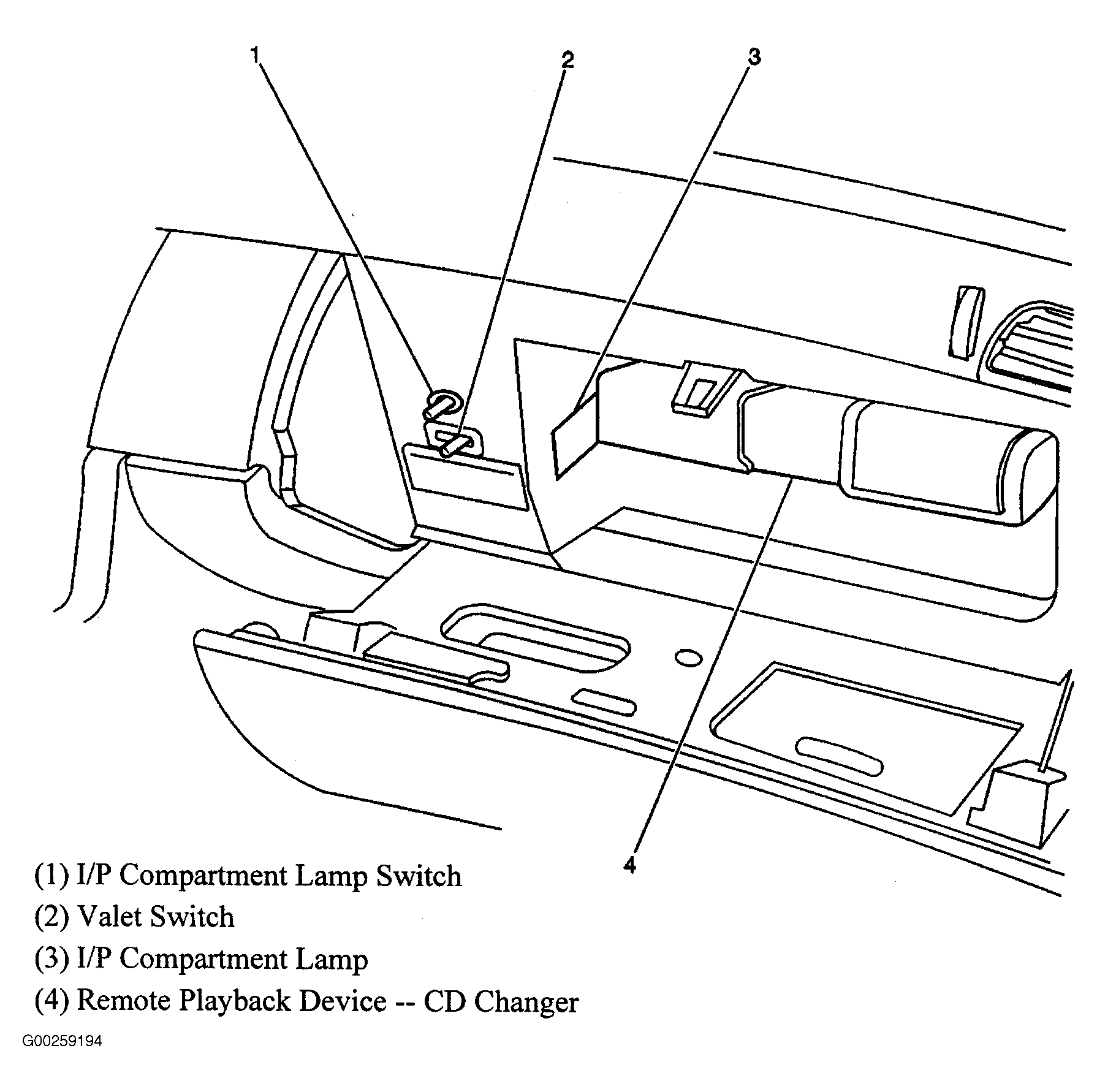

Fig 22: Inside Dash Compartment
Courtesy of GENERAL MOTORS CORP.

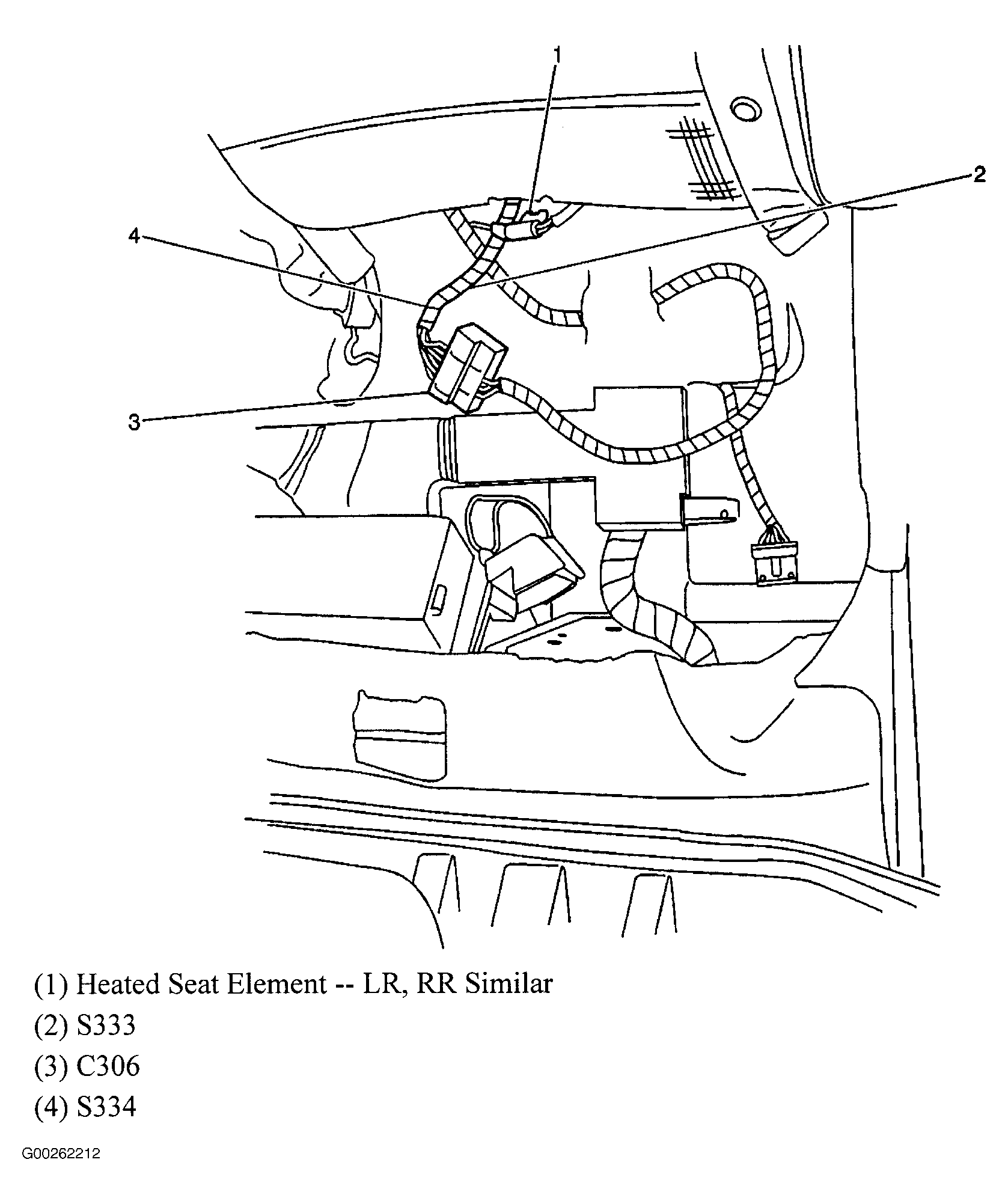

Fig 23: Behind Rear Seat Back
Courtesy of GENERAL MOTORS CORP.
Fig 24: Above Left Corner Of Rear Seat
Courtesy of GENERAL MOTORS CORP.
Fig 25: Above Right Corner Of Rear Seat
Courtesy of GENERAL MOTORS CORP.

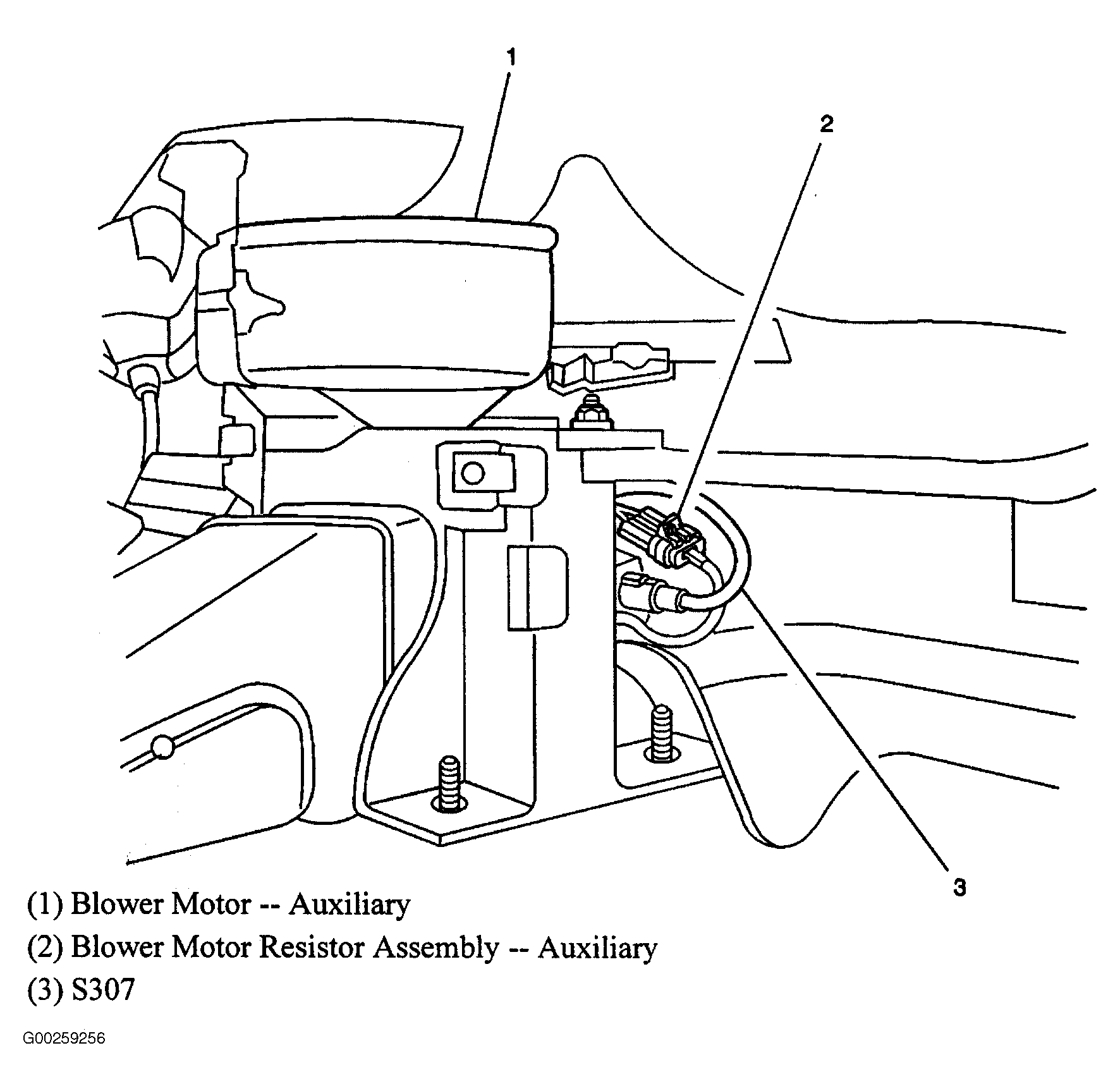

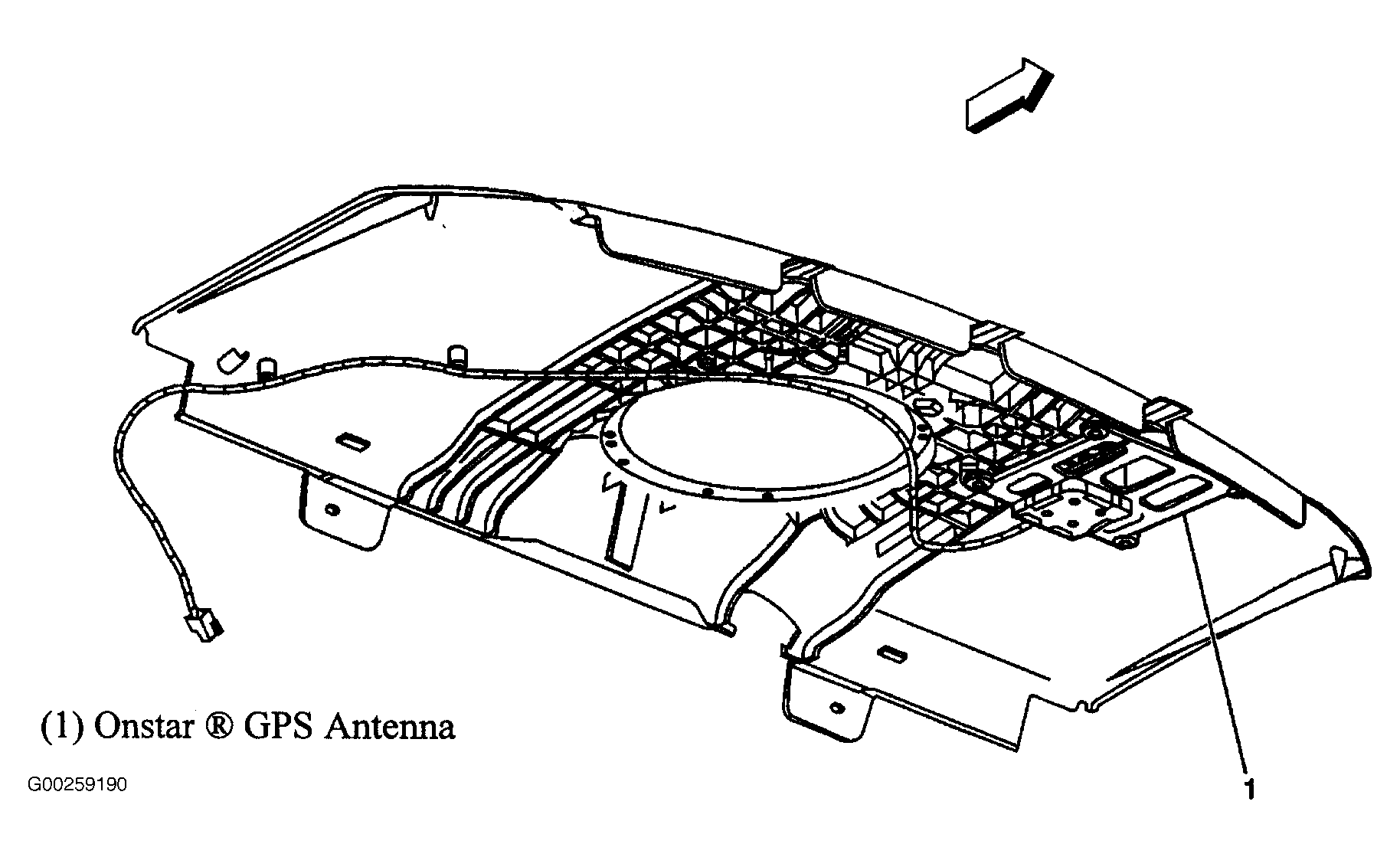

Fig 26: Below Rear Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 27: Right Side Of Rear Compartment
Courtesy of GENERAL MOTORS CORP.

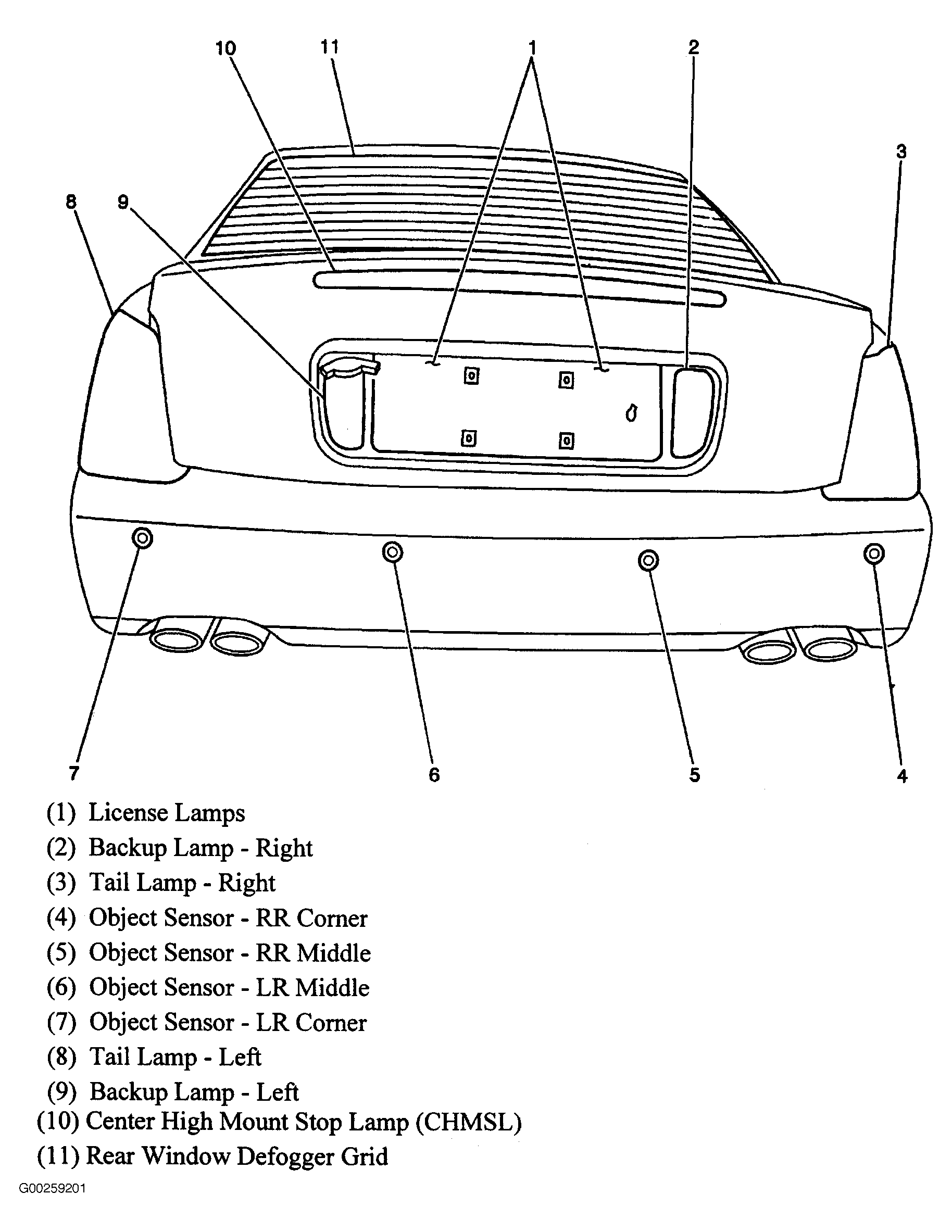

Fig 28: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

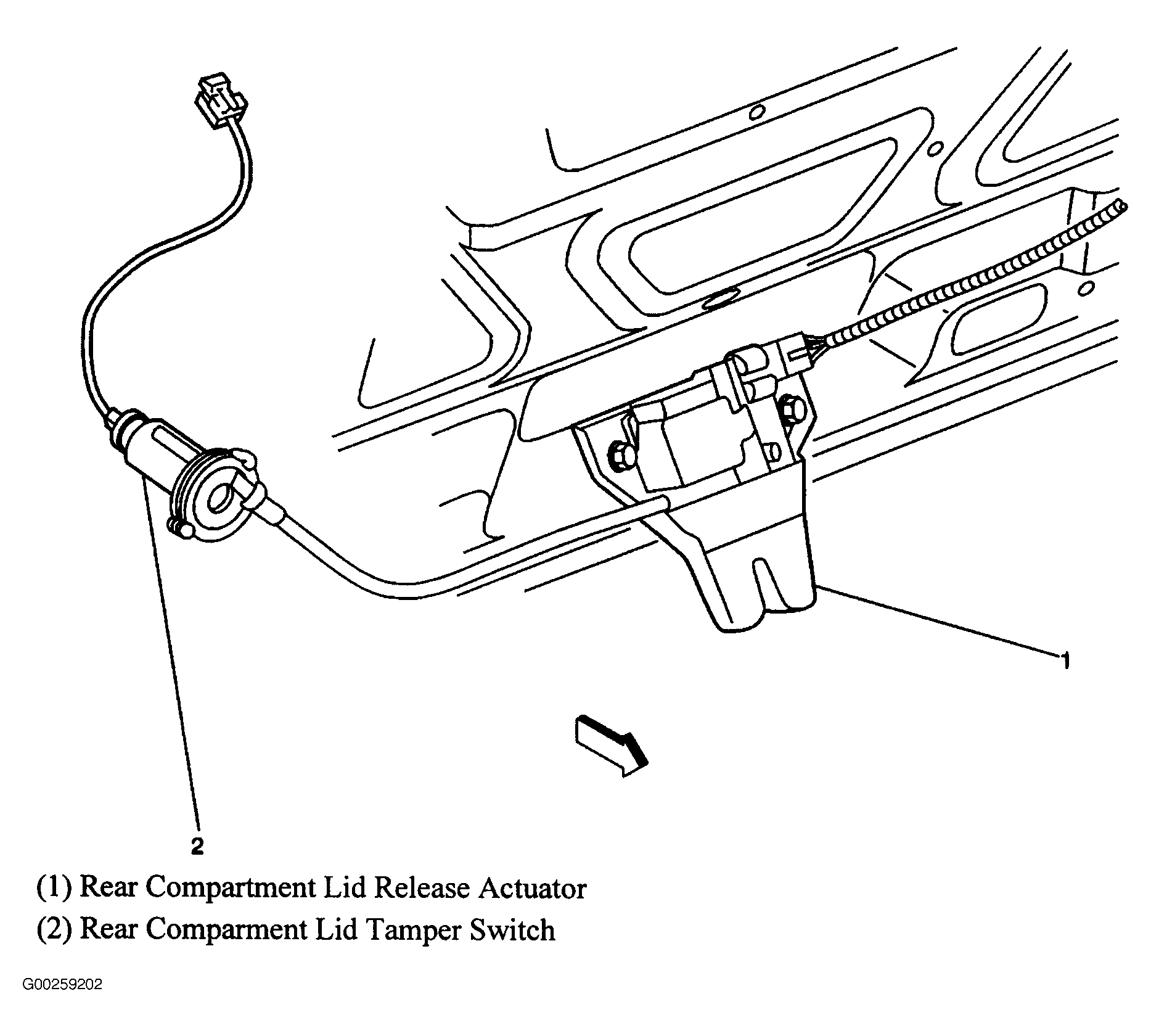

Fig 29: Center Of Rear Compartment Lid
Courtesy of GENERAL MOTORS CORP.

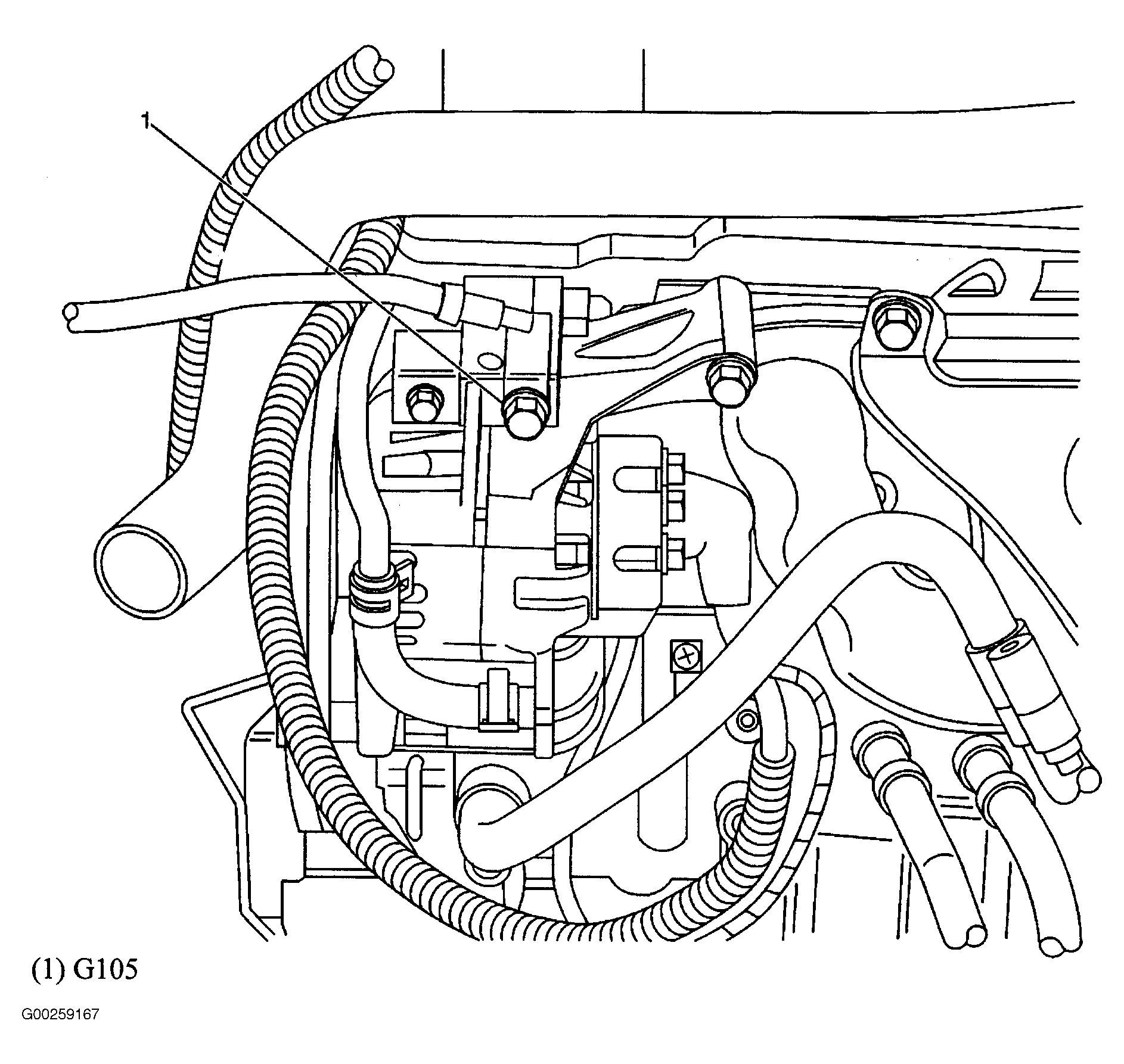

Fig 30: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 31: Top Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 32: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

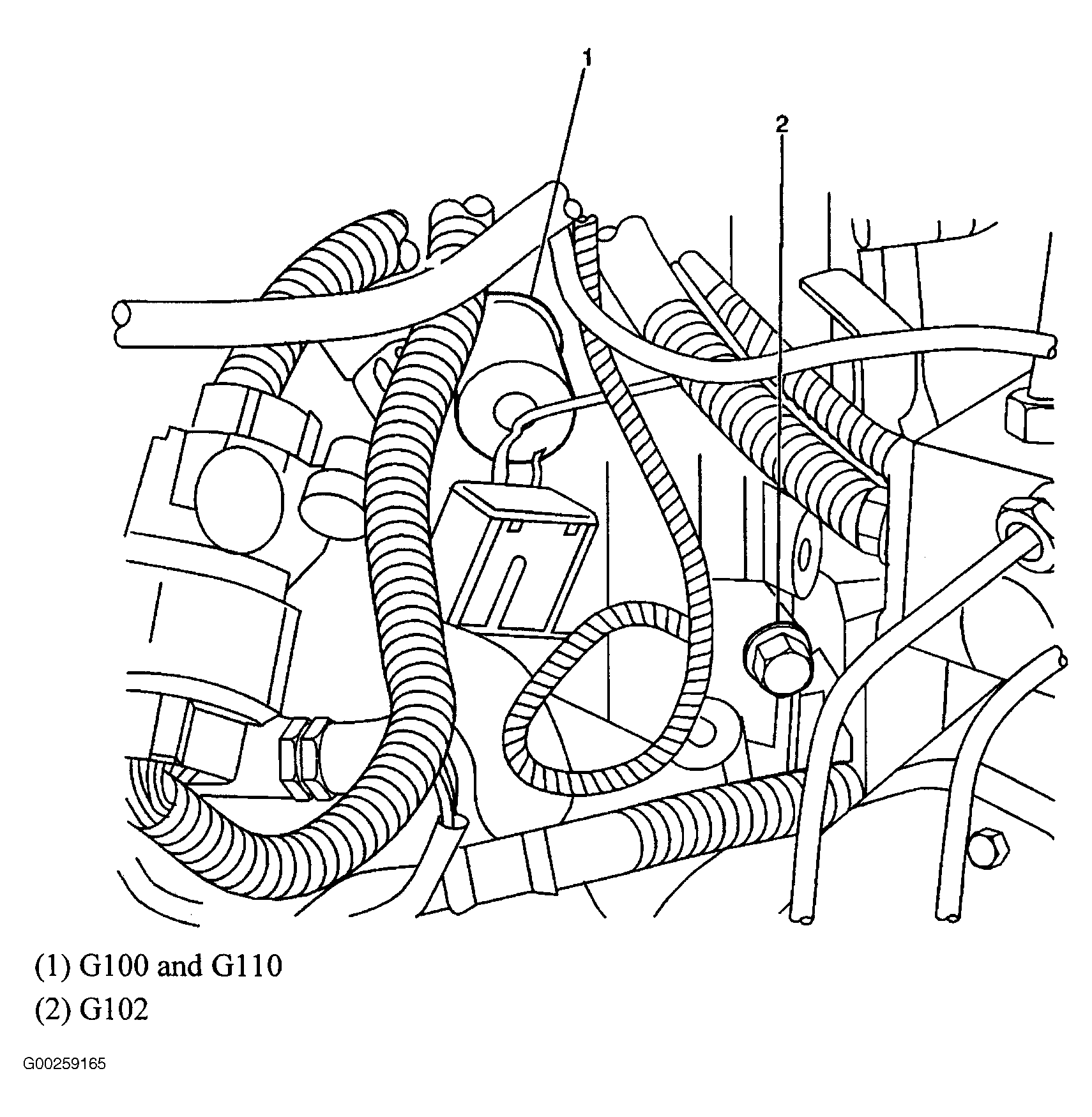

Fig 33: Left Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

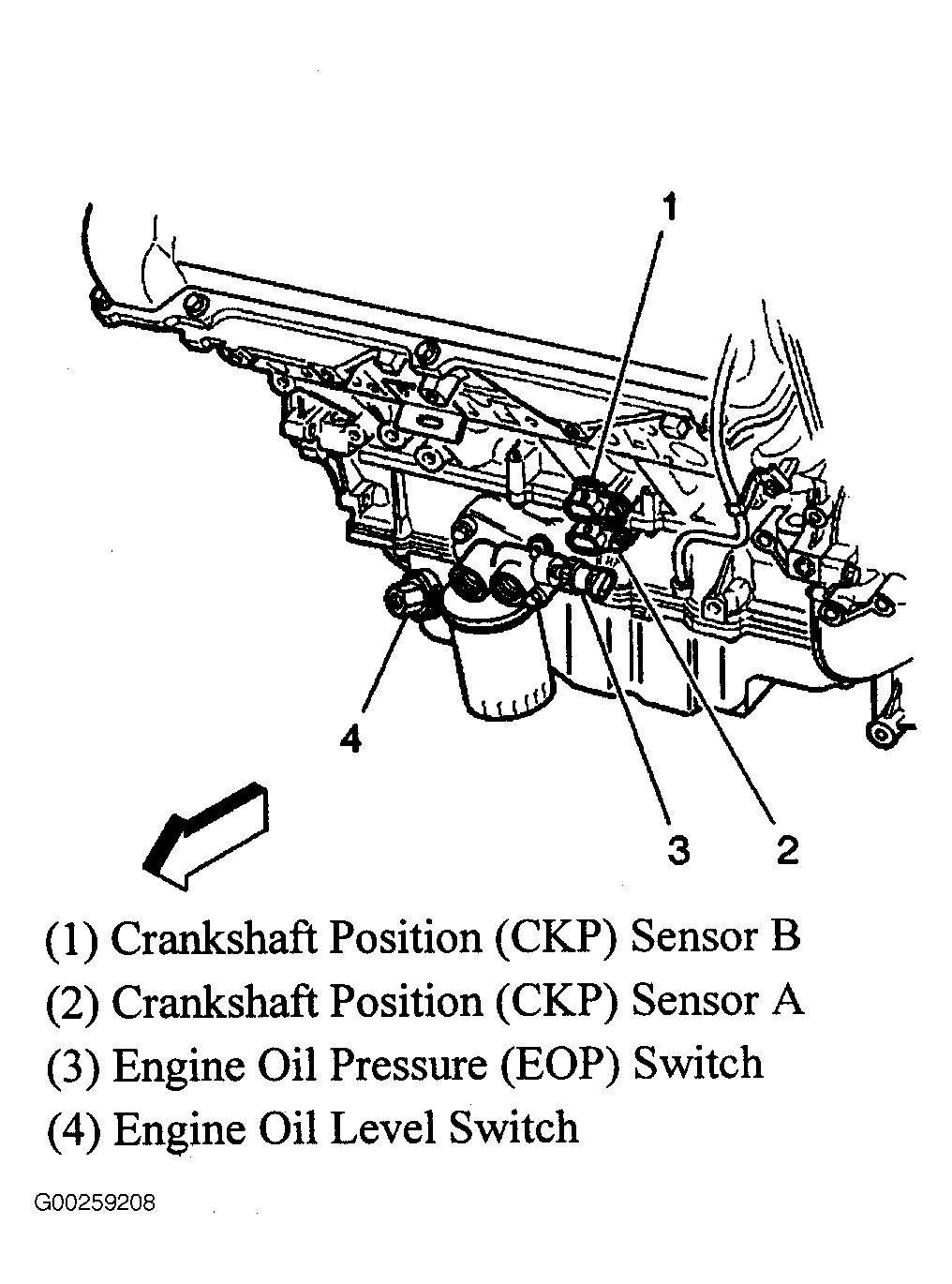

Fig 34: Lower Front Of Engine
Courtesy of GENERAL MOTORS CORP.

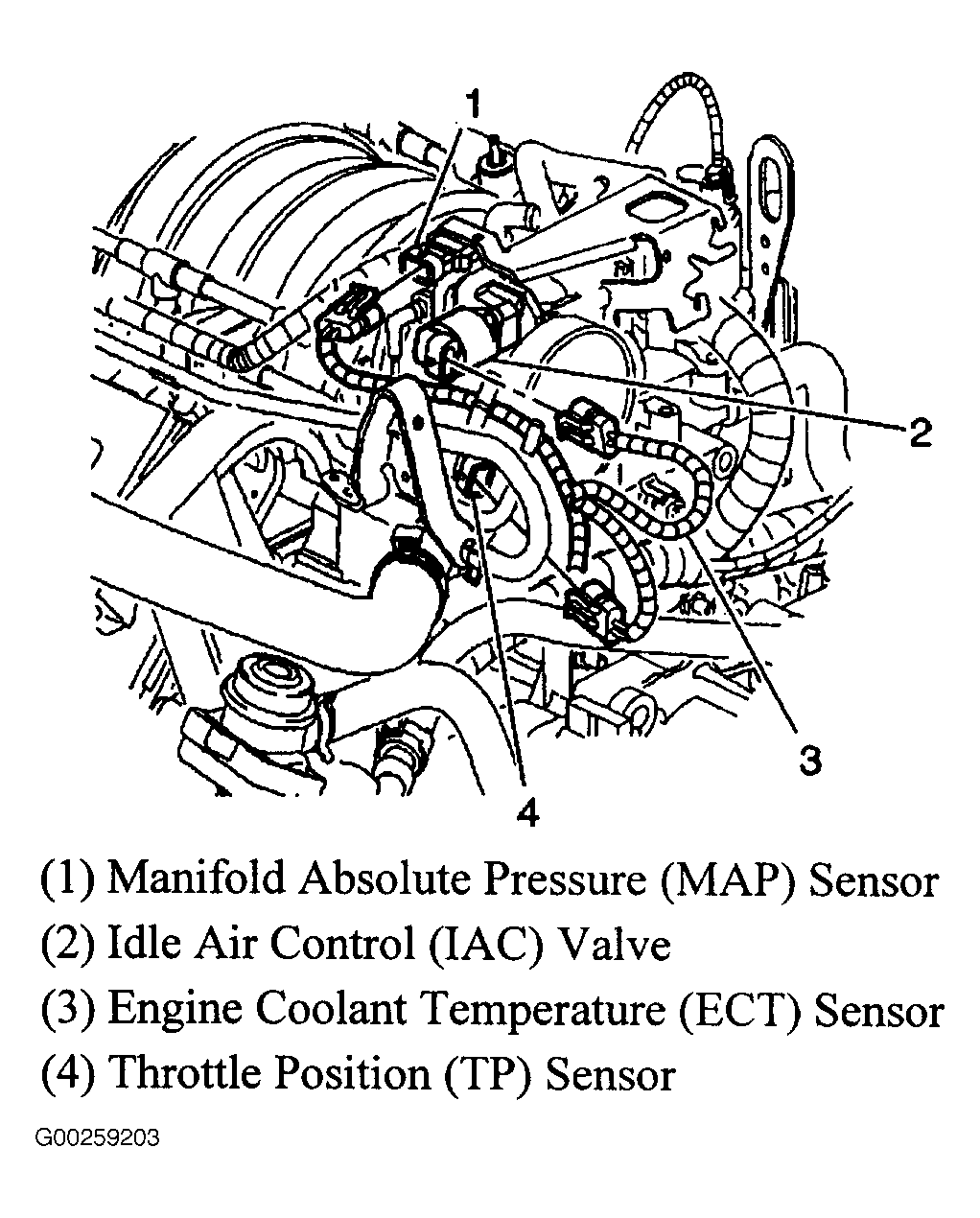

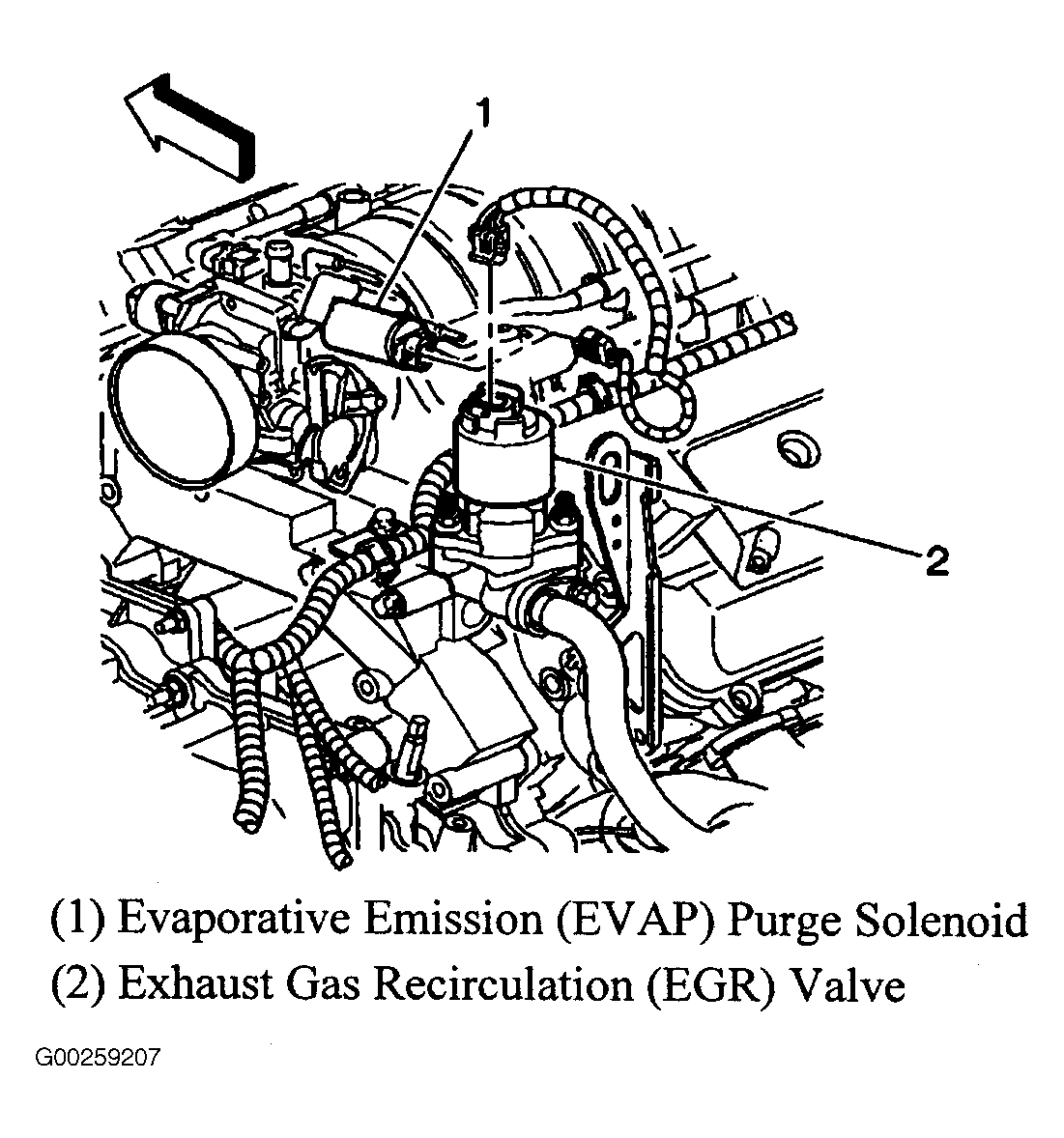

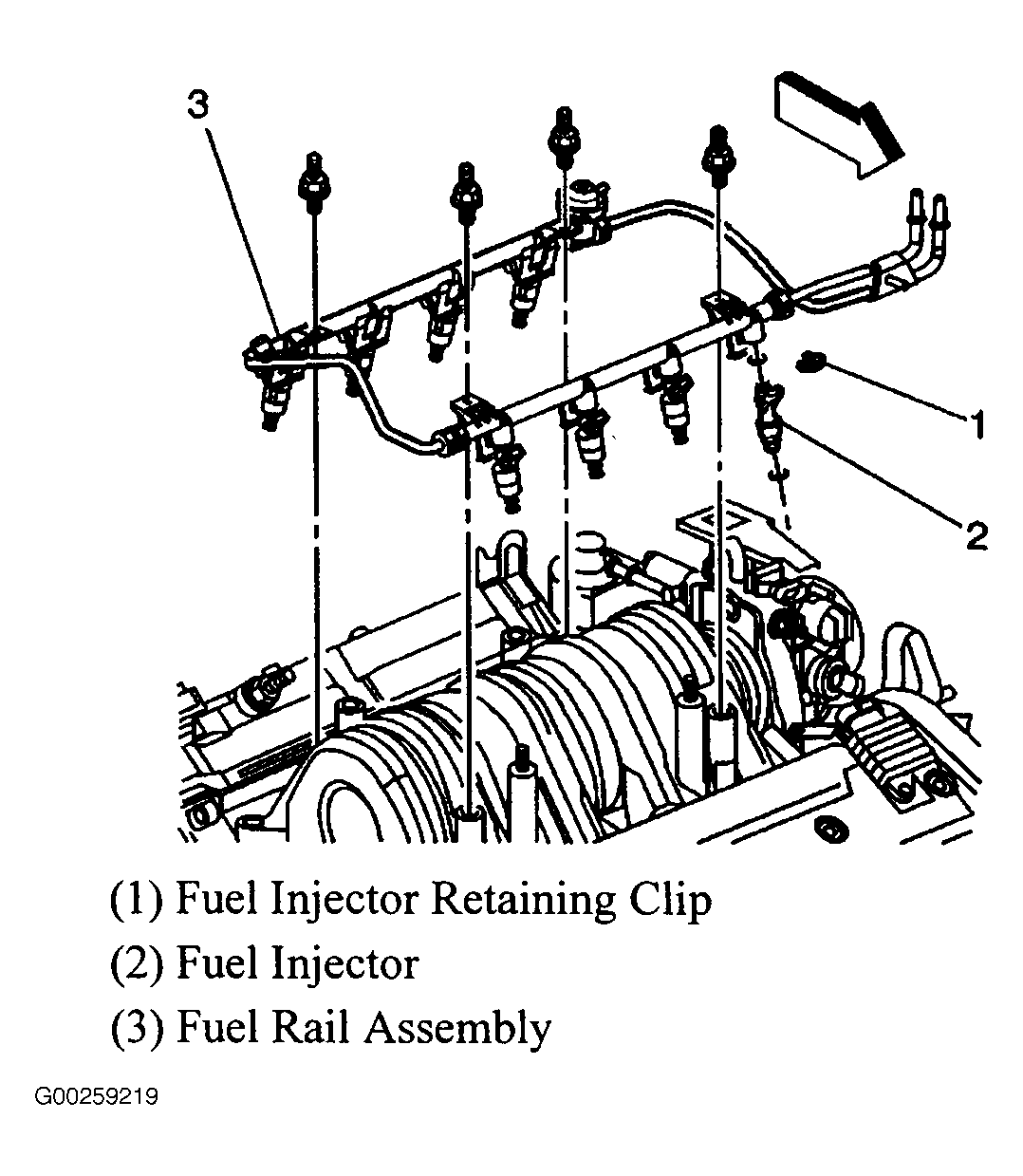

Fig 35: Top Of Engine
Courtesy of GENERAL MOTORS CORP.

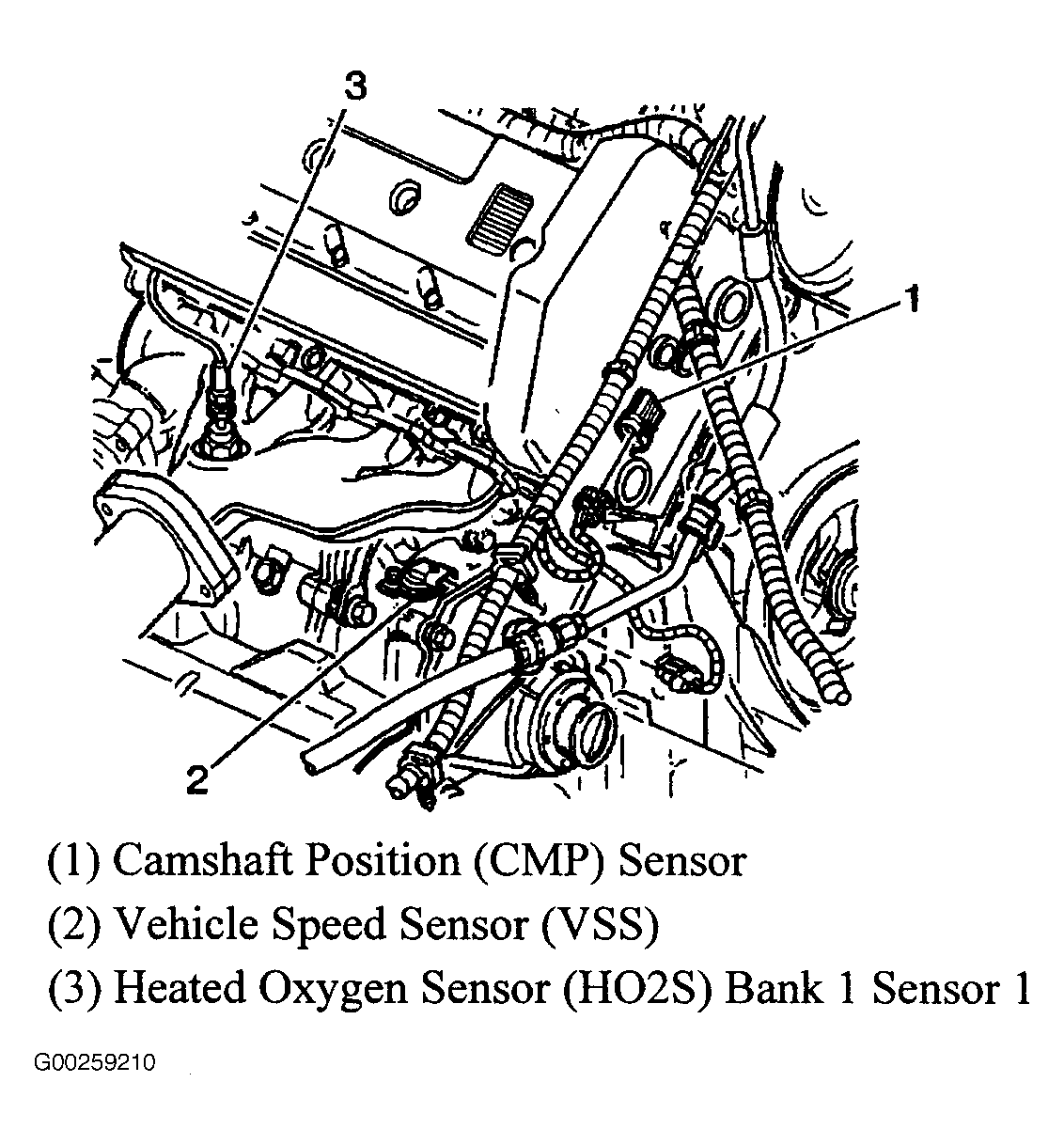

Fig 36: Right Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

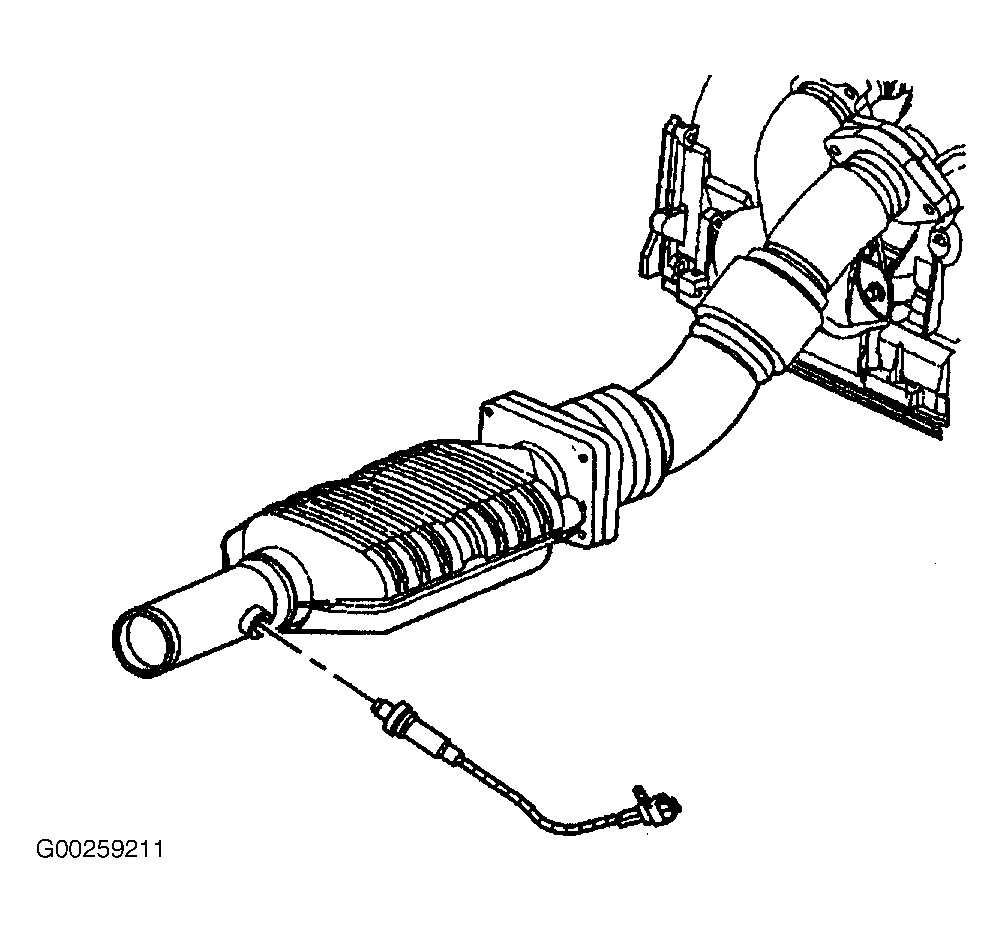

Fig 37: Near Catalytic Converter
Courtesy of GENERAL MOTORS CORP.

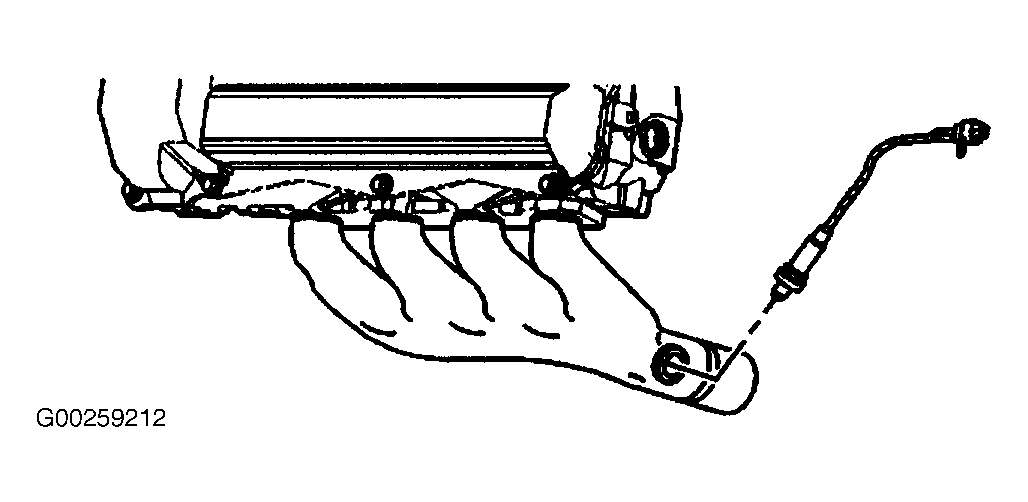

Fig 38: Front Exhaust Manifold
Courtesy of GENERAL MOTORS CORP.

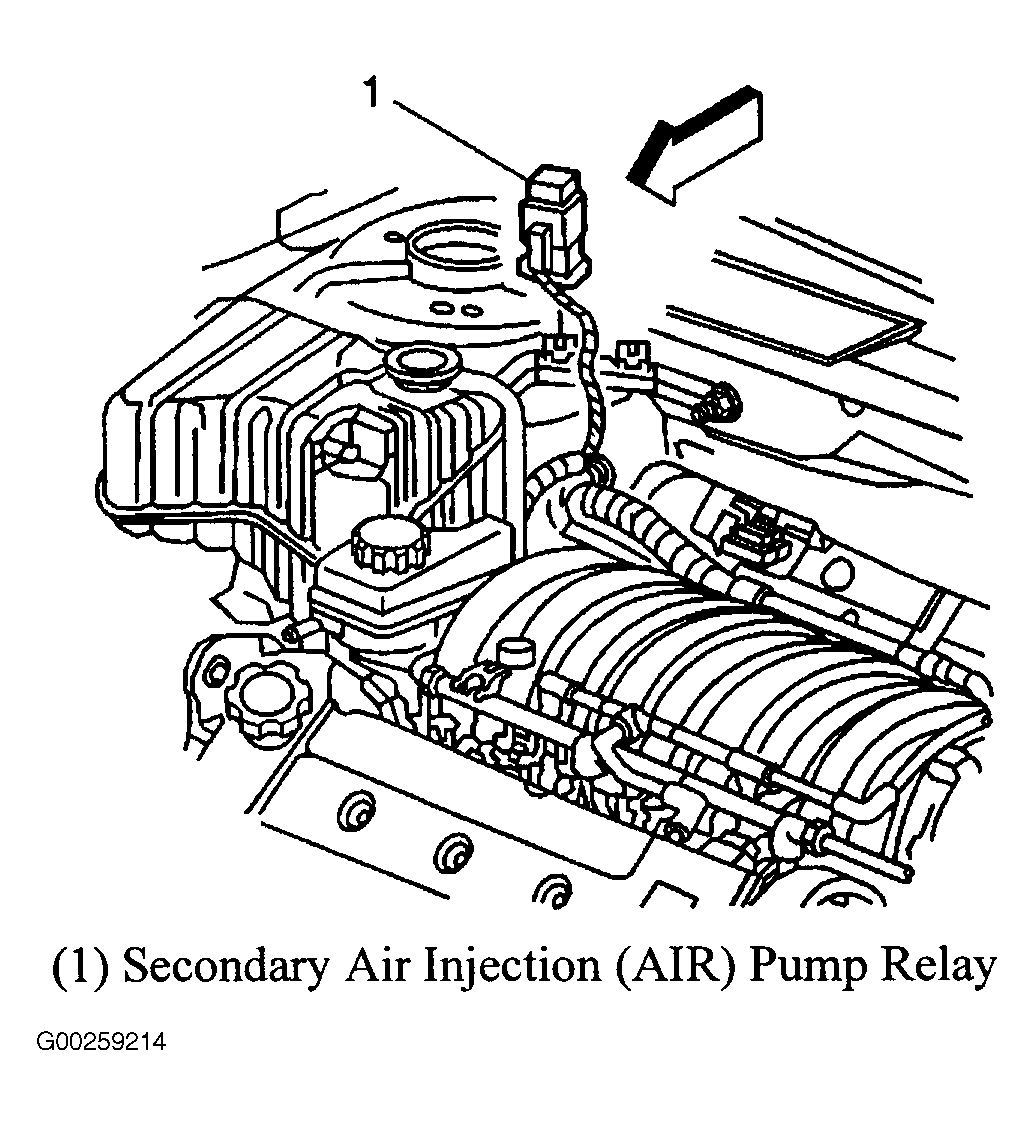

Fig 39: Right Rear Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

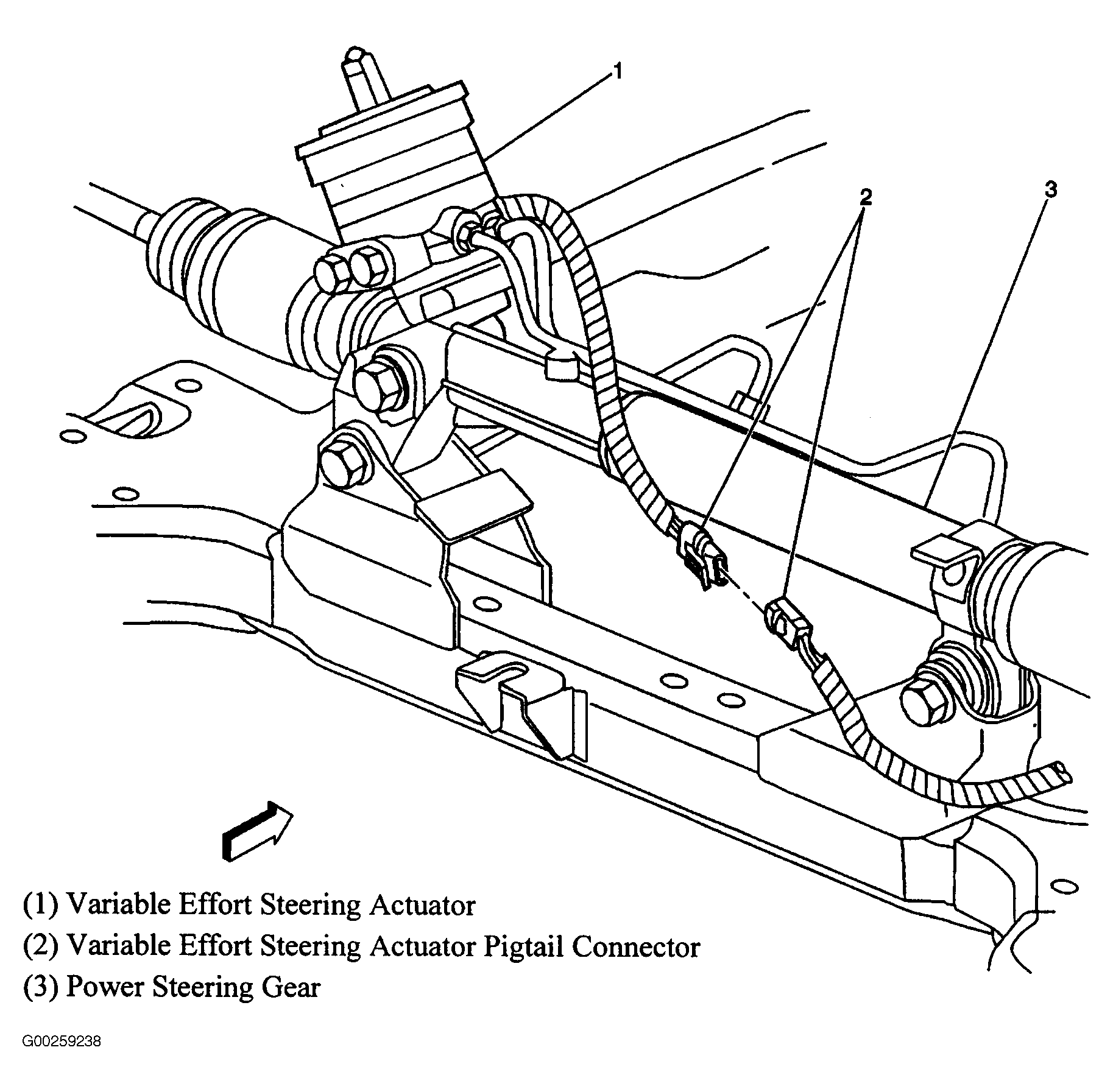

Fig 40: Lower Left Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

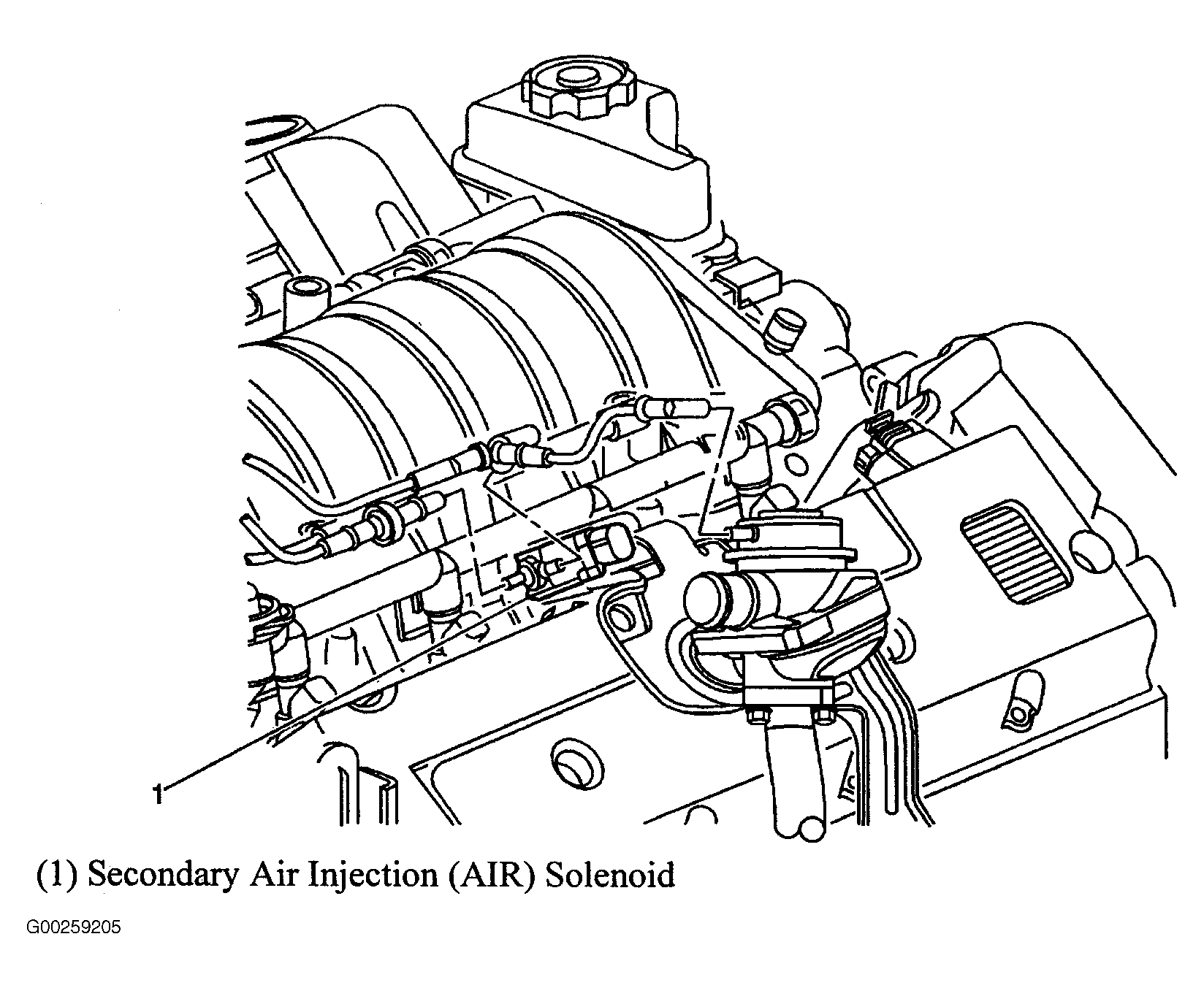

Fig 41: Top Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 42: Beneath Left Side Of Rear Compartment
Courtesy of GENERAL MOTORS CORP.

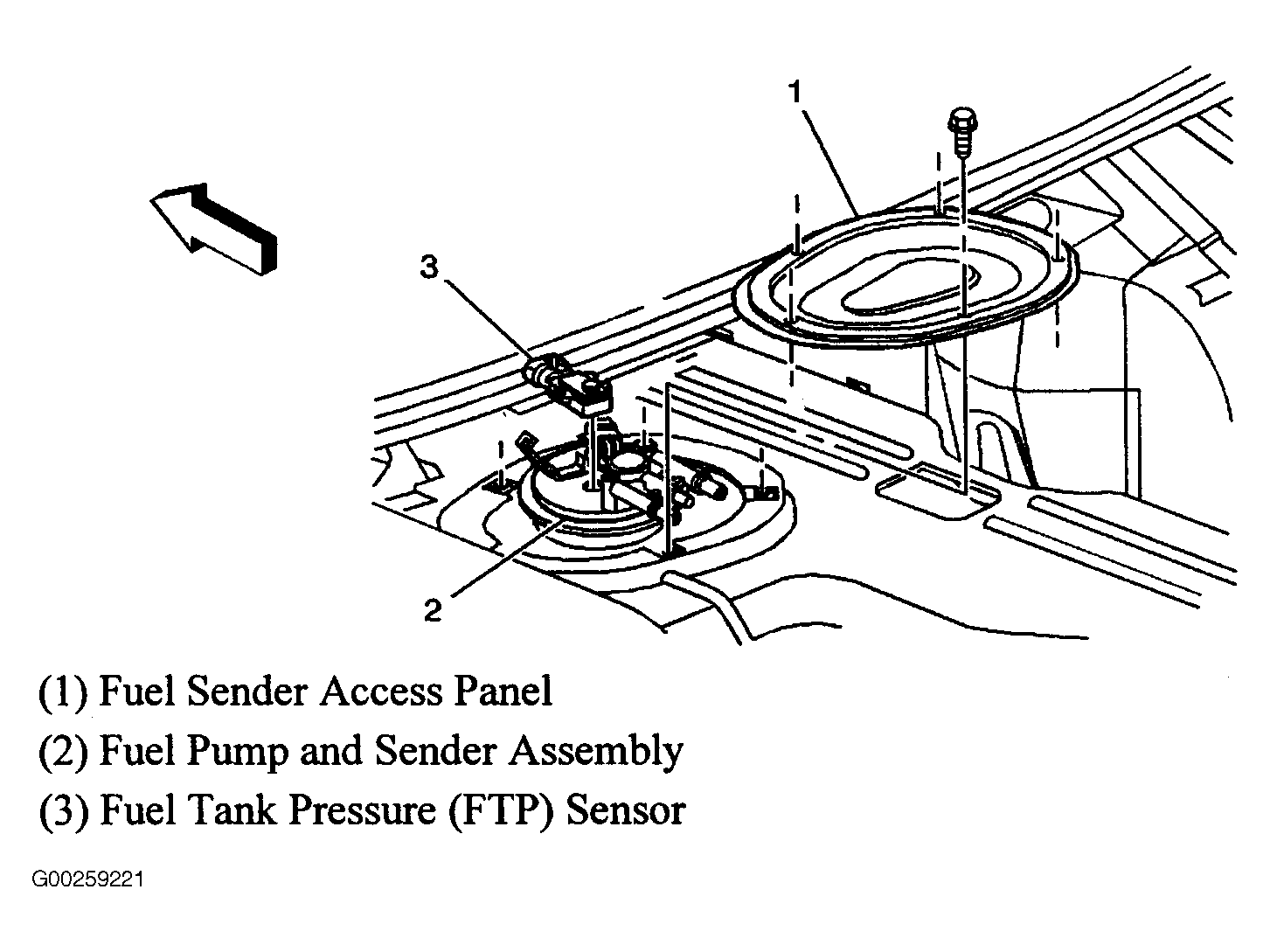

Fig 43: Top Of Fuel Tank
Courtesy of GENERAL MOTORS CORP.

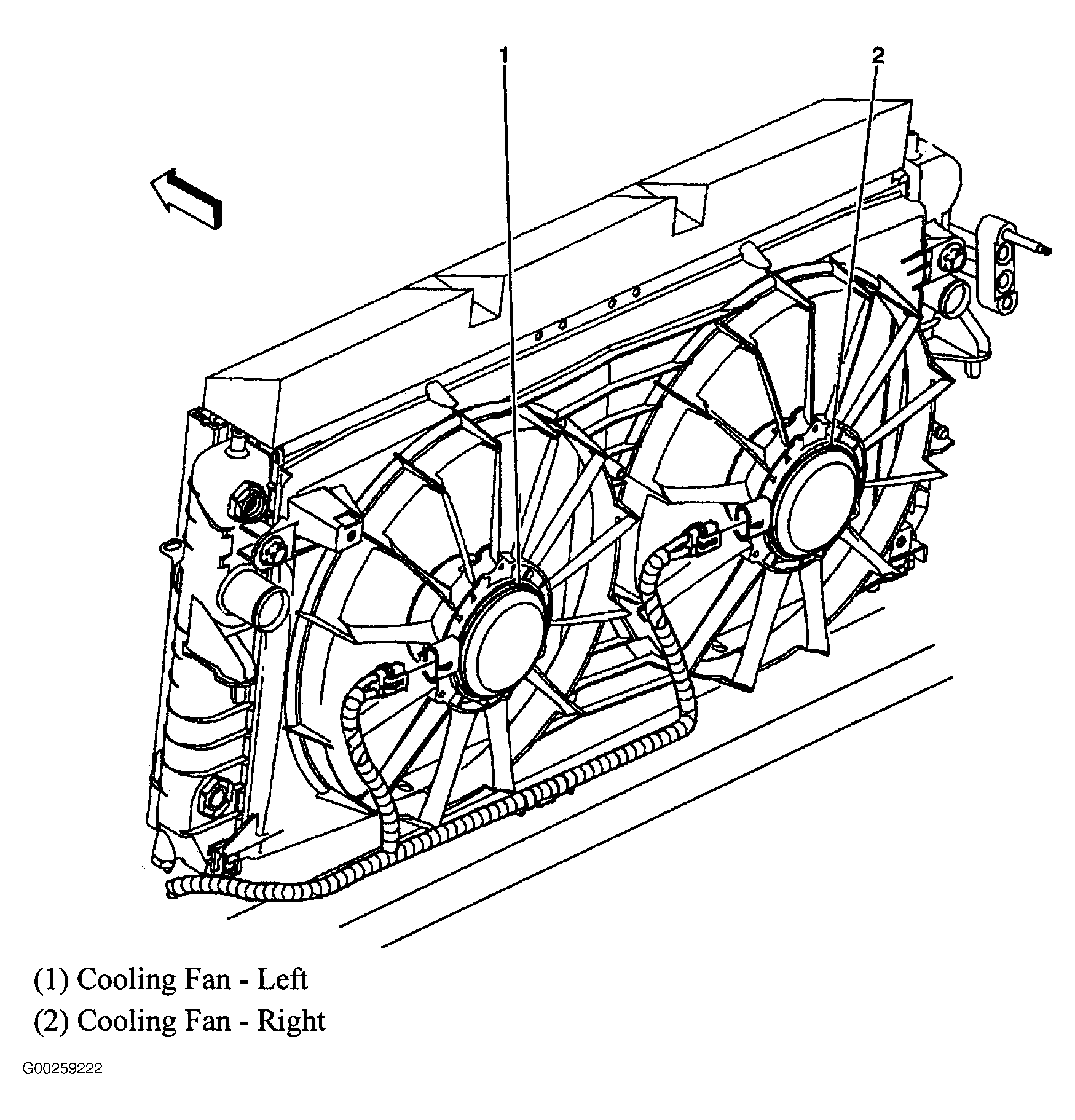

Fig 44: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 45: Center Of Engine, Under Intake Manifold
Courtesy of GENERAL MOTORS CORP.
Fig 46: Right Rear Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 47: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 48: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

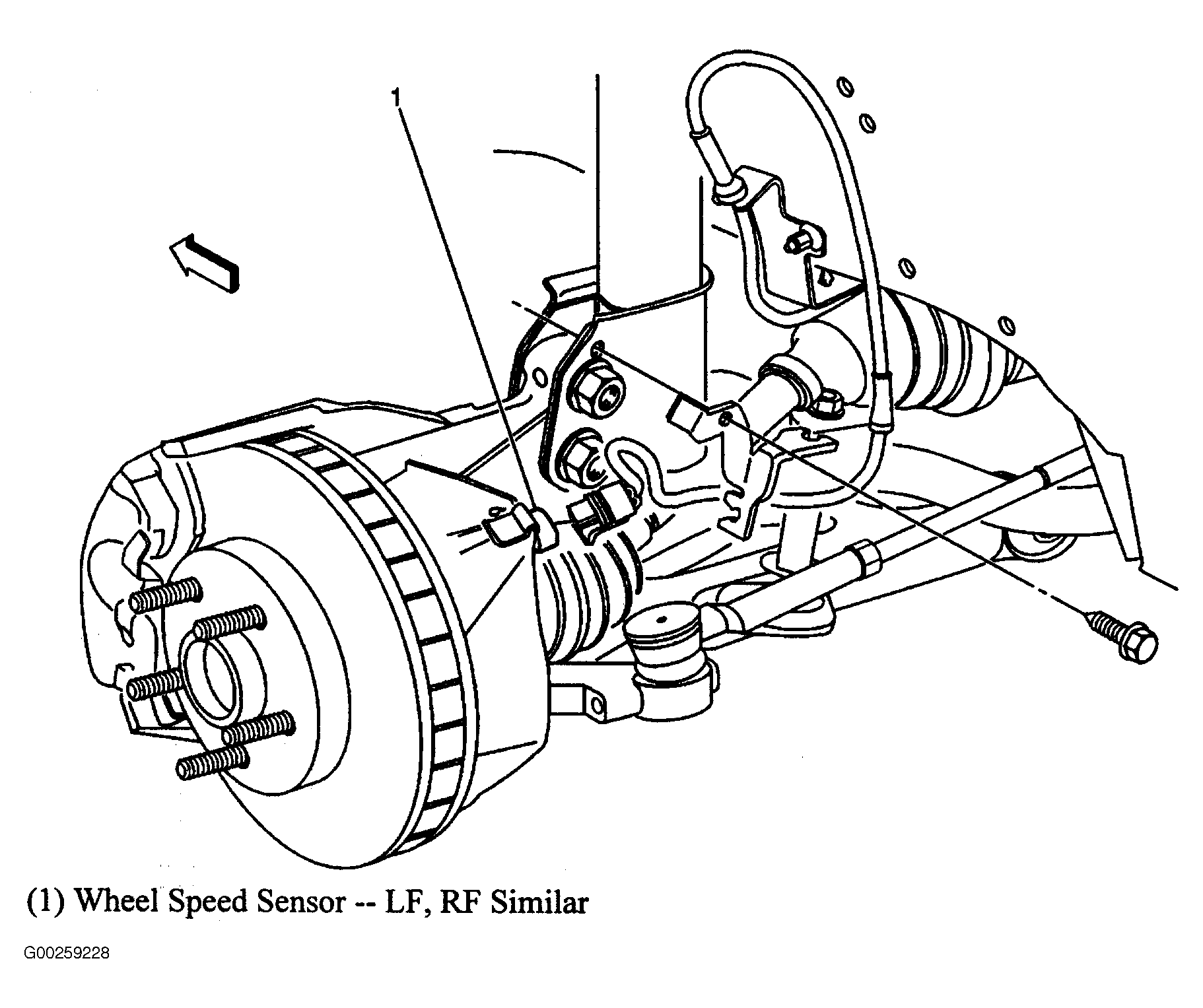

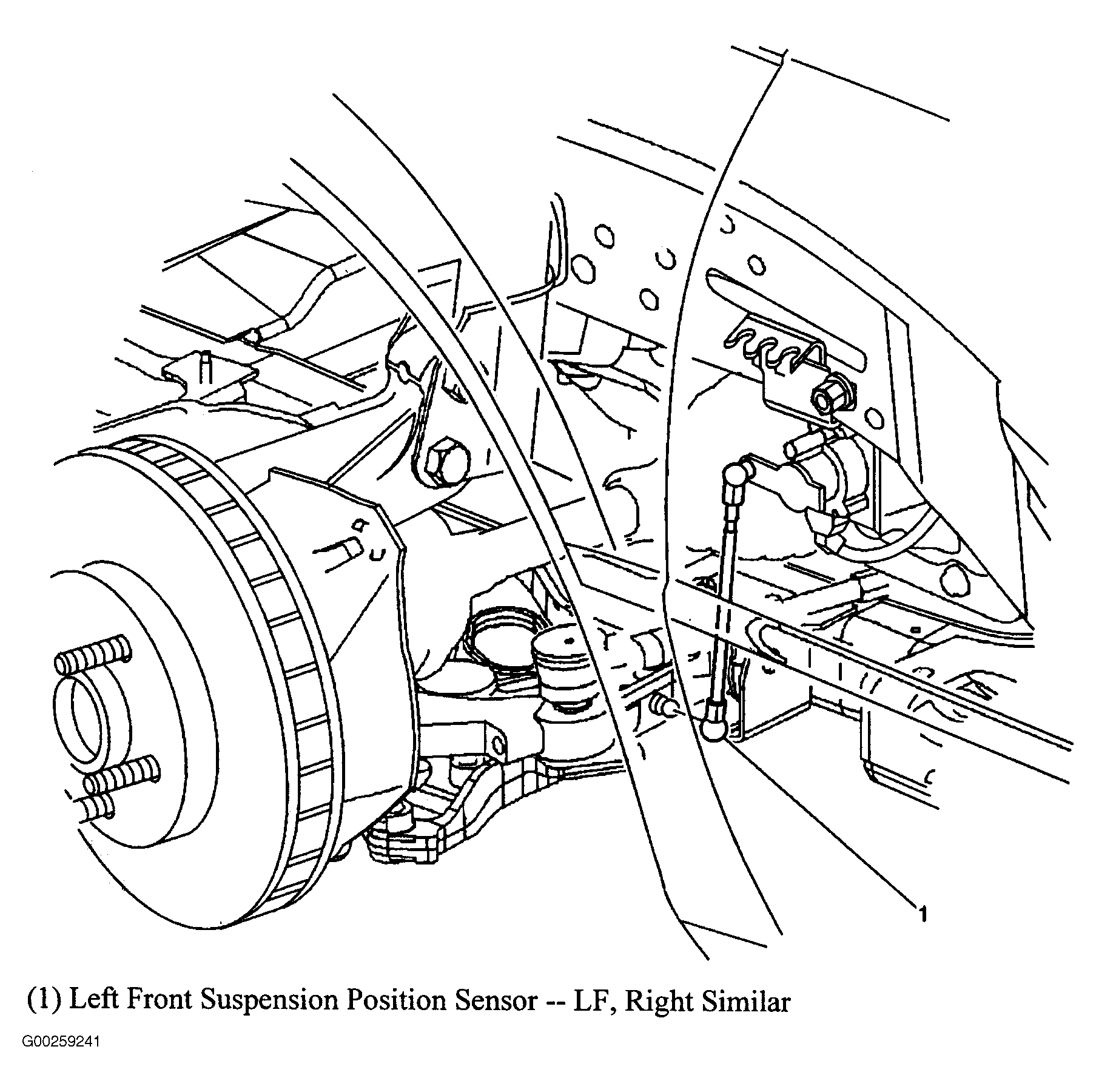

Fig 49: Left Front Wheelwell
Courtesy of GENERAL MOTORS CORP.
Fig 50: Steering Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 51: Base Of Steering Column
Courtesy of GENERAL MOTORS CORP.

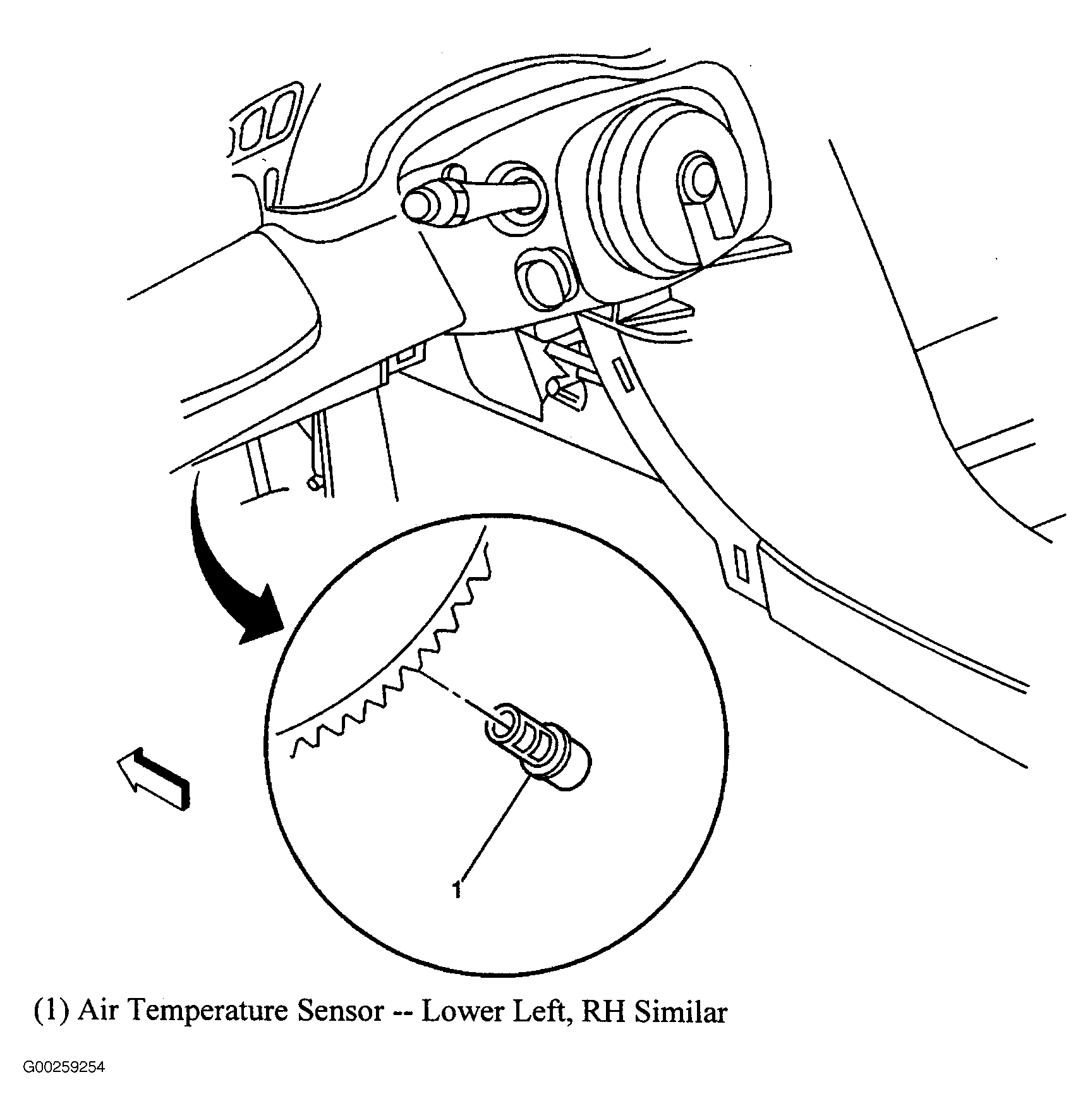

Fig 52: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 53: Beneath Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 54: Lower Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

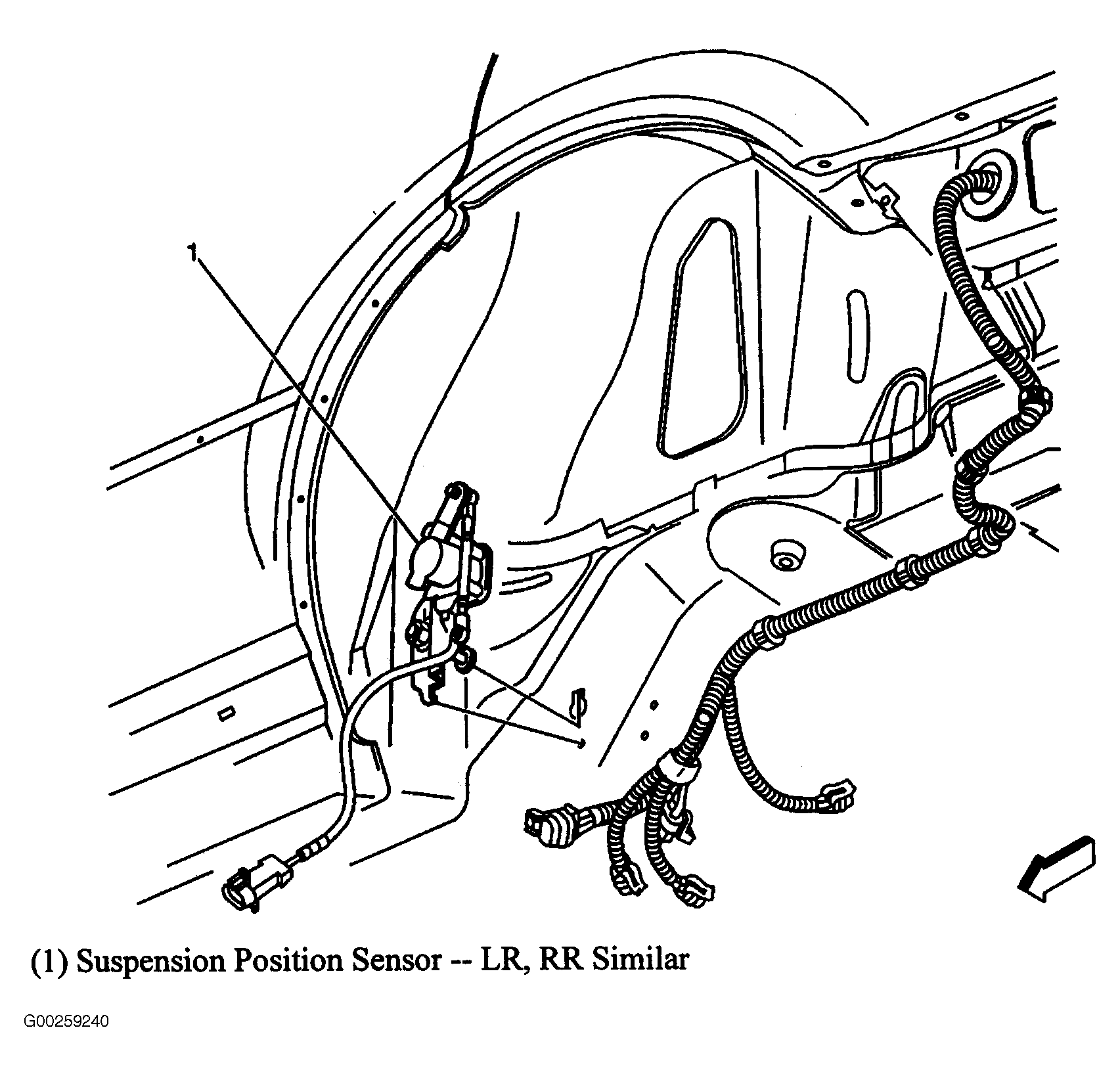

Fig 55: Left Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 56: Left Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

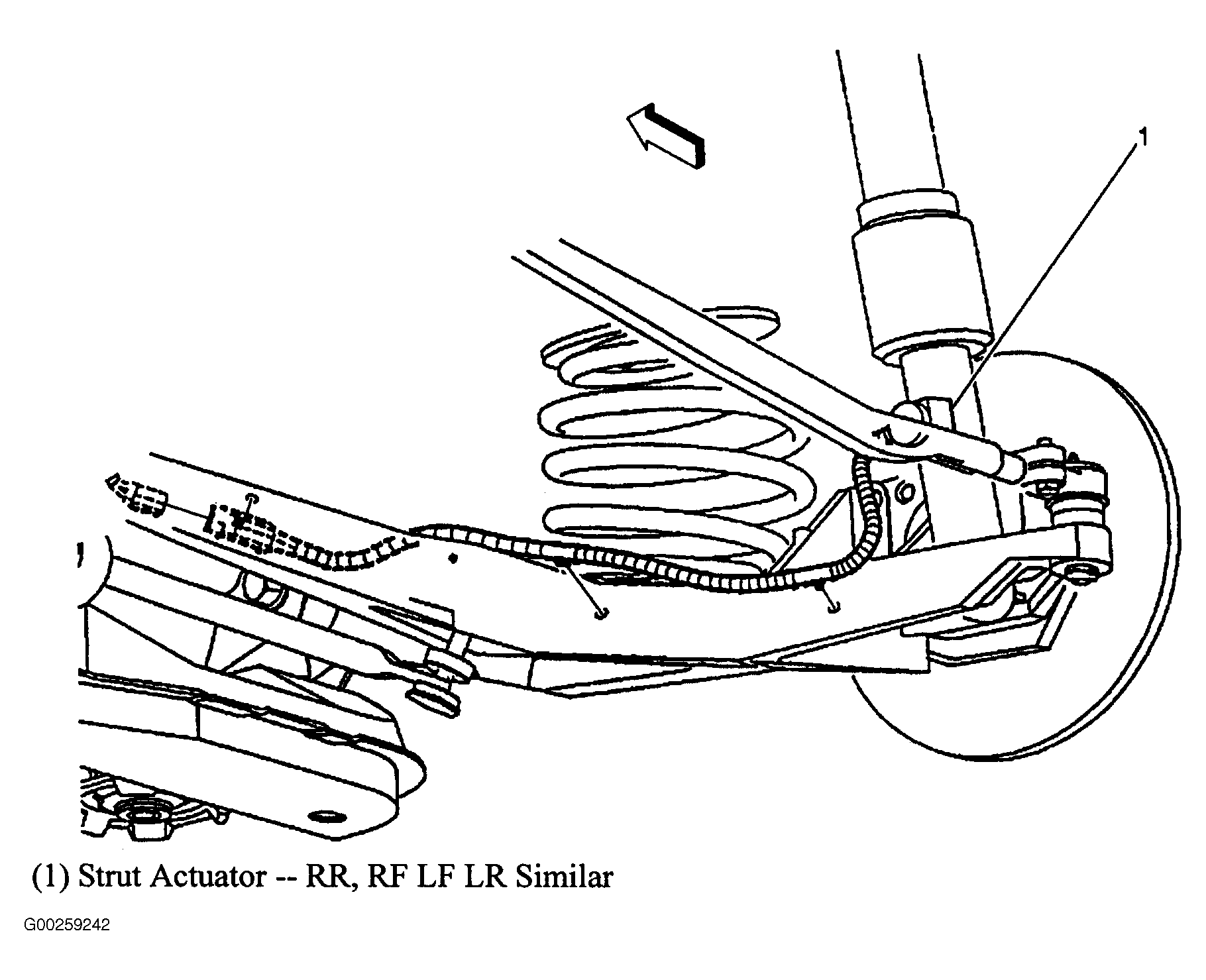

Fig 57: Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 58: Behind Right Rear Seat Back
Courtesy of GENERAL MOTORS CORP.
Fig 59: Lower Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 60: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 61: Lower Right Front Corner Of Engine
Courtesy of GENERAL MOTORS CORP.

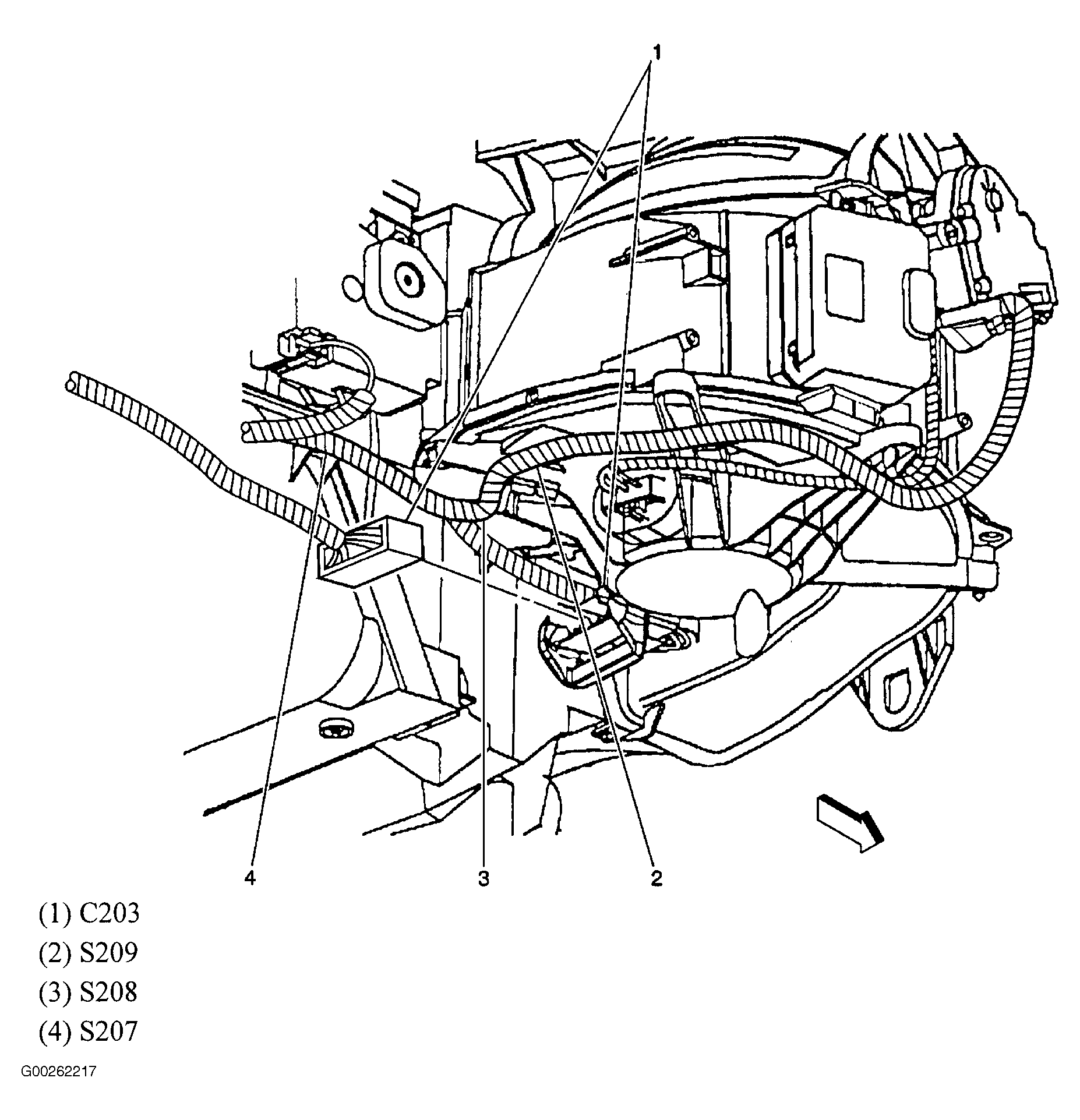

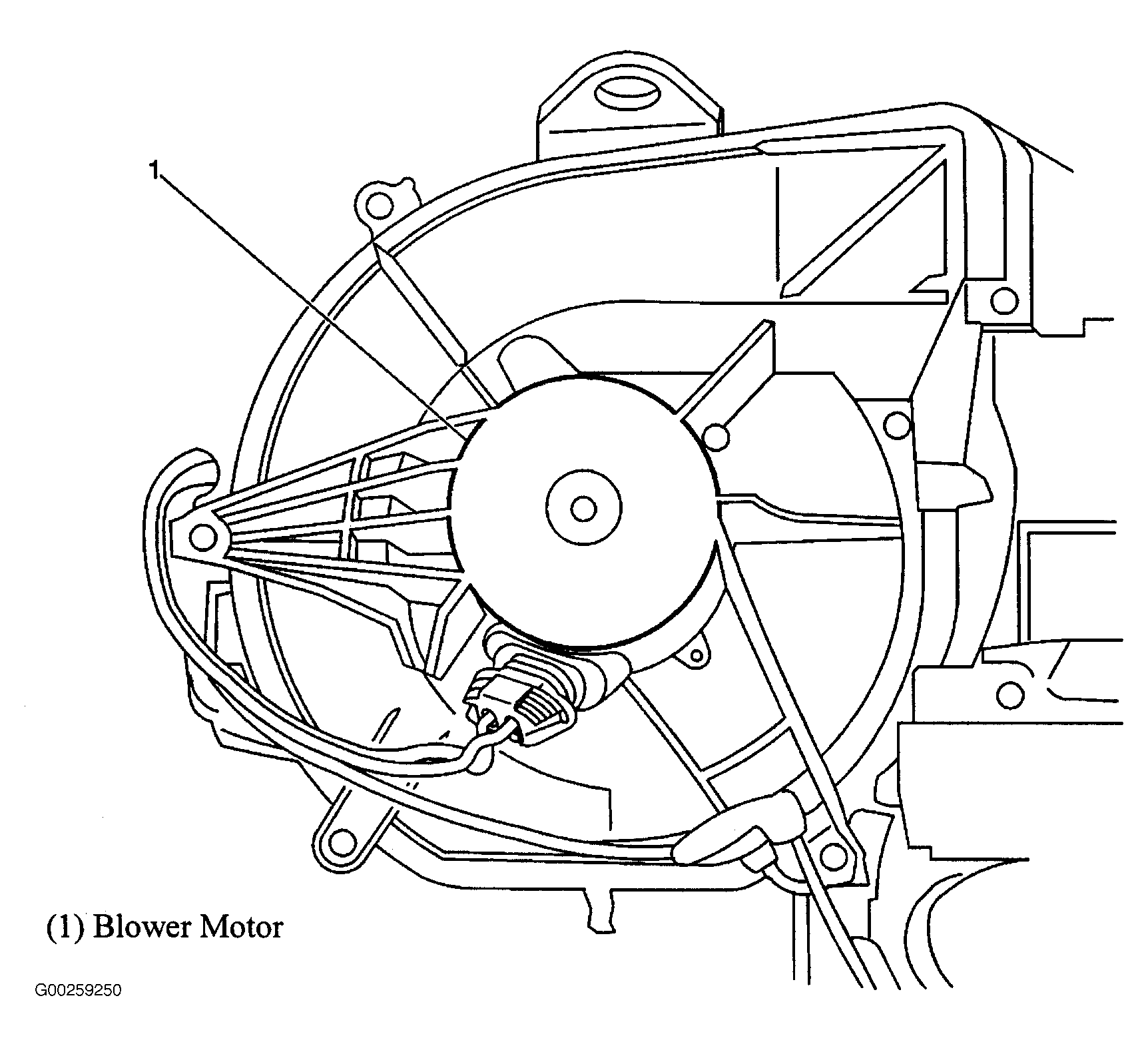

Fig 62: Under Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 63: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 64: Behind Front Grille
Courtesy of GENERAL MOTORS CORP.
Fig 65: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 66: Behind Left Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 67: Behind Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

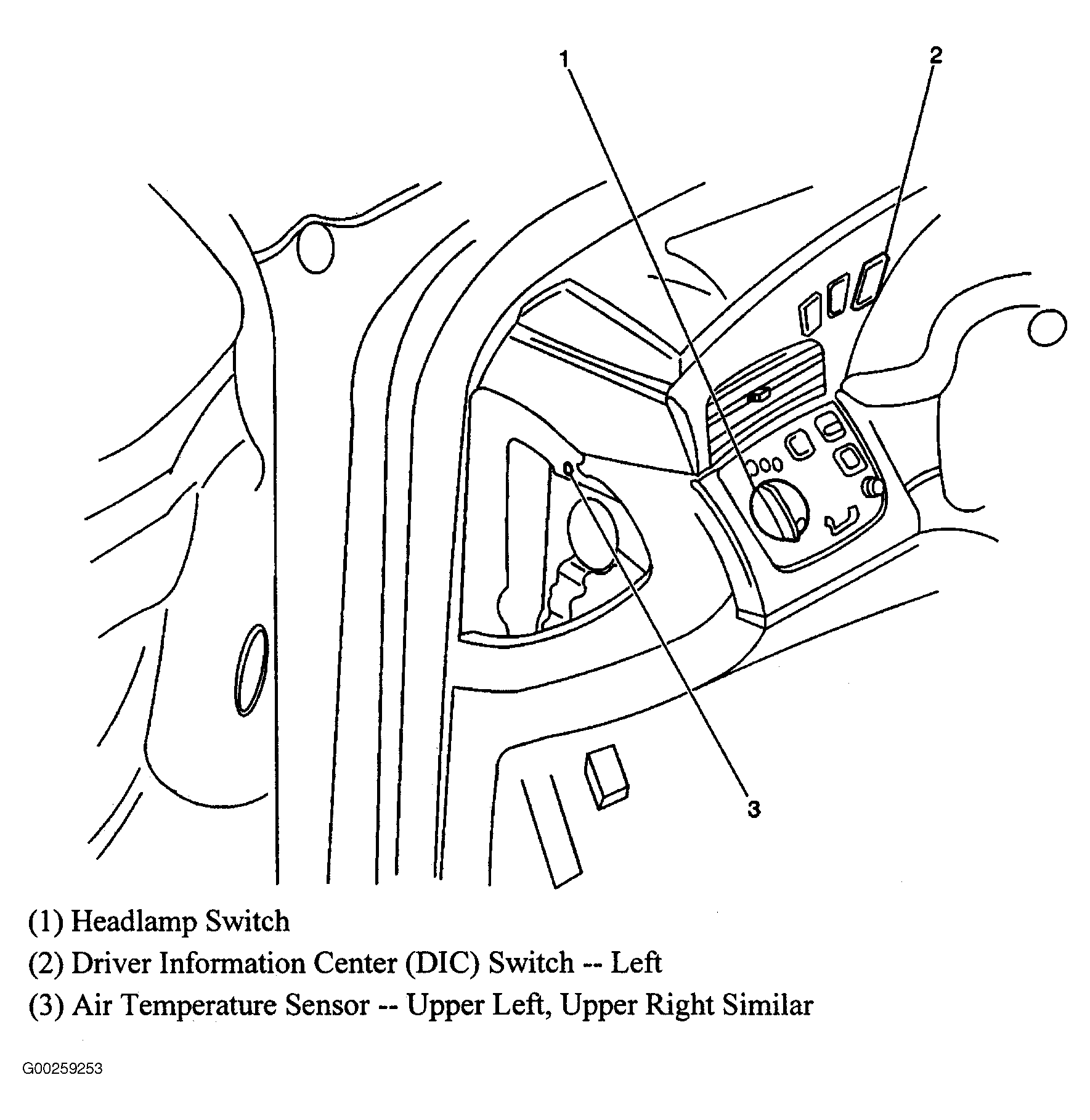

Fig 68: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 69: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

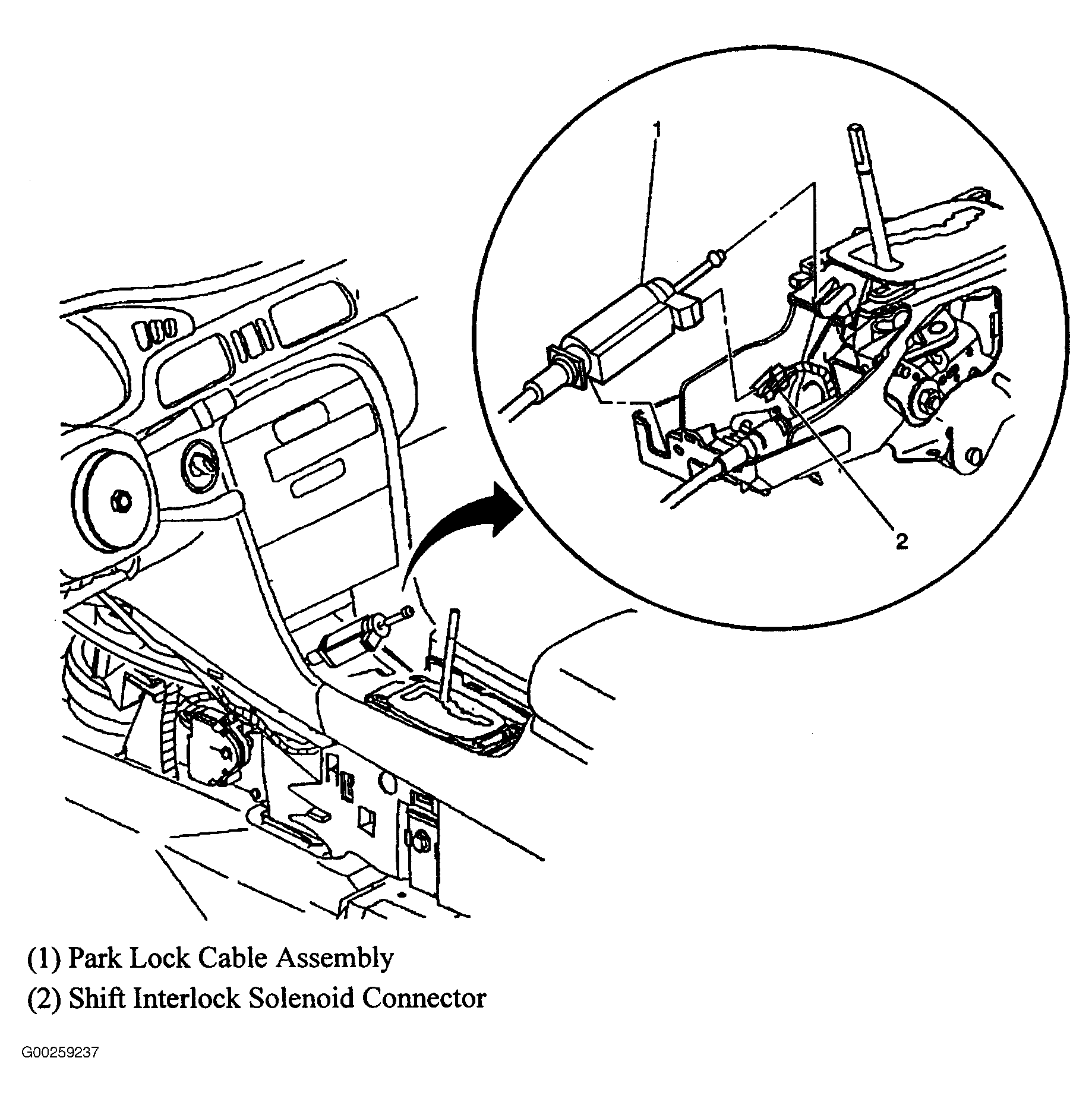

Fig 70: Front Of Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 71: Under Front Console
Courtesy of GENERAL MOTORS CORP.

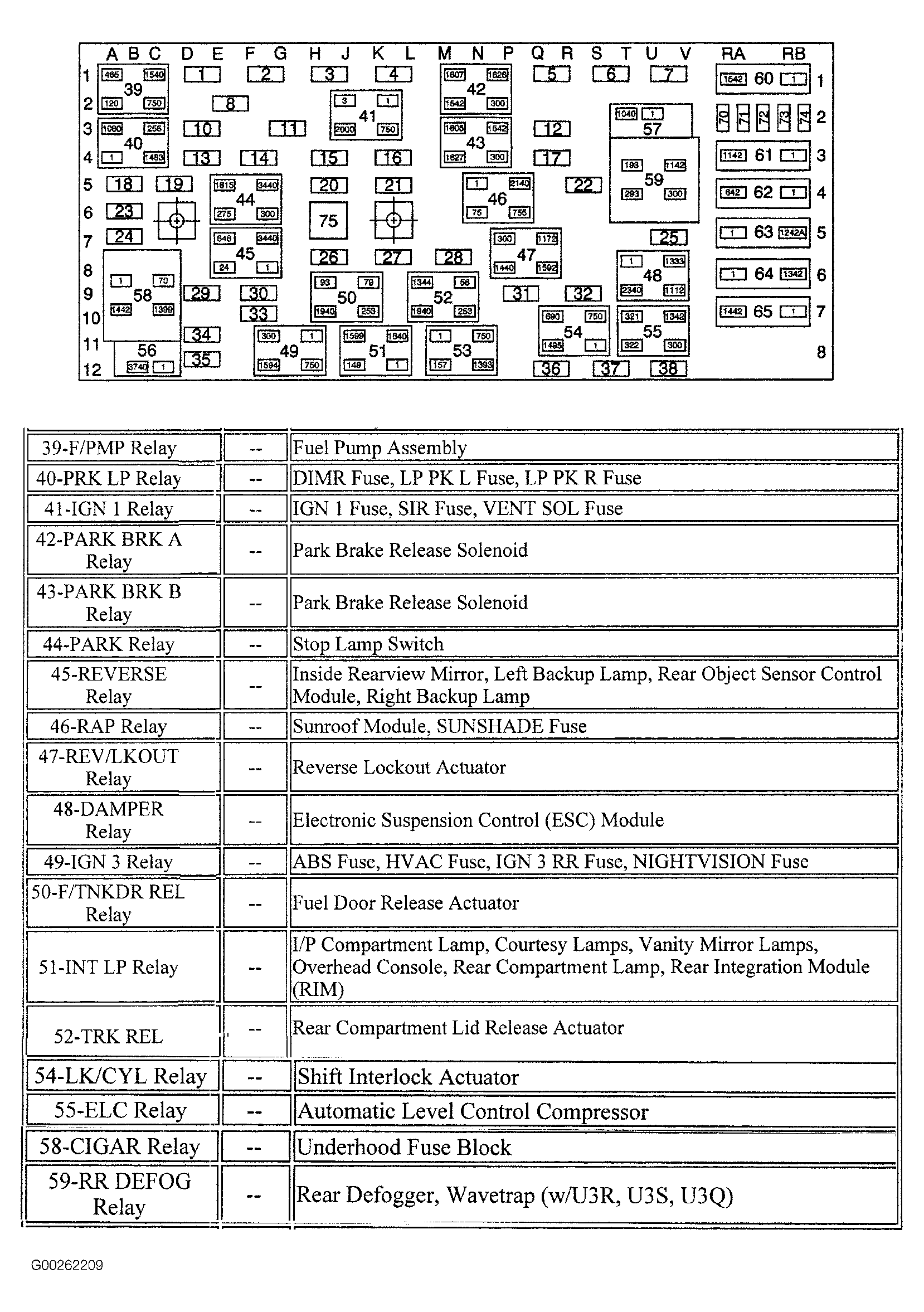

Fig 72: Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.

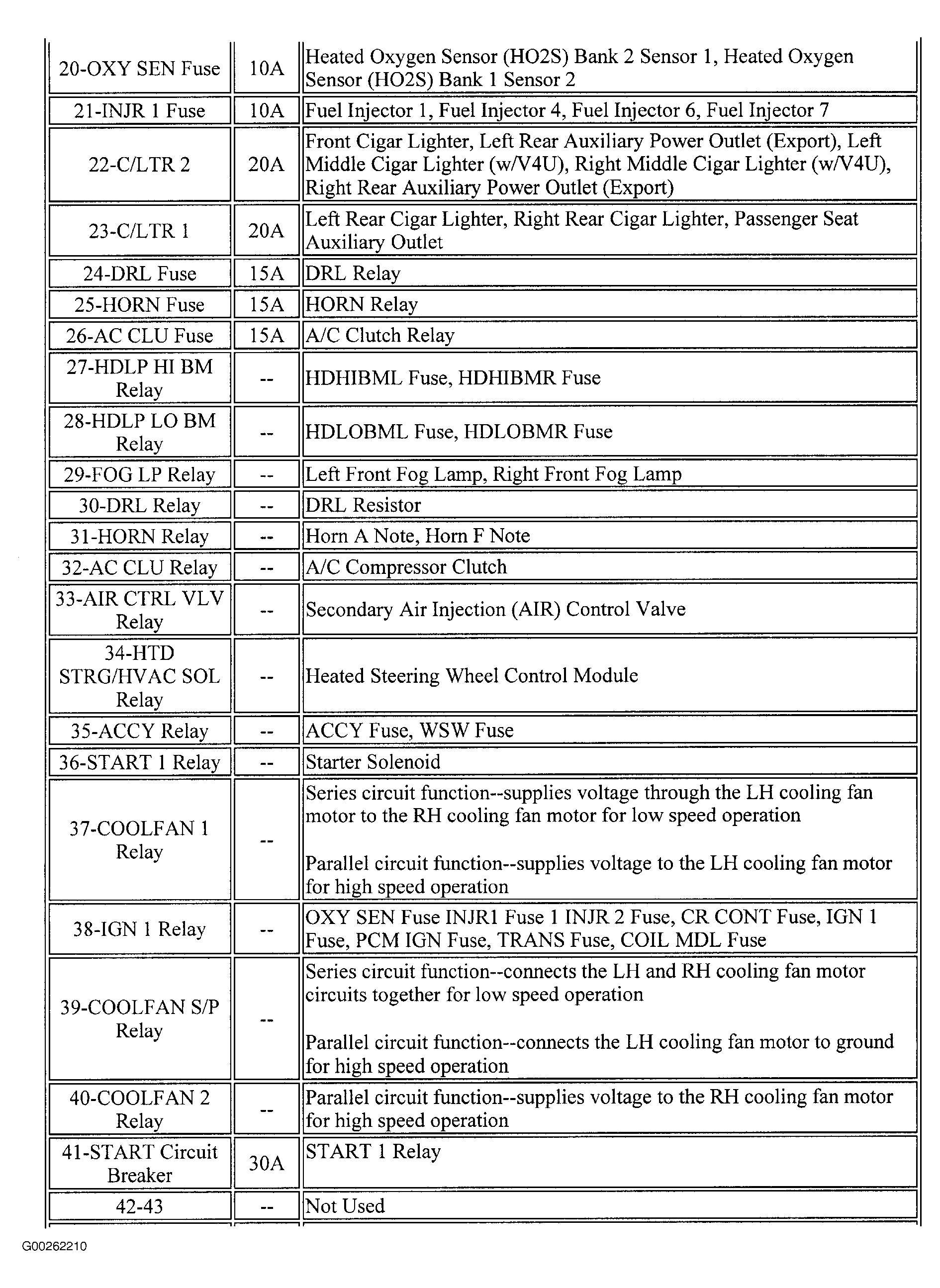

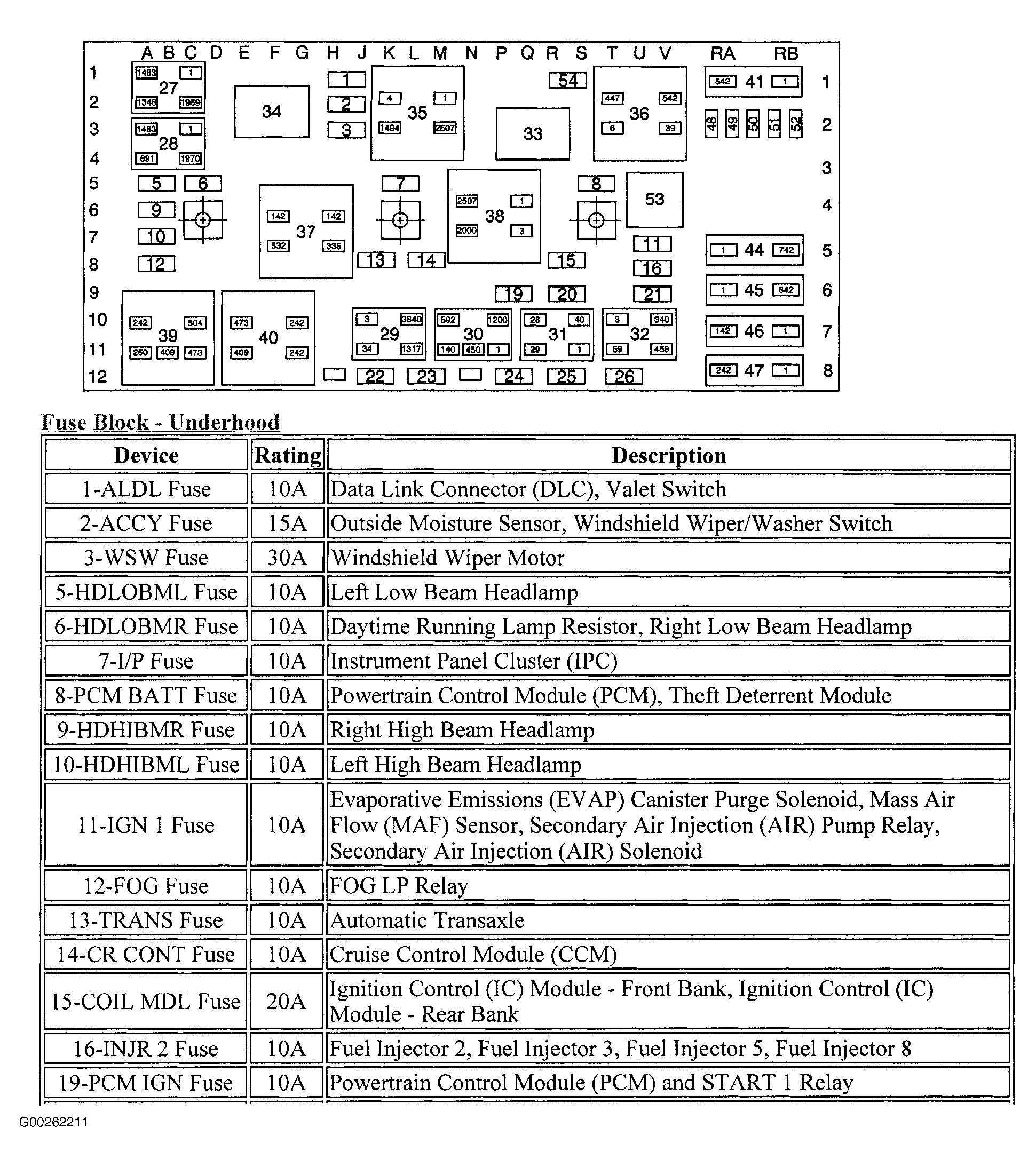

Fig 73: Underhood Fuse Block (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 74: Underhood Fuse Block (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 75: Left Side Of Rear Seat Back
Courtesy of GENERAL MOTORS CORP.

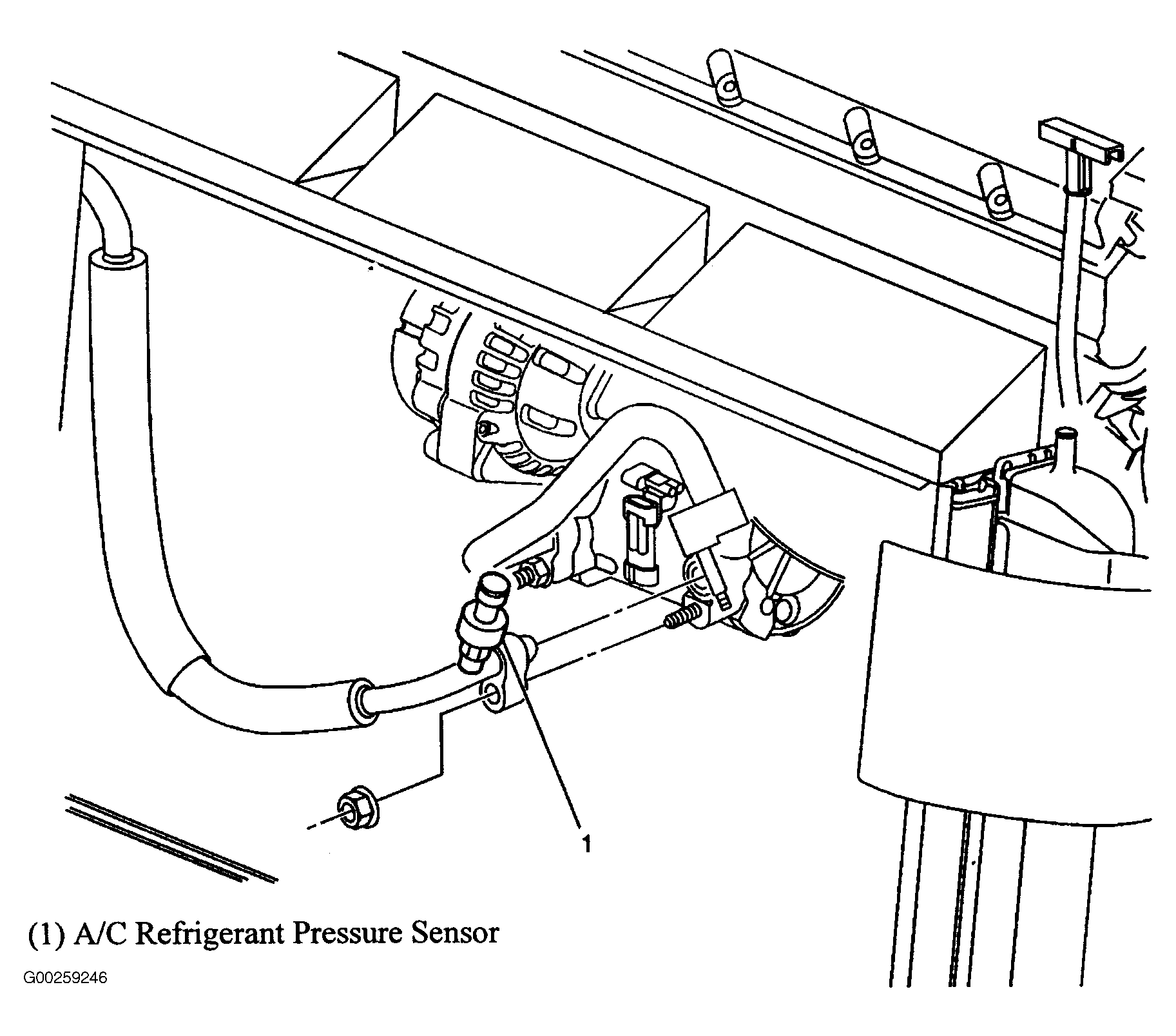

Fig 76: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

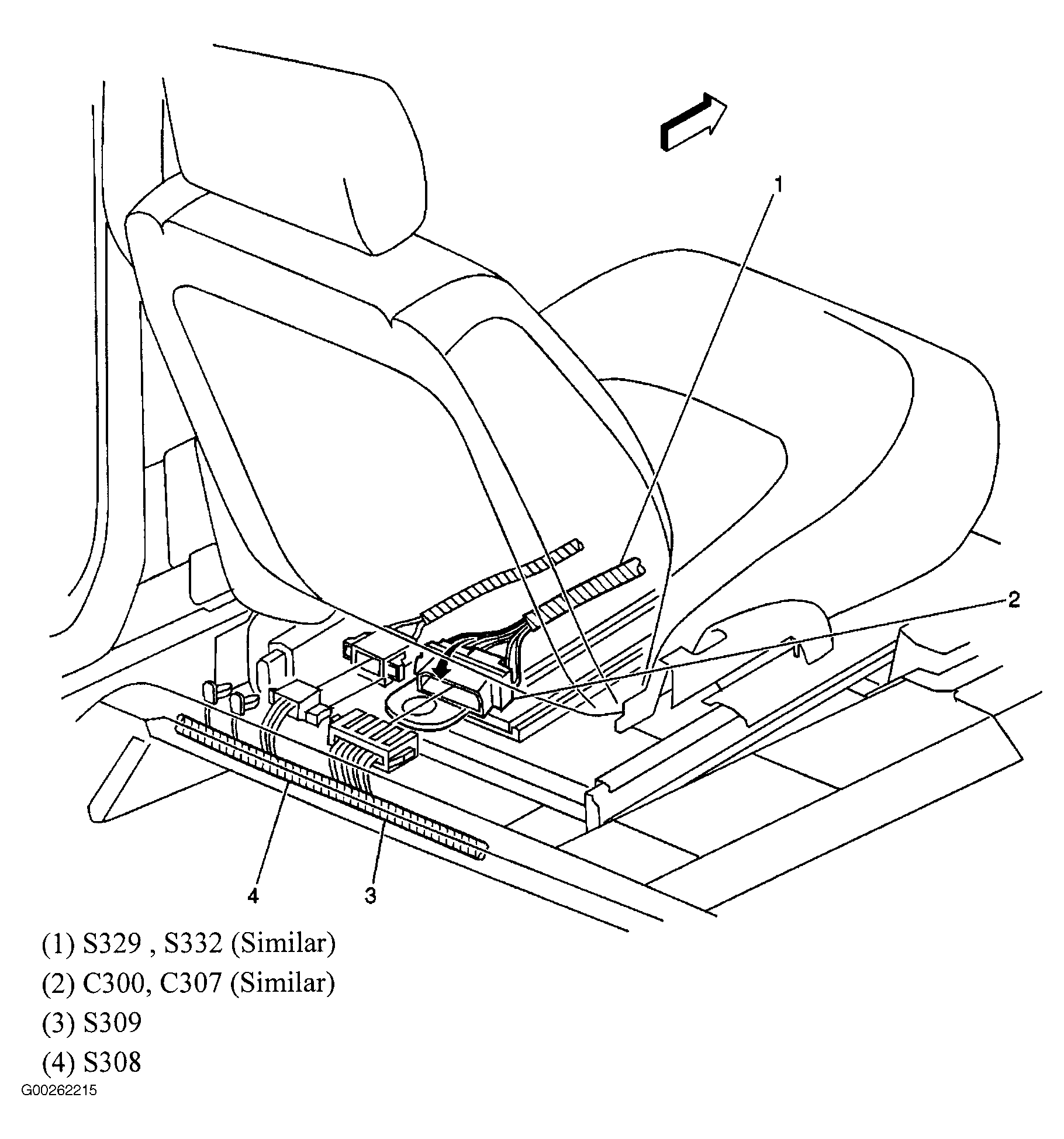

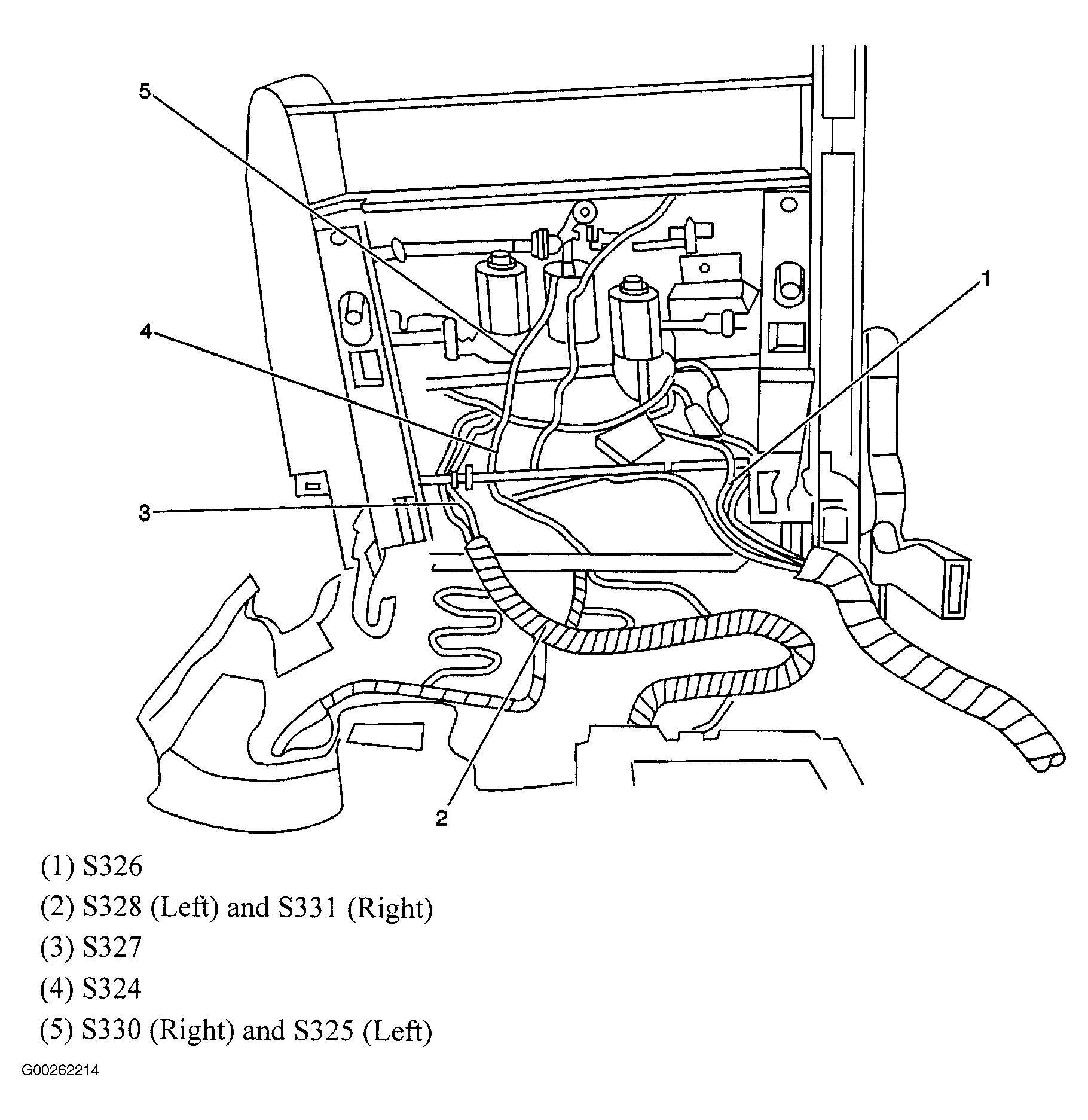

Fig 77: Under Left Front Seat
Courtesy of GENERAL MOTORS CORP.
Fig 78: Under Left Front Seat
Courtesy of GENERAL MOTORS CORP.
Fig 79: Left Side Of Radiator
Courtesy of GENERAL MOTORS CORP.
Fig 80: Under Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 81: Right Front Door
Courtesy of GENERAL MOTORS CORP.
