Installation Procedure

  1. Install the climate control module.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the fasteners (2) that retain the climate control seat module (1) to the passenger storage tray.

    Tighten:  Tighten the fasteners to 2 N.m (18 lb in).

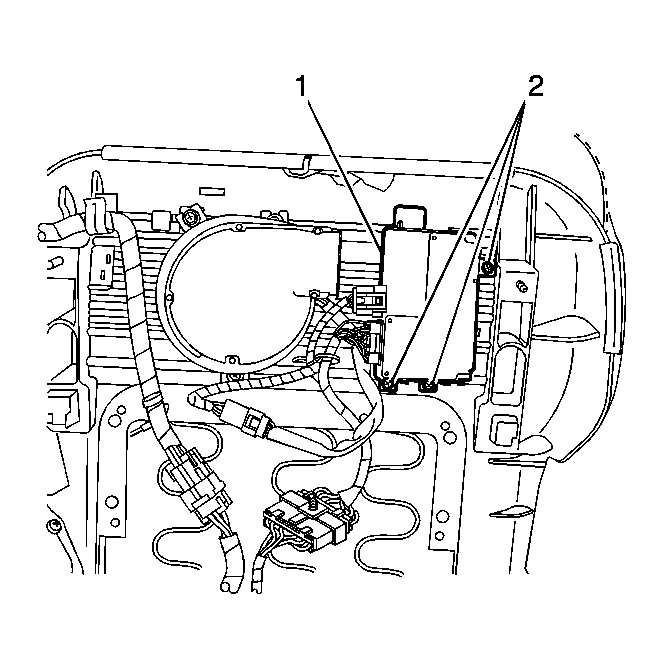

    3. Fig 1: View Of Climate Control Seat Module & Fasteners
    GM1214085Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connectors.
  4. Install the seat cushion. Refer to Seat Cushion Replacement - Front .
