Installation Procedure

  1. Install the park brake cable guide to the park brake cable.
  2. Install the park brake cable guide.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. For cutaway vehicles, install the park brake cable guide bolt to the frame.

    Tighten:  Tighten the bolt to 18 N.m (13 lb ft).

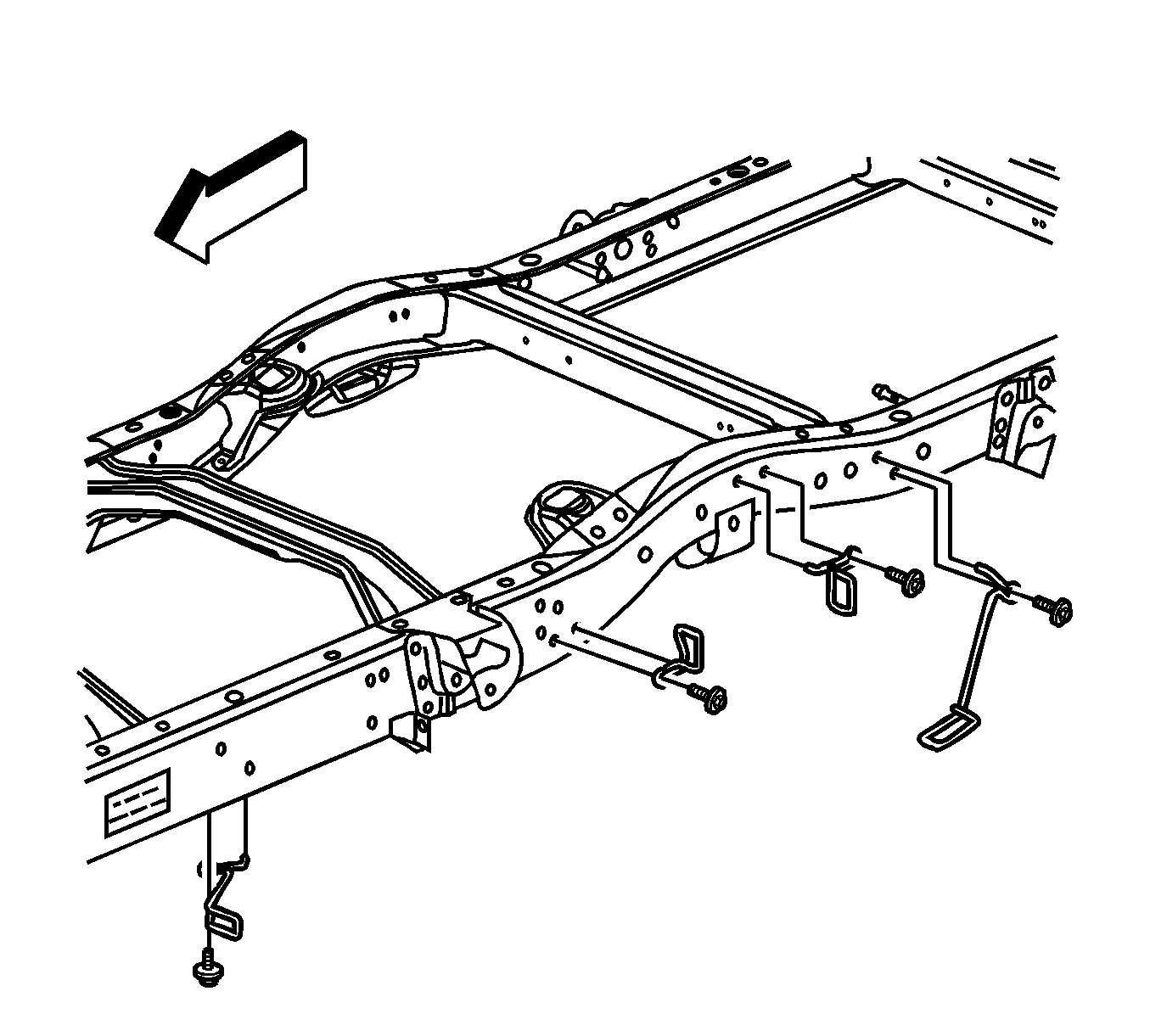

    4. Fig 1: View Of Park Brake Cable Guide Bolt (Cutaway Vehicle)
    GM1208291Courtesy of GENERAL MOTORS CORP.
  4. For cargo and passenger vehicles, install the park brake cable guide bolt to the frame.

    Tighten:  Tighten the bolt to 13 N.m (115 lb in).

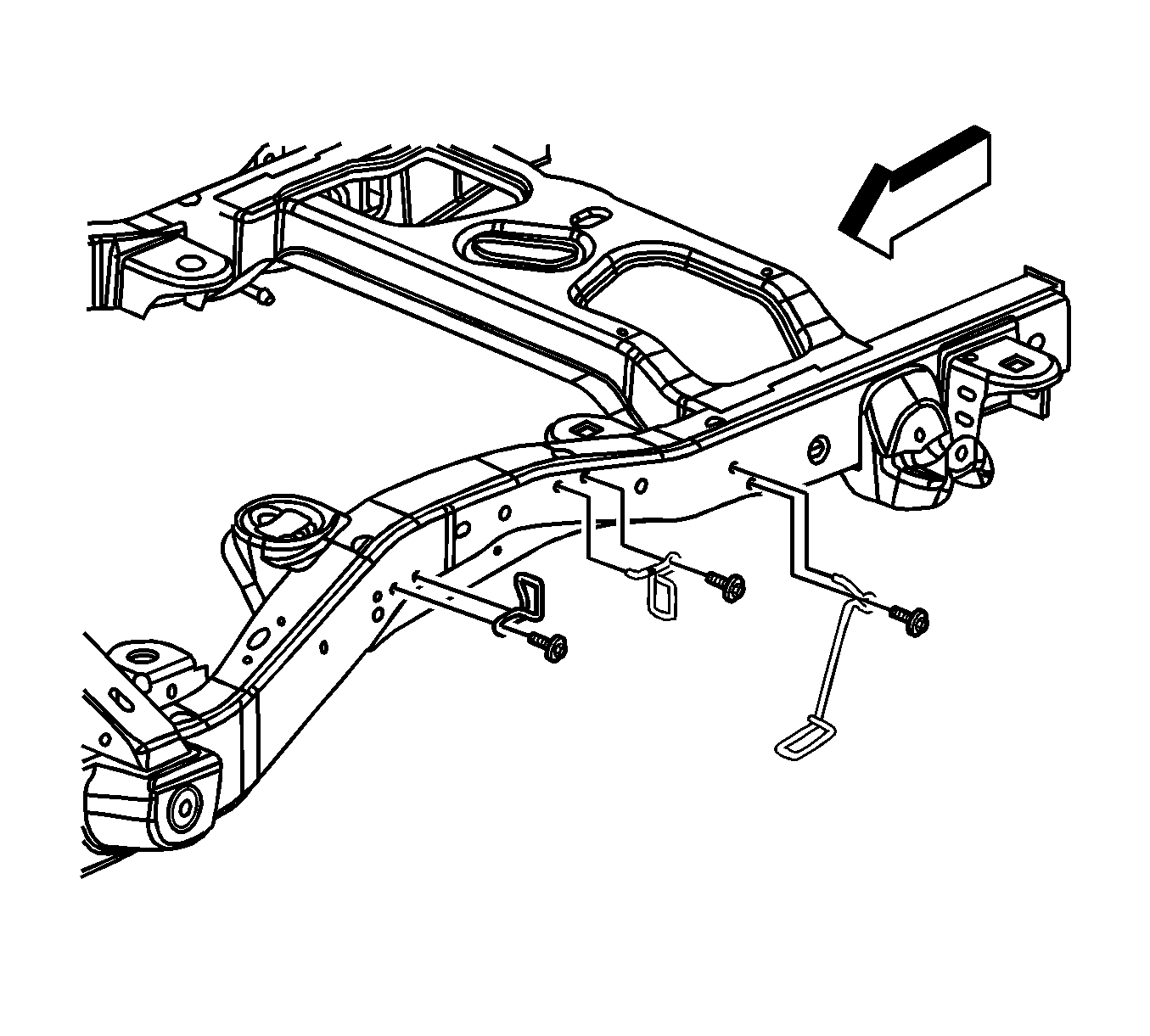

    5. Fig 2: View Of Park Brake Cable Guide Bolt (Cargo & Passenger Vehicles)
    GM1208287Courtesy of GENERAL MOTORS CORP.
  5. Remove the safety stands.
  6. Lower the vehicle.
