Console Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Detach clips A, B and C and remove the upper panel.

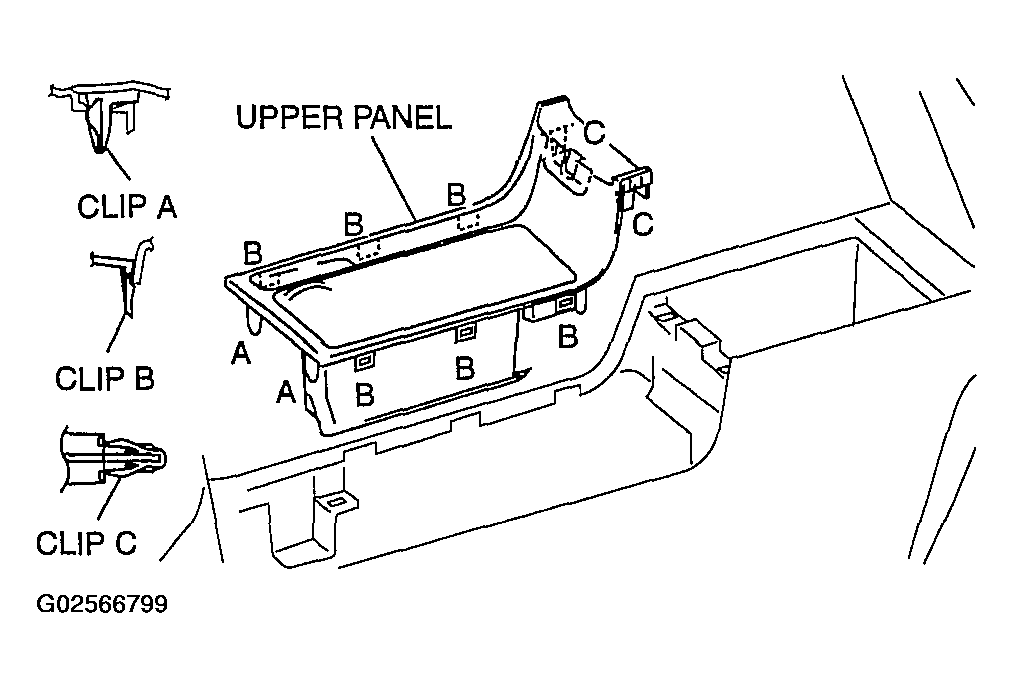

Fig 1: Removing Console Upper Panel
Courtesy of MAZDA MOTORS CORP.
Detach clips D, E and F and remove the boot panel.

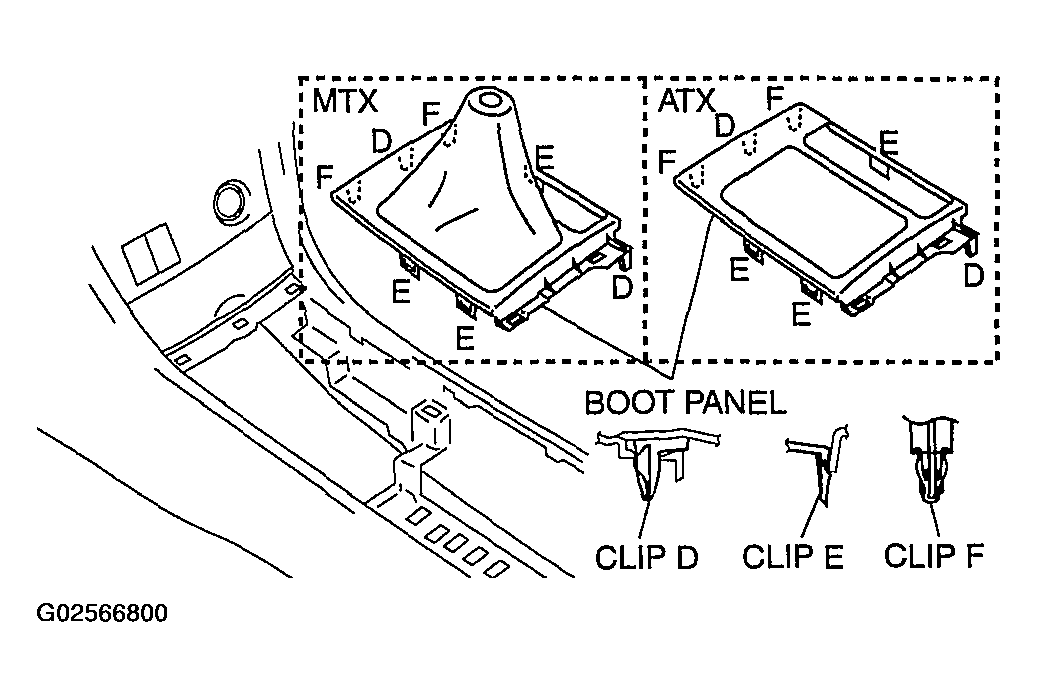

Fig 2: Removing Console Boot Panel
Courtesy of MAZDA MOTORS CORP.
Remove screws A.
Detach clips G.
Disconnect the cigarette lighter connector.
Remove the ashtray illumination, then remove the ashtray panel.

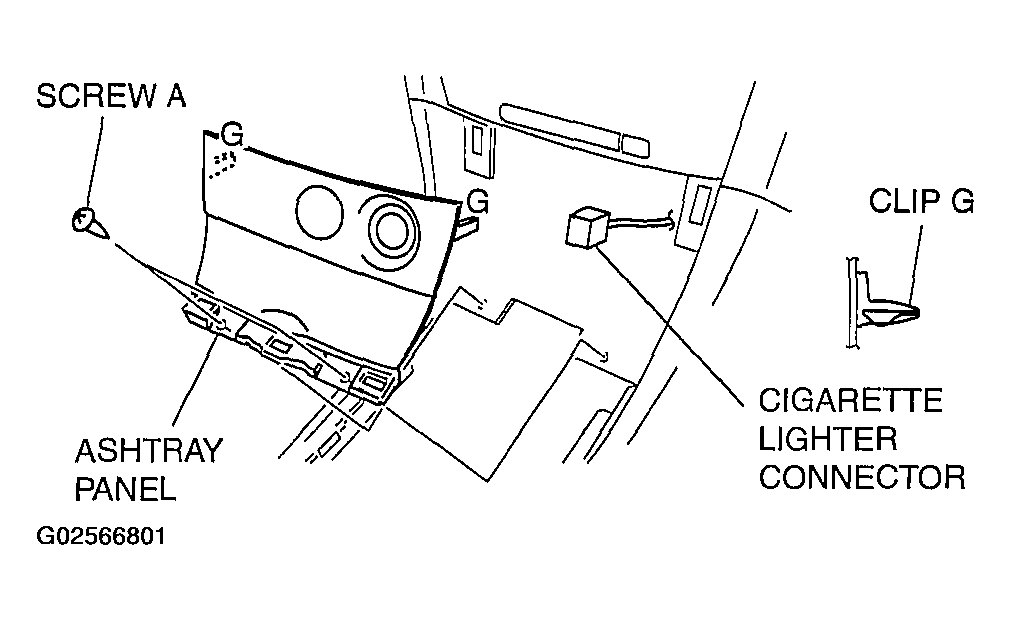

Fig 3: Removing Ashtray Panel
Courtesy of MAZDA MOTORS CORP.
Remove the screws B.
Detach tabs H and remove the console.
Install in the reverse order of removal.

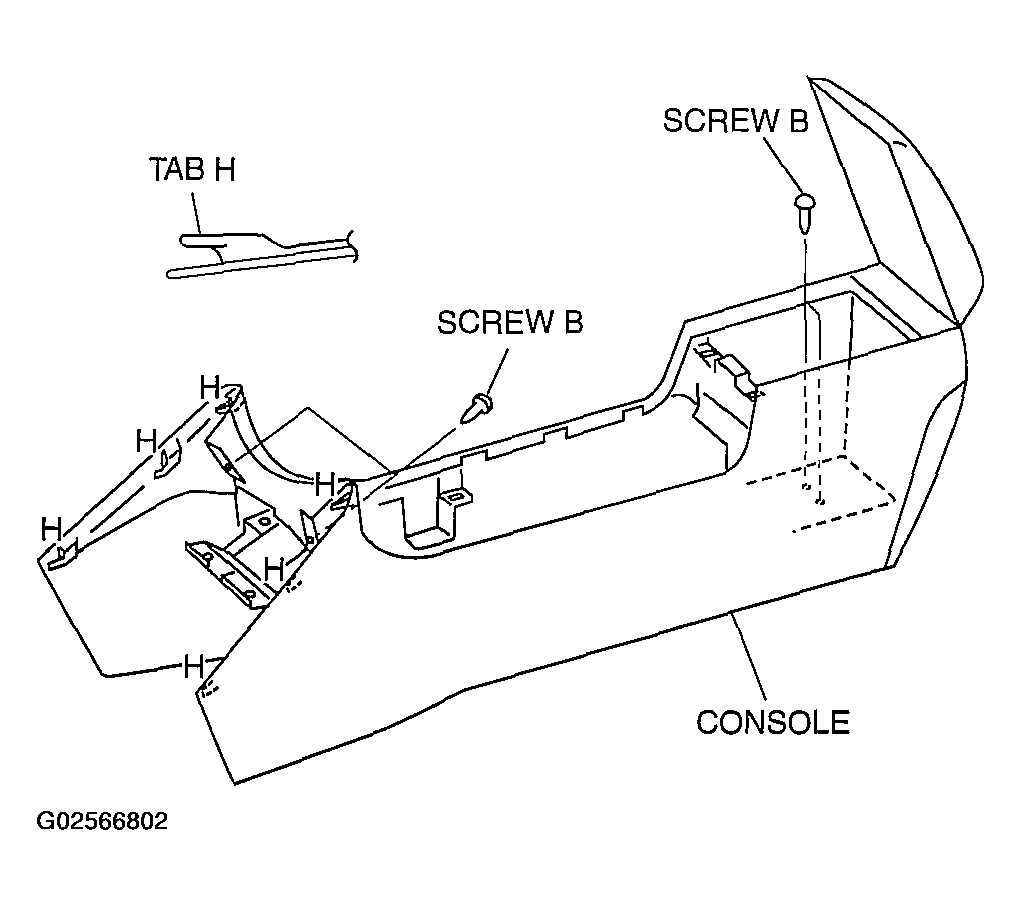

Fig 4: Removing Console
Courtesy of MAZDA MOTORS CORP.
