Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat cushion. Refer to Seat Cushion Frame Replacement-Front   .
  2. Disconnect the upper electrical harness connectors (3).
  3. Remove the module (2) retaining screws (1).
  4. Slide the module to the right to disengage the lower retainers.

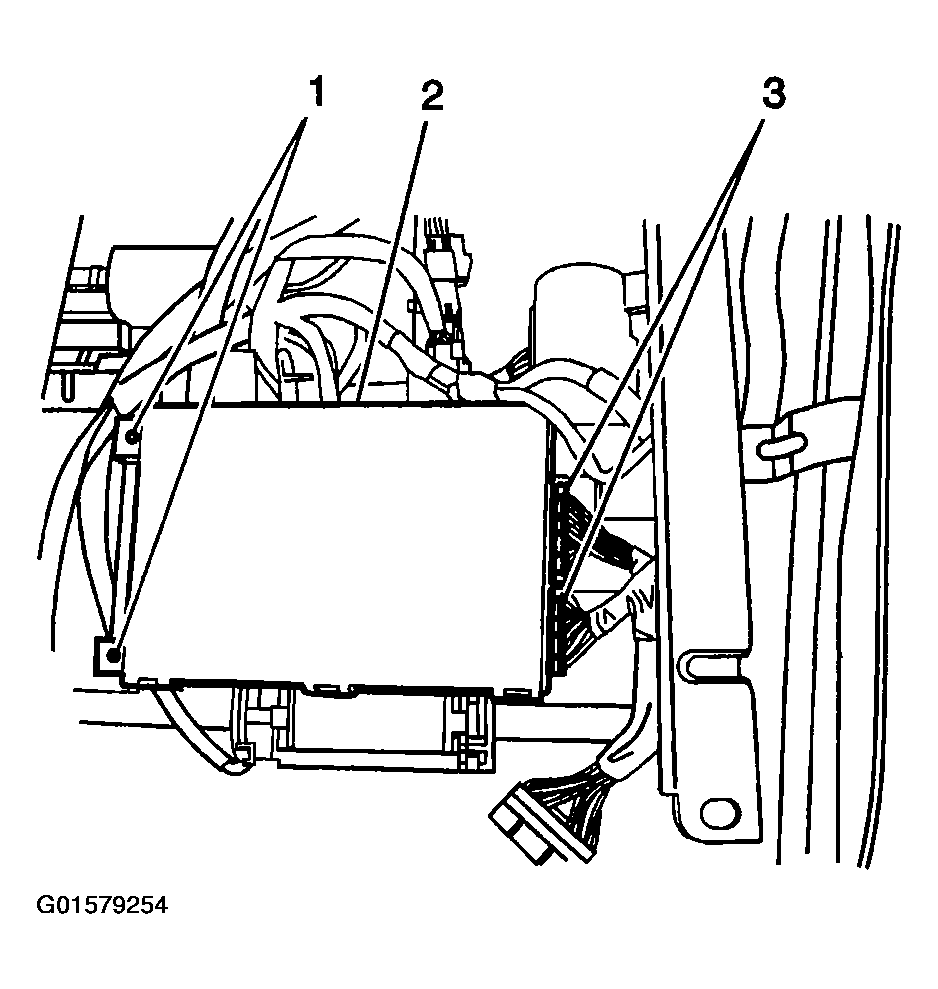

    Fig 1: Upper Electrical Harness Connectors & Memory Seat Control Module Retaining Screws
    G01579254Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the lower electrical harness connectors (2).
  6. Remove the module from the vehicle.

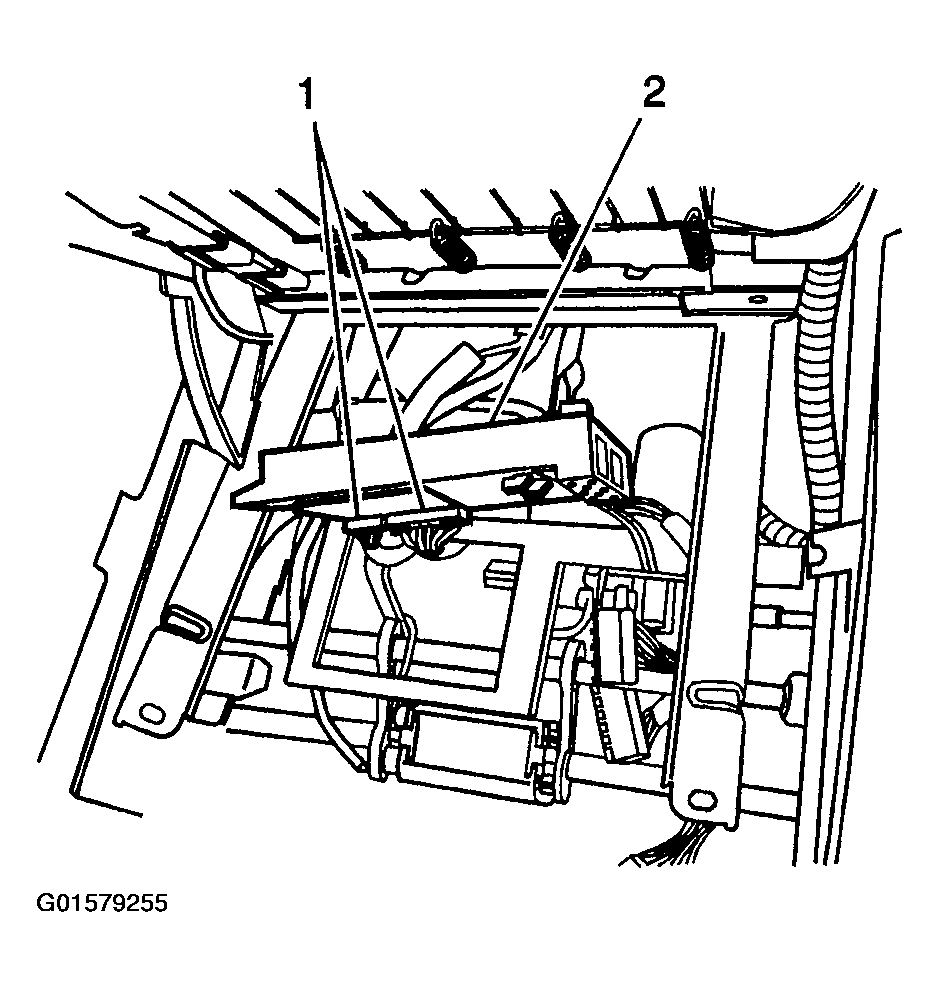

    Fig 2: Lower Electrical Harness Connectors
    G01579255Courtesy of GENERAL MOTORS CORP.
