Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the console to the roof.
  2. Connect the electrical connectors.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the console roof screw.

    Tighten

    Tighten the screw to 2 N.m (18 lb in).

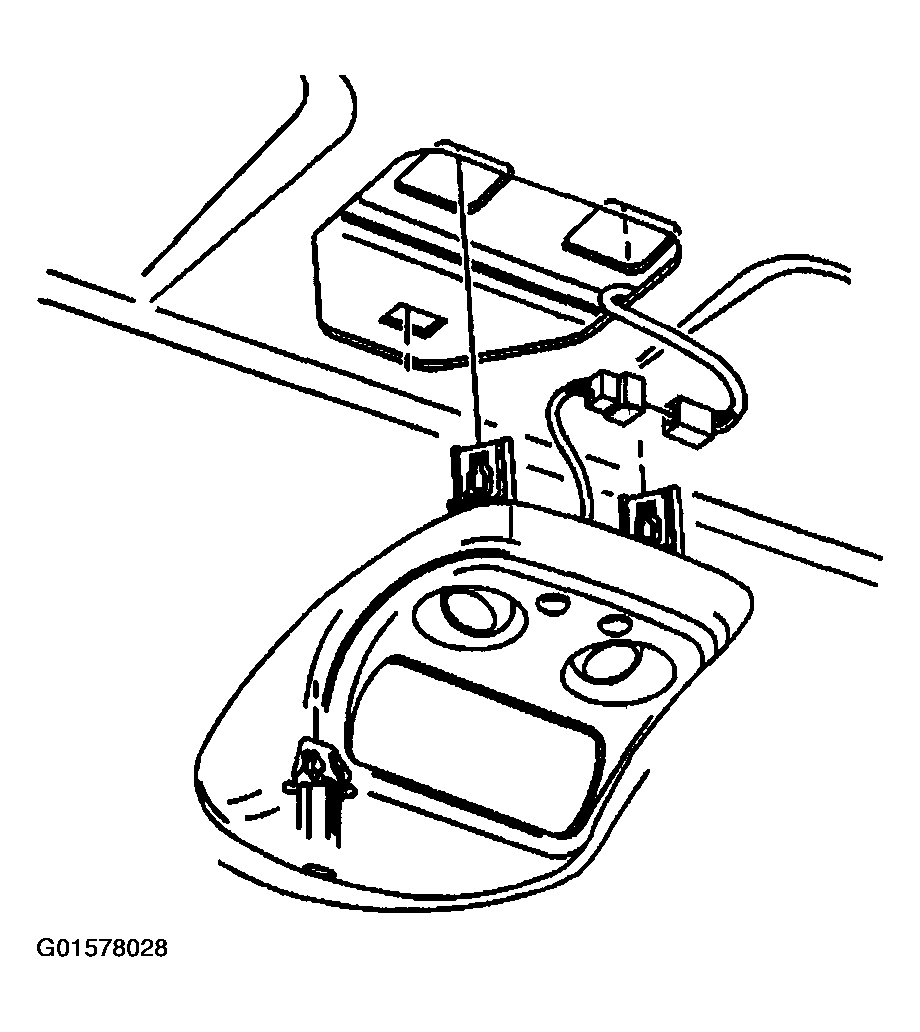

    Fig 1: Installing Console
    G01578028Courtesy of GENERAL MOTORS CORP.
