Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lightly pull the lower edge of the molding in order to release the clips. On extended can fold the rear bench seat up. This will move the assembly forward so that the molding can be accessed.
  2. Lift the molding up and away from the glass in order to release the upper retainers.

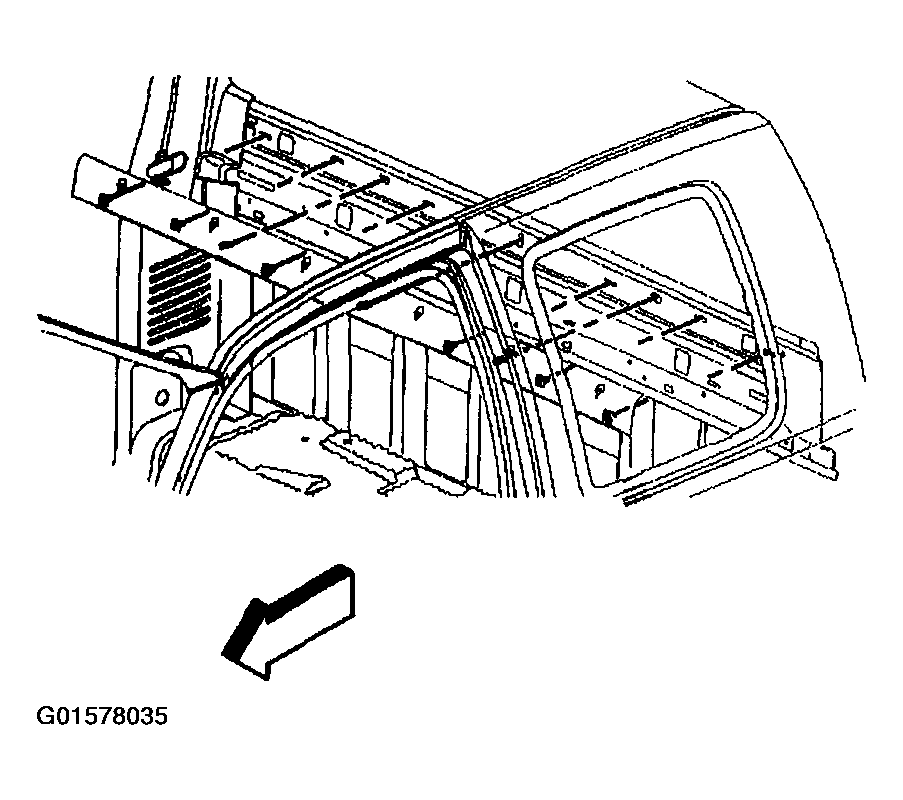

    Fig 1: Rear Window Lower Molding
    G01578035Courtesy of GENERAL MOTORS CORP.
