Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear wheel steering control module (2) from the bracket. Refer to Rear Wheel Steering Control Module Replacement .
Remove the nuts retaining the bracket to the frame.
Remove the bracket from the vehicle.

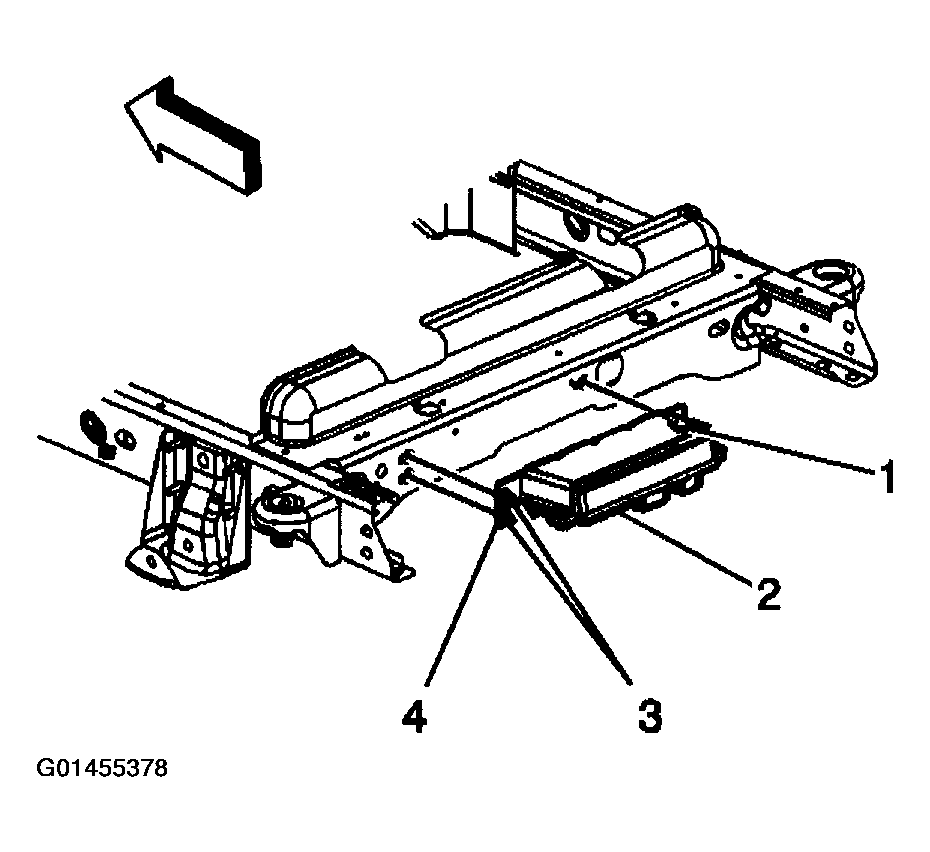

Fig 1: Removing Rear Wheel Steering Control Module
Courtesy of GENERAL MOTORS CORP.
