Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
Disconnect the electrical connector from the control module.
Remove the nuts retaining the control module (2) to the bracket.
Remove the control module from the bracket (4).

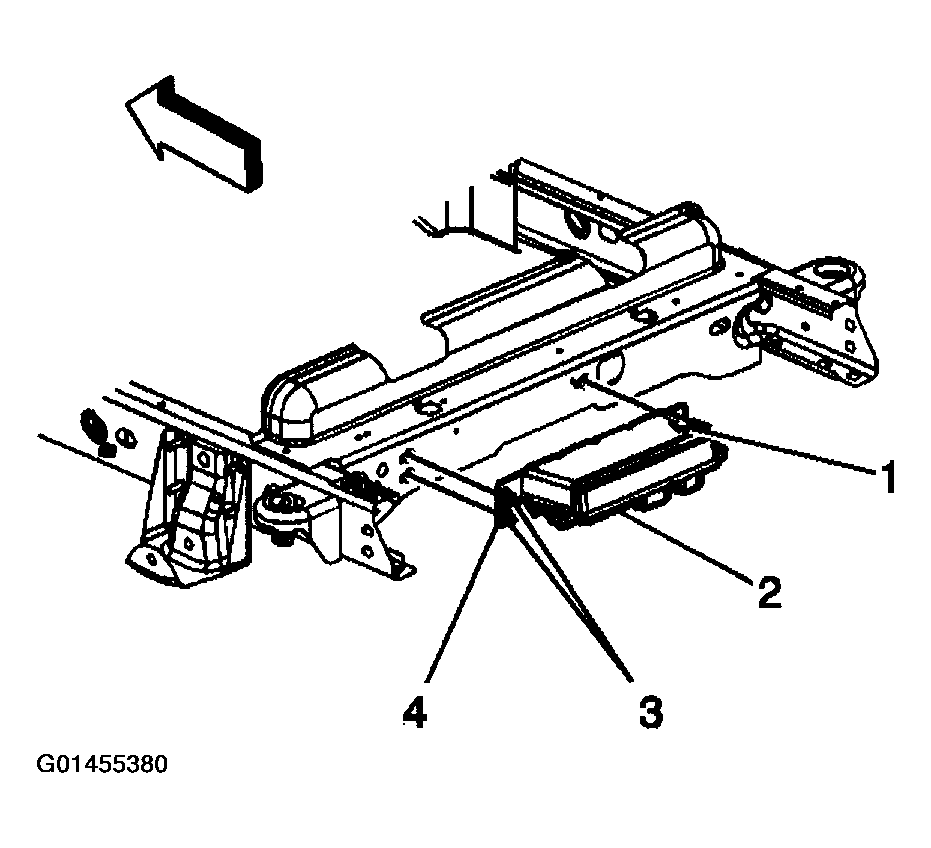

Fig 1: Removing Control Module From Bracket
Courtesy of GENERAL MOTORS CORP.
