Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR REPLACEMENT

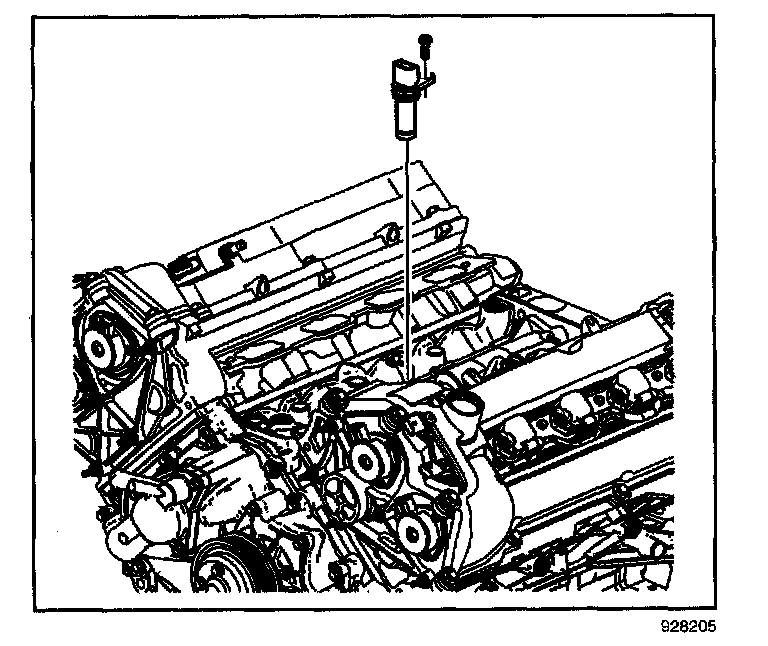

REMOVAL PROCEDURE




1. Remove the intake manifold.
2. Disconnect the crankshaft position sensor electrical connector.
3. Remove the crankshaft sensor retaining bolt.
4. Remove the crankshaft sensor.

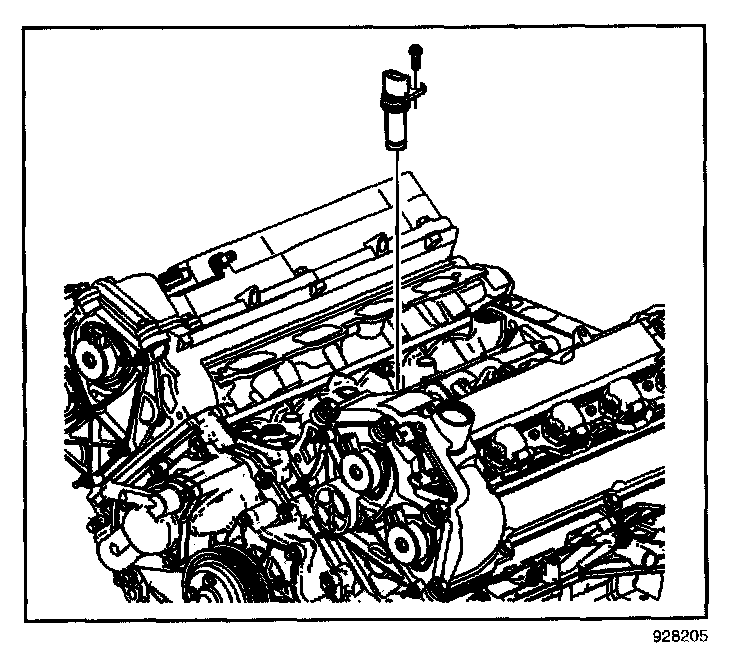

INSTALLATION PROCEDURE

IMPORTANT: Inspect the crankshaft sensor O-ring for wear or damage. If a problem is found, replace the O-ring.




1. Lubricate the crankshaft sensor O-ring with clean engine oil.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the crankshaft sensor and the retaining bolt.

Tighten
Tighten the retaining bolt to 10 N.m (89 lb in).

3. Connect the crankshaft position sensor electrical connector.
4. Install the intake manifold.
5. Perform the CKP System Variation Learn Procedure. Programming and Relearning
