Throttle Position Sensor: Locations

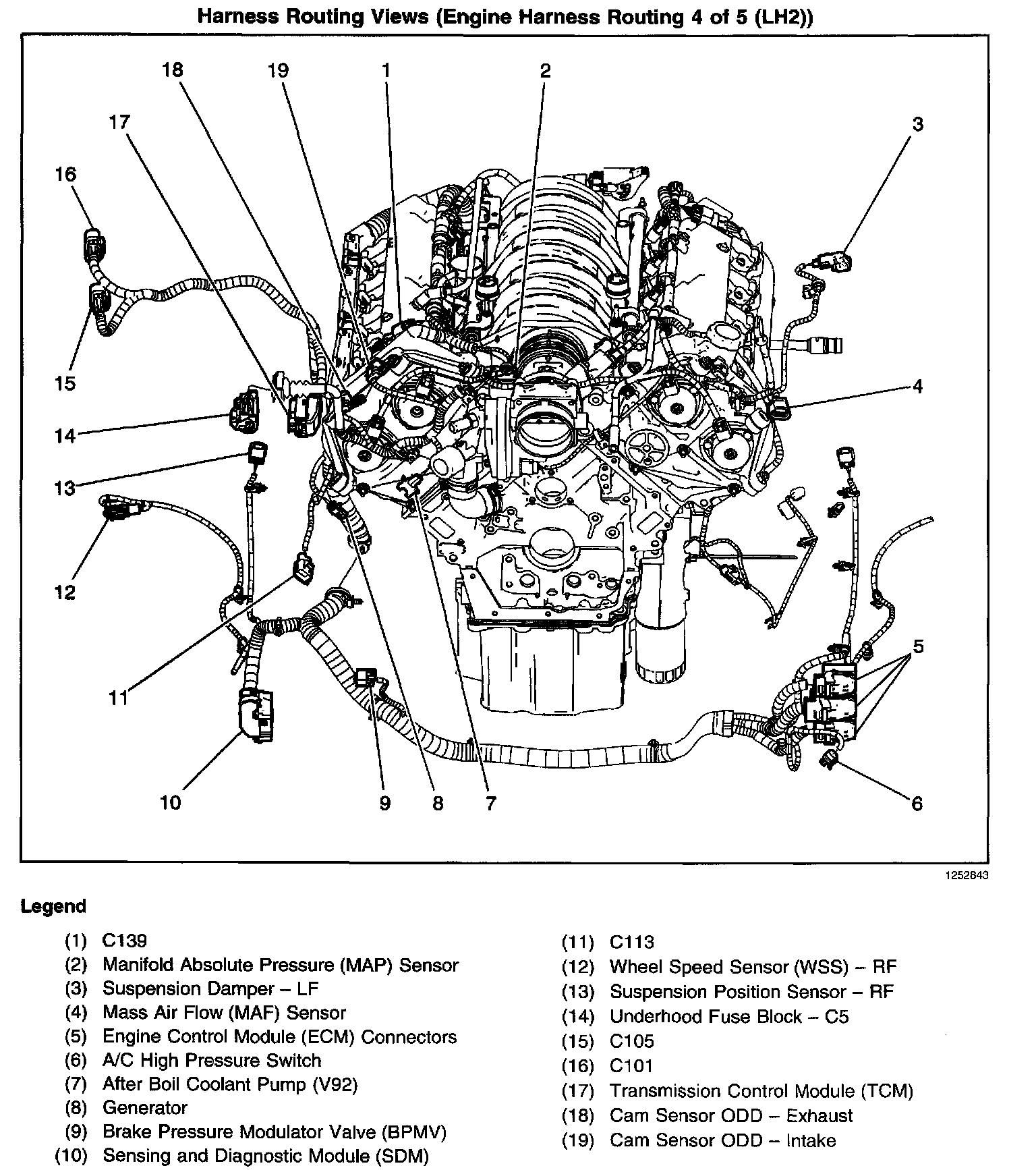

Harness Routing Views (Engine Harness Routing (LH2)):

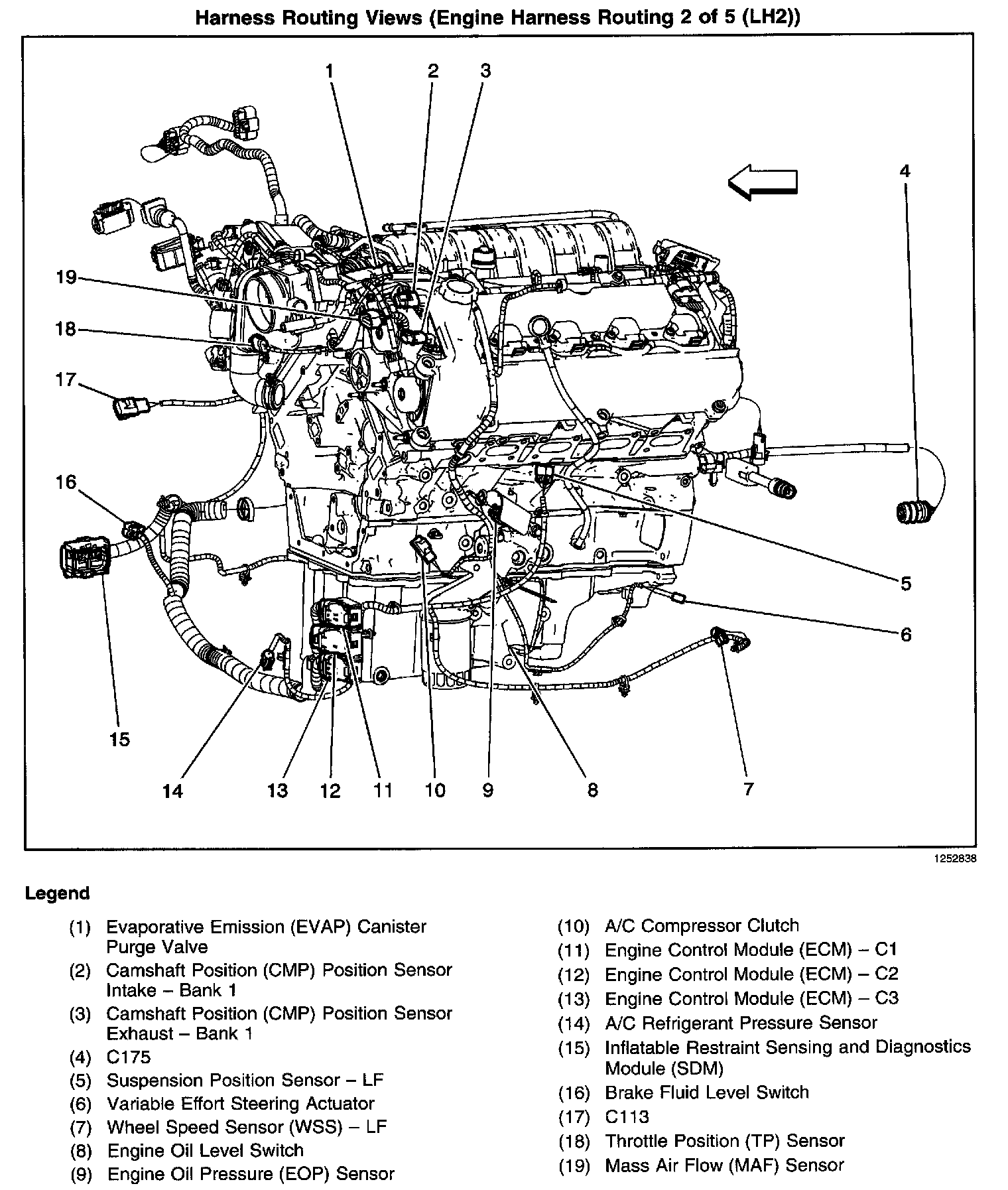

Harness Routing Views (Engine Harness Routing (LH2)):



Top Of The Engine:
