Installation Procedure

  1. Connect the electrical connector to the cruise control module (1).
    2. Fig 1: View of Cruise Control Cable & Cruise Control Module Buckle
    GM474809Courtesy of GENERAL MOTORS CORP.
  2. Install the cruise control cable (3) to the cruise control module assembly buckle (2).
  3. Snap the cruise control cable (3) into the cruise control module (1).
    4. Fig 2: View Of Cruise Cable Fitting & Pin
    GM474813Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable. Refer to Cruise Control Description and Operation  for the complete operational details.
  4. Install the cruise control cable (2) to the engine bracket.
  5. Verify that the tab on the cable is engaged.
  6. Hold the throttle open and slide the cruise control cable fitting (2) onto the throttle cam pin (1).

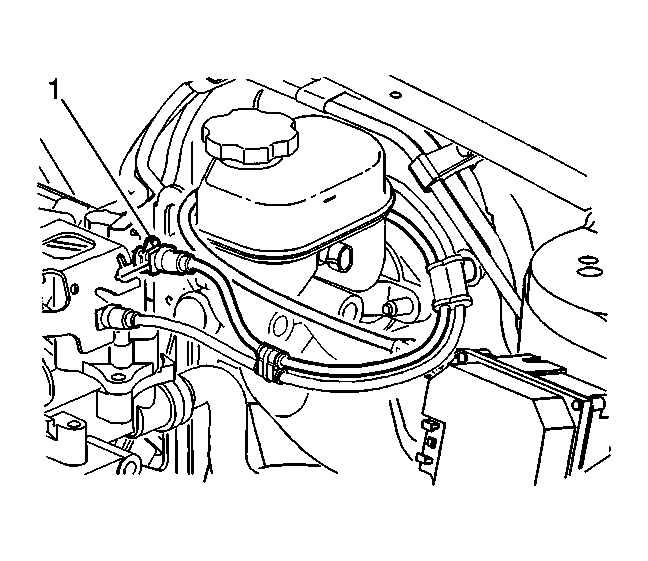

    7. Fig 3: Identifying Cruise Control Cable
    GM474814Courtesy of GENERAL MOTORS CORP.
  7. Install the clamps around the cruise control cable (1) and the accelerator cable.
