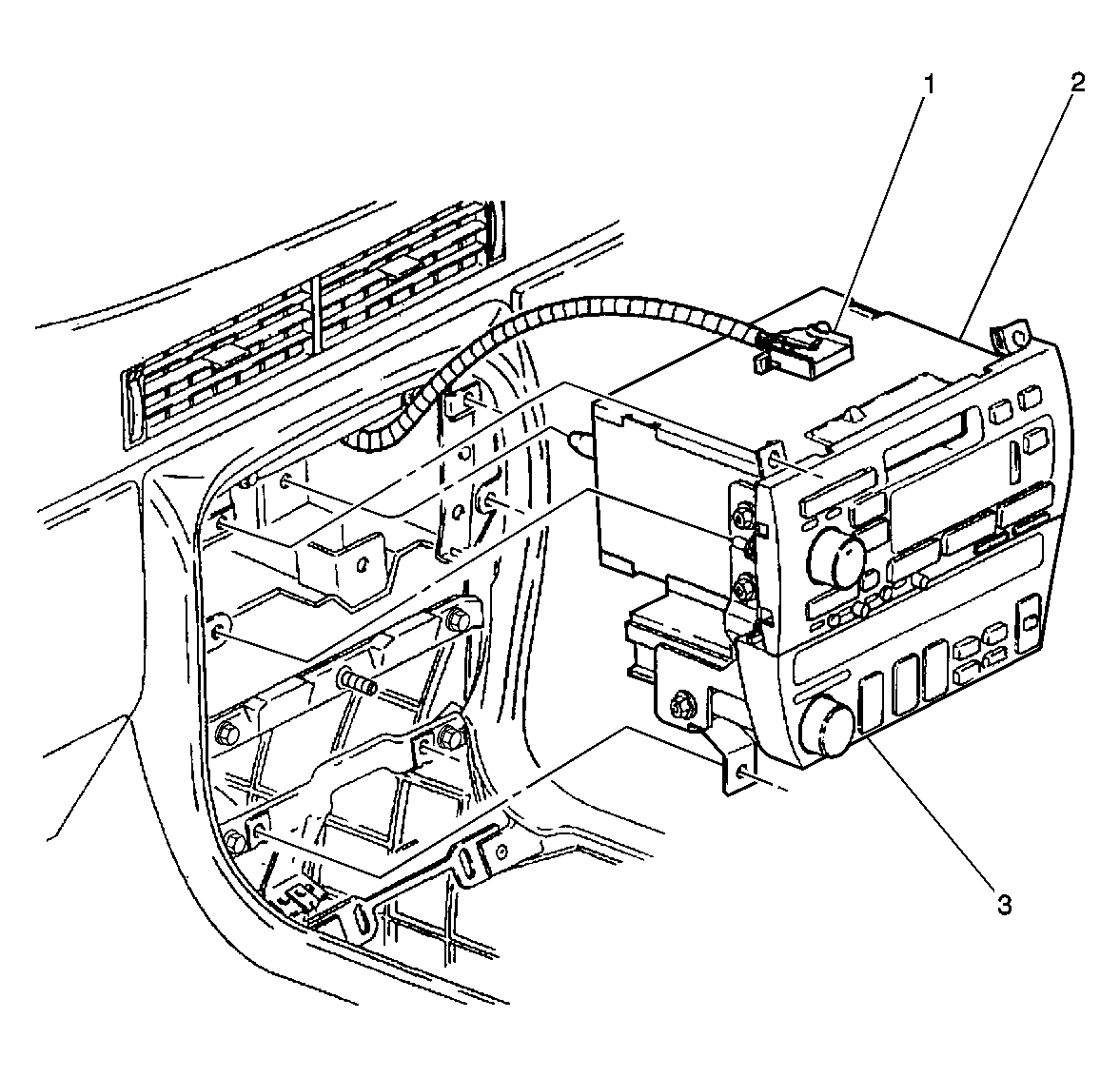

Entertainment Component Views

Fig 1: Passenger Compartment, in the Center of the Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio Connector
2	Radio
3	Instrument Panel Integration Module (IPM)

Fig 2: Passenger Compartment, Center of the Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Light Sensor
2	Speaker - Center Midrange
3	Hazard Switch
4	Instrument Panel Integration Module (IPM)
5	Radio (w/o UY4)
6	Driver Information Center (DIC) - Right

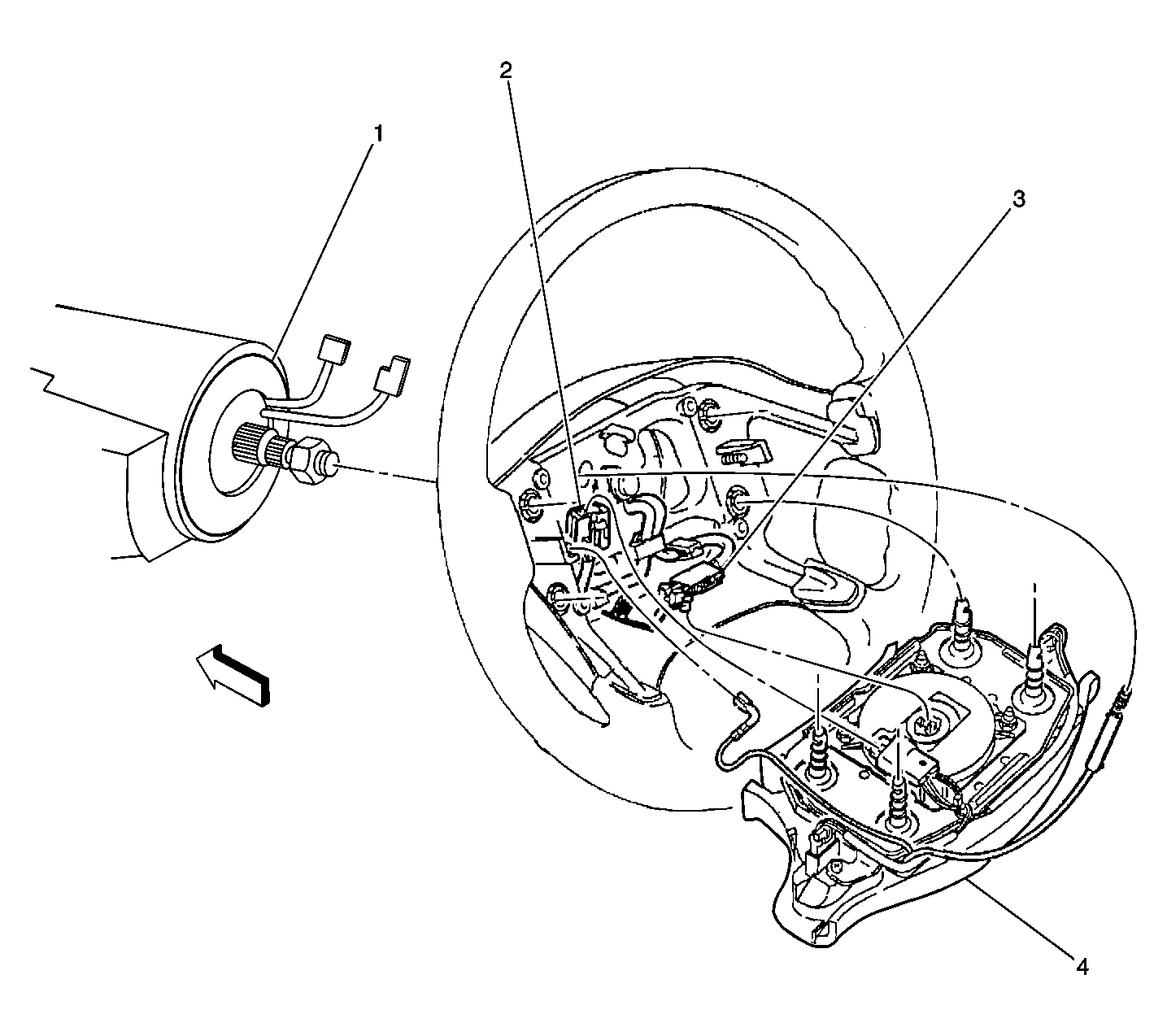

Fig 3: Steering Wheel and Inflator Module Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	Steering Wheel Controls Connector
3	Inflatable Restraint Steering Wheel Module Connector
4	Inflatable Restraint Steering Wheel Module

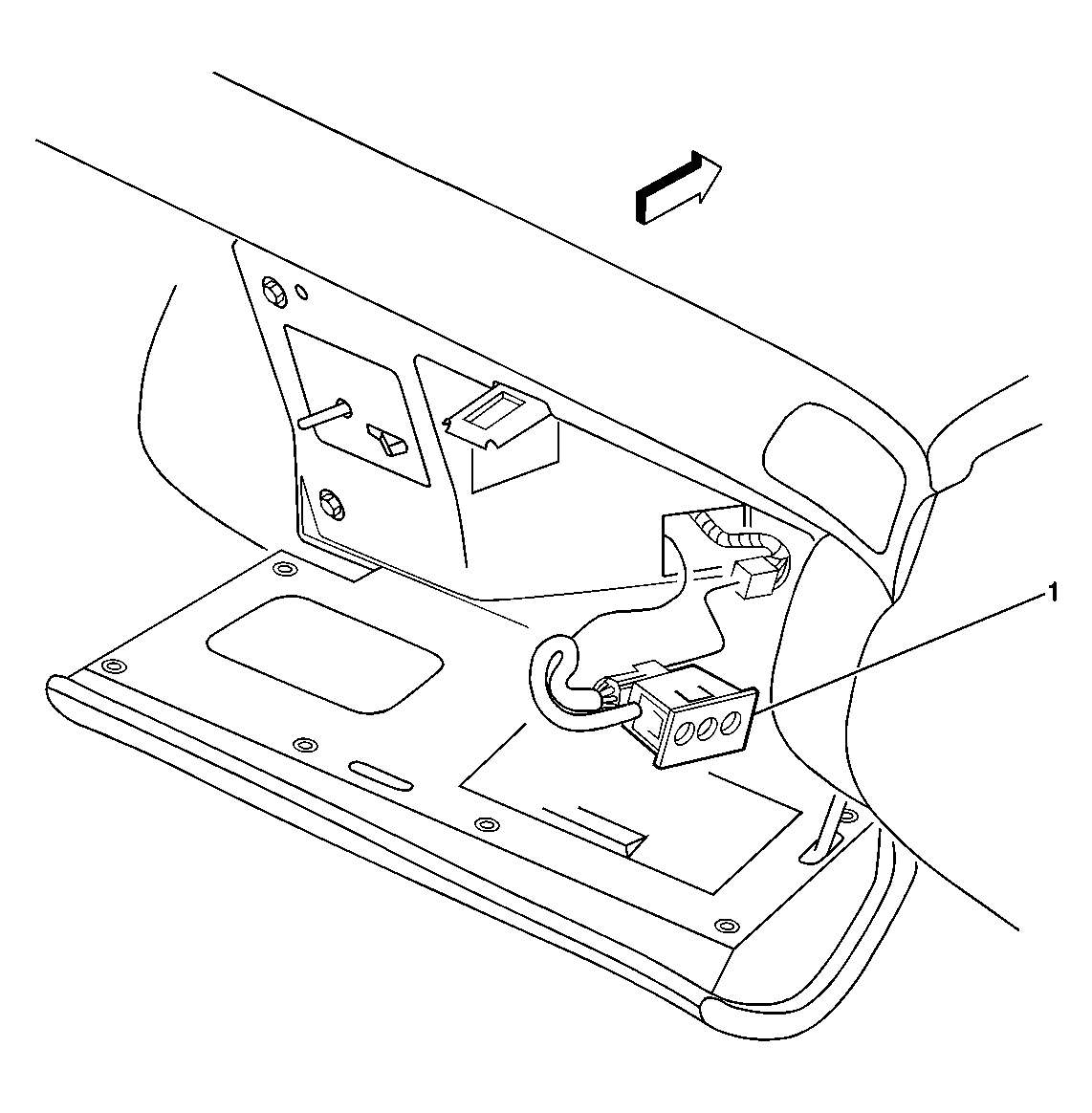

Fig 4: In the IP Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary RCA Video Jack

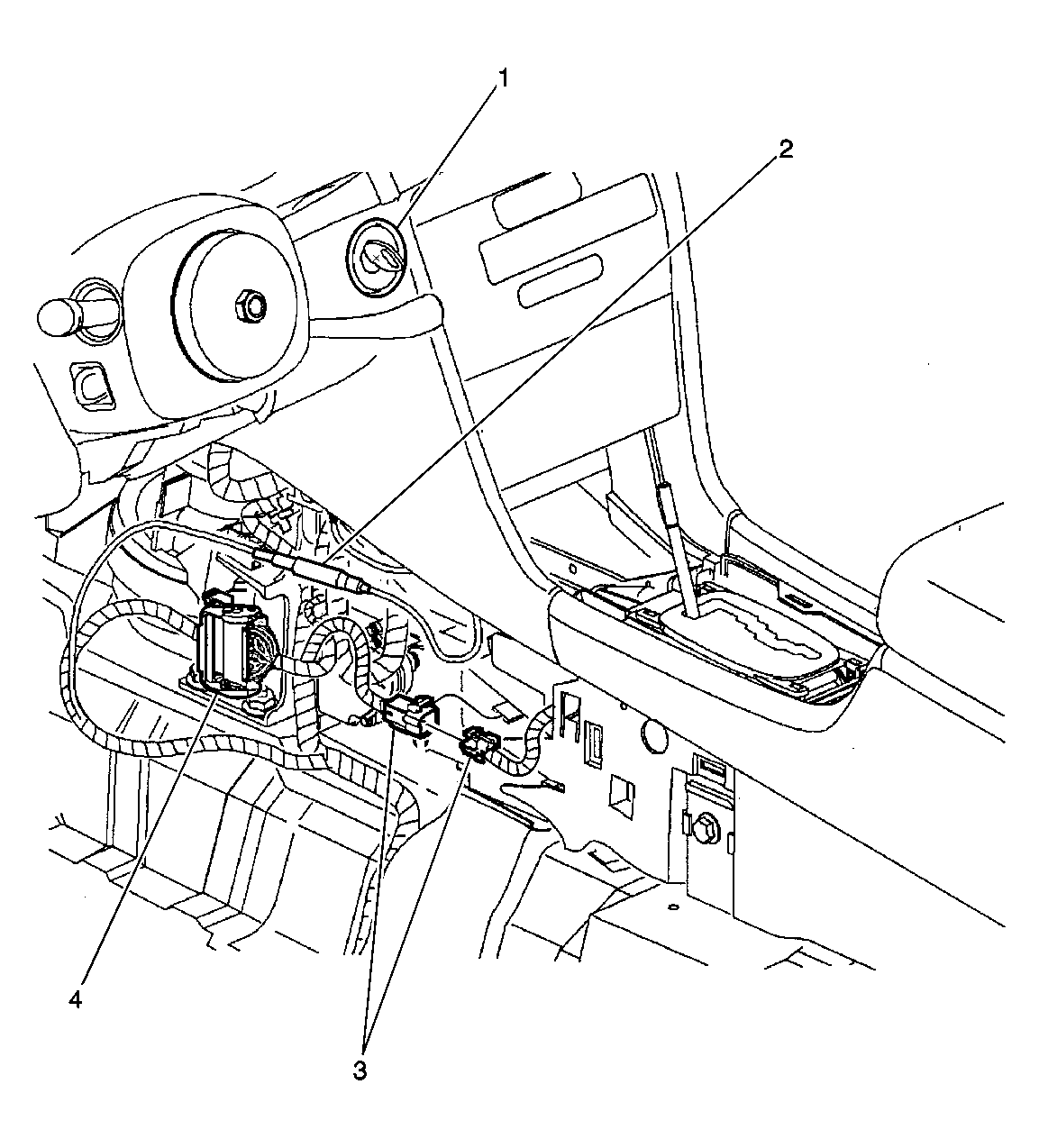

Fig 5: Below Center of Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Switch
2	Radio Antenna
3	C313
4	C303

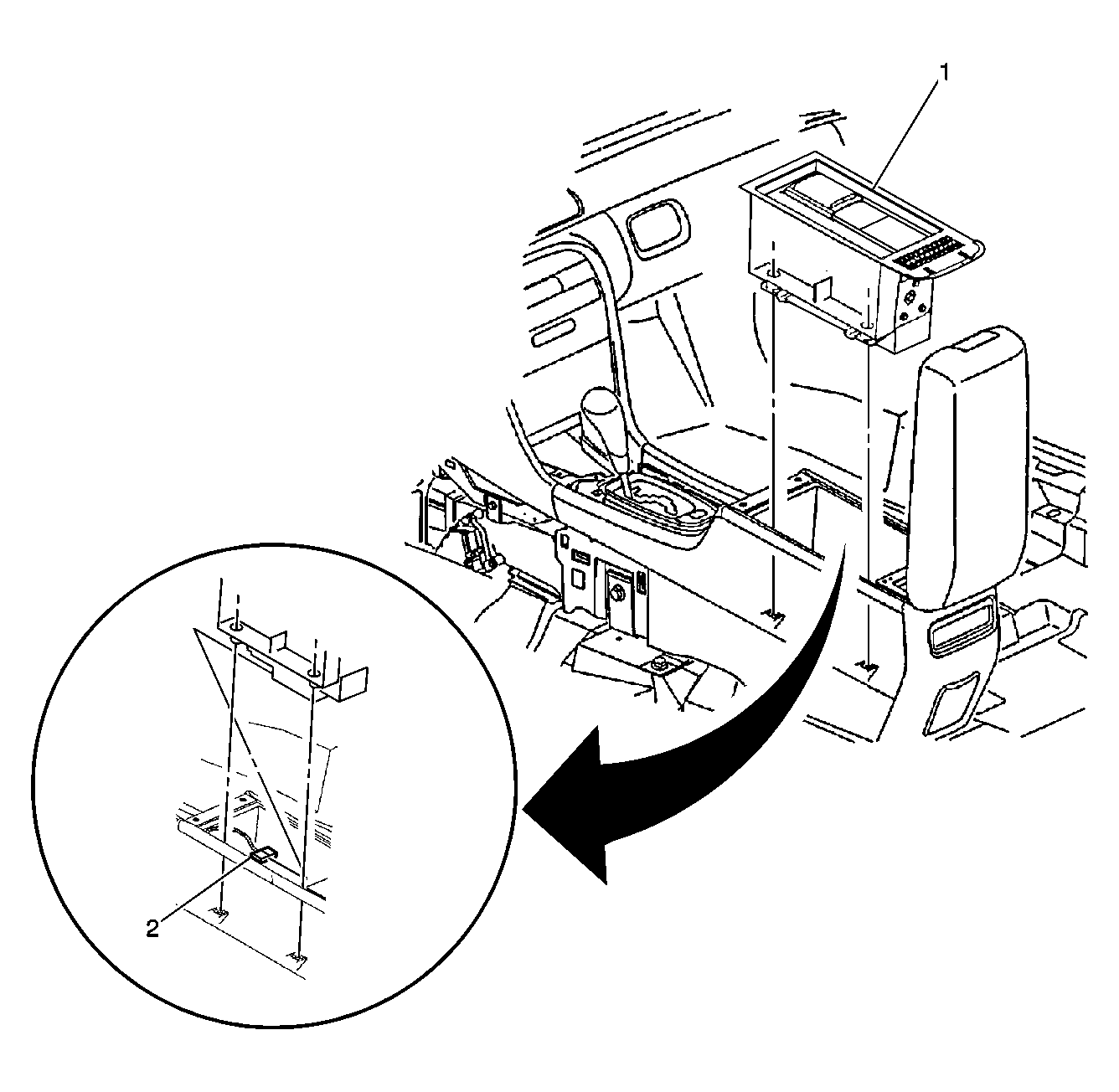

Fig 6: Remote Playback Device-CD Changer Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Playback Device-CD Changer
2	Remote Playback Device-CD Changer Connector

Fig 7: Roof Sub-System Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Open/Close Switch
2	Noise Cancellation Microphone
3	Garage Door Opener
4	Sunroof Vent Switch
5	Vanity Mirror Lamp - Right (Left Similar)
6	Reading Lamp Switch
7	Courtesy Lamps Switch
8	Overhead Console
9	Sunroof Motor Assembly
10	Sunroof Module

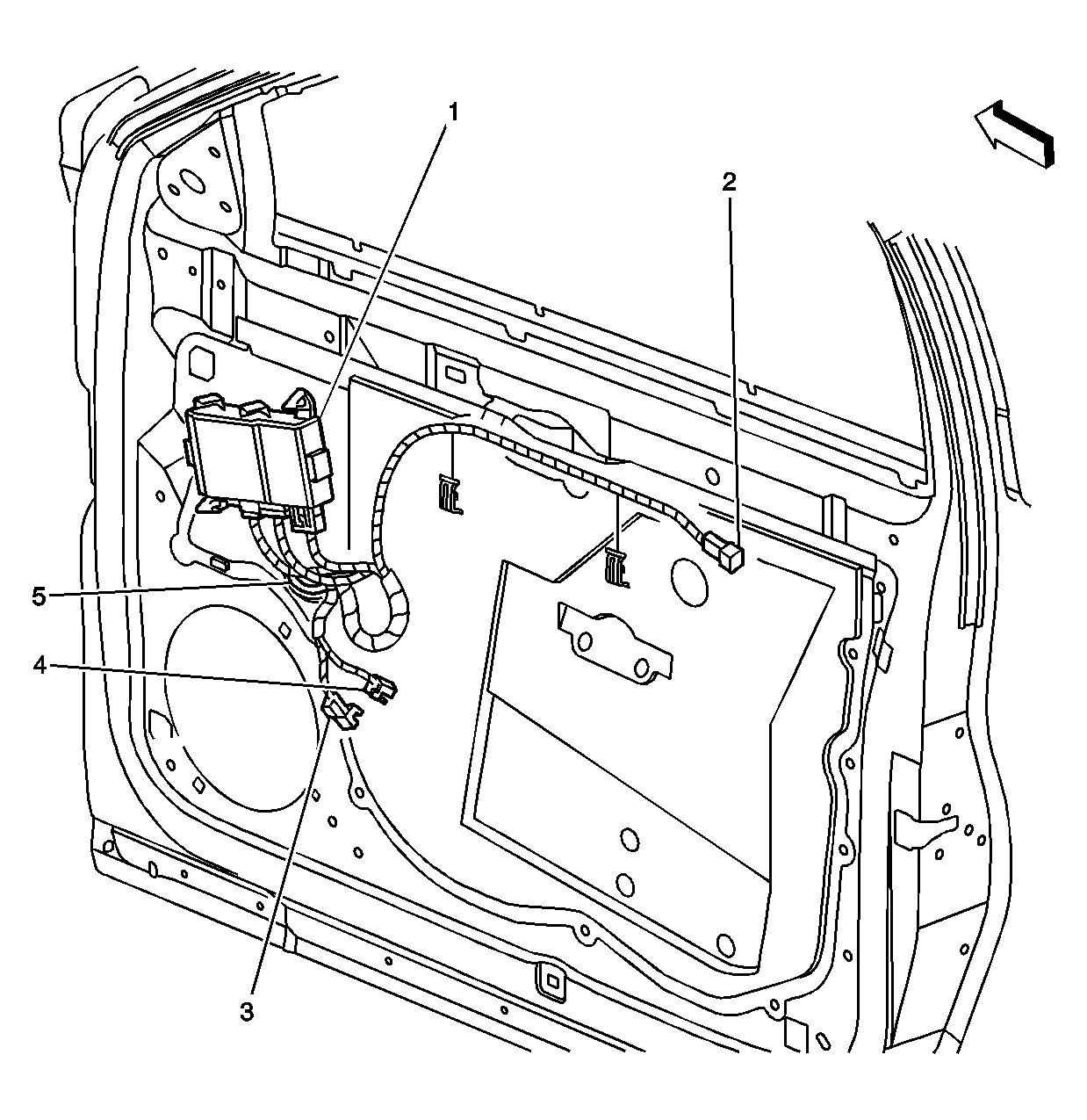

Fig 8: Front Door (RH Drive) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Door Module (DDM) (FPDM Similar)
2	C500 (C600 Similar)
3	Speaker - RF Door Tweeter Connector (LF Similar)
4	Speaker - RF Door Connector (LF Similar)
5	P601 (P501 Similar)

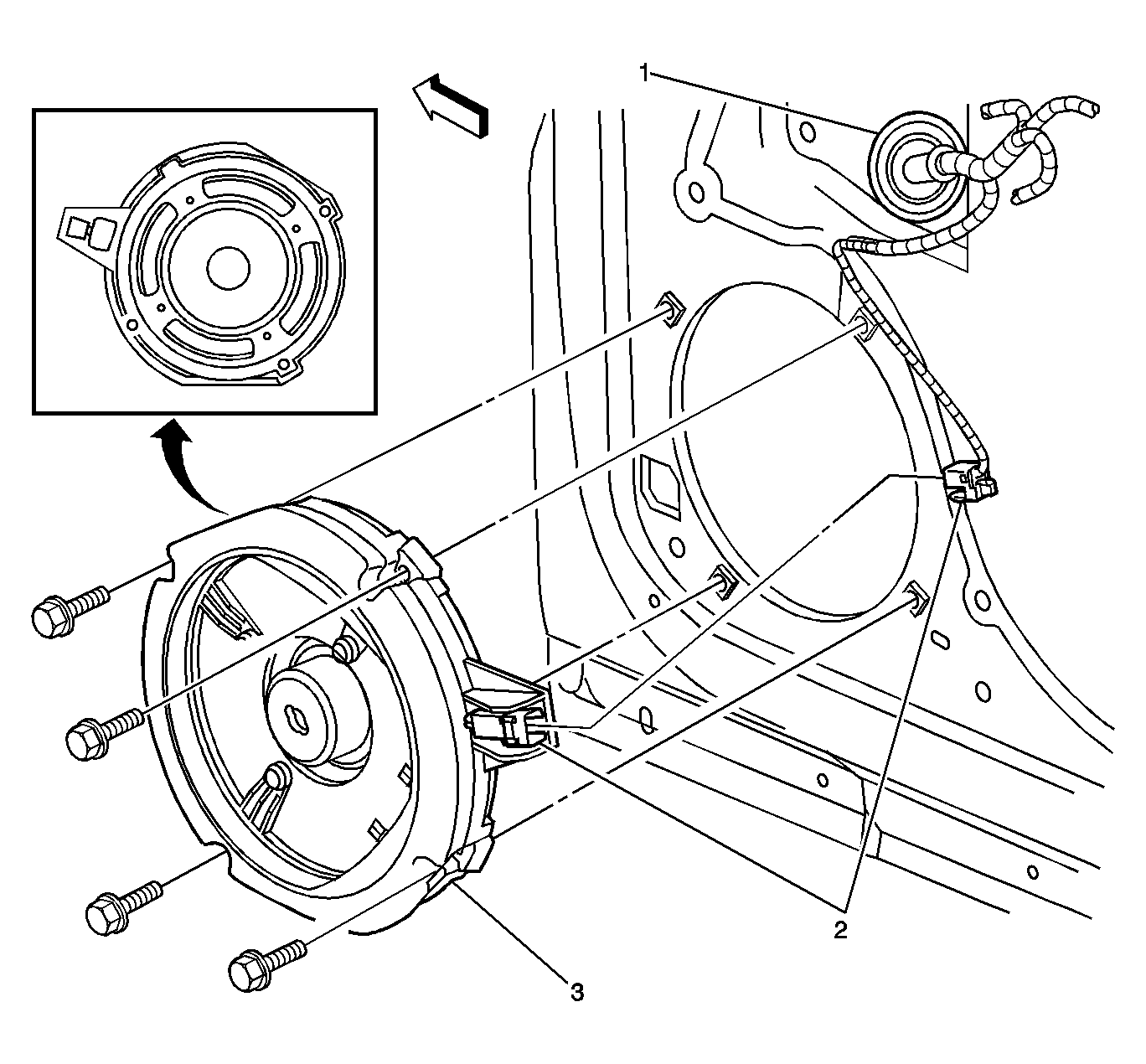

Fig 9: Door Speaker Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RF Door (UX8) (LF Similar)
2	Speaker - RF Door Tweeter (UX8) Connector (LF Similar)
3	P601 (P501 Similar)
4	Speaker - RF Door (UX8) Connector (LF Similar)

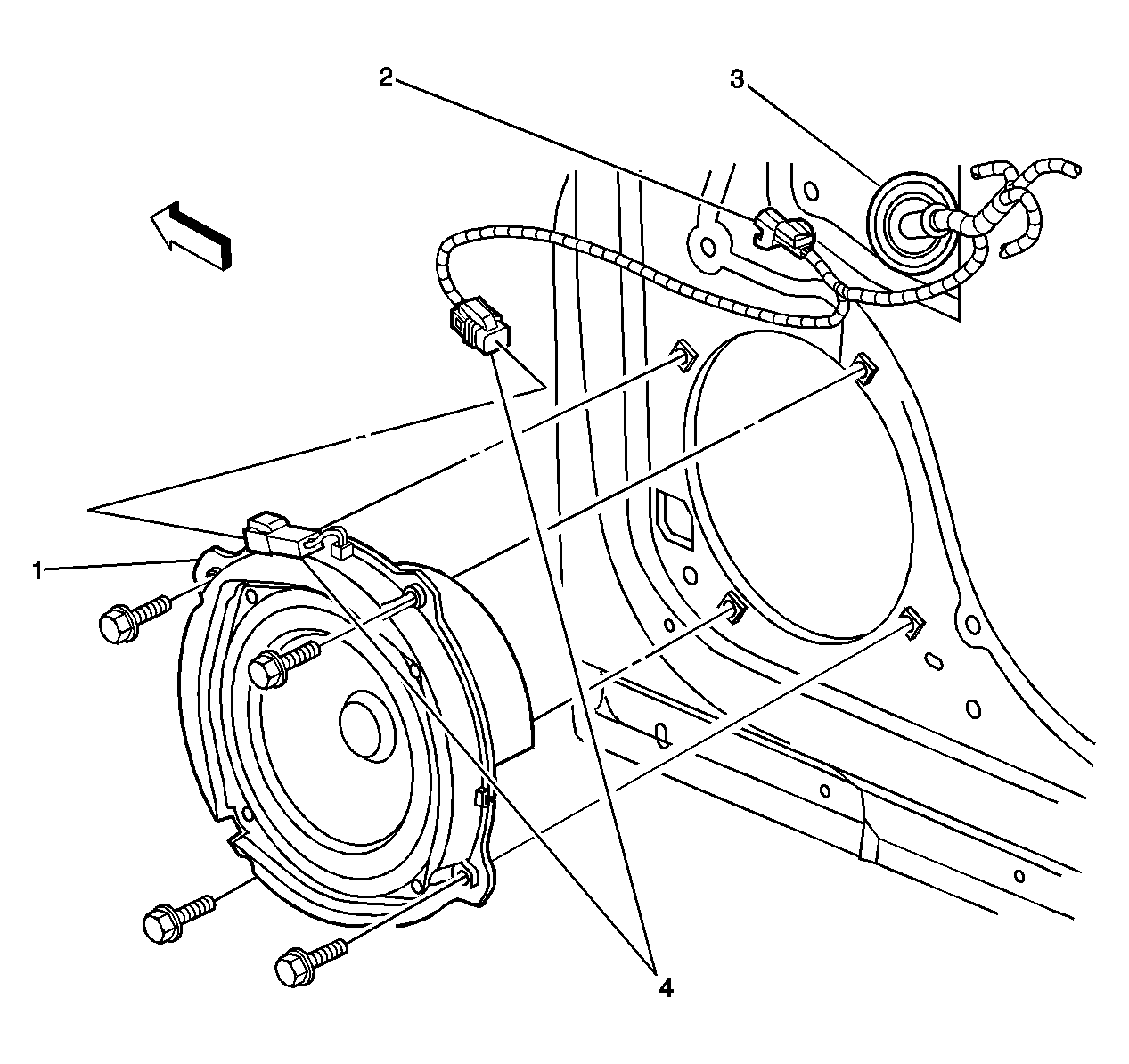

Fig 10: Door Speaker (UX9) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	P601 (P501 Similar)
2	Speaker - RF Door (UX9) Connector (LF Similar)
3	Speaker - RF Door (UX9) (LF Similar)

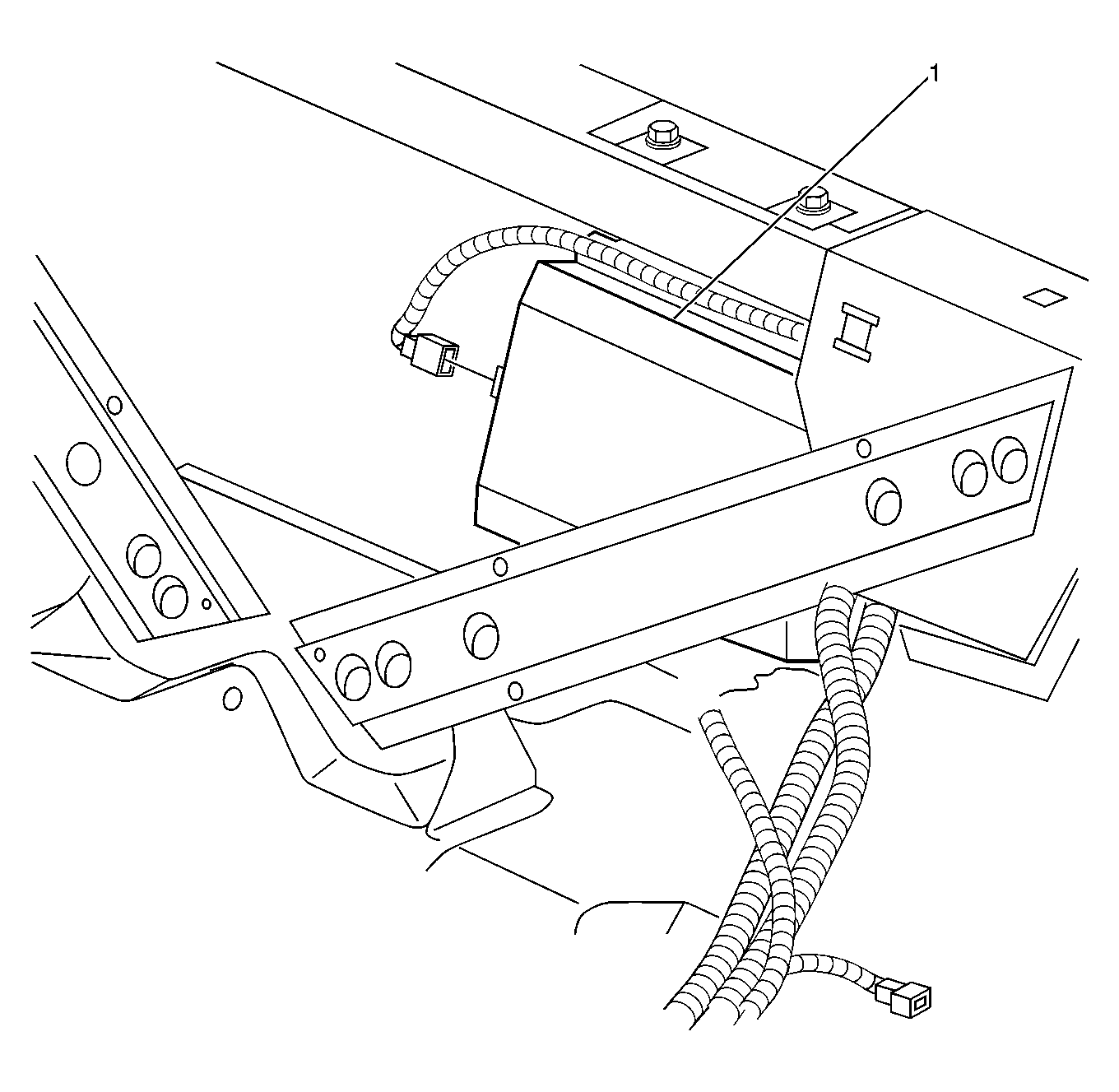

Fig 11: Passenger Compartment, Behind the Rear Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Audio Amplifier (with UX8)

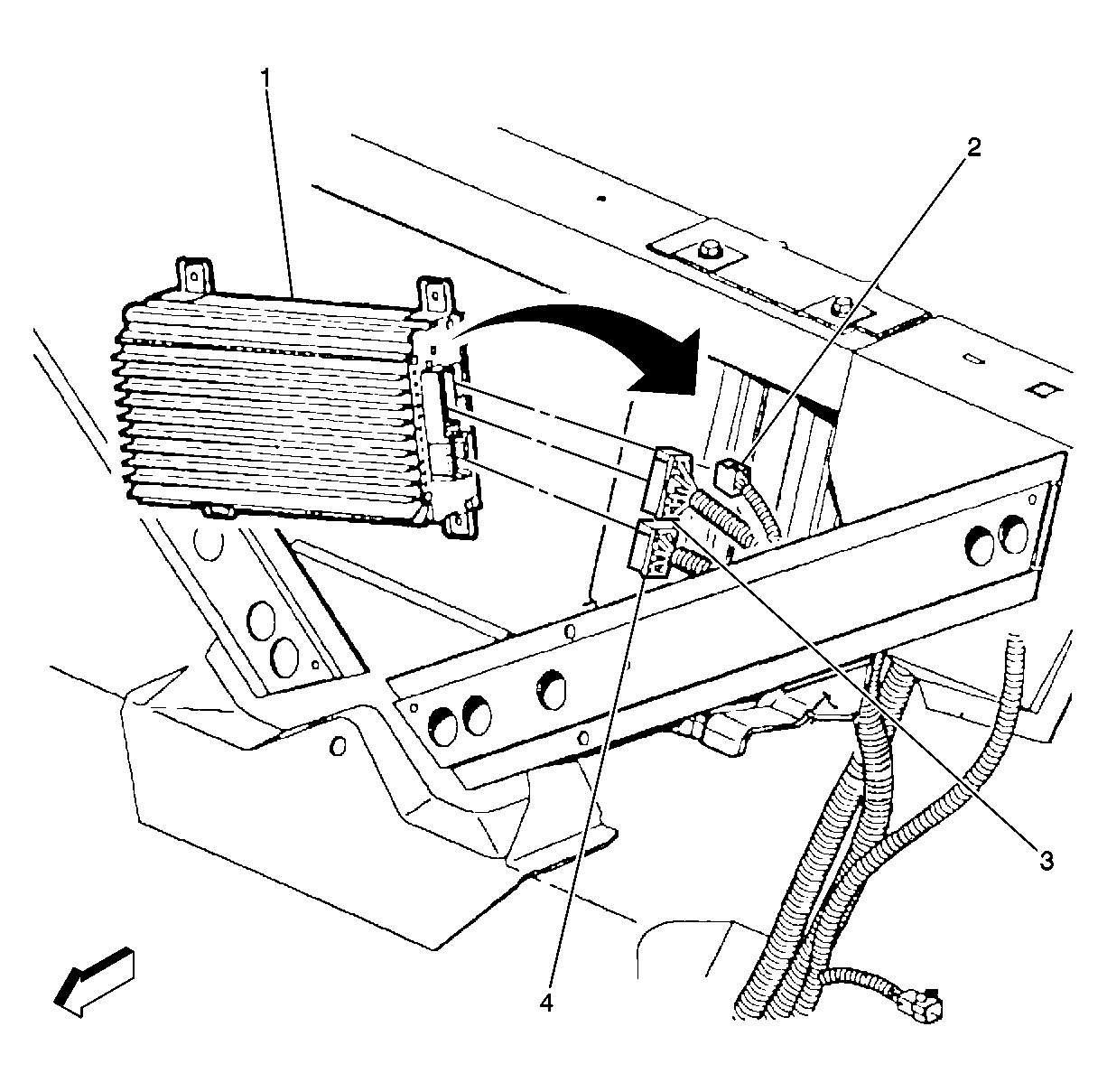

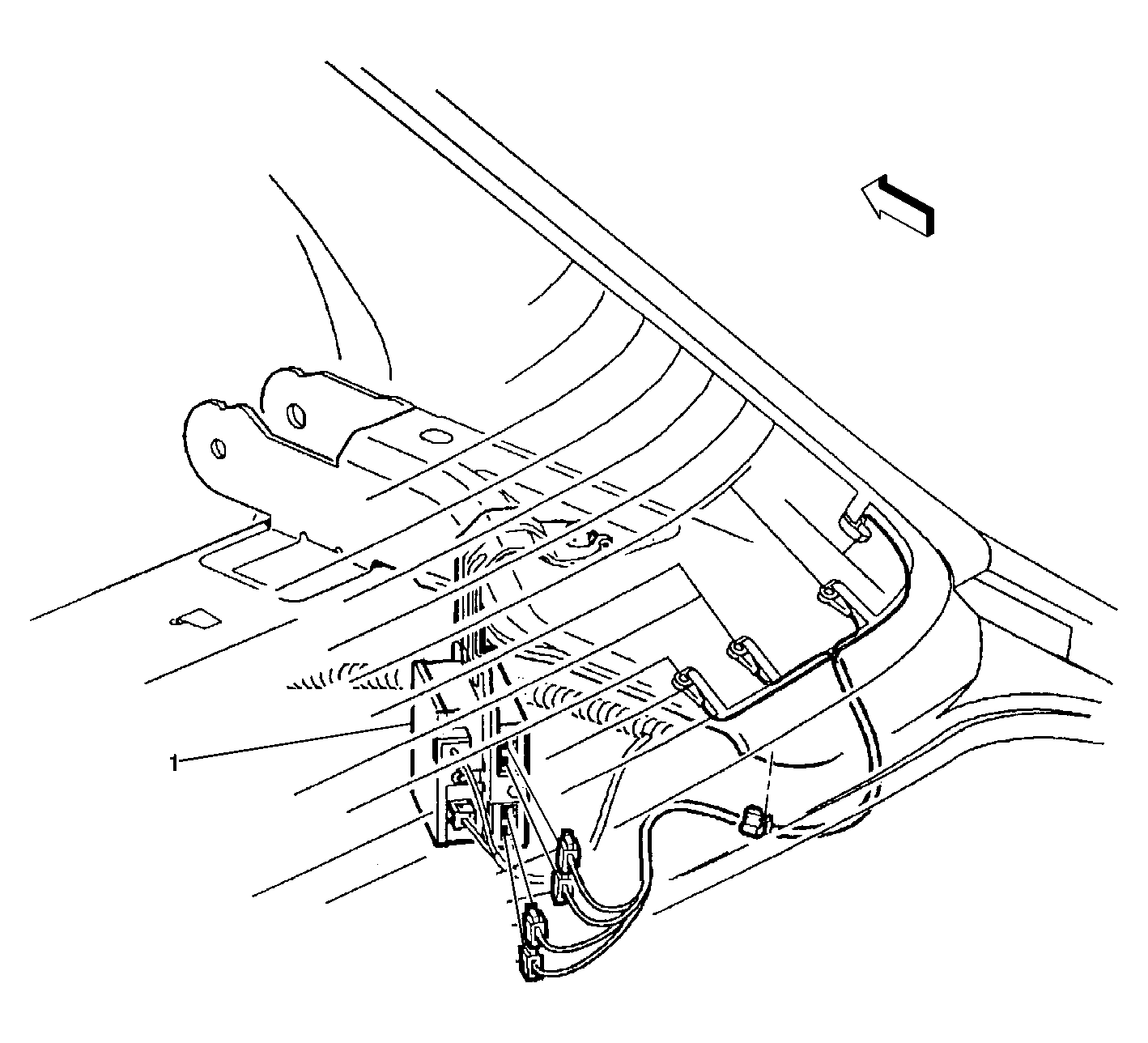

Fig 12: Behind Rear Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Audio Amplifier (with UX9)
2	Audio Amplifier Connector C3
3	Audio Amplifier Connector C1
4	Audio Amplifier Connector C2

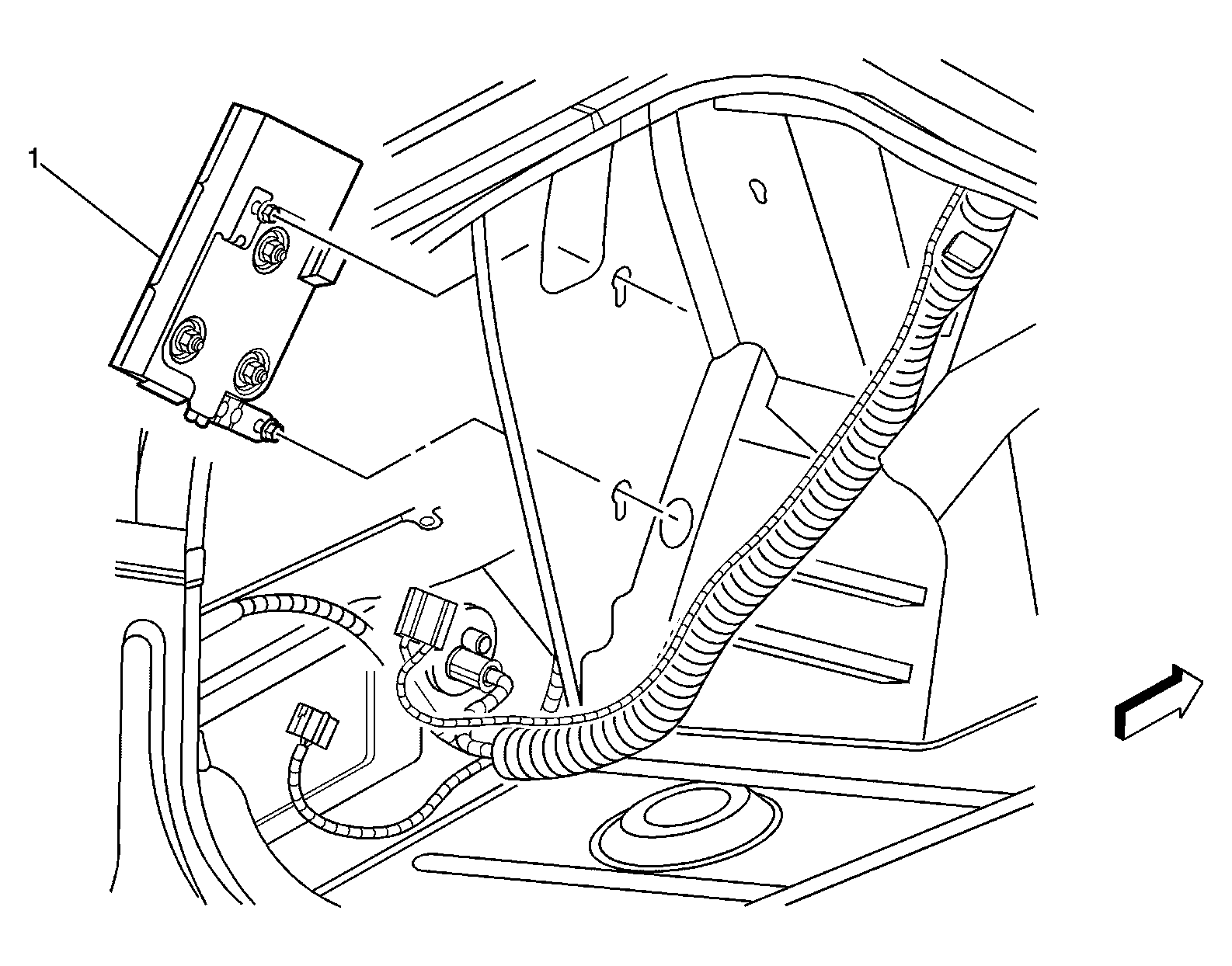

Fig 13: TV Antenna Module Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	TV Antenna Module

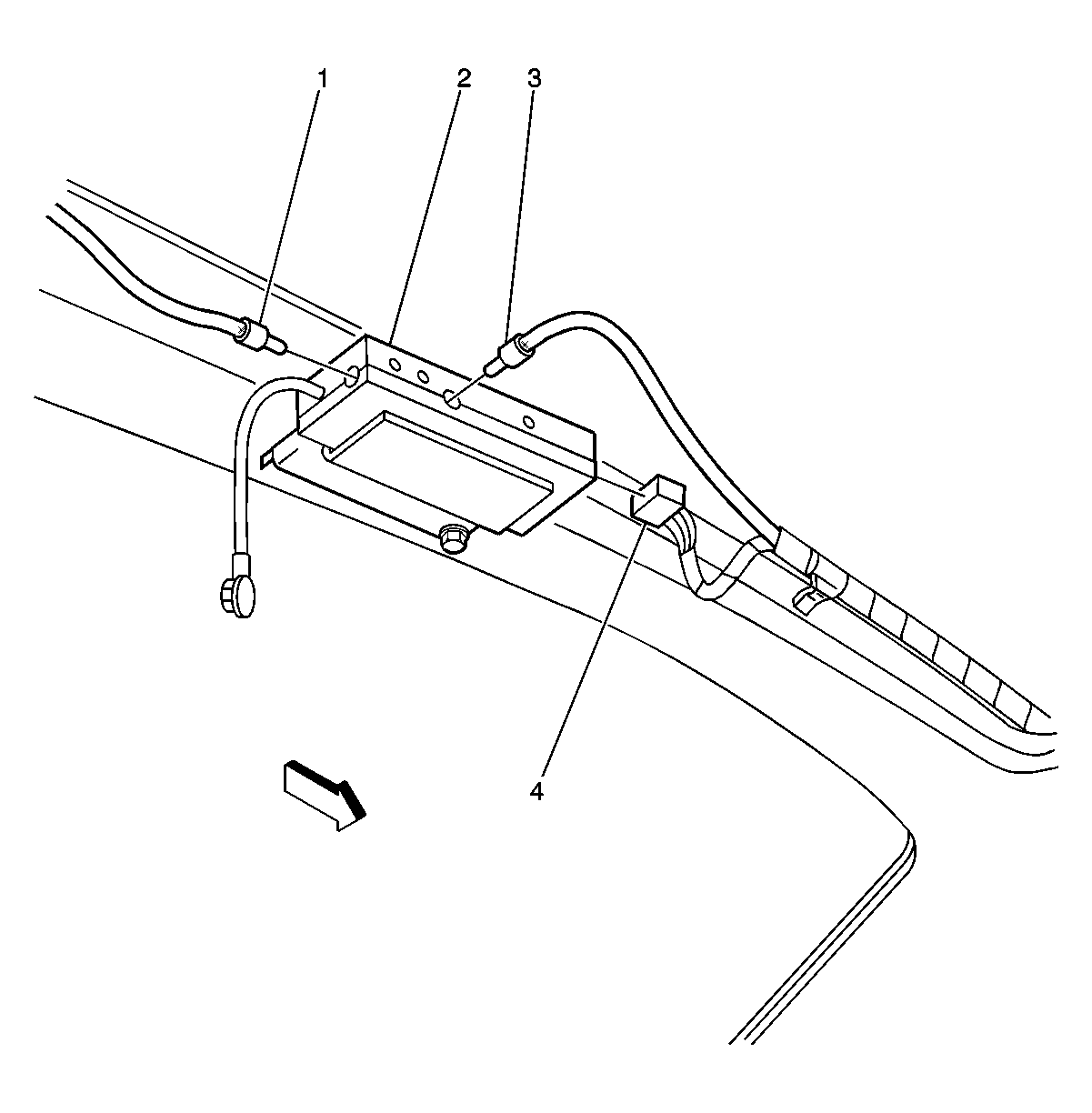

Fig 14: Center Rear of Headliner Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	FM Antenna Coax Cable
2	Radio Antenna Module
3	Signal Amplifier-RF Coax Cable
4	Radio Antenna Module Connector

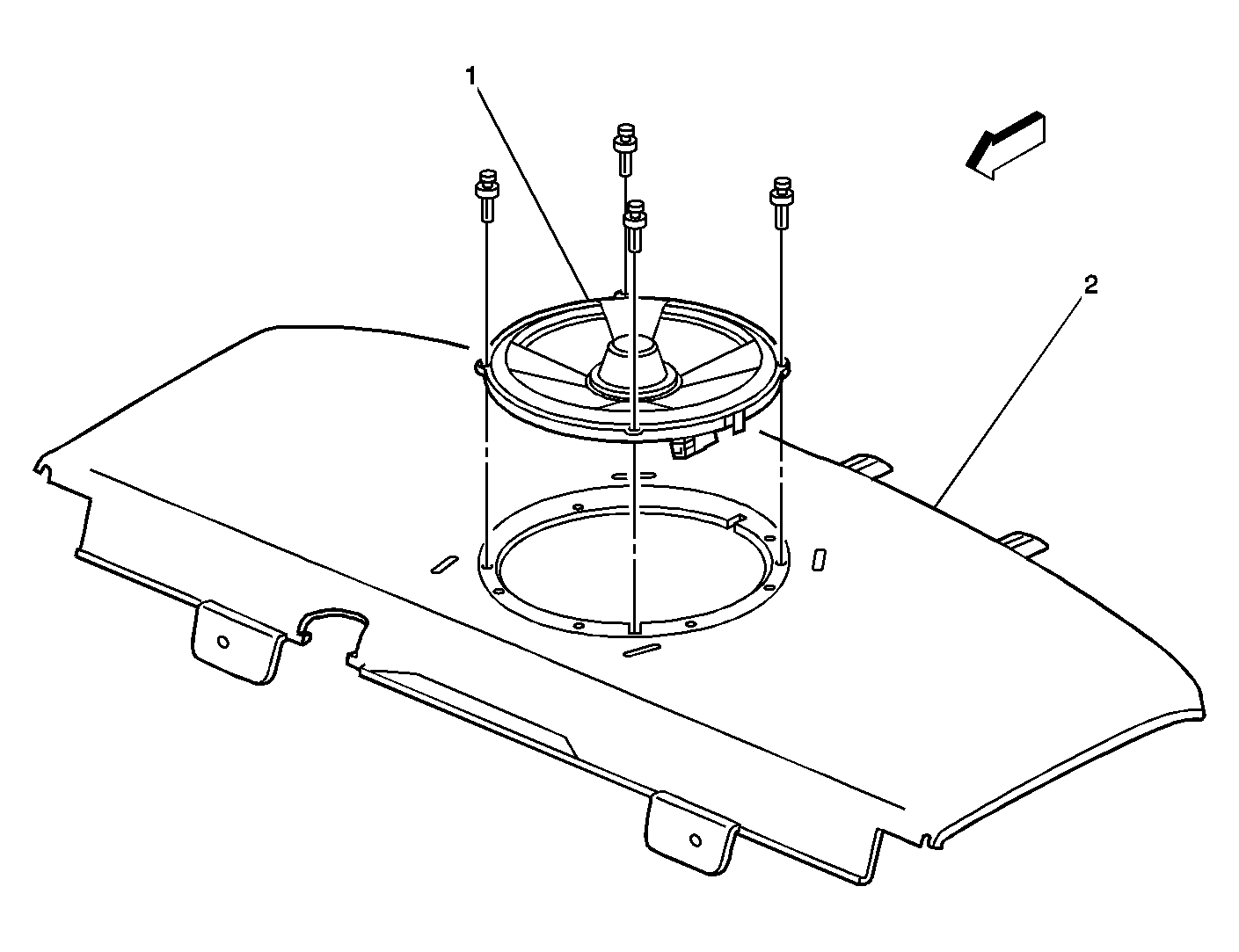

Fig 15: Speaker - Rear Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Rear Subwoofer
2	Rear Shelf Cover

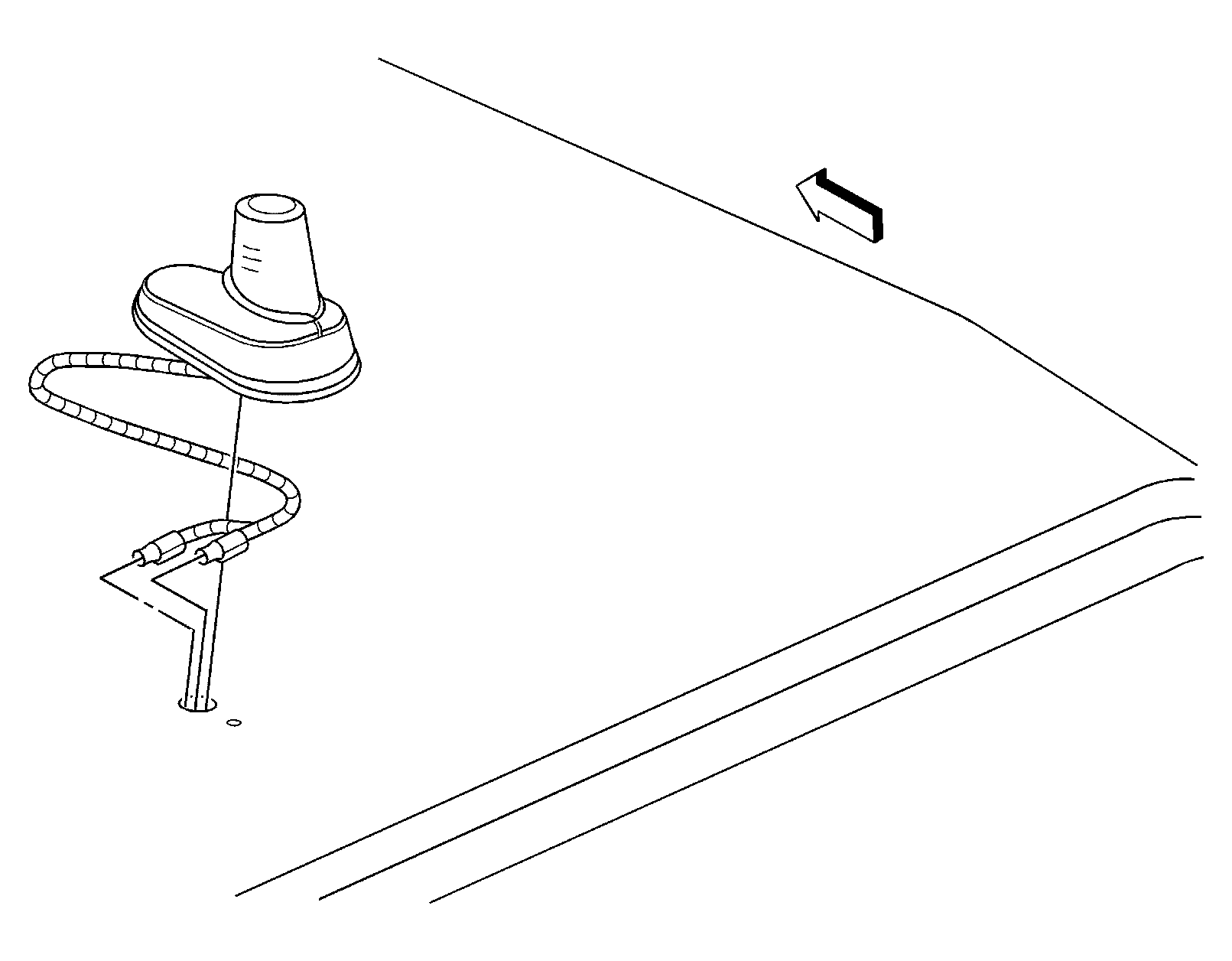

Fig 16: Digital Radio Antenna Component View

Courtesy of GENERAL MOTORS CORP.

Fig 17: Rear Compartment, Reinforcement Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver
