Power Window Schematics

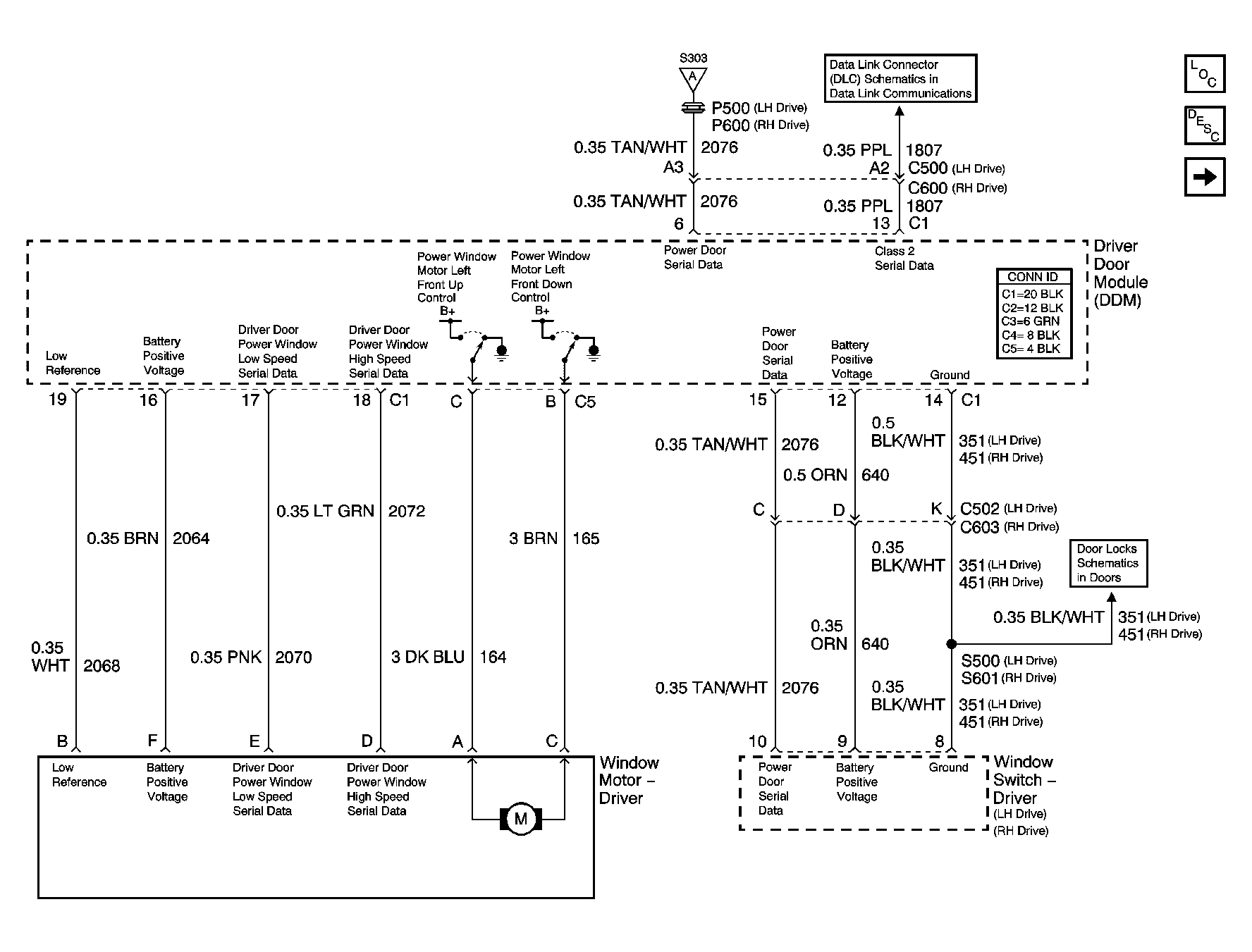

Fig 1: Driver Power Window Schematic

Courtesy of GENERAL MOTORS CORP.

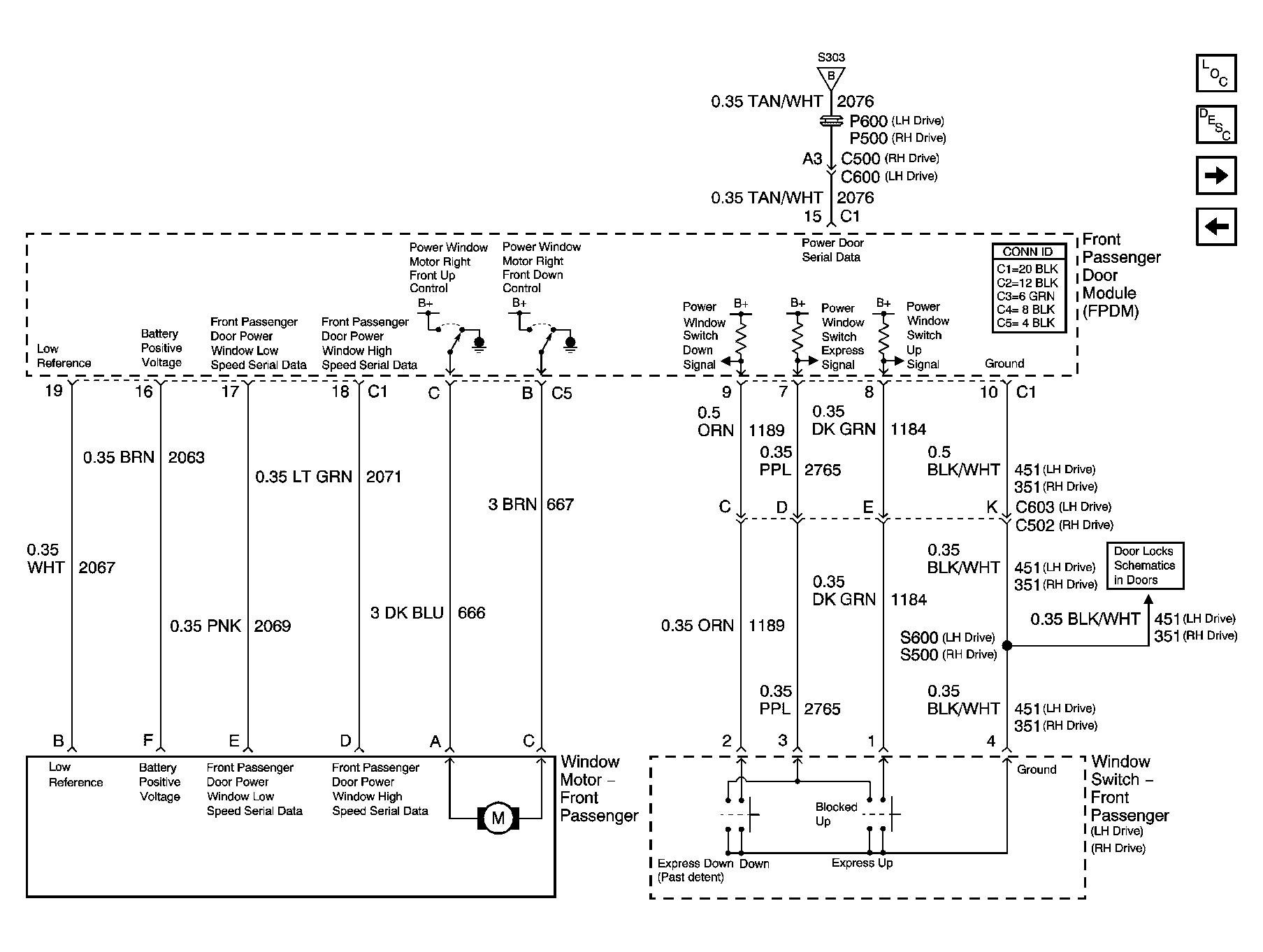

Fig 2: Front Passenger Power Window Schematic

Courtesy of GENERAL MOTORS CORP.

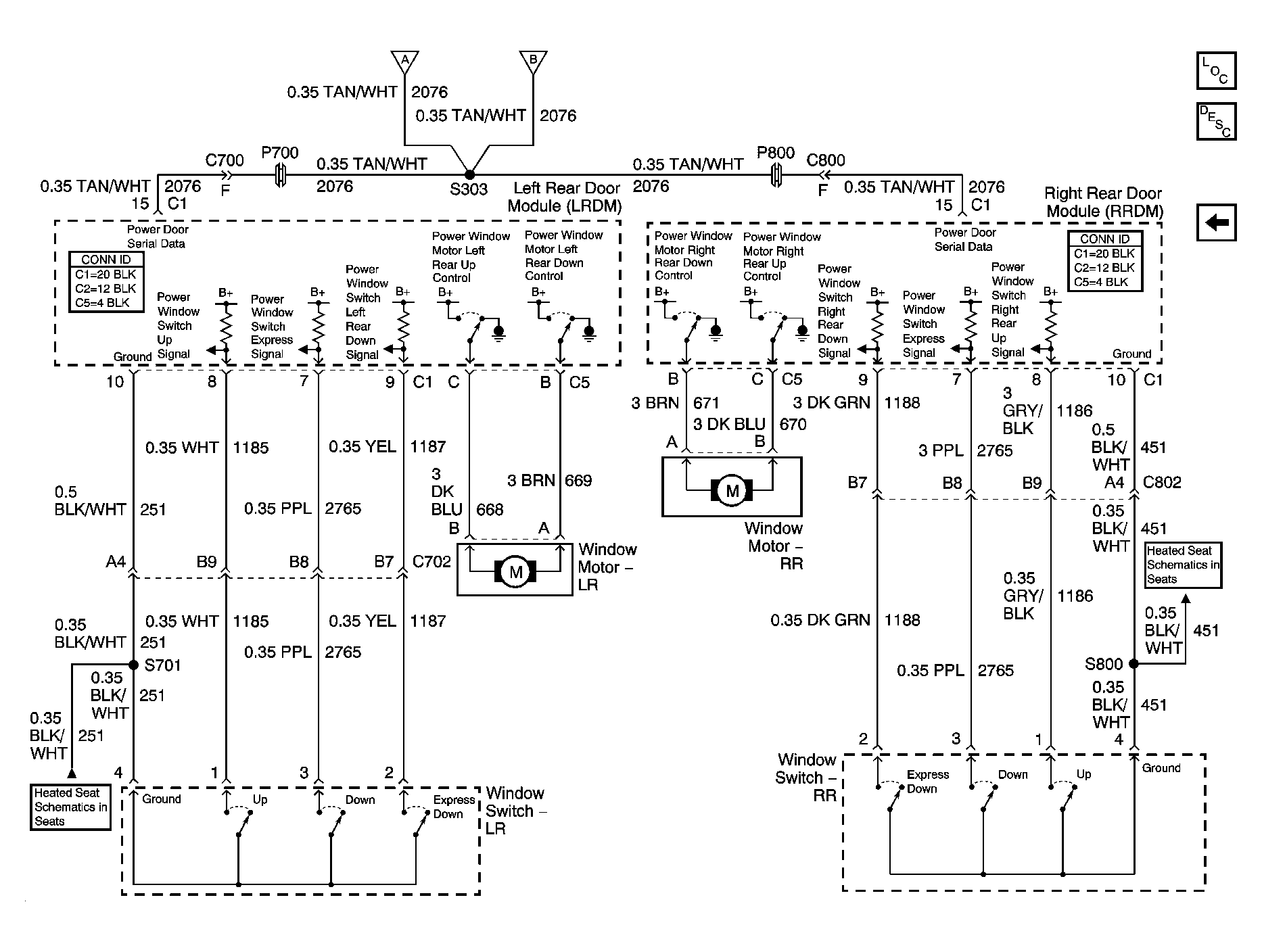

Fig 3: Rear Power Windows Schematic

Courtesy of GENERAL MOTORS CORP.
