ABS Component Views

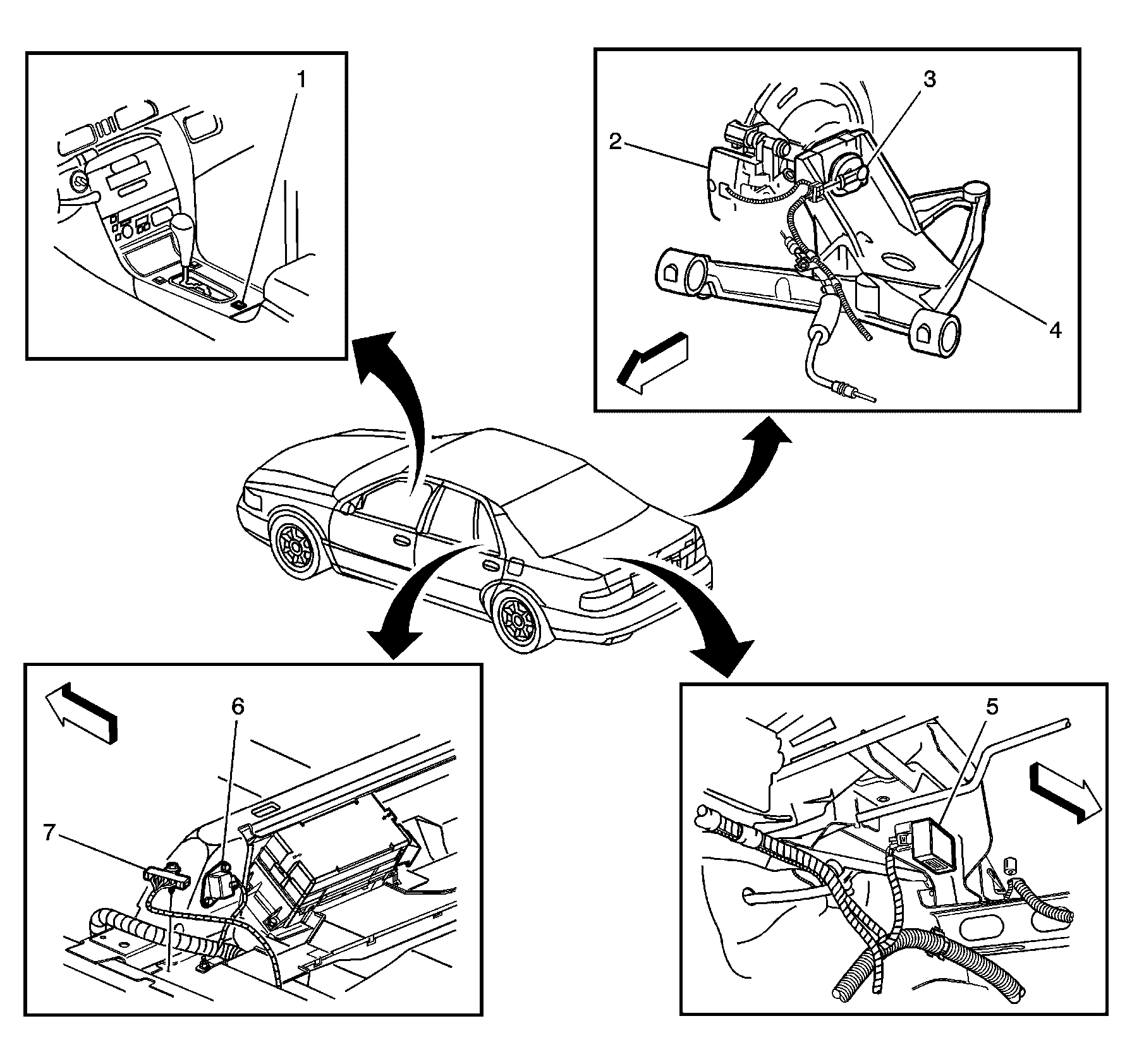

Fig 1: Anti-Lock Brake System Sub-System (1 of 2) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Traction Control Switch
2	Brake Caliper
3	Wheel Speed Sensor (WSS) - RR (LR Similar)
4	Lower Control Arm
5	Yaw Rate Sensor
6	Lateral Accelerometer Sensor
7	SP301, G301

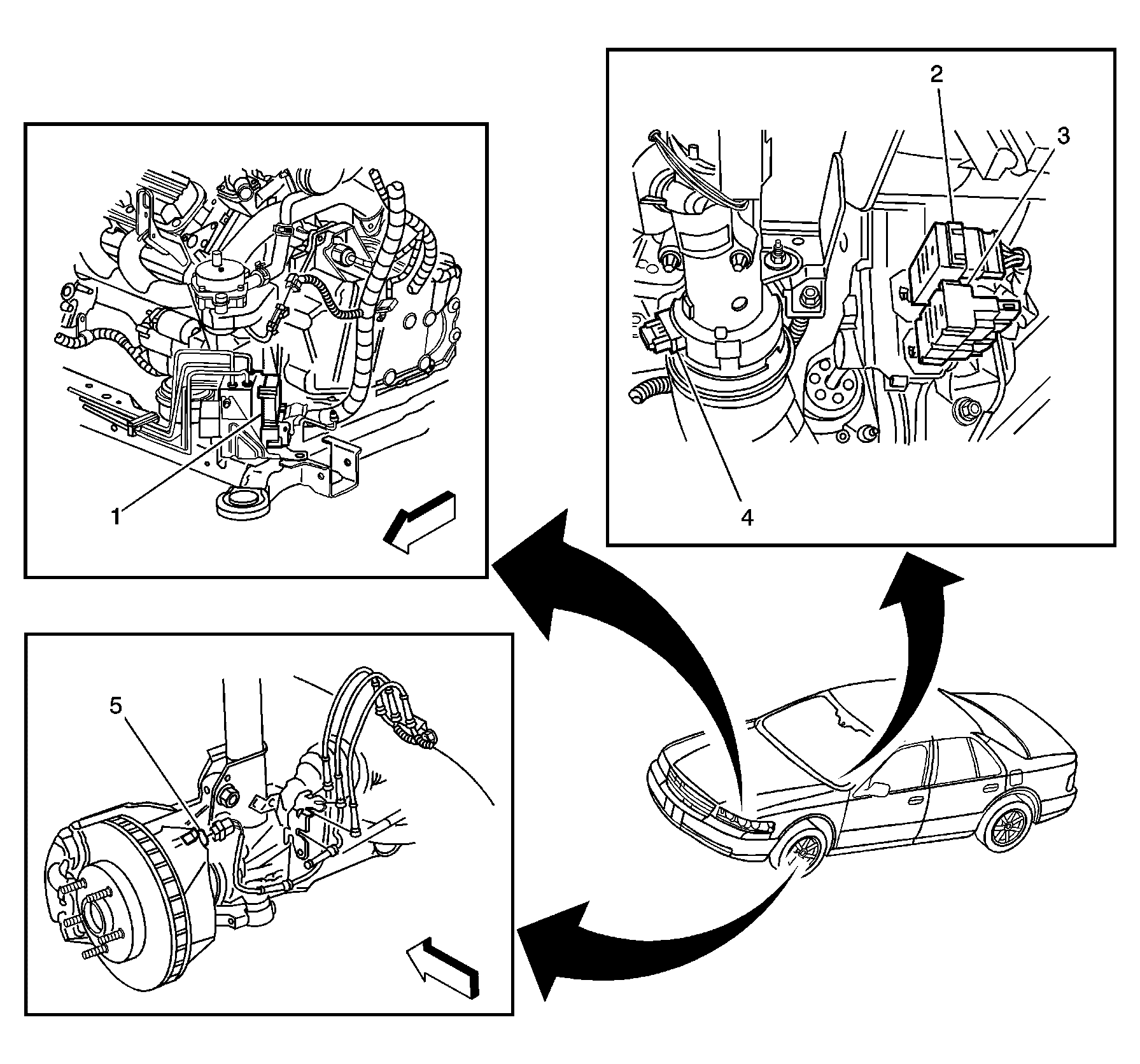

Fig 2: Anti-Lock Brake System Sub-System (2 of 2) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Brake Control Module (EBCM)
2	TCC/Cruise Release Switch Connector
3	Stop Lamp Switch Connector
4	Steering Wheel Position Sensor
5	Wheel Speed Sensor (WSS) - LF (RF Shown)
