Installation Procedure

Fig 1: View Of Both halves Of EBCM

Courtesy of GENERAL MOTORS CORP.

Clean the seal surface of the BPMV.
Install the EBCM (2) to the BPMV (1).

Fig 2: Disassembling/Reassembling Electronic Brake Control Module

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the 6 EBCM to BPMV screws (2).
Tighten: Tighten the 6 screws to 3.2 N.m (28 lb in).

Fig 3: Identifying EBCM Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the BPMV electrical connector (2) to the EBCM (3).

Fig 4: Removing/Installing Electronic Brake Control Module

Courtesy of GENERAL MOTORS CORP.

NOTE: To prevent equipment damage, never connect or disconnect the wiring harness connection from the EBCM with the ignition switch in the ON position.

Connect the EBCM electrical connector (1) to the EBCM (4).
Install the EBCM connector position assurance (2) to the EBCM electrical connector (1).

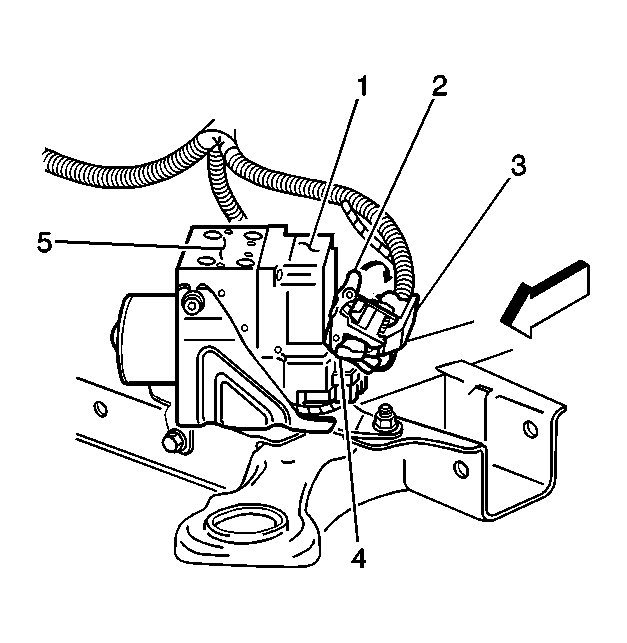

Fig 5: Identifying EBCM Connector Tab

Courtesy of GENERAL MOTORS CORP.

Rotate the EBCM connector tab (2) down to the locked position.
Install the left front fascia extension. Refer to Fascia Extension Replacement - Front in Bumpers.
Install the left front wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

IMPORTANT: An unprogrammed EBCM will result in the following conditions:

Inoperative or poorly functioning DRP/ABS/TCS/VSES/VES if equipped
Set DTC C1248 EBCM Turned On the Red Brake Warning Indicator
Set DTC C1255m3 EBCM Internal Malfunction

If a replacement EBCM is being installed, it must be programmed using the latest software matching the vehicle. Refer to the Techline Terminal/Equipment user's instructions.
Use the scan tool in order to clear the DTCs.
Perform the ABS Diagnostic System Check. Refer to Diagnostic System Check - ABS .
