Removal Procedure

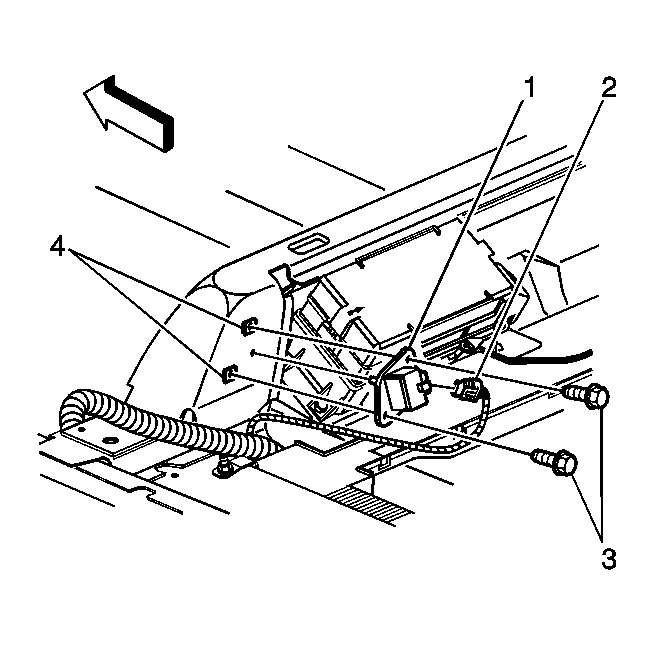

    Fig 1: Identifying Lateral Accelerometer Sensor & Electrical Connector
    GM332513Courtesy of GENERAL MOTORS CORP.
  1. Turn OFF the ignition.
  2. Remove the rear seat cushion. Refer to Seat Cushion Replacement - Rear in Seats.
  3. Remove the 2 lateral accelerometer sensor mounting nuts.
  4. Disconnect the lateral accelerometer sensor electrical connector (2).
  5. Remove the lateral accelerometer sensor (1) from the mounting studs.
