Power Outlet Component Views

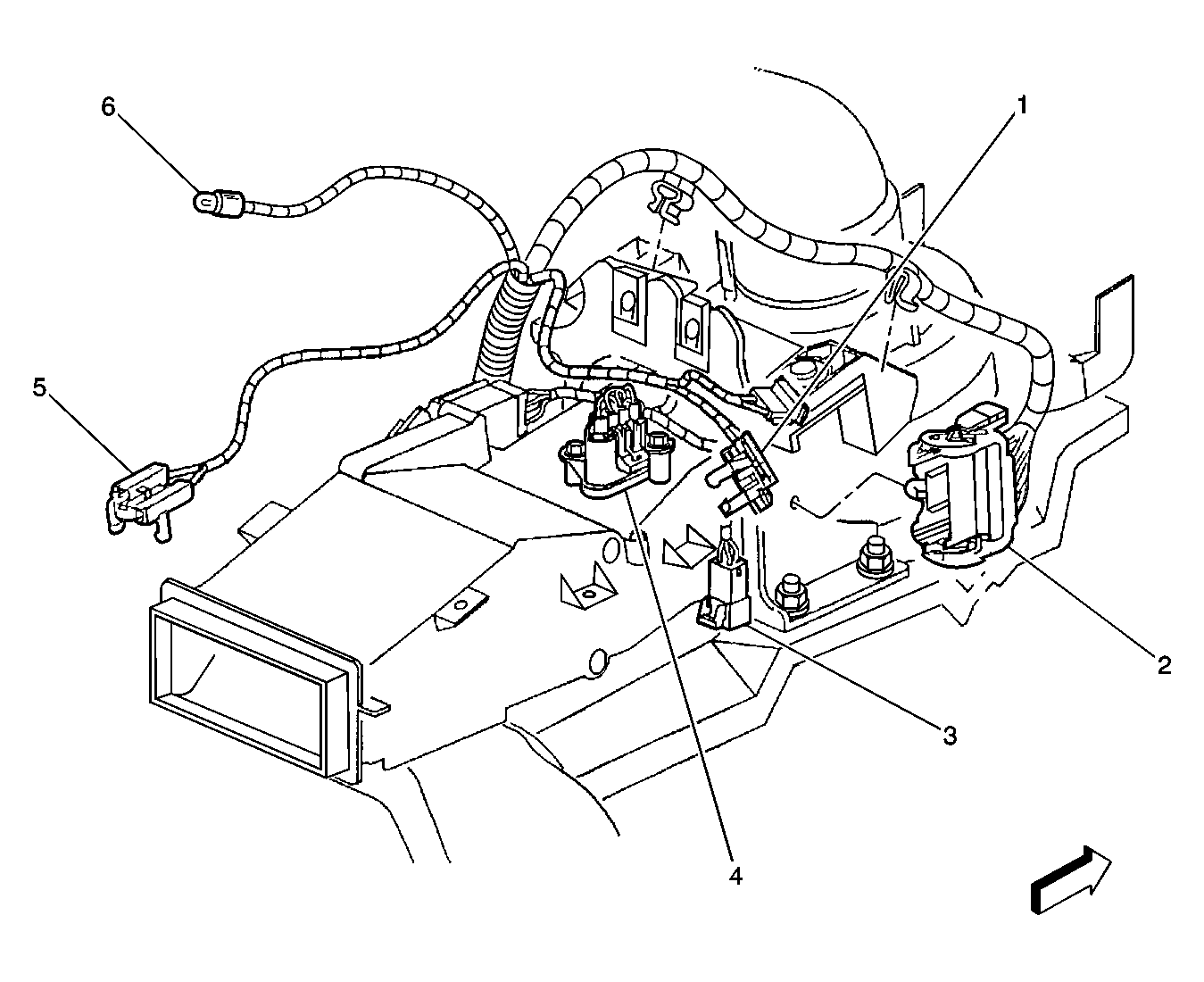

Fig 1: Passenger Compartment, Below the Center of the I/P Component View
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Auxiliary Power Outlet
2
C304
3
C312
4
Blower Motor Resistor Assembly - Auxiliary
5
Cigar Lighter
6
Ashtray Lamp
