Cooling System Component Views

WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

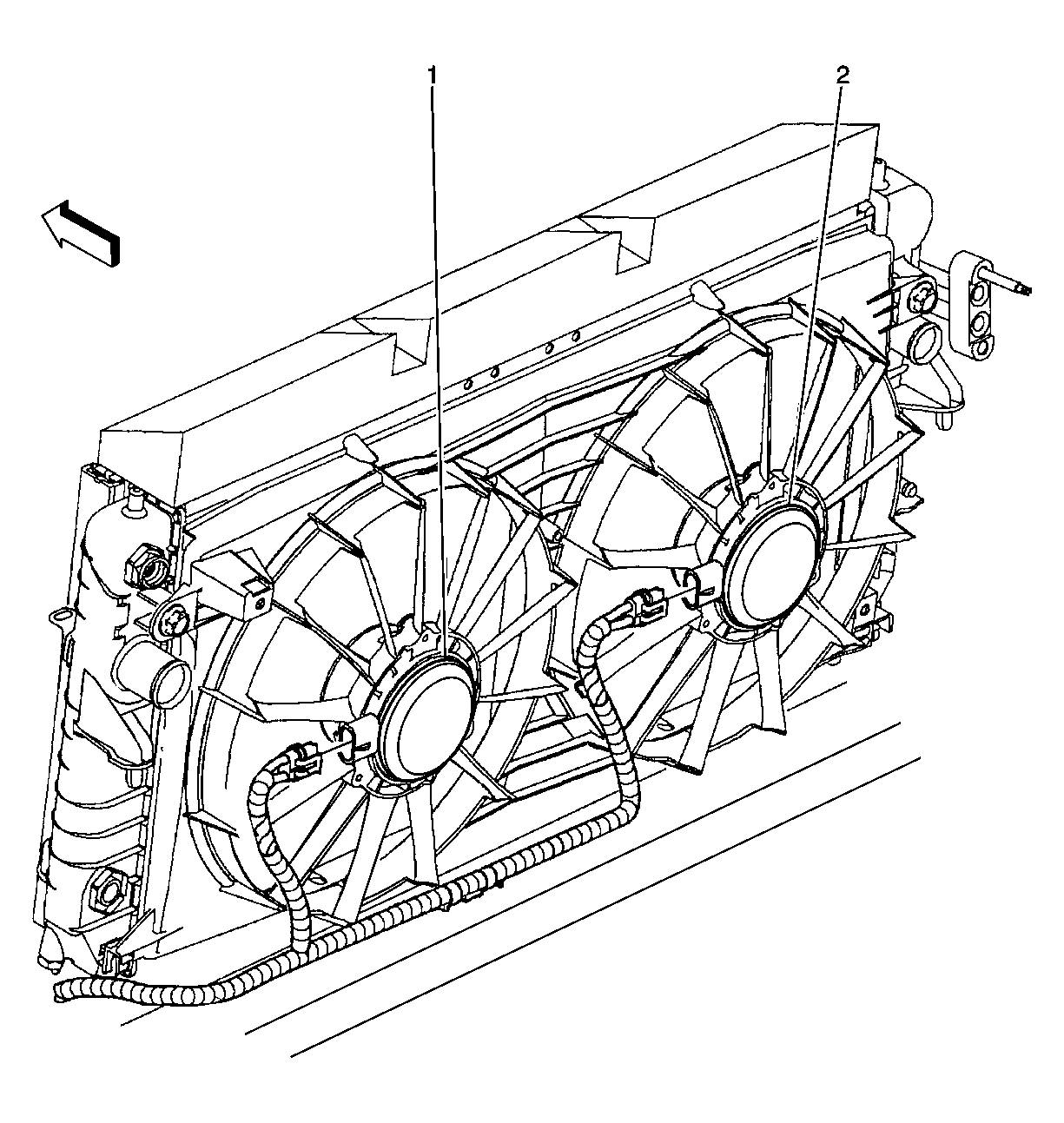

Fig 1: Front of the Engine Compartment, Behind the Radiator Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan - Left
2	Cooling Fan - Right

Fig 2: AIR Relay And Coolant Level Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Secondary Air Injection (AIR) Pump Relay
2	Coolant Level Switch (in Coolant Surge Tank)
