Power Roof Systems Component Views
WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

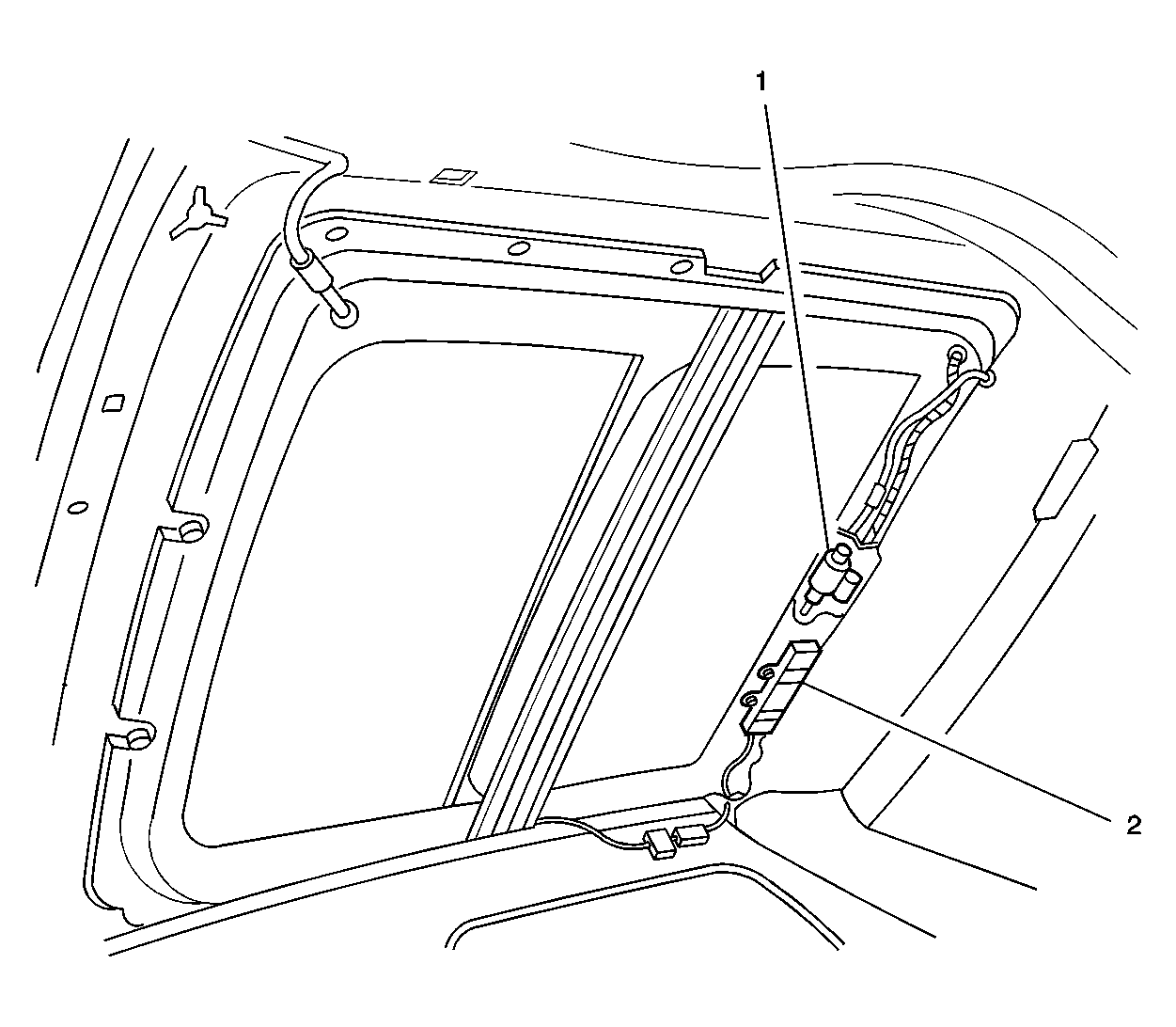

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Sunroof Motor |
| 2 |
Sunroof Module |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Sunroof Slide Switch (Part of the Power Sunroof Switch Assembly) |
| 2 |
Rear Window Sunshade Switch |
| 3 |
Overhead Console Courtesy Lamp |
| 4 |
Noise Compensation Microphone |
| 5 |
Outside Moisture Sensor |
| 6 |
Inside Rearview Mirror |
| 7 |
Overhead Console Courtesy Lamp |
| 8 |
Cellular Telephone Microphone |
| 9 |
Garage Door Opener |
| 10 |
Sunroof Vent Switch (Part of the Power Sunroof Switch Assembly) |
| 11 |
Overhead Console |
