Body Control System Component Views
WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

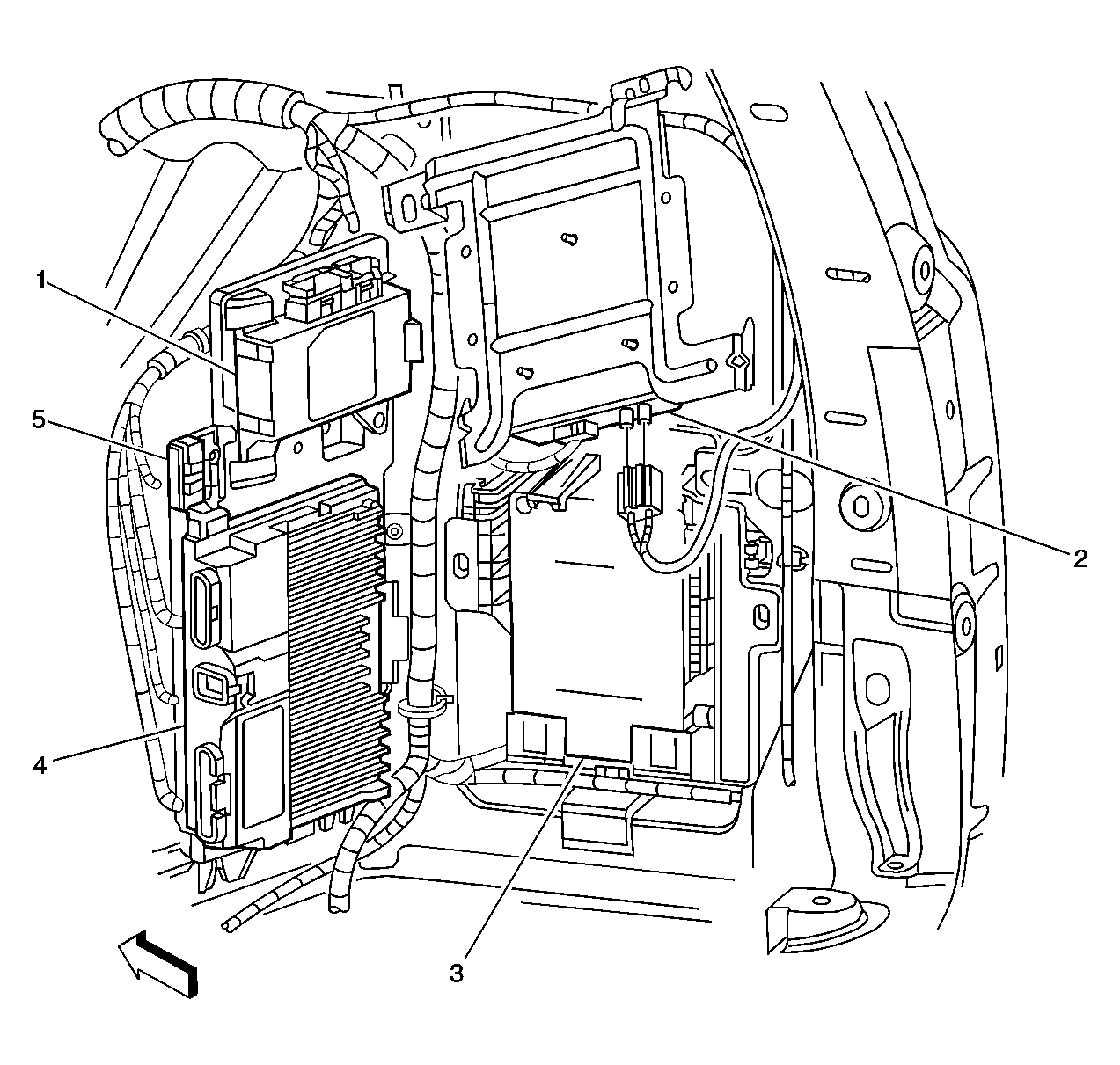

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Rear Integration Module (RIM) |
| 2 |
Digital Radio Receiver (U2K) |
| 3 |
Vehicle Communication Interface Module (VCIM) (UE1) |
| 4 |
Suspension Control Module (F55) |
| 5 |
Liftgate Lock/Unlock Relay |

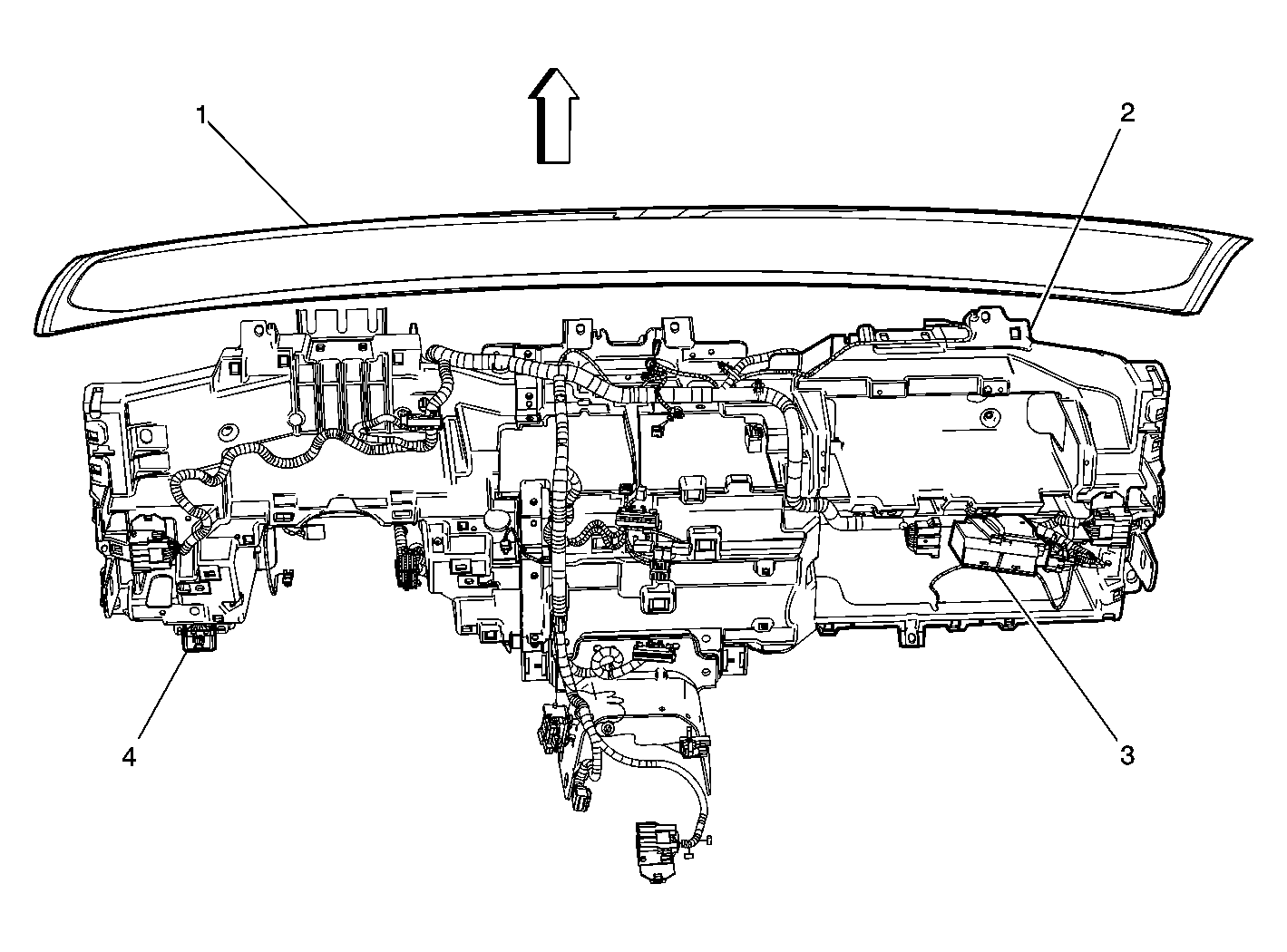

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Windshield |
| 2 |
RH Side of I/P |
| 3 |
Dash Integration Module (DIM) |
| 4 |
Data Link Connector (DLC) |
