Section 249 (Suspension Control System - Suspension Leveling)
>>
Schematic and Routing Diagrams
>>
Automatic Level Control Schematics
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Automatic Level Control Schematics
WARNING:
This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

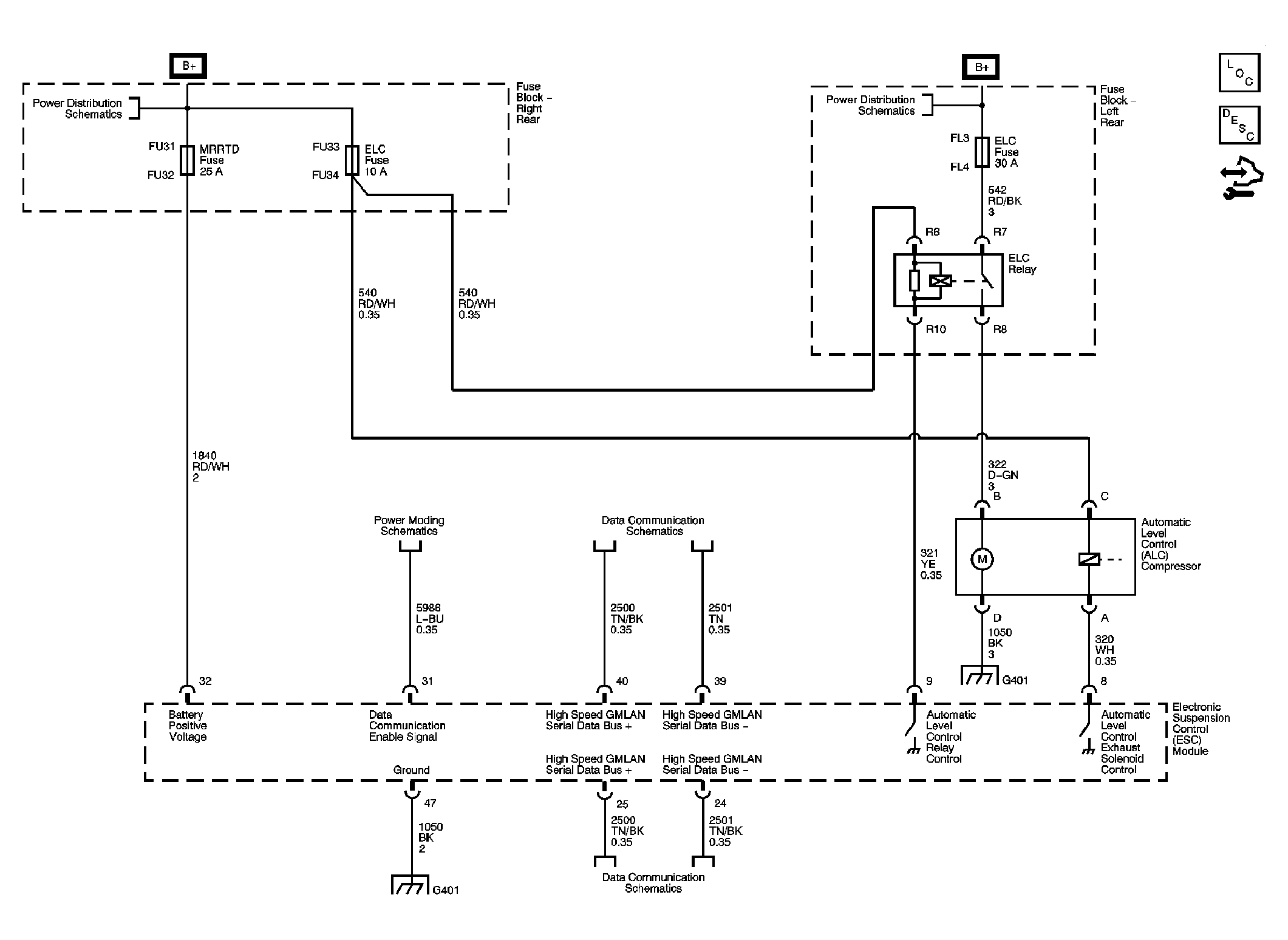

Fig 1: Automatic Level Control Schematic
Courtesy of GENERAL MOTORS CORP.
