Removal Procedure

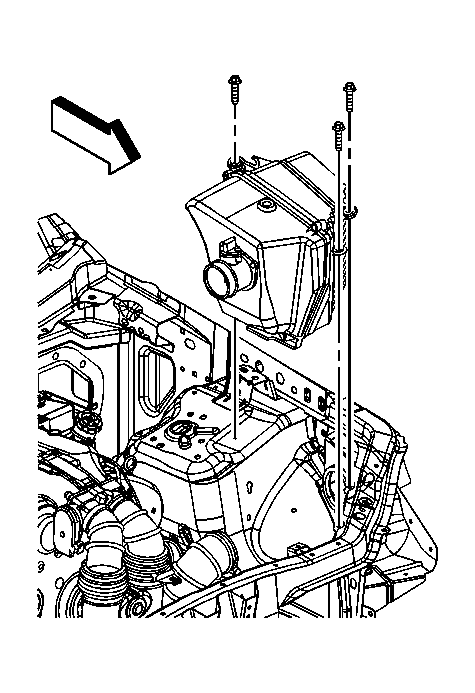

    Fig 1: View Of Air Cleaner
    GM1469647Courtesy of GENERAL MOTORS CORP.
  1. Turn the ignition OFF.
  2. Remove the air cleaner intake duct. Refer to Air Cleaner Intake Duct Replacement .
  3. Disconnect the mass air flow (MAF) electrical connector.
  4. Remove the air cleaner bolts.
  5. Remove the air cleaner.
